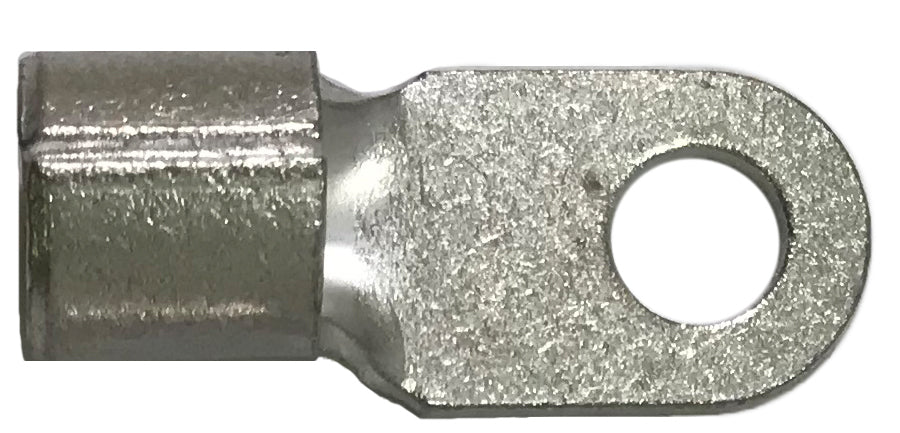

2 AWG Non-Insulated Ring Terminal - 1/4" Stud - 25 to 1000 Pack - Made in USA
These 2 AWG non-insulated ring terminals are precision-manufactured from annealed copper (Alloy 110) and electro tin-plated to deliver superior conductivity and corrosion resistance. Designed for high-durability electrical connections, the terminals feature brazed seams and internal serrations to maximize crimp strength and current transfer.
Specifications & Features
- Wire Gauge: 2 AWG
- Stud Size: 1/4"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- Clear size markings for quick identification
- V-groove serrations improve mechanical hold and conductivity
- Brazed barrel seam enhances durability under stress
- Made in USA
Select Pack Size
From $25.99
2 AWG Non-Insulated Ring Terminal - 1/4" Stud - 25 to 1000 Pack - Made in USA—
$25.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These 2 AWG non-insulated ring terminals are precision-manufactured from annealed copper (Alloy 110) and electro tin-plated to deliver superior conductivity and corrosion resistance. Designed for high-durability electrical connections, the terminals feature brazed seams and internal serrations to maximize crimp strength and current transfer.
Specifications & Features
- Wire Gauge: 2 AWG
- Stud Size: 1/4"
- Material: Pure copper (Alloy 110)
- Plating: Electro tin-plated
- Termination Type: Crimp
- Insulation: Non-insulated
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Meets: MIL-T-10727C Type 1, ASTM B 545 B (.0001–.00025" thick coating)
- Clear size markings for quick identification
- V-groove serrations improve mechanical hold and conductivity
- Brazed barrel seam enhances durability under stress
- Made in USA
