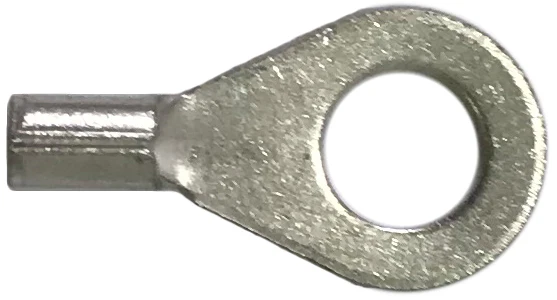

12-10 AWG Non-Insulated Ring Terminals - #10 Stud - 100 to 1000 Pack - Made in USA
Heavy-duty, corrosion-resistant ring terminals built for demanding automotive and industrial electrical applications. These non-insulated copper terminals are designed for crimp-style connections and offer superior conductivity and mechanical strength thanks to their brazed seam barrel and “V” groove serrations.
Specifications & Features
- Terminal Group: Ring Terminal
- Wire Gauge: 12-10 AWG
- Stud Size: #10
- Insulation: Non-Insulated
- Material: Copper (Alloy 110)
- Plating: Electro Tin-Plated
- Termination Type: Crimp
- Barrel Style: Brazed seam
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Size printed on connector
- Meets MIL-T-10727C Type 1, ASTM B545B standards
- Made in USA
Select Pack Size
From $4.37
Original: $12.49
-65%12-10 AWG Non-Insulated Ring Terminals - #10 Stud - 100 to 1000 Pack - Made in USA—
$12.49
$4.37Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Heavy-duty, corrosion-resistant ring terminals built for demanding automotive and industrial electrical applications. These non-insulated copper terminals are designed for crimp-style connections and offer superior conductivity and mechanical strength thanks to their brazed seam barrel and “V” groove serrations.
Specifications & Features
- Terminal Group: Ring Terminal
- Wire Gauge: 12-10 AWG
- Stud Size: #10
- Insulation: Non-Insulated
- Material: Copper (Alloy 110)
- Plating: Electro Tin-Plated
- Termination Type: Crimp
- Barrel Style: Brazed seam
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Size printed on connector
- Meets MIL-T-10727C Type 1, ASTM B545B standards
- Made in USA
