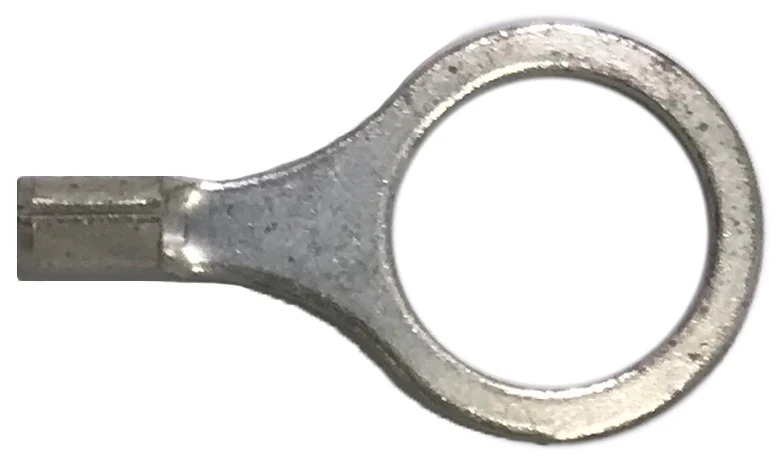

16-14 AWG Non-Insulated Ring Terminals - 1/2" Stud Tin-Plated Copper - 100 or 1000 Pack - Made in USA

These 16–14 AWG non-insulated ring terminals are built for secure, high-conductivity wire connections in demanding automotive and industrial applications. Made from pure annealed copper (Alloy 110) and electro tin-plated for corrosion resistance, each terminal features brazed barrel seams and V-groove serrations for enhanced mechanical retention and current flow after crimping.

Specifications & Features

• Wire Gauge: 16–14 AWG
• Stud Size: 1/2"
• Terminal Type: Non-insulated ring terminal
• Material: Pure copper (Alloy 110), annealed
• Plating: Electro tin-plated
• Termination Type: Crimp
• Seam Type: Brazed barrel
• Serration Design: V-groove serrations improve tensile strength and electrical contact
• Voltage Rating: 600 Volts
• Temperature Rating: Up to 230°F (110°C)
• Certifications: cULus listed
• Markings: Size clearly stamped on terminals for easy identification
• Specification Compliance: MIL-T-10727C Type 1, ASTM B 545 B (.0001"–.00025" plating thickness)
• Made in USA
