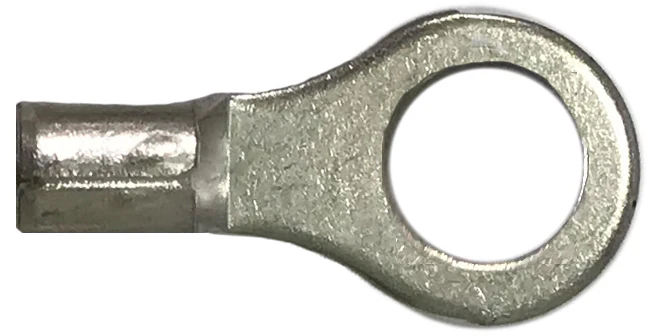

8 AWG Non-Insulated Ring Terminal - 5/16" Stud - 25 to 1000 Pack - Made in USA
This heavy-duty non-insulated ring terminal is built for durability and performance. Manufactured from pure copper (Alloy 110) and electro tin-plated for corrosion resistance, it provides reliable conductivity and crimp integrity in demanding electrical environments. Designed with "V" groove serrations and a brazed barrel seam for maximum pull strength.
Specifications & Features
- Wire Range: 8 AWG
- Stud Size: 5/16"
- Insulation: Non-insulated
- Termination Type: Crimp
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Barrel: Brazed seam with "V" groove serrations
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Standards: MIL-T-10727C Type 1; ASTM B 545 B (.0001"–.00025" plating)
- Clear terminal size markings for quick identification
- Made in USA
Original: $7.99
-65%$7.99
$2.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This heavy-duty non-insulated ring terminal is built for durability and performance. Manufactured from pure copper (Alloy 110) and electro tin-plated for corrosion resistance, it provides reliable conductivity and crimp integrity in demanding electrical environments. Designed with "V" groove serrations and a brazed barrel seam for maximum pull strength.
Specifications & Features
- Wire Range: 8 AWG
- Stud Size: 5/16"
- Insulation: Non-insulated
- Termination Type: Crimp
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Barrel: Brazed seam with "V" groove serrations
- Voltage Rating: 600 Volts
- Temperature Rating: 230°F
- Certifications: cULus listed
- Standards: MIL-T-10727C Type 1; ASTM B 545 B (.0001"–.00025" plating)
- Clear terminal size markings for quick identification
- Made in USA
