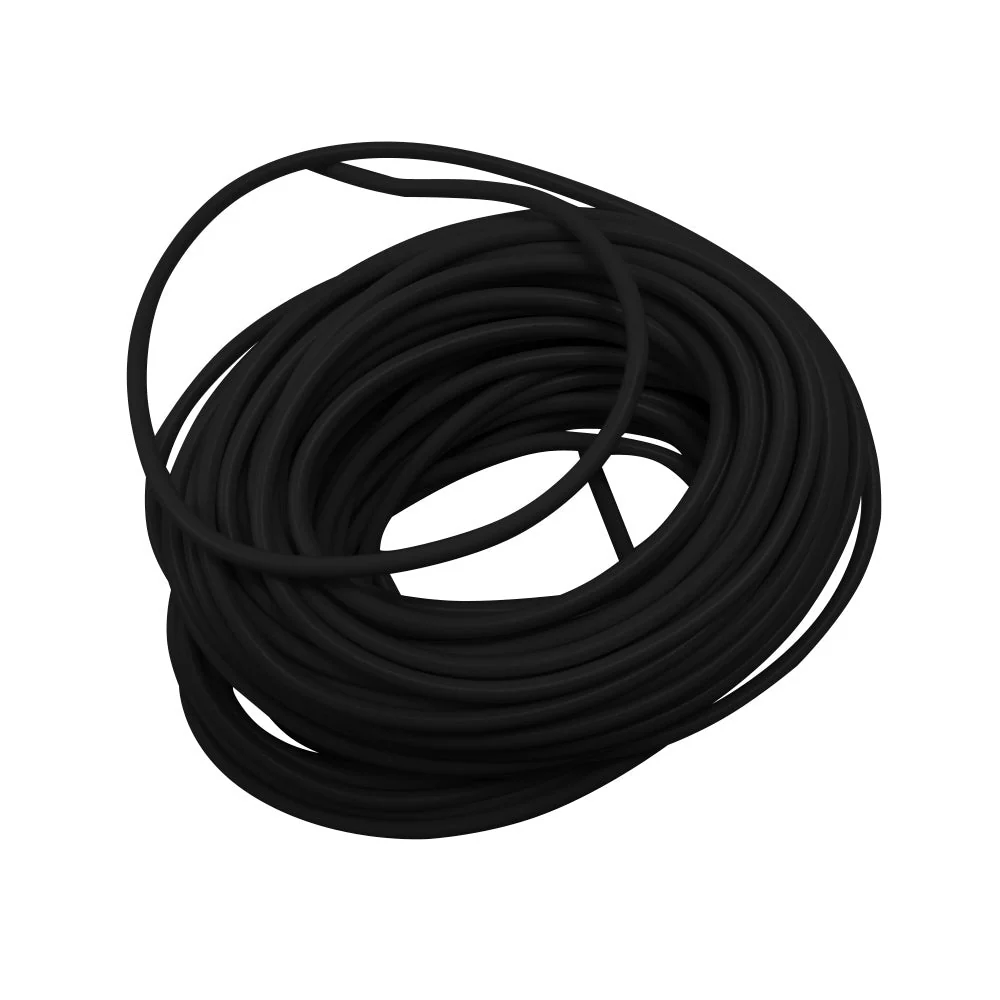

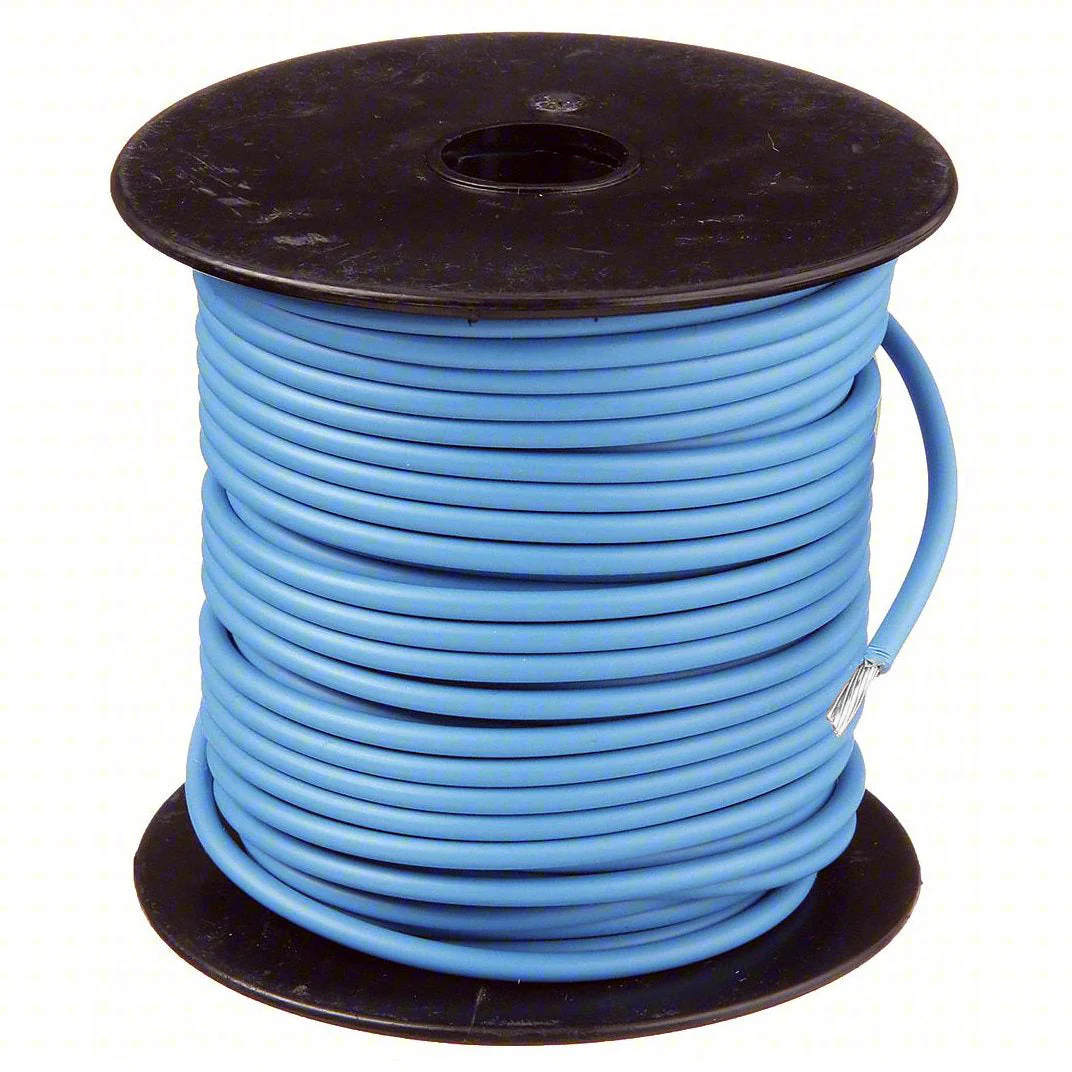

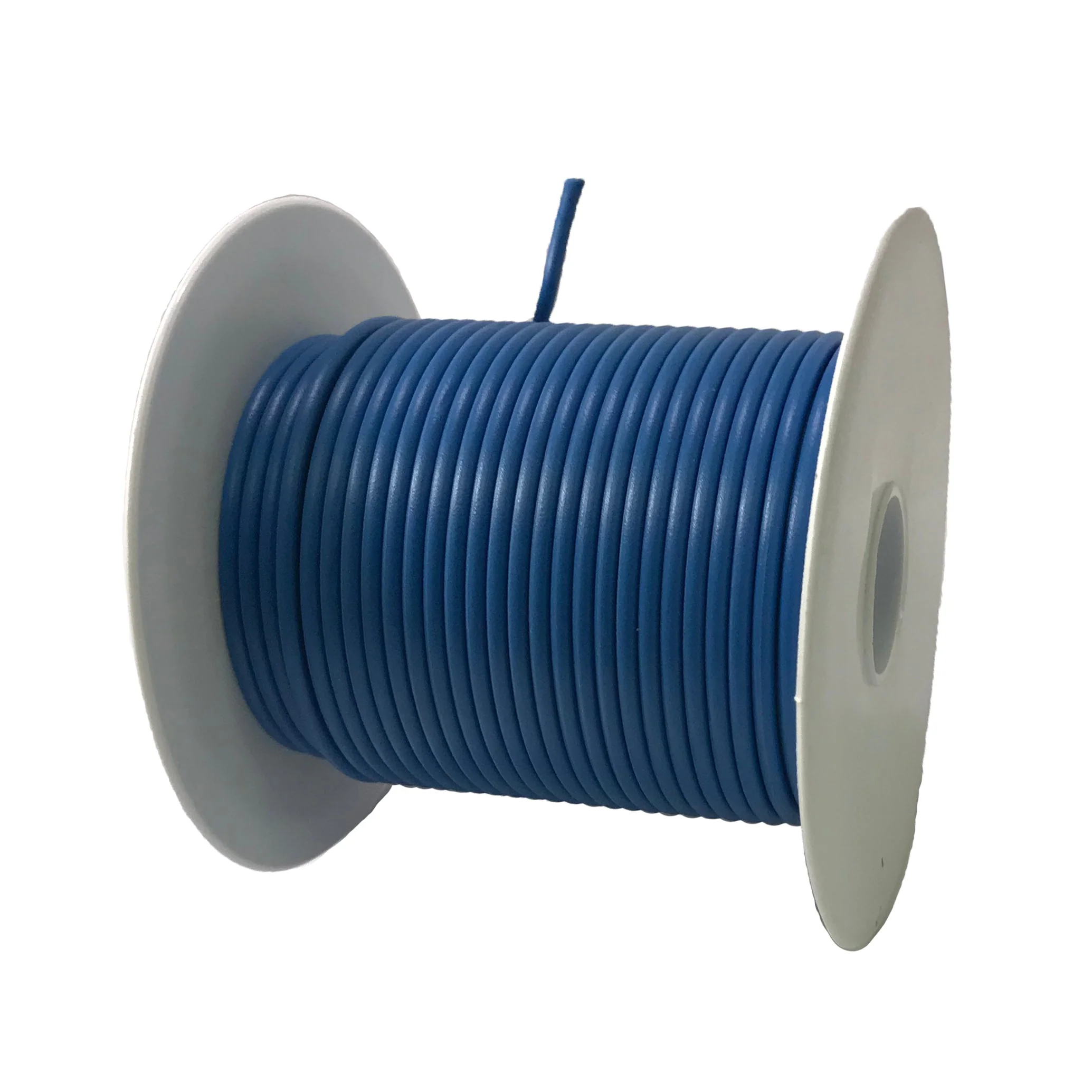

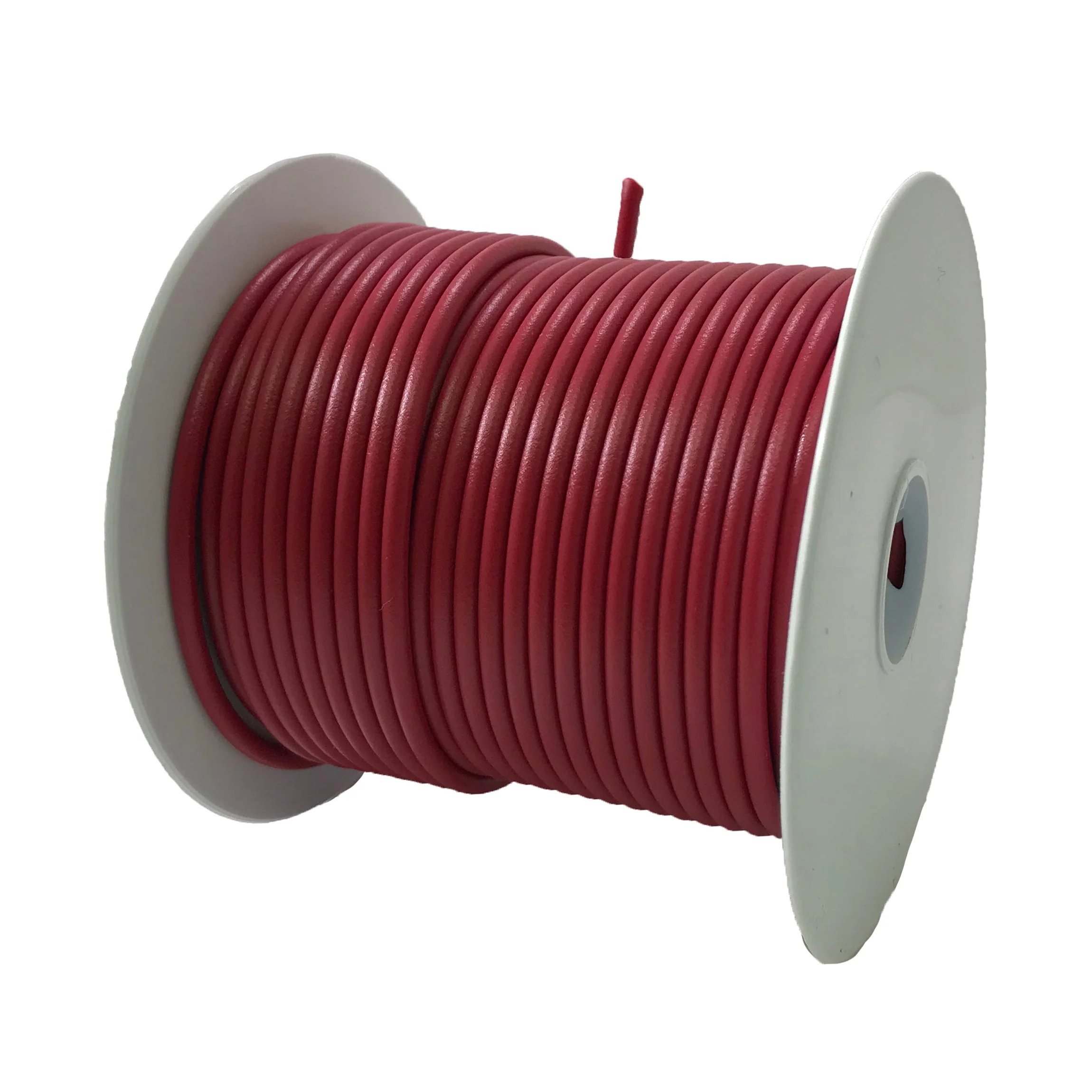

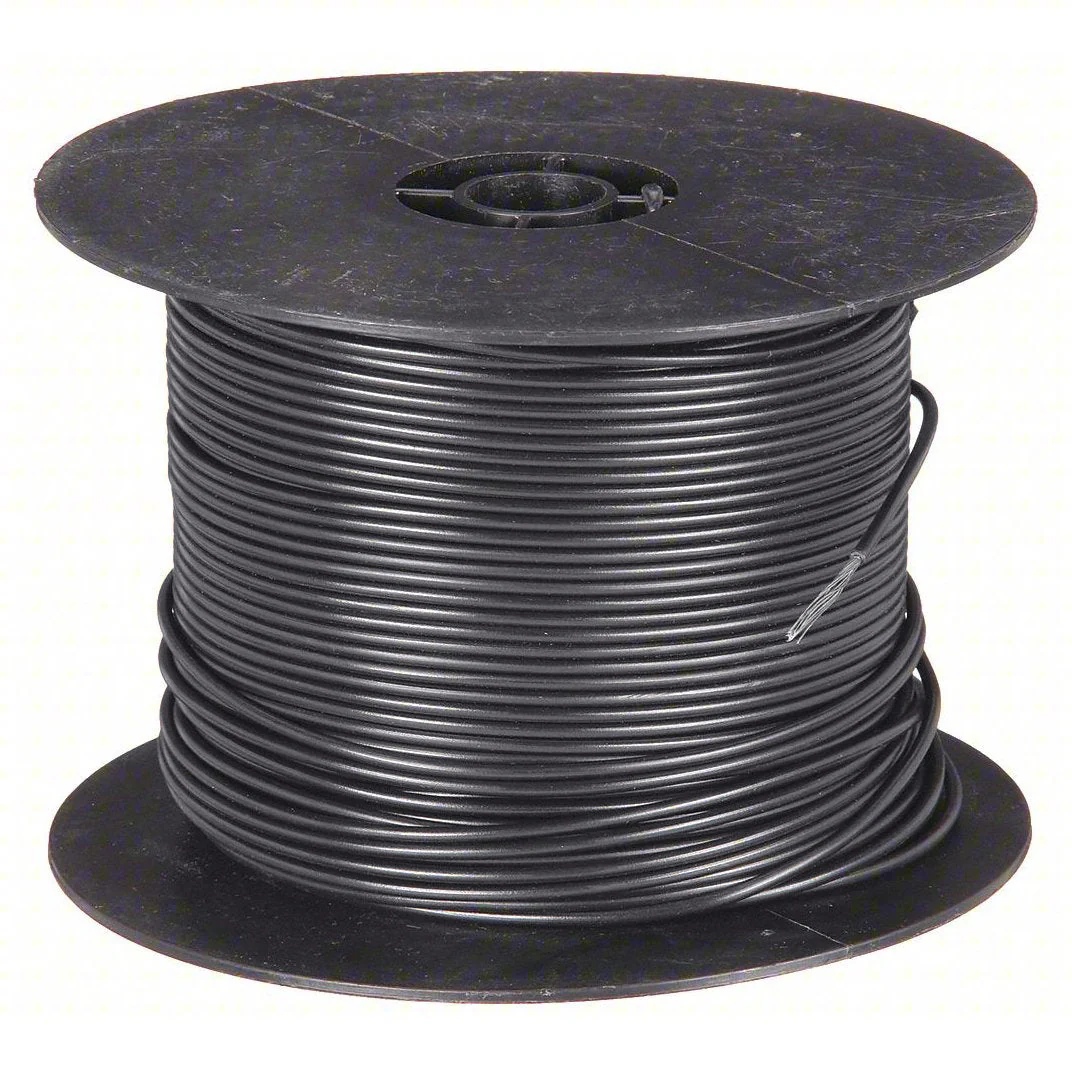

22 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA

22 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA

This 22 AWG marine primary wire is built for low-voltage electrical systems in marine, automotive, trailer, and industrial environments. Constructed from Type III finely stranded tinned copper and protected by color-coded PVC insulation, it delivers corrosion resistance, flexibility, and durability for mission-critical applications.

Specifications & Features

  • Gauge: 22 AWG
  • Stranding: 7 x 0.010"
  • Outside Diameter: 0.093"
  • Conductor Material: Type III tinned copper – ASTM B172 Class K
  • Insulation: Flexible, color-coded PVC
  • Voltage Rating: 600V
  • Temperature Rating: 105°C dry, 60°C wet
  • Standards Met: UL 1426 BC-5W2, MTW, AWM 1015/1230, CSA TEW, ABYC, NMMA
  • Available Colors: Black, Red, Yellow, Blue, Green, Orange, Gray, Brown
  • Resistant to acid, alkali, abrasion, gasoline, oil, flame, and moisture
  • Highly flexible for tight routing and confined panel layouts
  • Made in USA

Application Notes

This wire is ideal for point-to-point wiring, internal panels, lighting, sensors, and control circuits in boats, RVs, trailers, and equipment exposed to harsh conditions. The tinned copper strands resist corrosion in marine environments, while the PVC insulation ensures long-term performance against heat, chemicals, and abrasion. Color-coded insulation supports easy identification during installation and troubleshooting.

Print Legend

(UL) E157097 22 AWG 600V BC-5W2 105°C DRY, 60°C WET OR MTW OR AWM 1015/1230 VW-1 OIL RESISTANT I

Select Color
Select Length
From $2.62

Original: $7.50

-65%
22 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA—

$7.50

$2.62

Product Information

Shipping & Returns

Description

This 22 AWG marine primary wire is built for low-voltage electrical systems in marine, automotive, trailer, and industrial environments. Constructed from Type III finely stranded tinned copper and protected by color-coded PVC insulation, it delivers corrosion resistance, flexibility, and durability for mission-critical applications.

Specifications & Features

  • Gauge: 22 AWG
  • Stranding: 7 x 0.010"
  • Outside Diameter: 0.093"
  • Conductor Material: Type III tinned copper – ASTM B172 Class K
  • Insulation: Flexible, color-coded PVC
  • Voltage Rating: 600V
  • Temperature Rating: 105°C dry, 60°C wet
  • Standards Met: UL 1426 BC-5W2, MTW, AWM 1015/1230, CSA TEW, ABYC, NMMA
  • Available Colors: Black, Red, Yellow, Blue, Green, Orange, Gray, Brown
  • Resistant to acid, alkali, abrasion, gasoline, oil, flame, and moisture
  • Highly flexible for tight routing and confined panel layouts
  • Made in USA

Application Notes

This wire is ideal for point-to-point wiring, internal panels, lighting, sensors, and control circuits in boats, RVs, trailers, and equipment exposed to harsh conditions. The tinned copper strands resist corrosion in marine environments, while the PVC insulation ensures long-term performance against heat, chemicals, and abrasion. Color-coded insulation supports easy identification during installation and troubleshooting.

Print Legend

(UL) E157097 22 AWG 600V BC-5W2 105°C DRY, 60°C WET OR MTW OR AWM 1015/1230 VW-1 OIL RESISTANT I
