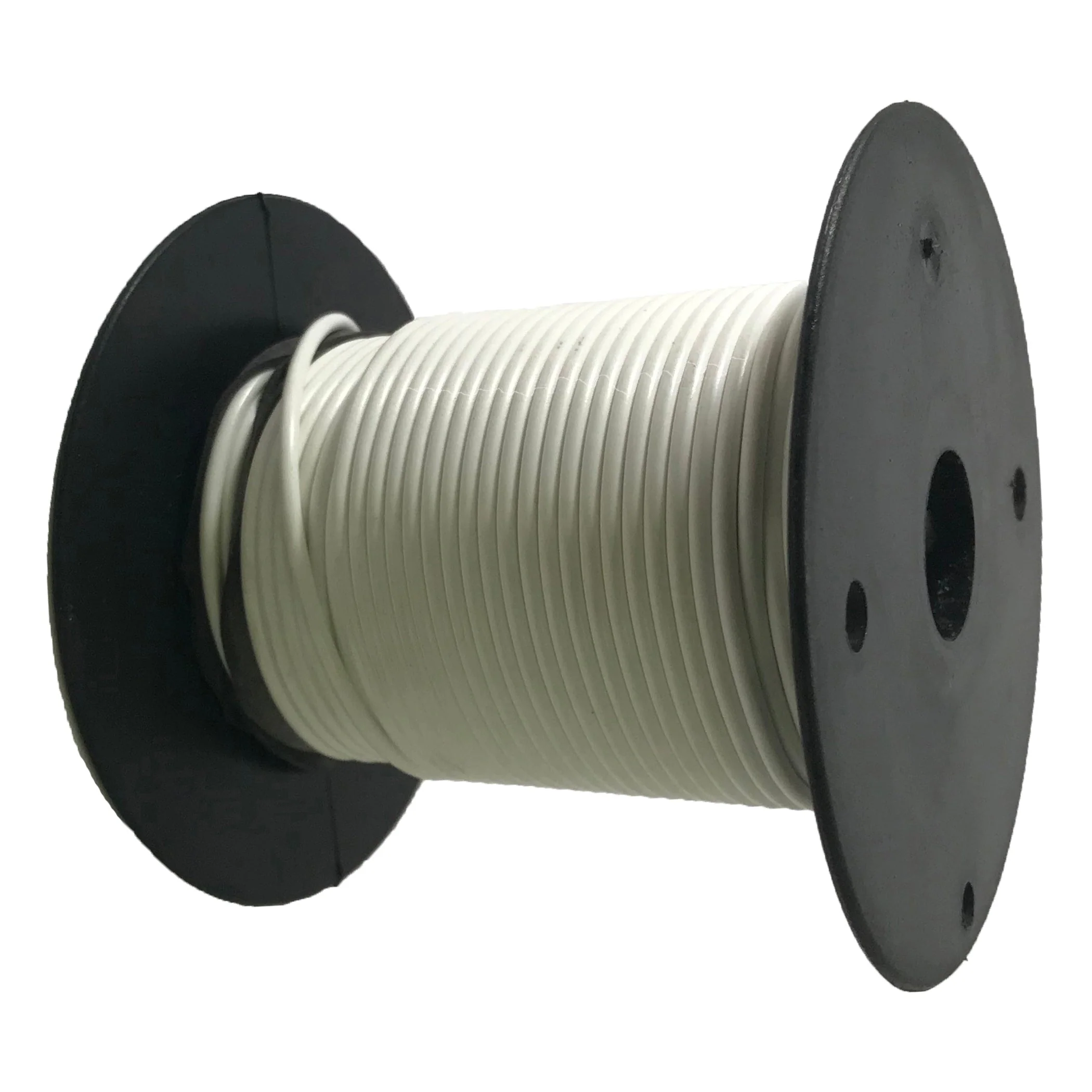

Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25

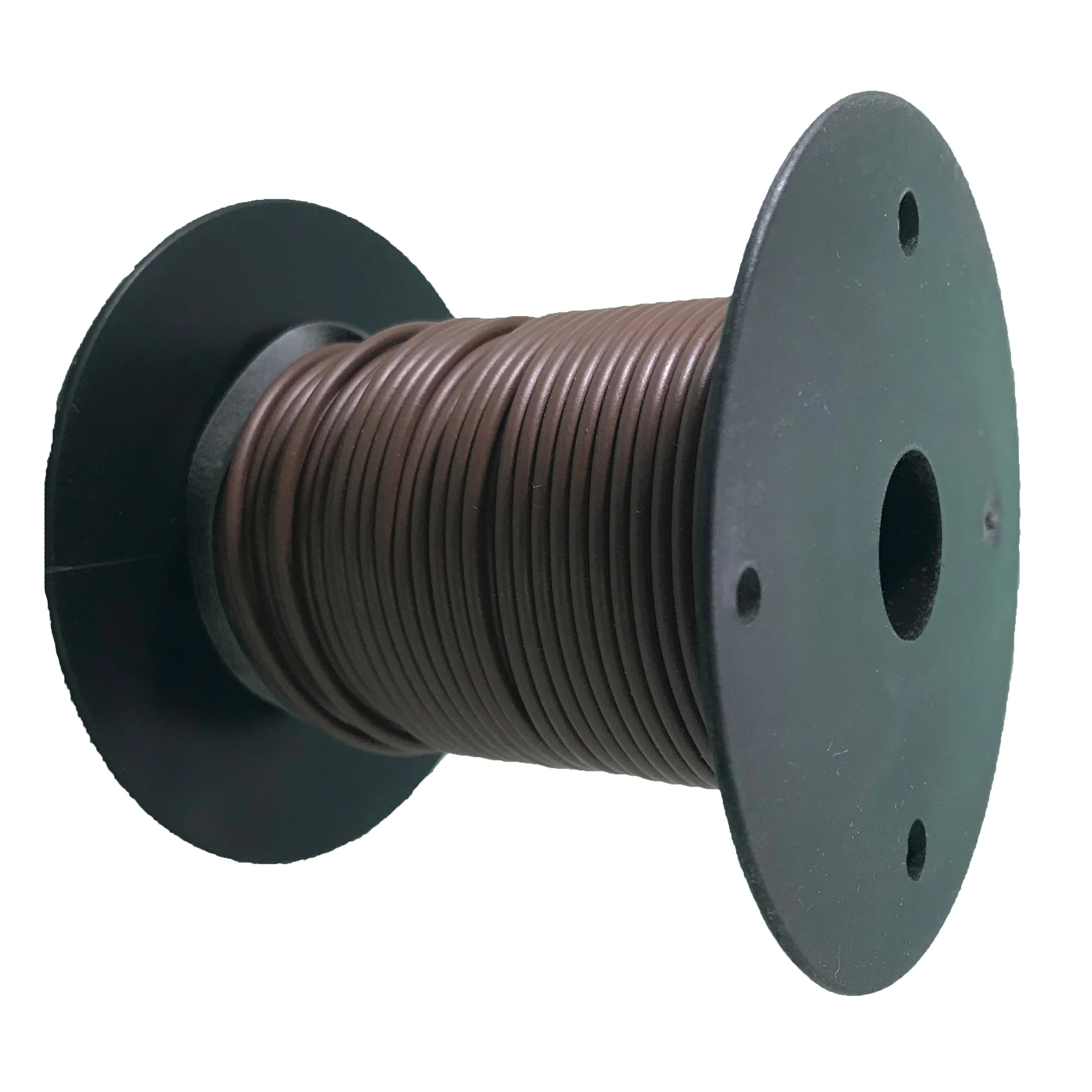

Product image 26

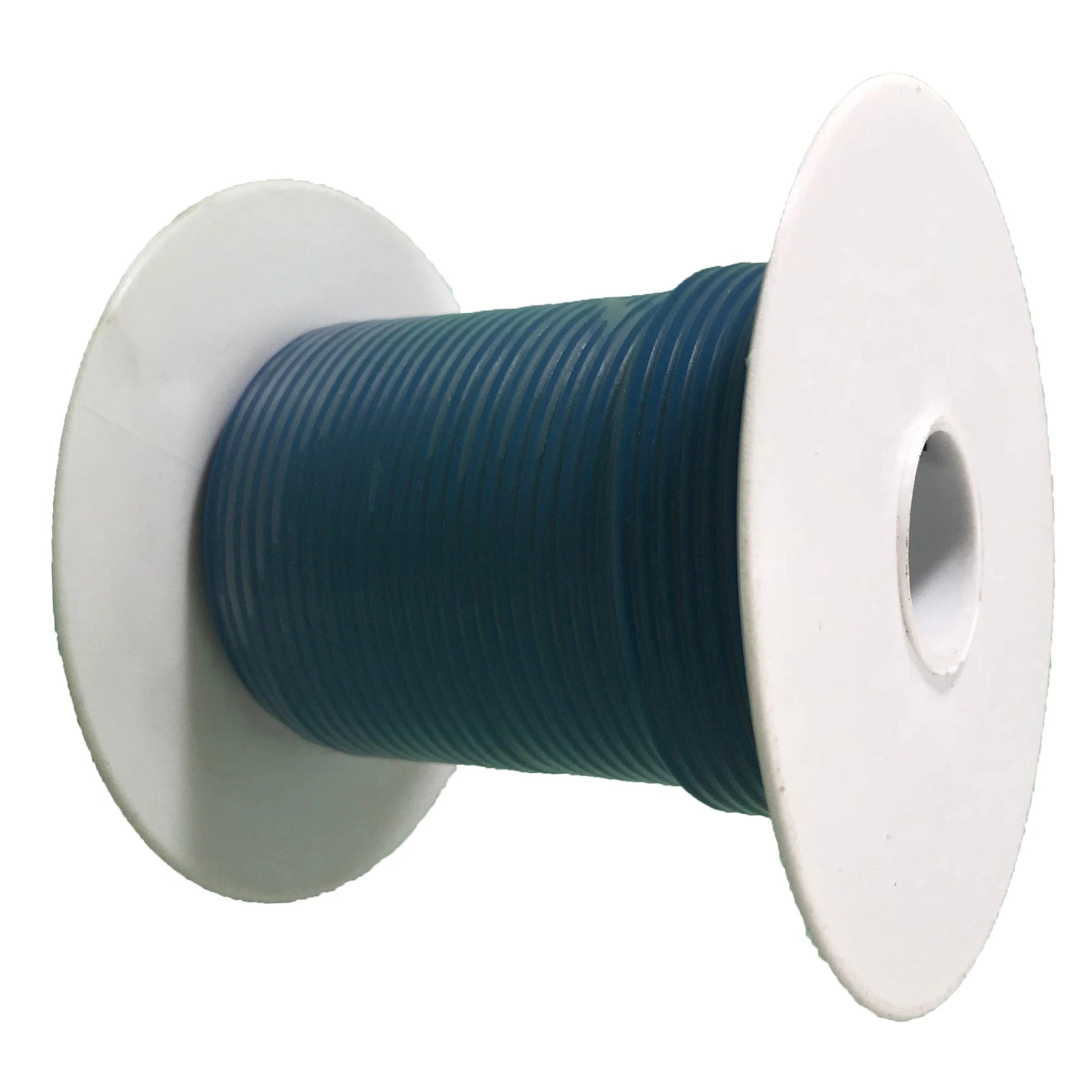

Product image 27
Product image 28

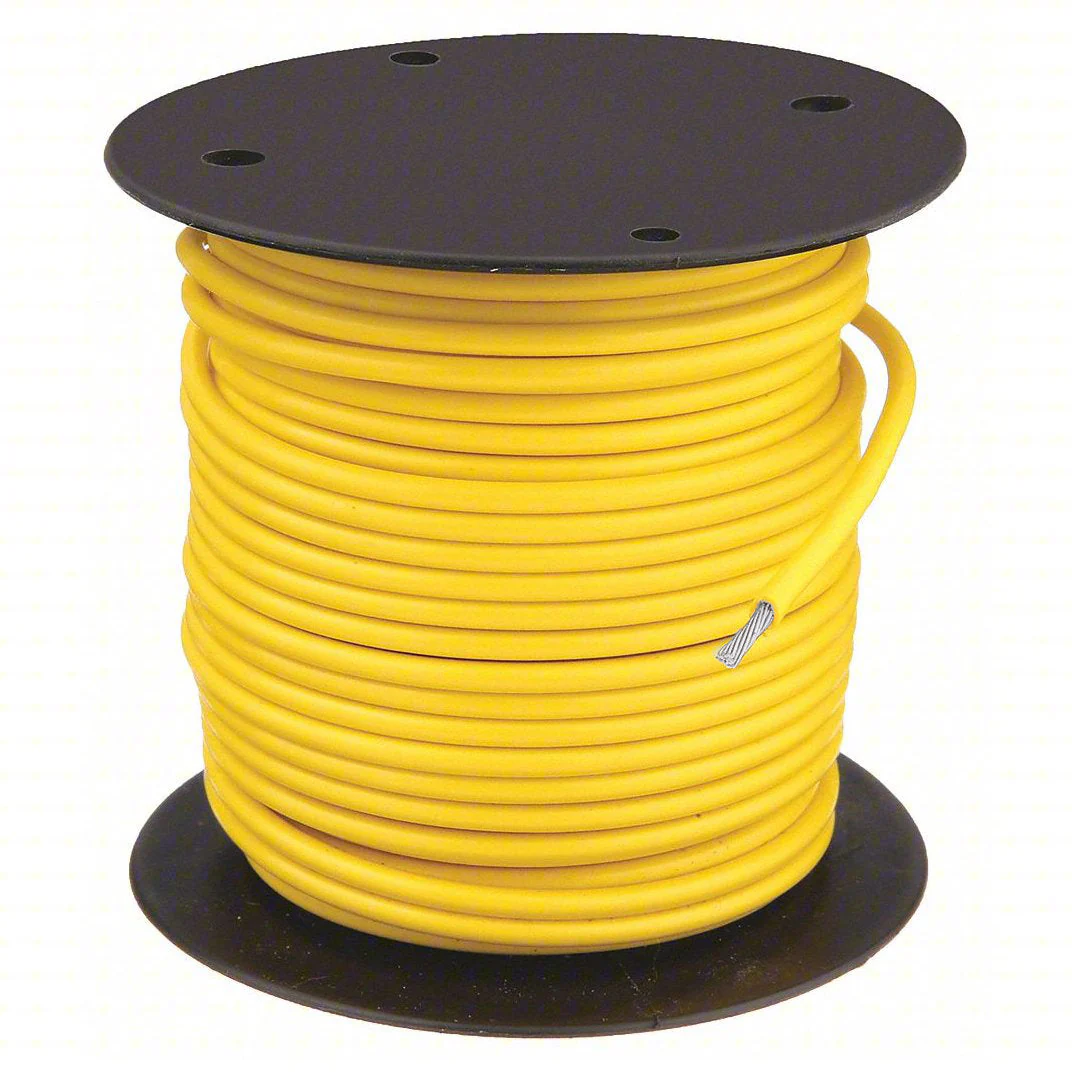

Product image 29
Product image 30
Product image 31

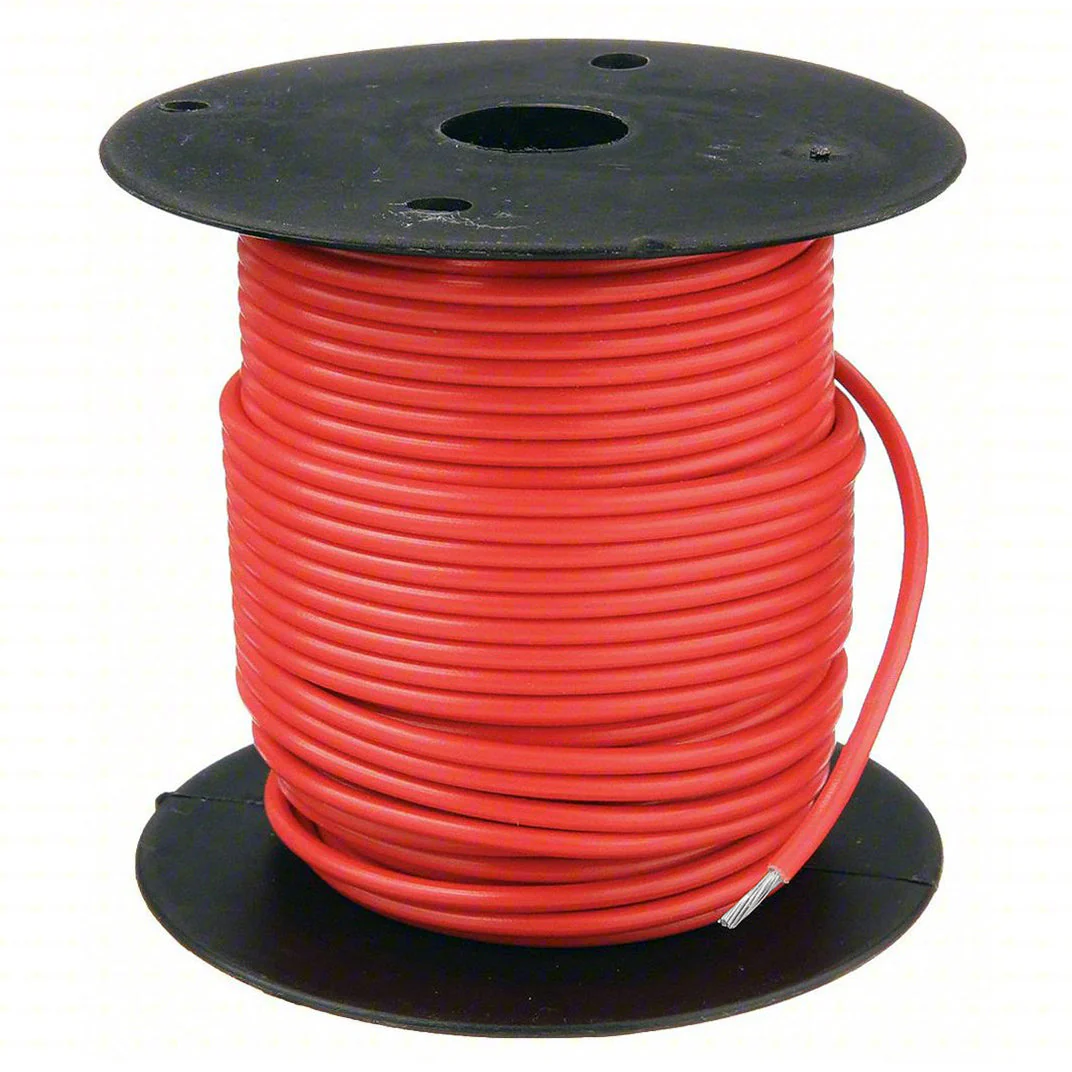

Product image 32
Product image 33
Product image 34

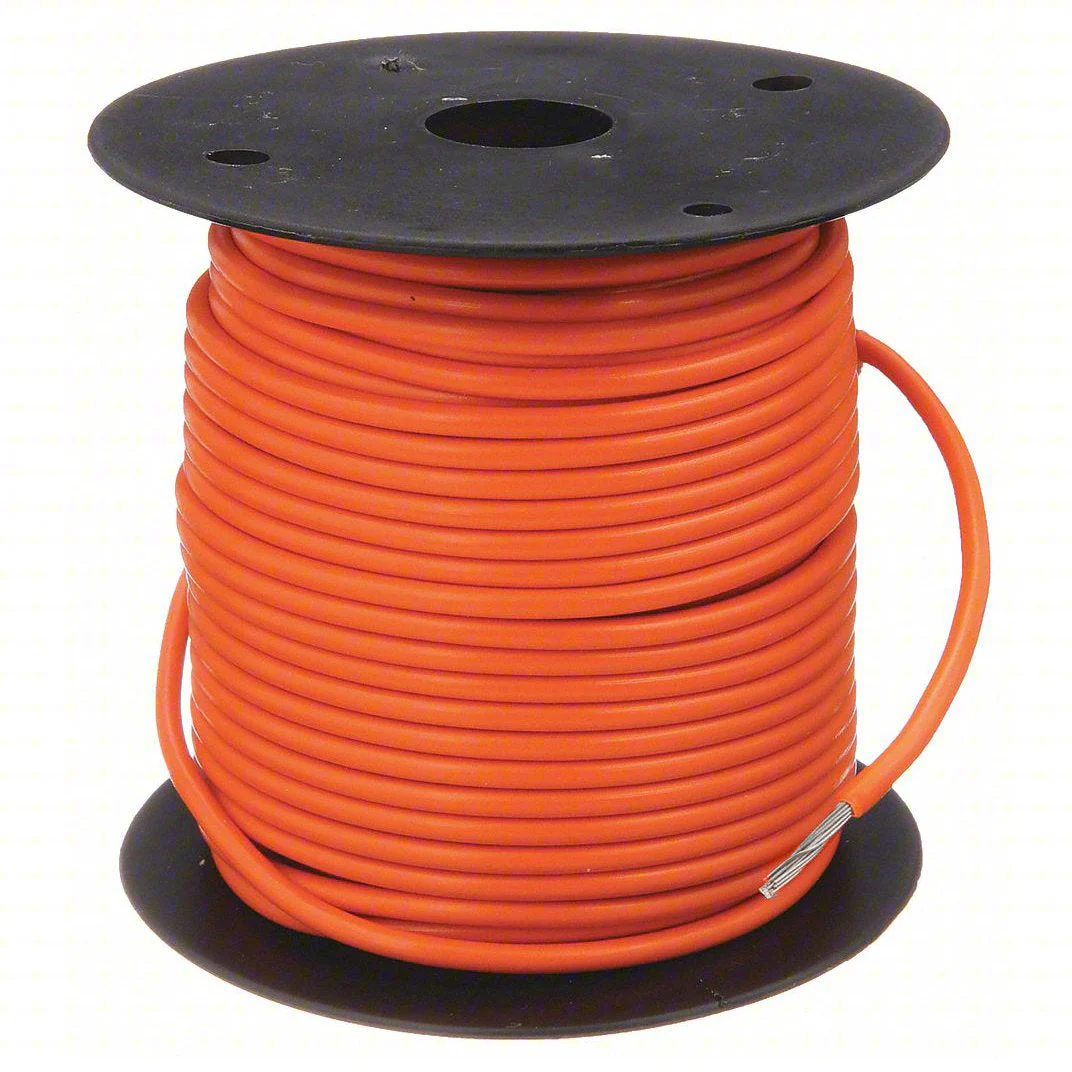

Product image 35

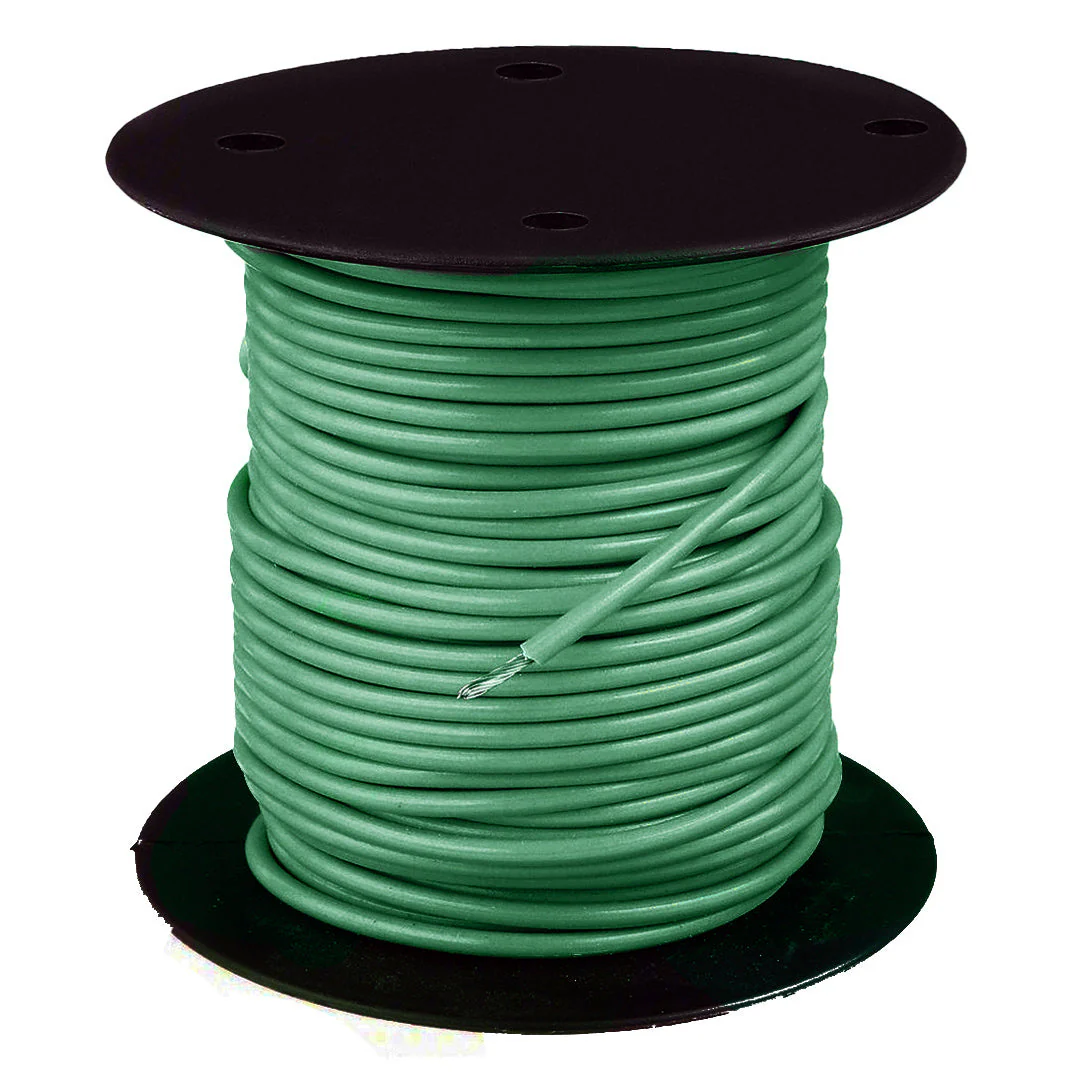

Product image 36
Product image 37
Product image 38
Product image 39
Product image 40

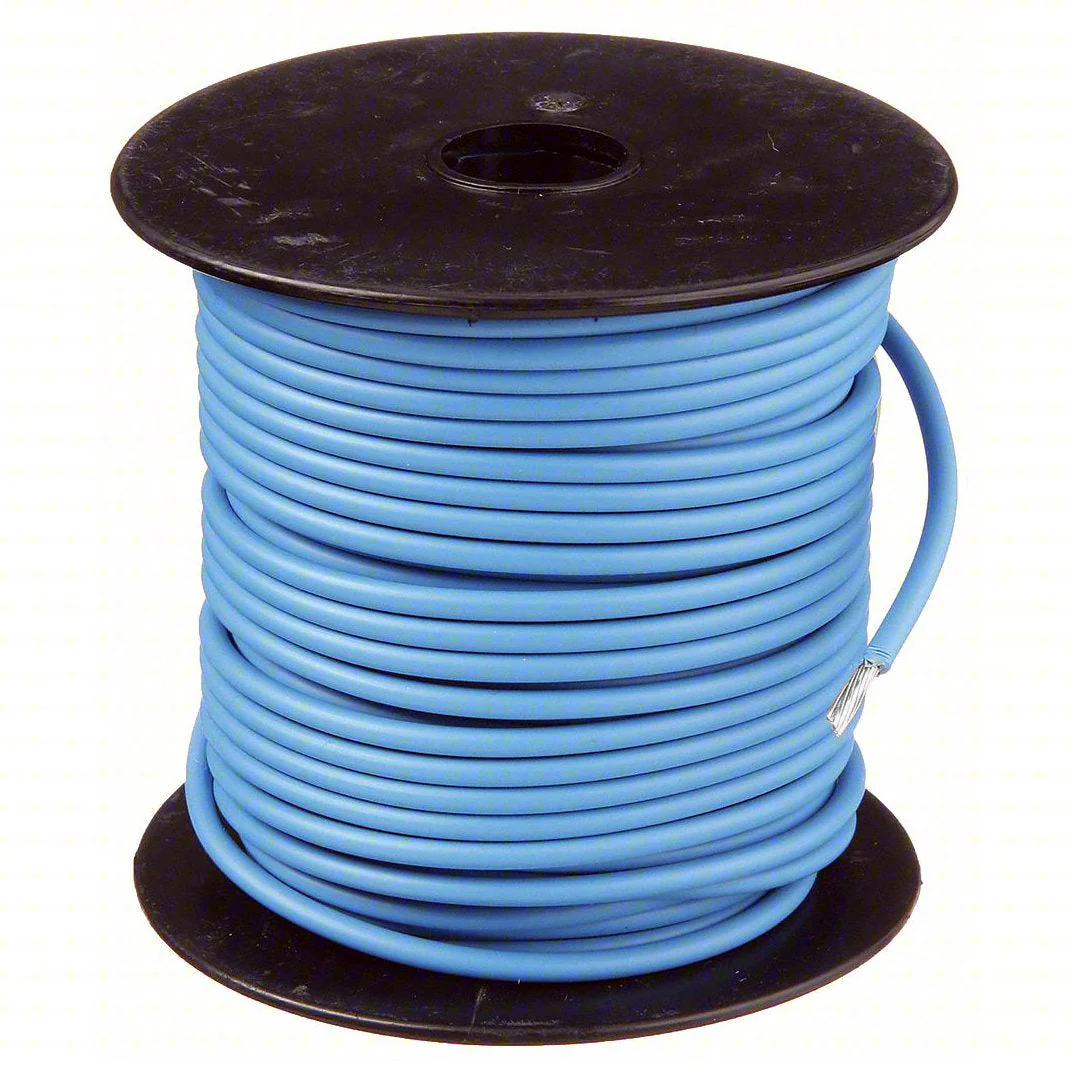

Product image 41
Product image 42
HomeStore

16 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA

16 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA

This 16 AWG marine primary wire is engineered for marine, automotive, and trailer applications where corrosion resistance, flexibility, and electrical reliability are critical. Built with 26 strands of tinned copper (ASTM B172 Class K) and insulated in color-coded PVC, this wire meets UL 1426 BC-5W2 and other marine-grade standards for high-performance environments.

Specifications & Features

  • Gauge: 16 AWG
  • Stranding: 26 x 0.010"
  • Outside Diameter: 0.125"
  • Conductor Material: Tinned copper – ASTM B172 Class K
  • Insulation: Flexible, color-coded PVC
  • Voltage Rating: 600V
  • Temperature Rating: 105°C dry, 75°C wet
  • Standards Met: UL 1426 BC-5W2, MTW, AWM, ABYC E-11.14, USCG 33 CFR 183.401
  • Available Colors: Black, Red, Yellow, White, Blue, Green, Tan, Purple, Pink, Orange, Light Green, Light Blue, Gray, Brown
  • Resistant to acid, alkali, abrasion, gasoline, flame, oil, and moisture
  • Highly flexible for tight bends and marine routing
  • Made in USA

Application Notes

This marine-grade primary wire is ideal for point-to-point wiring, internal control panels, and low-voltage systems in boats, trailers, RVs, and off-road equipment. The tinned copper conductor resists corrosion in harsh environments, while the PVC jacket provides protection against abrasion and chemical exposure. Color options support quick circuit identification and troubleshooting in OEM and aftermarket setups.

Select Color
Select Length
From $3.15

Original: $8.99

-65%
16 Gauge Marine Primary Wire - Tinned Copper - 25 ft to 500 ft - Made in USA—

$8.99

$3.15

Product Information

Shipping & Returns

Description

This 16 AWG marine primary wire is engineered for marine, automotive, and trailer applications where corrosion resistance, flexibility, and electrical reliability are critical. Built with 26 strands of tinned copper (ASTM B172 Class K) and insulated in color-coded PVC, this wire meets UL 1426 BC-5W2 and other marine-grade standards for high-performance environments.

Specifications & Features

  • Gauge: 16 AWG
  • Stranding: 26 x 0.010"
  • Outside Diameter: 0.125"
  • Conductor Material: Tinned copper – ASTM B172 Class K
  • Insulation: Flexible, color-coded PVC
  • Voltage Rating: 600V
  • Temperature Rating: 105°C dry, 75°C wet
  • Standards Met: UL 1426 BC-5W2, MTW, AWM, ABYC E-11.14, USCG 33 CFR 183.401
  • Available Colors: Black, Red, Yellow, White, Blue, Green, Tan, Purple, Pink, Orange, Light Green, Light Blue, Gray, Brown
  • Resistant to acid, alkali, abrasion, gasoline, flame, oil, and moisture
  • Highly flexible for tight bends and marine routing
  • Made in USA

Application Notes

This marine-grade primary wire is ideal for point-to-point wiring, internal control panels, and low-voltage systems in boats, trailers, RVs, and off-road equipment. The tinned copper conductor resists corrosion in harsh environments, while the PVC jacket provides protection against abrasion and chemical exposure. Color options support quick circuit identification and troubleshooting in OEM and aftermarket setups.
