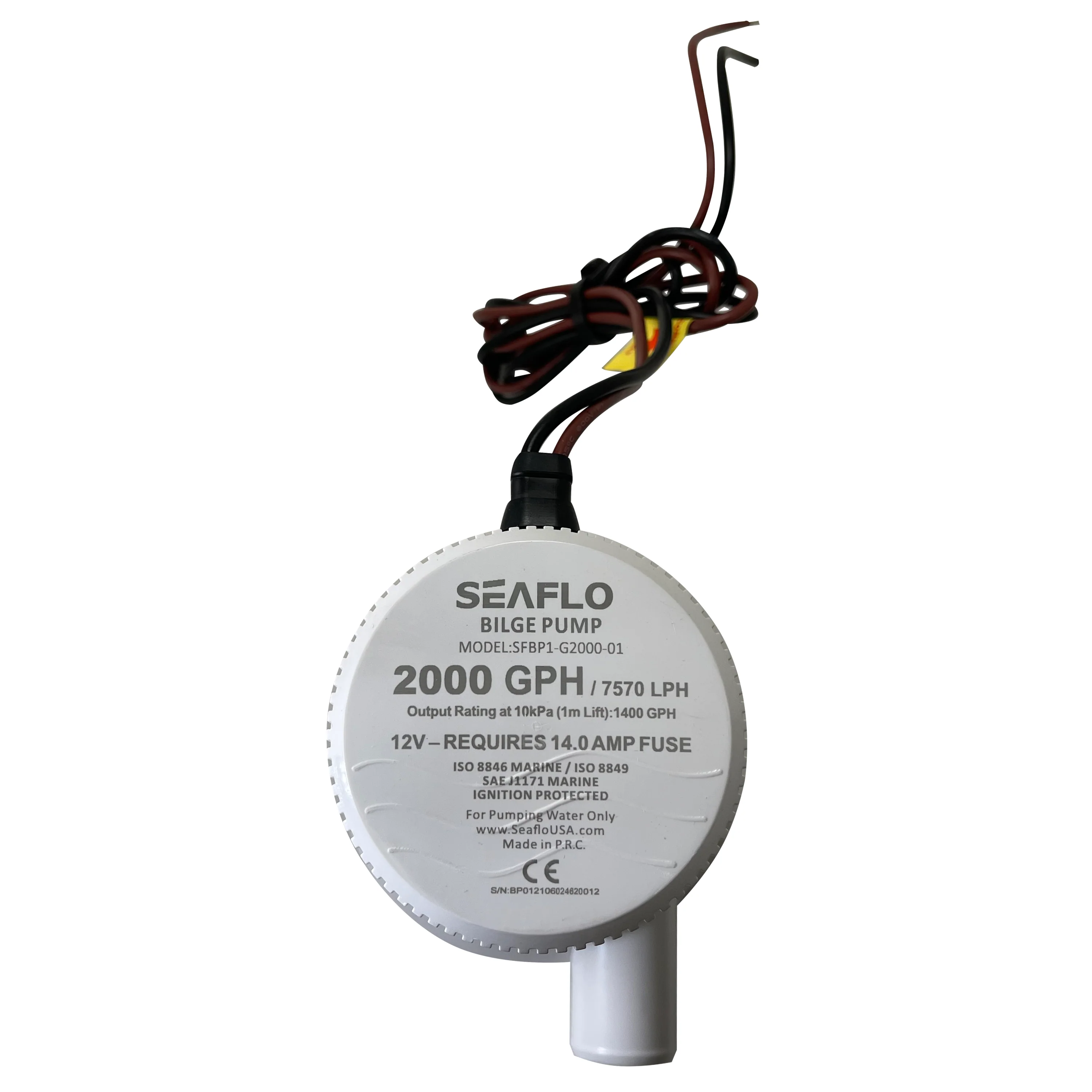

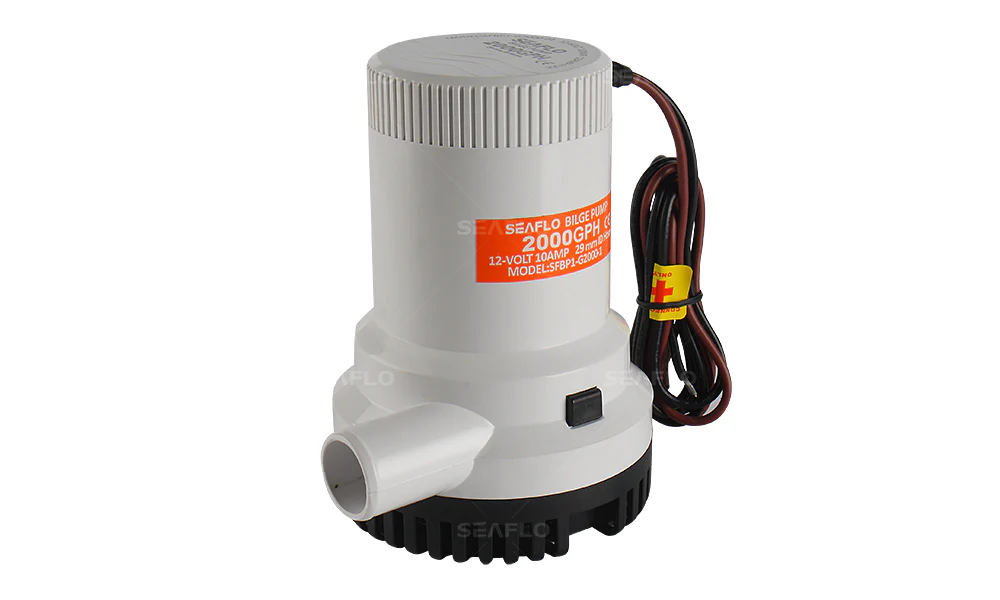

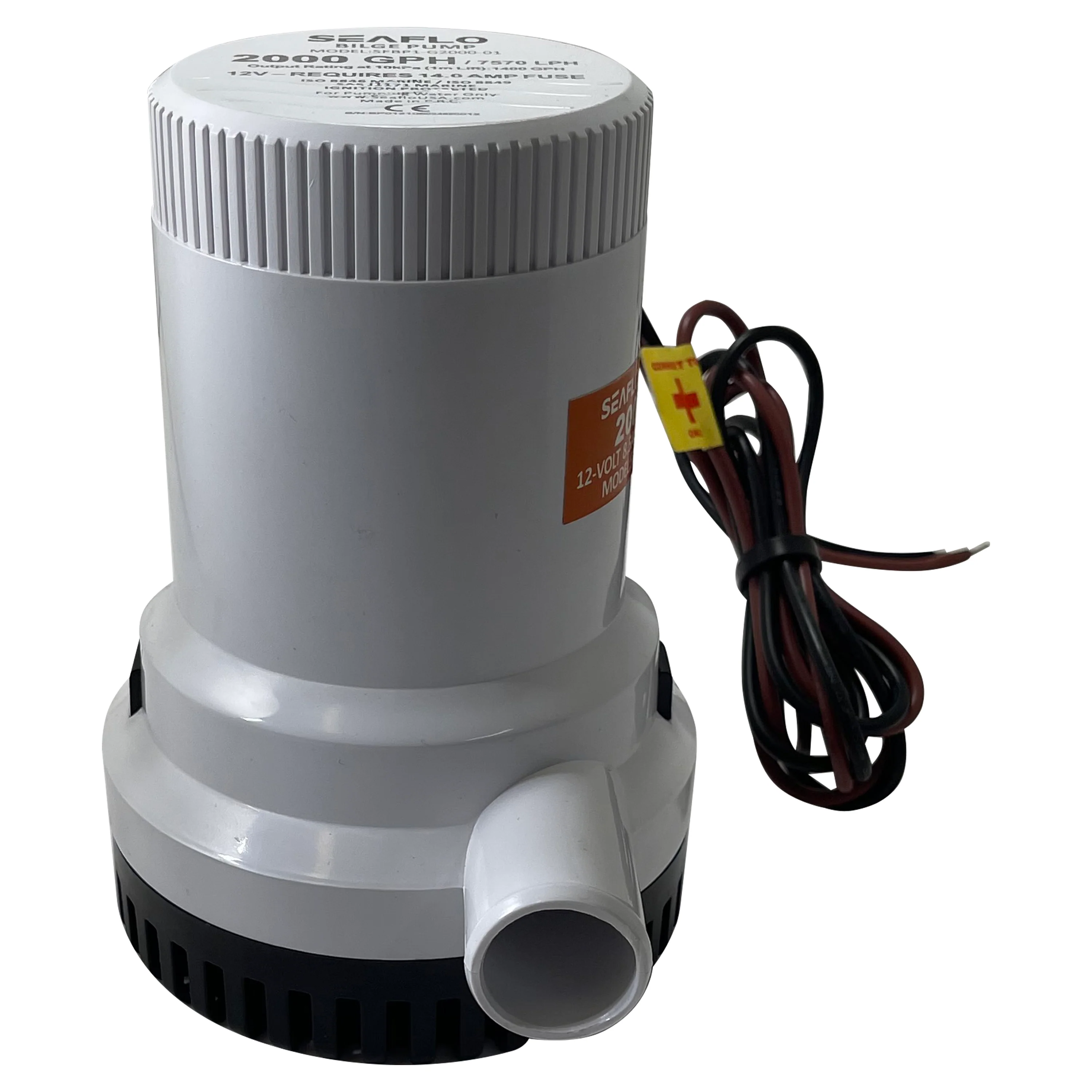

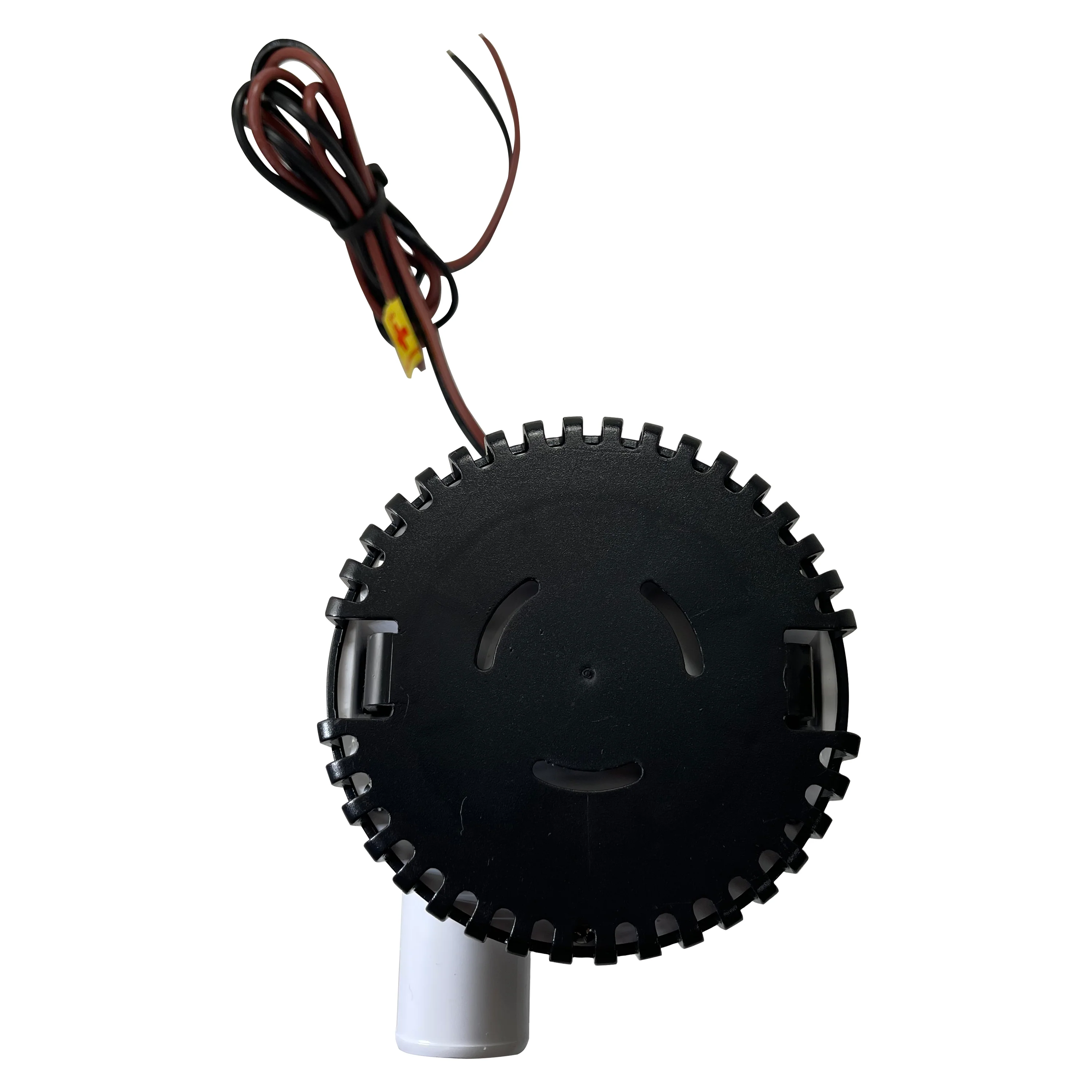

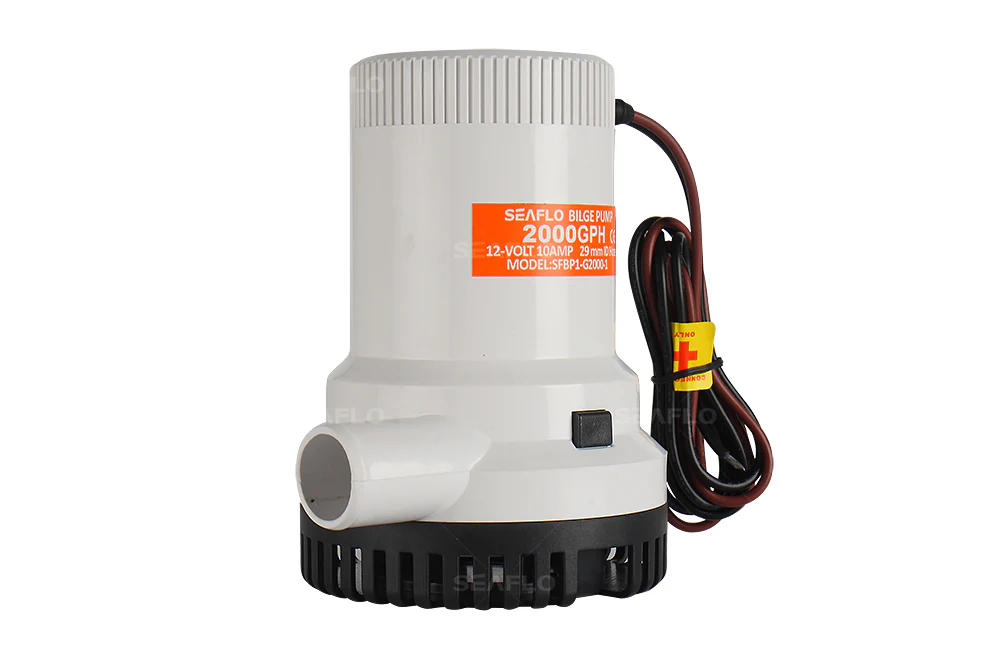

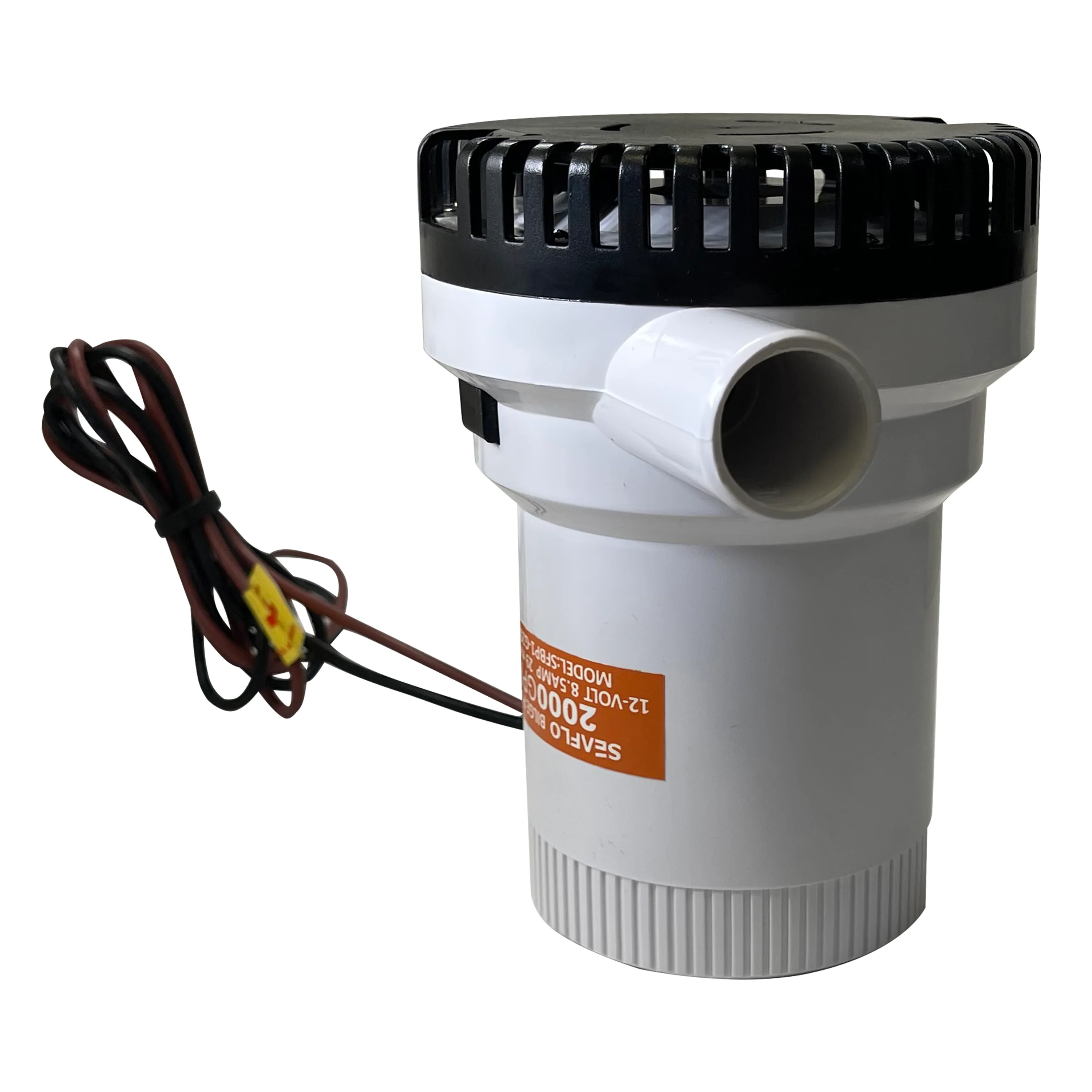

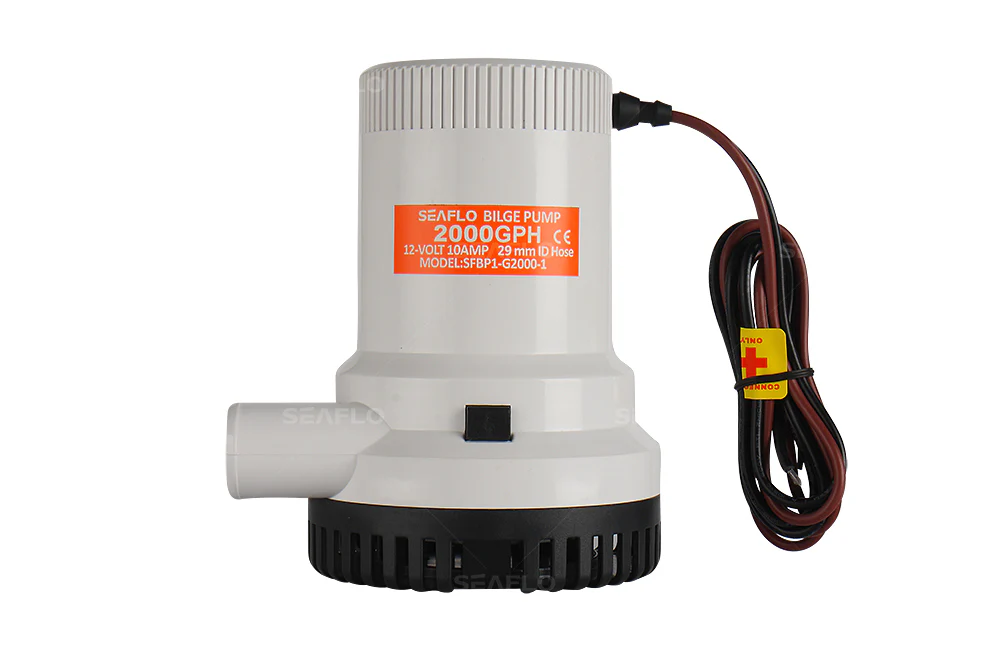

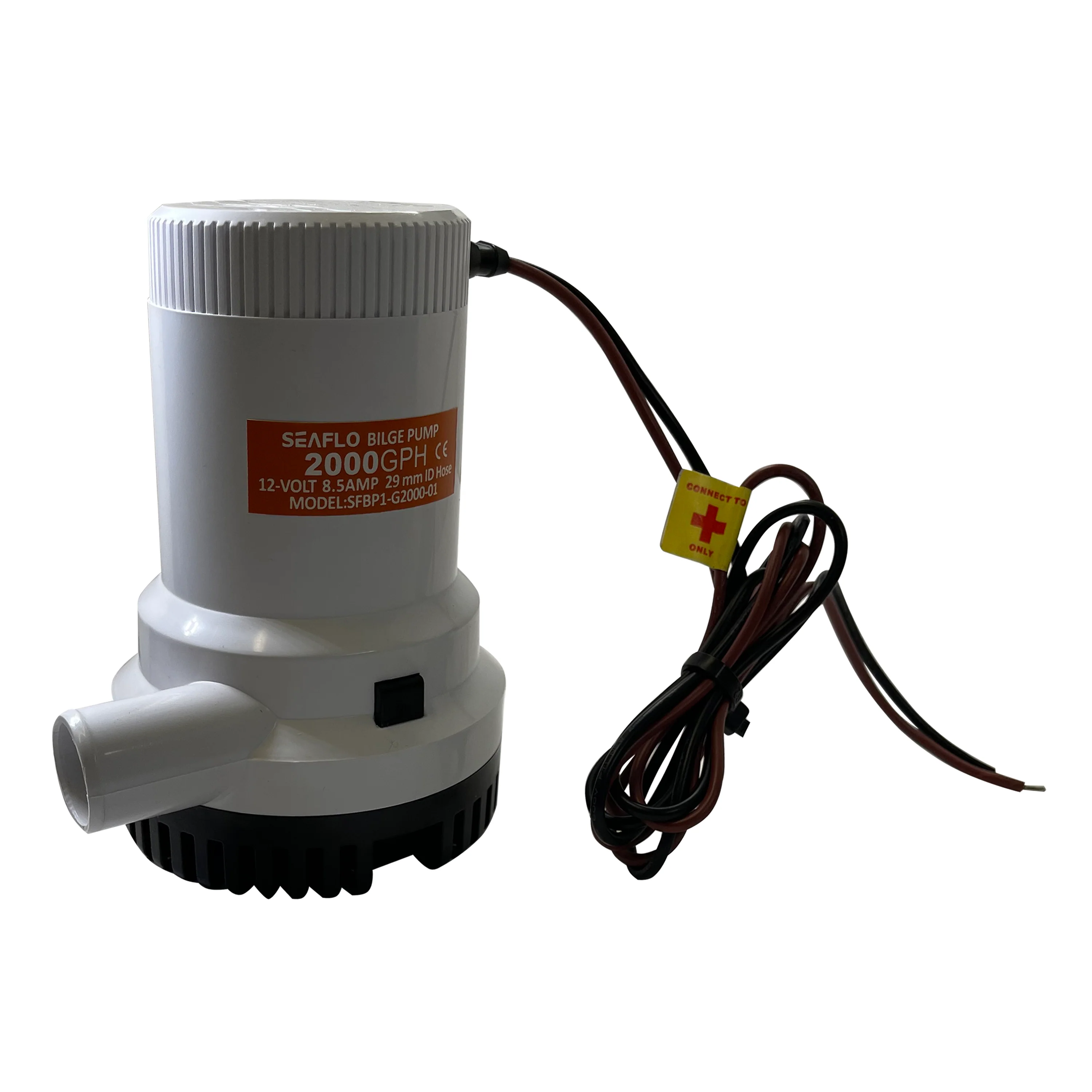

SEAFLO 01 Series 2000GPH Seaflo Marine Boat Engine Bilge Pump

SEAFLO 01 Series 2000GPH Seaflo Marine Boat Engine Bilge Pump

SEAFLO non-automatic 2000GPH bilge pumps offer standard action activated by a panel or float switch.Small size, high efficiency, low current (low cost switching power supply supporting).Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.Availalble for DC 12 Voltage & 24 Voltage.

MORE FEATURES

- 2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards
- Traditional operation by switch or float switch
- Entirely submersible

- Snap-off strainer base for easy maintenance

- Pump and switch are stand alone products

- Sealed efficient,long life motors

- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft

- Anti-Airlock protection

- Exclusive moisture tight seals

- Marine grade blocked wiring

STANDARD PUMP CONFIGURATIONS

Model Flow Rate

Voltage

Max Draw

Fuse Amps

Head

 Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G2000-01 1576 GPH 12 V 14.0 A 14.0 A 11.8' (3.6 m) 3' (1 m) 1-1/8" 1.13/1.21 kg



PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH
OPEN 6.9 1576 5964 0
12 7.49 1288 4874 0.5
12 8.83 945 3576 1
12 10.25 711 2691 1.5
12 11.3 538 2036 2
12 12.18 238 901 2.5
12 12.94 155 587 3
12 14 0 0 3.6
Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH
OPEN 3.68 1626 6153 0
24 4.29 1305 4938 0.5
24 5.06 988 3739 1
24 5.74 742 2808 1.5
24 6.26 569 2153 2
24 6.83 264 999 2.5
24 7 188 711 3
24 8.1 0 0 3.6


PERFORMANCE


Key Description Quantity
1

Wire Buckle

 1
2

Pump Housing

 1
3

Motor

 1
4

Seal Base

 1
5

Seal

 1
6 Motor Bracket 1
7

Impeller

 1
8

Pump Cover

 1
9

Tapping Screw

 6
10

Strainer

 1
