LED Latching Push Button Switch - 12V Black Metal - On/Off - 19mm Mount

LED Latching Push Button Switch - 12V Black Metal - On/Off - 19mm Mount

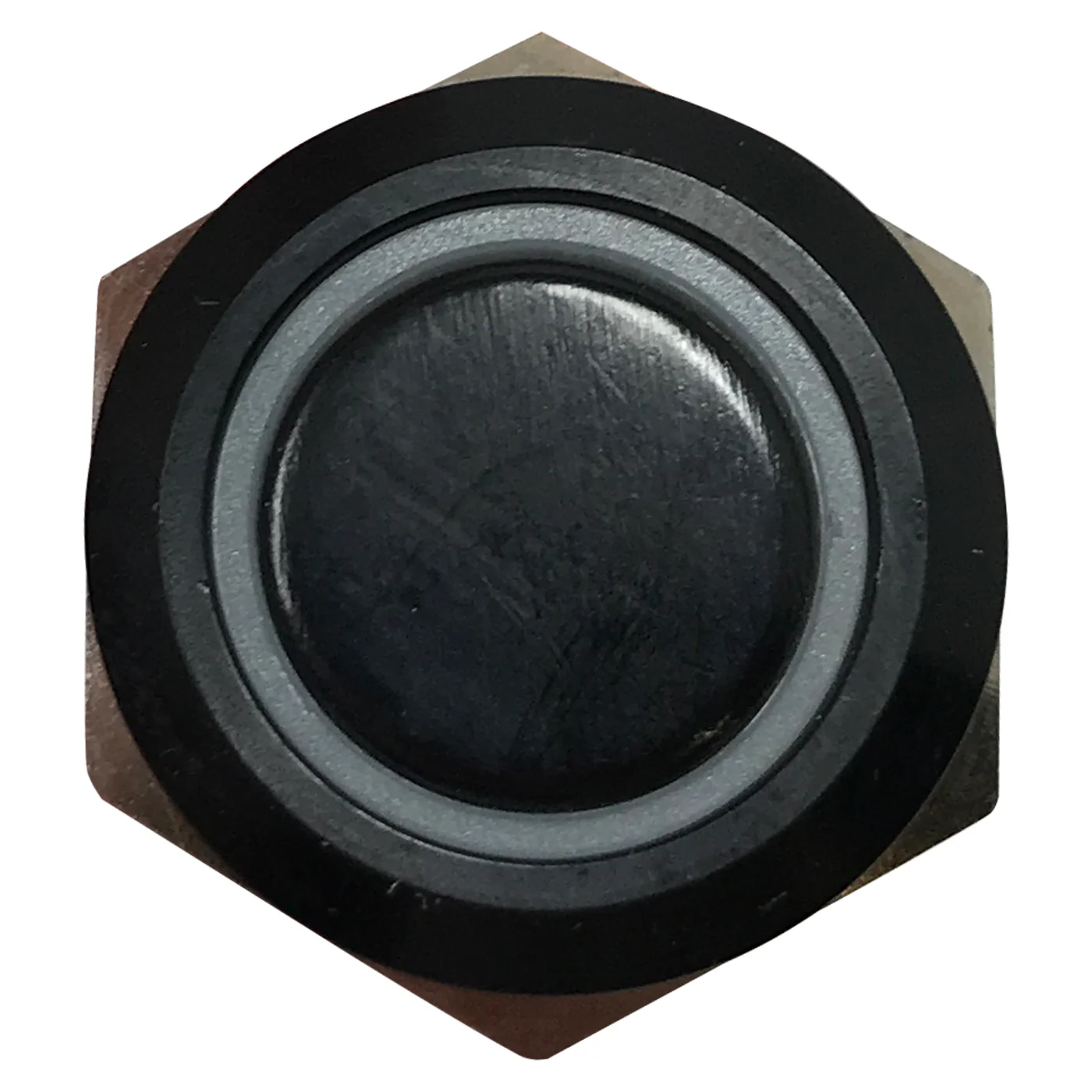

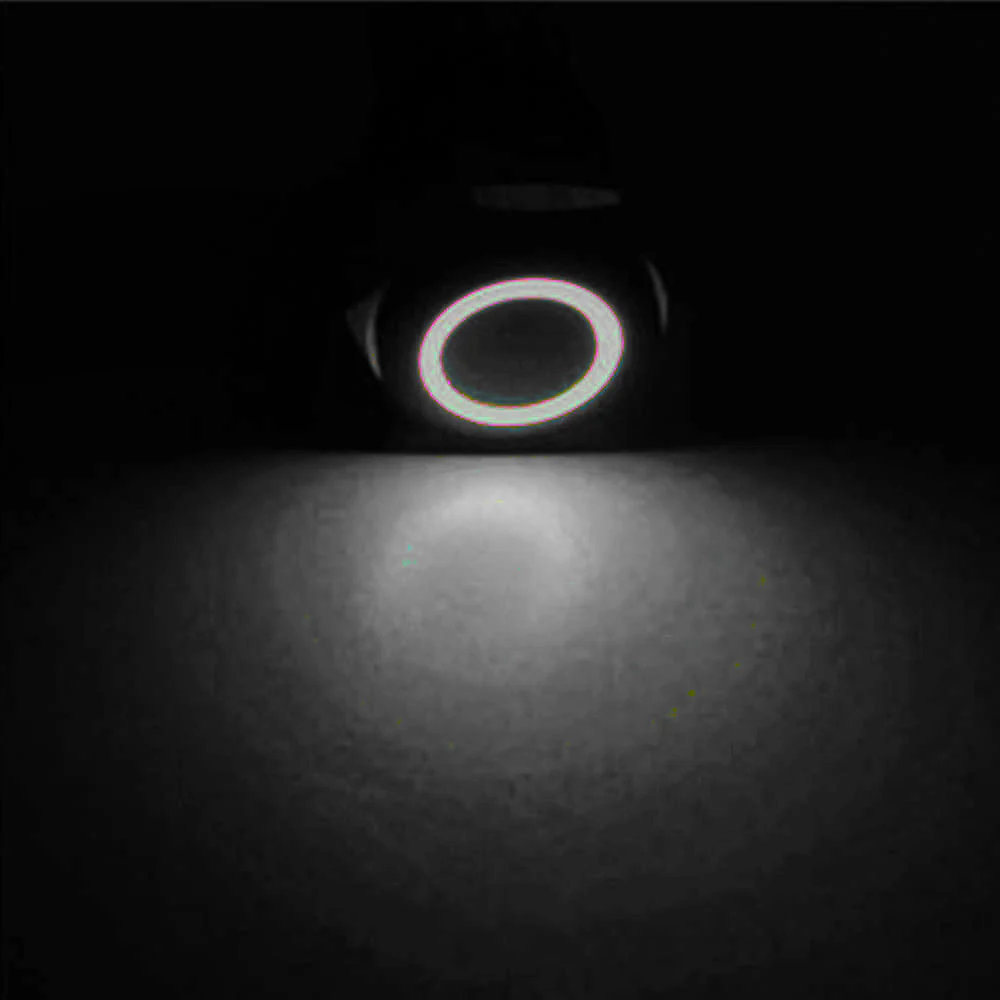

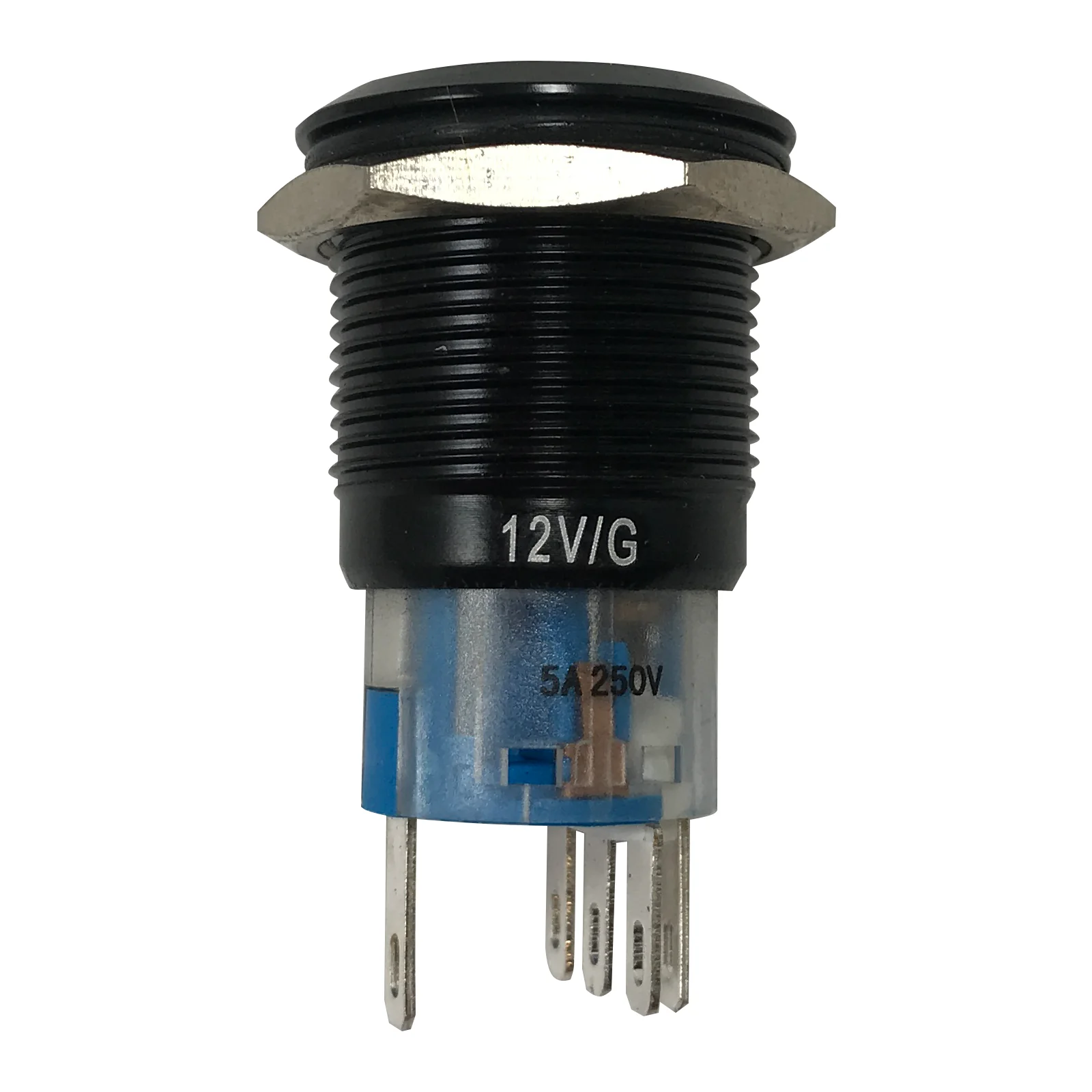

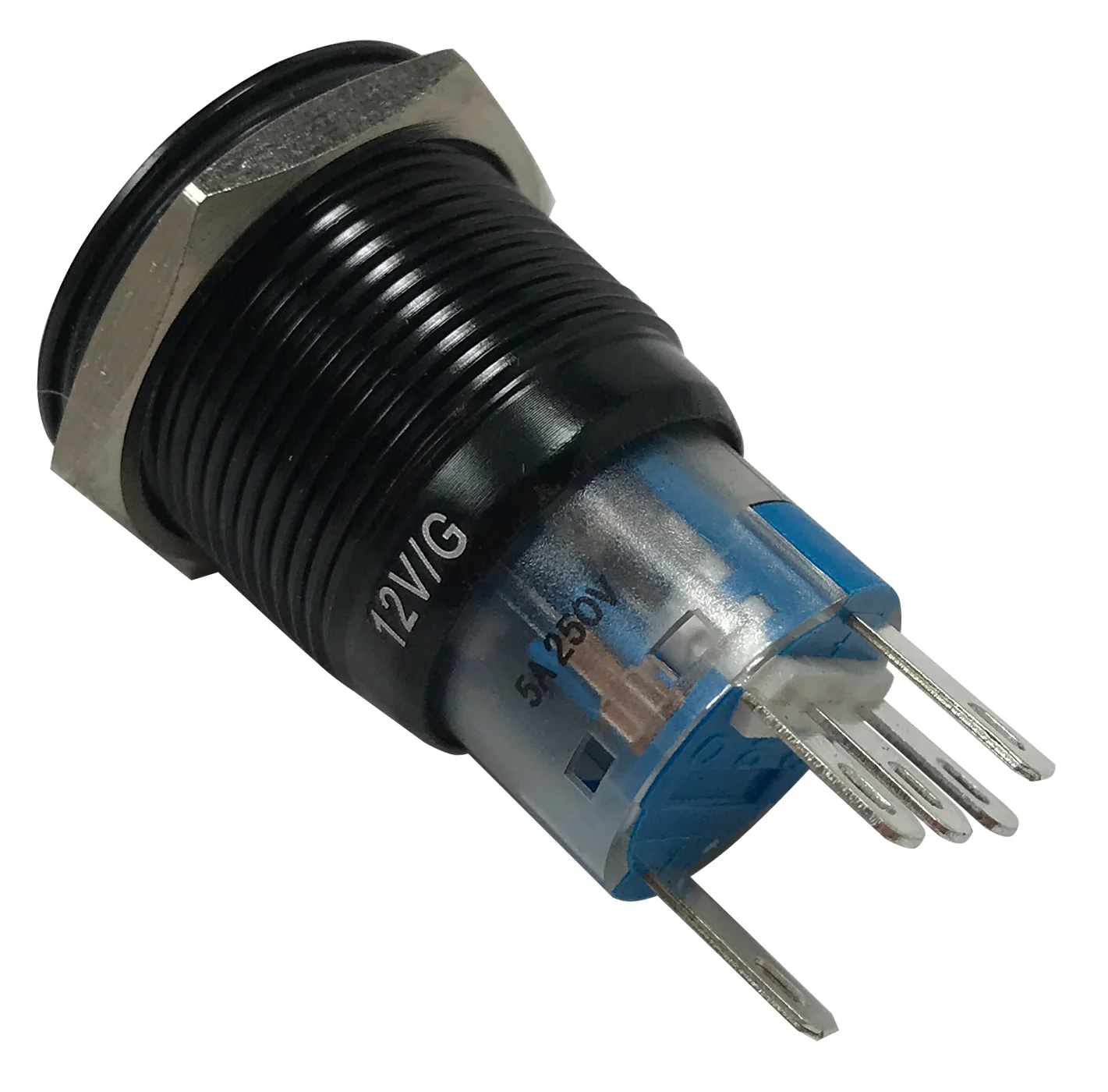

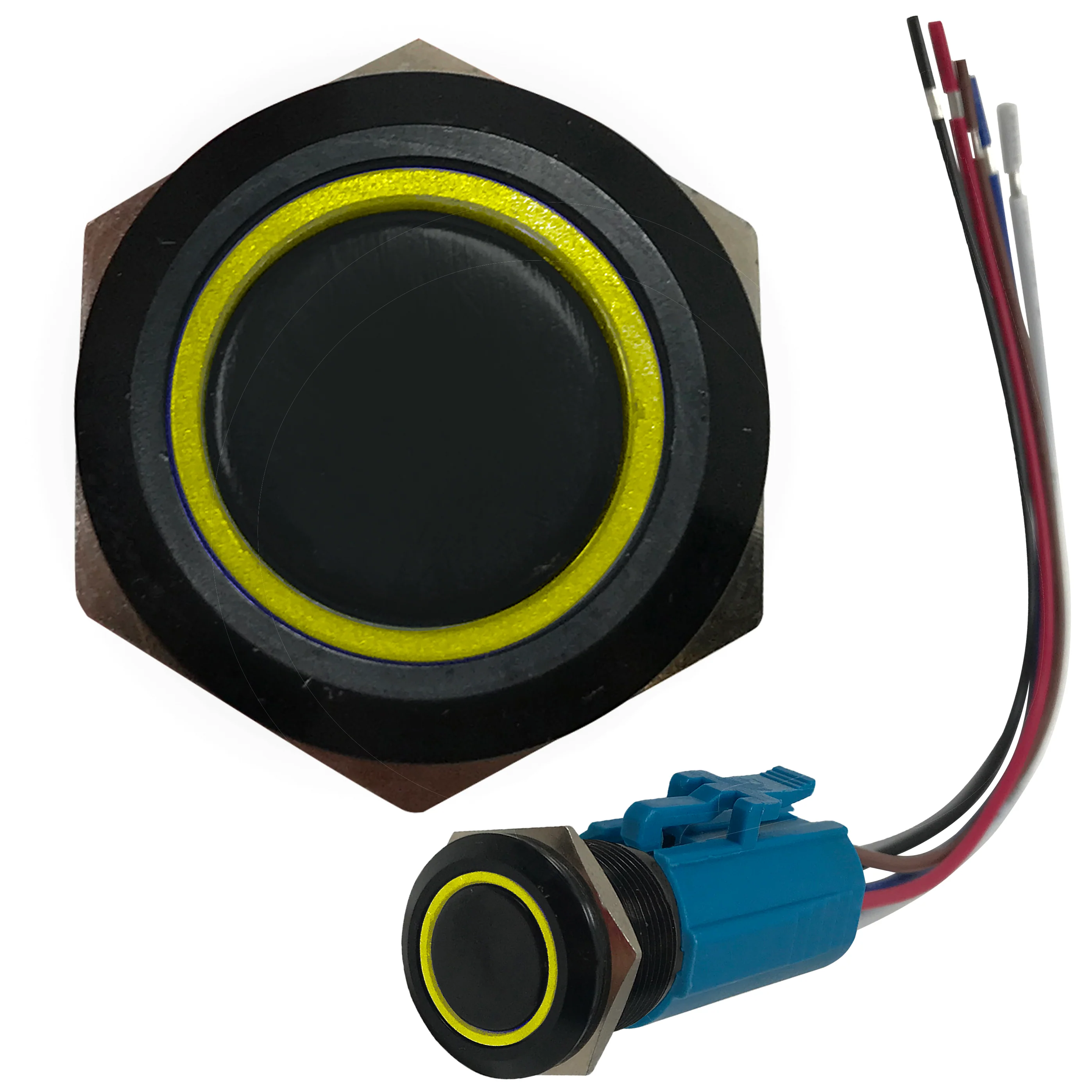

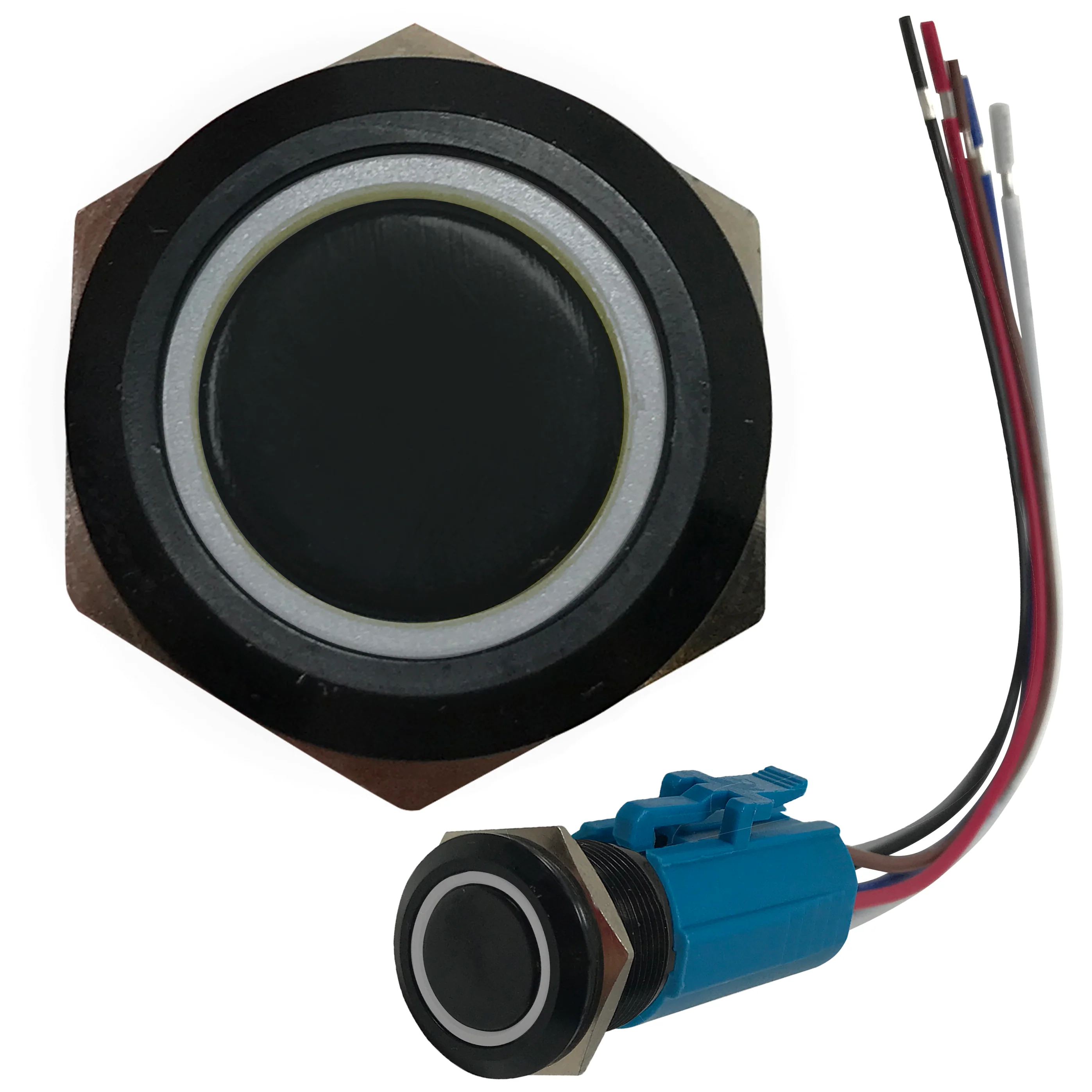

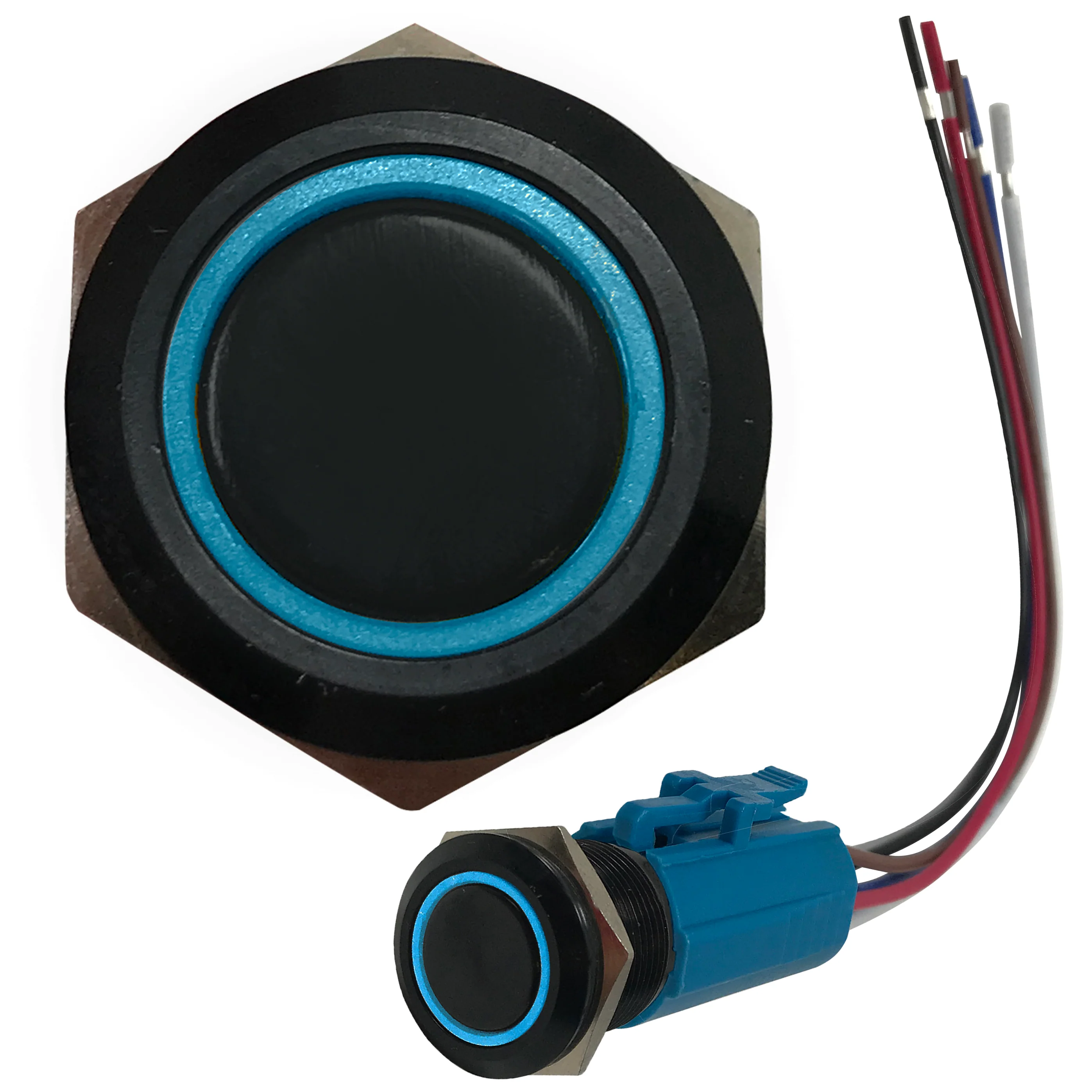

This LED latching push button switch features a rugged black metal housing and includes a pre-wired harness for easy installation. Designed for automotive and industrial 12V systems, it provides secure on/off latching functionality with clear LED status indication. The 19mm panel mount fits standard 3/4" cutouts and is IP67 rated for durability in harsh environments.

Specifications & Features

  • Mounting Hole Size: 3/4" (19mm)
  • Switch Type: Latching (On/Off)
  • Housing: Black metal
  • IP Rating: IP67 – water and dust resistant
  • Switch Rating: 5A @ 250VAC, 5A @ 30VDC
  • LED Rating: 15mA, AC/DC 12V

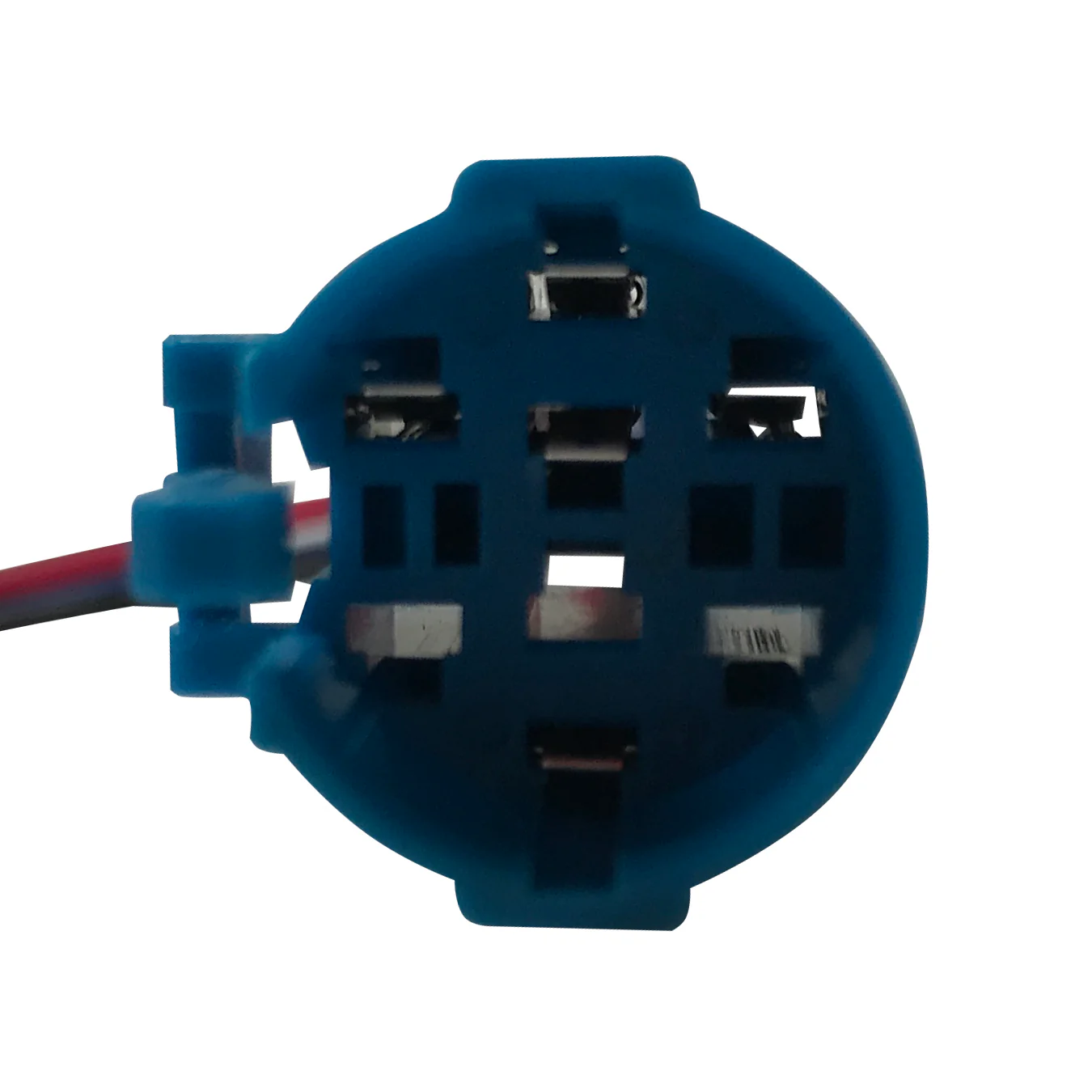

  • Includes pre-wired harness for simplified installation
  • Suitable for dashboards, control panels, and enclosures in automotive and equipment applications

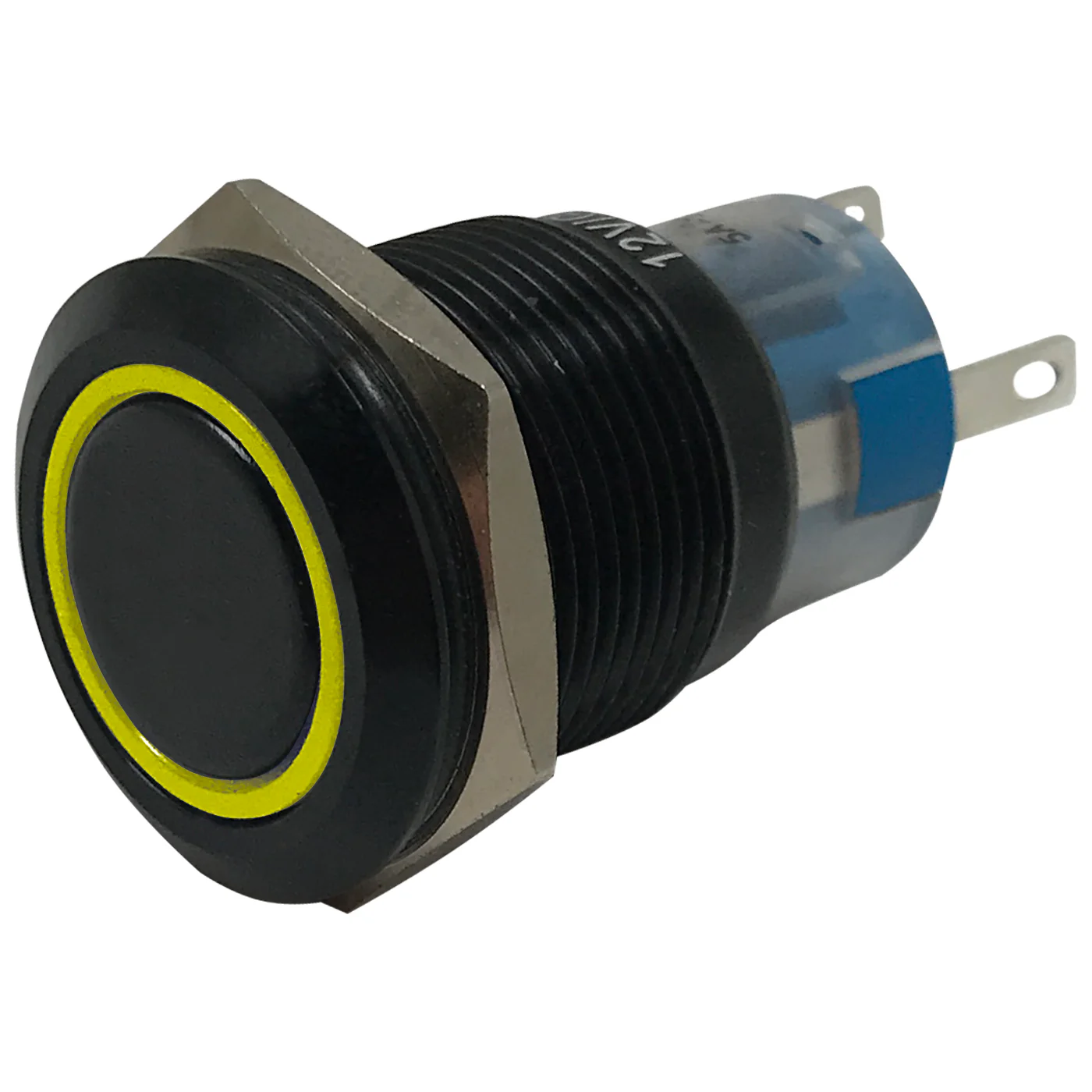

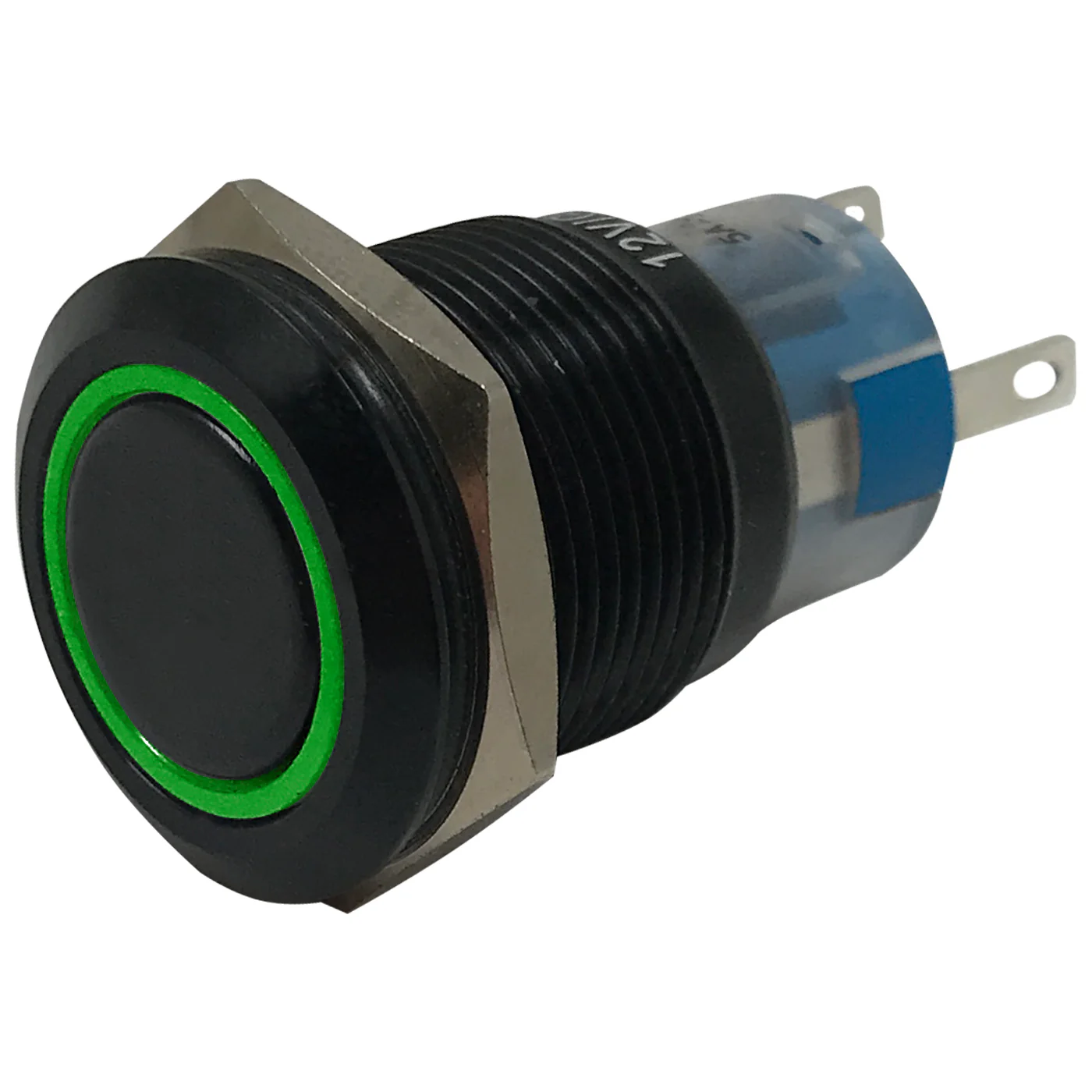

  • Available LED colors: Red, Green, Blue, White, Yellow

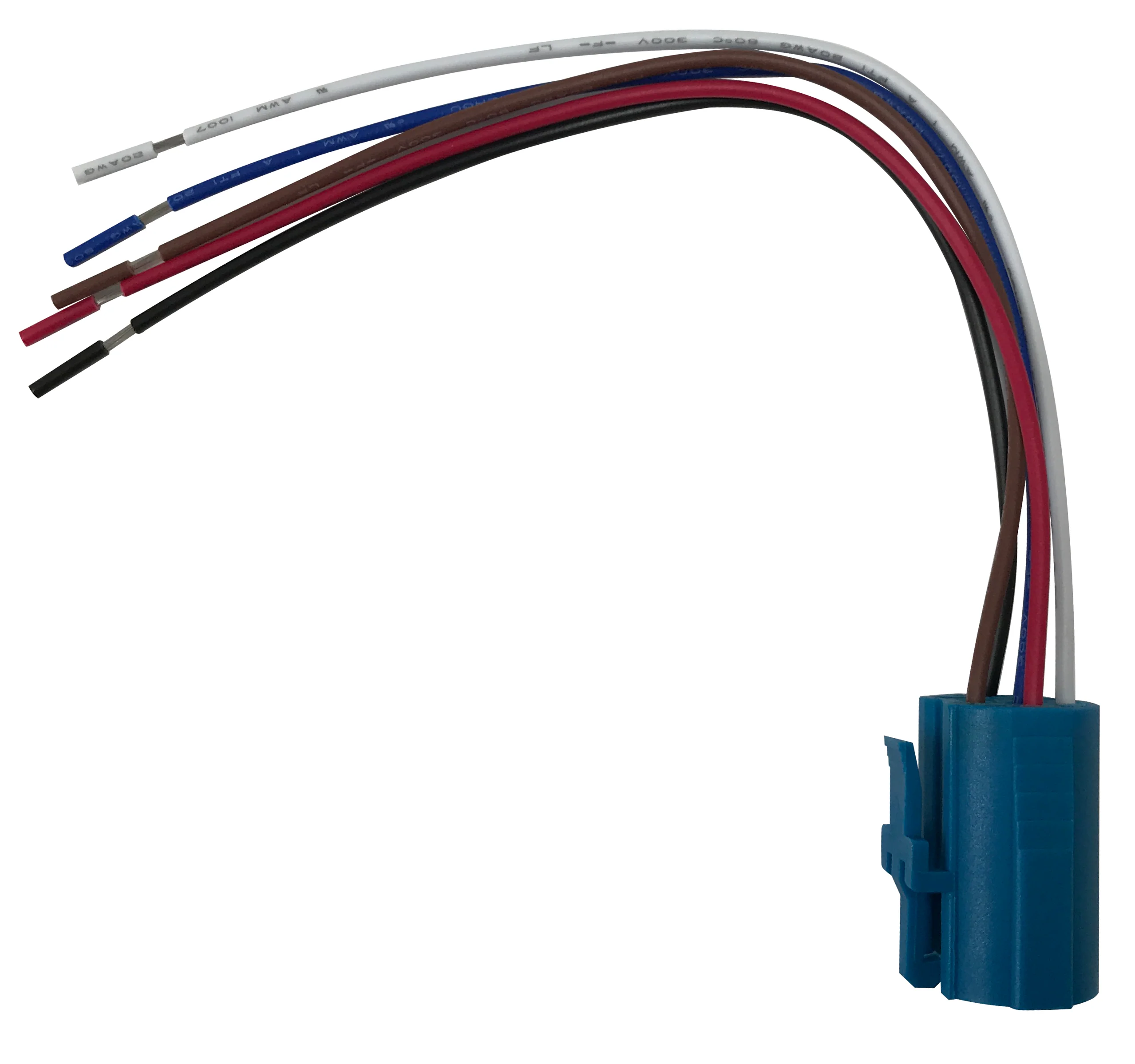

Wiring Guide

  • Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
  • Black: Connect to( -)ground. This is the (-) ground wire of the led ring
  • White: Common input wire
  • Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
  • Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
Select Color
From $7.17

Original: $20.49

-65%
LED Latching Push Button Switch - 12V Black Metal - On/Off - 19mm Mount—

$20.49

$7.17

Product Information

Shipping & Returns

Description

This LED latching push button switch features a rugged black metal housing and includes a pre-wired harness for easy installation. Designed for automotive and industrial 12V systems, it provides secure on/off latching functionality with clear LED status indication. The 19mm panel mount fits standard 3/4" cutouts and is IP67 rated for durability in harsh environments.

Specifications & Features

  • Mounting Hole Size: 3/4" (19mm)
  • Switch Type: Latching (On/Off)
  • Housing: Black metal
  • IP Rating: IP67 – water and dust resistant
  • Switch Rating: 5A @ 250VAC, 5A @ 30VDC
  • LED Rating: 15mA, AC/DC 12V
  • Includes pre-wired harness for simplified installation
  • Suitable for dashboards, control panels, and enclosures in automotive and equipment applications
  • Available LED colors: Red, Green, Blue, White, Yellow

Wiring Guide

  • Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring
  • Black: Connect to( -)ground. This is the (-) ground wire of the led ring
  • White: Common input wire
  • Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
  • Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
