Red & Black Heavy-Duty Top Post Epoxy Coated Terminals Set
Deka # 03067
Heavy Duty Red & Black Replacement
Epoxy Top Post Battery Terminals
Includes (1) Red & (1) Black Terminal for Positive & Negative connection.
03067 East Penn Battery Terminal
- Type : Positive/ Negative
- Positions : 2 Position
- Input/output : 6/1 Gauge
- Digital Voltage Meter Type : No Digital Voltage Meter
- Finish : Bare
- Color : Red and Black
- Material : Lead
- Insulating Cover Color : No Insulating Cover

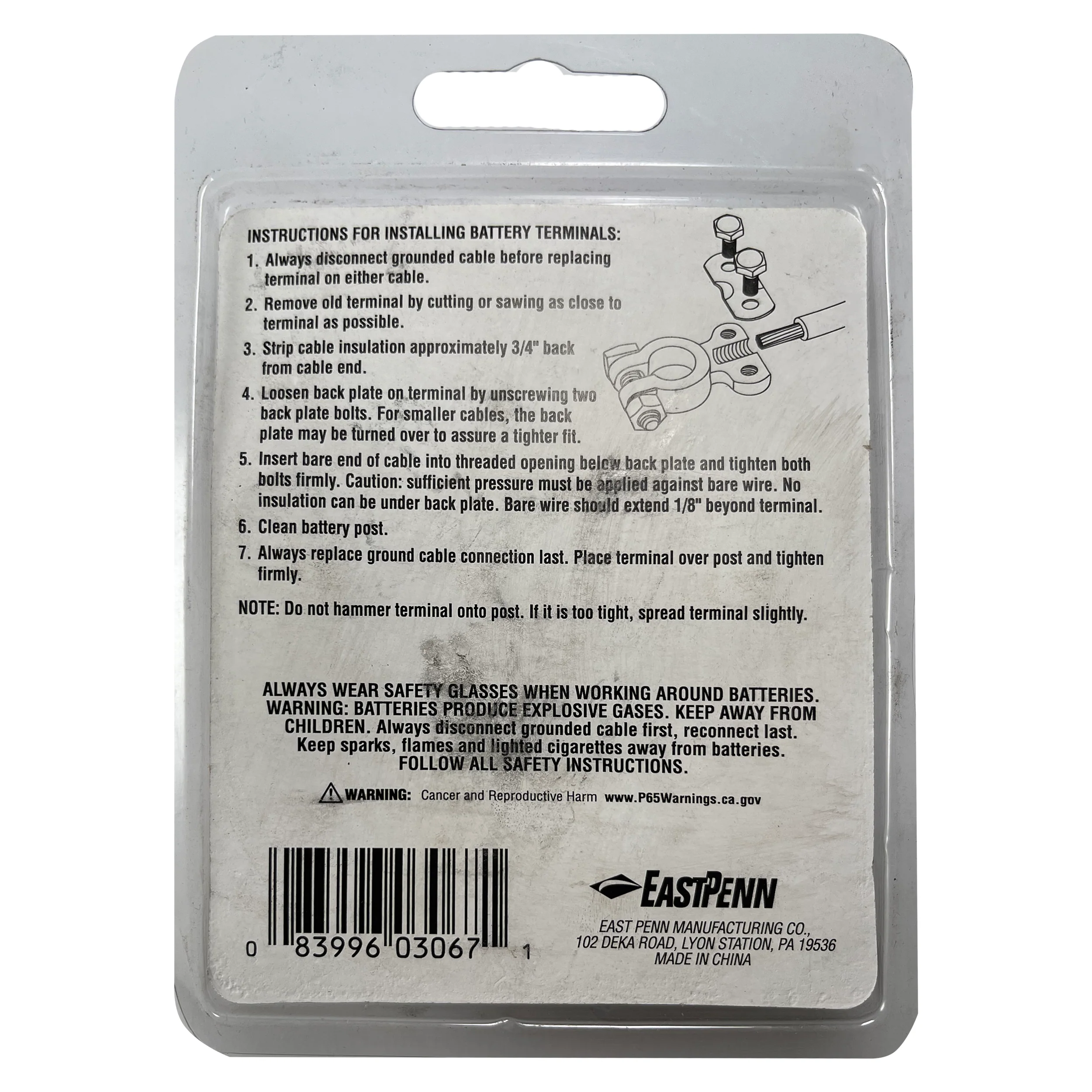

Instructions for installing battery terminals
- Always disconnect grounded cable before replacing terminal on either cable.
- Remove old terminal by cutting or sawing as close to terminal as possible
- Strip cable insulation approximately 3/4" Back from cable end.
- Loosen Back Plate on terminal by unscrewing two back plate bolts. smaller cables, the back plate may be turned over to assure a tigher fit.
- Insert bare end of cable into treaded opening below back plate and tighten both bolts firmly. Caution: sufficient pressure must be applied against bare wire. No insulation can be under back plate. bare wire should extend 1/8" beyond terminal
- clean battery post
- Always replace ground cable connection last. Place terminal over post and tighten firmly
NOTE: Do not hammer terminal onto post. if it is to tight, spread terminal slightly.
$2.80
Original: $7.99
-65%Red & Black Heavy-Duty Top Post Epoxy Coated Terminals Set—
$7.99
$2.80Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Deka # 03067
Heavy Duty Red & Black Replacement
Epoxy Top Post Battery Terminals
Includes (1) Red & (1) Black Terminal for Positive & Negative connection.
03067 East Penn Battery Terminal
- Type : Positive/ Negative
- Positions : 2 Position
- Input/output : 6/1 Gauge
- Digital Voltage Meter Type : No Digital Voltage Meter
- Finish : Bare
- Color : Red and Black
- Material : Lead
- Insulating Cover Color : No Insulating Cover
Instructions for installing battery terminals
- Always disconnect grounded cable before replacing terminal on either cable.
- Remove old terminal by cutting or sawing as close to terminal as possible
- Strip cable insulation approximately 3/4" Back from cable end.
- Loosen Back Plate on terminal by unscrewing two back plate bolts. smaller cables, the back plate may be turned over to assure a tigher fit.
- Insert bare end of cable into treaded opening below back plate and tighten both bolts firmly. Caution: sufficient pressure must be applied against bare wire. No insulation can be under back plate. bare wire should extend 1/8" beyond terminal
- clean battery post
- Always replace ground cable connection last. Place terminal over post and tighten firmly
NOTE: Do not hammer terminal onto post. if it is to tight, spread terminal slightly.
