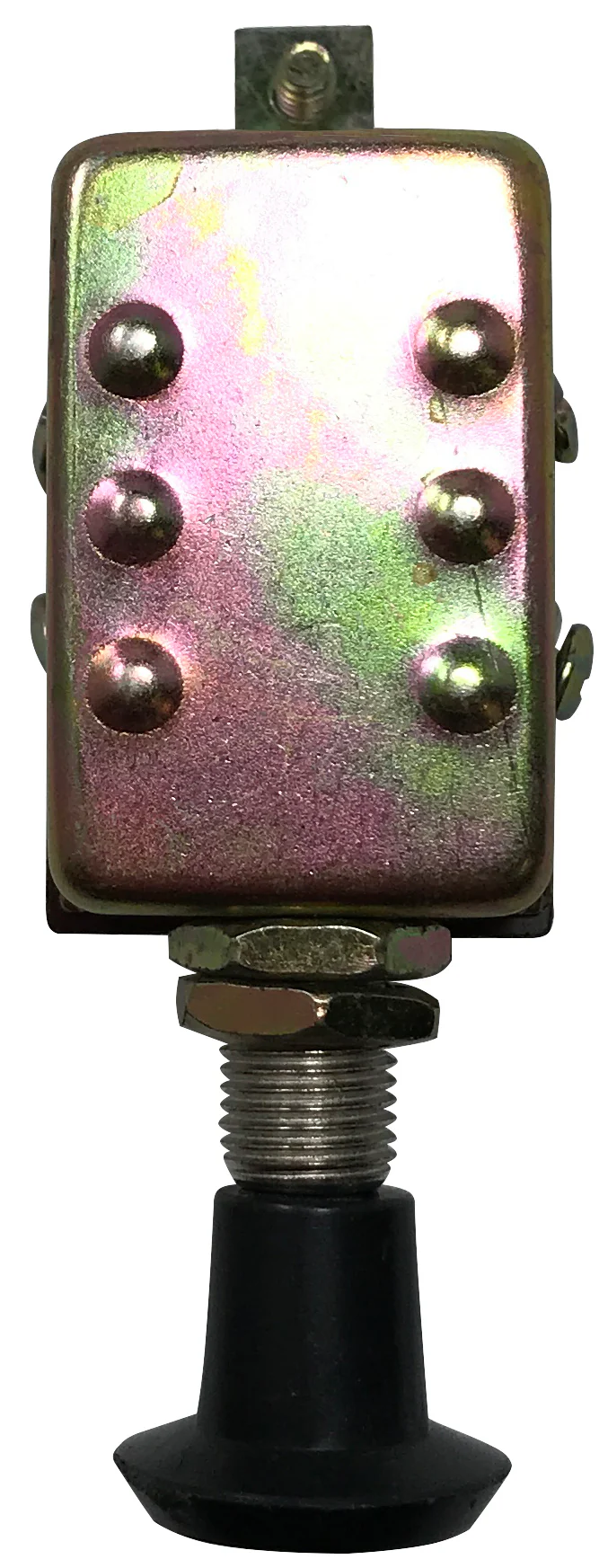

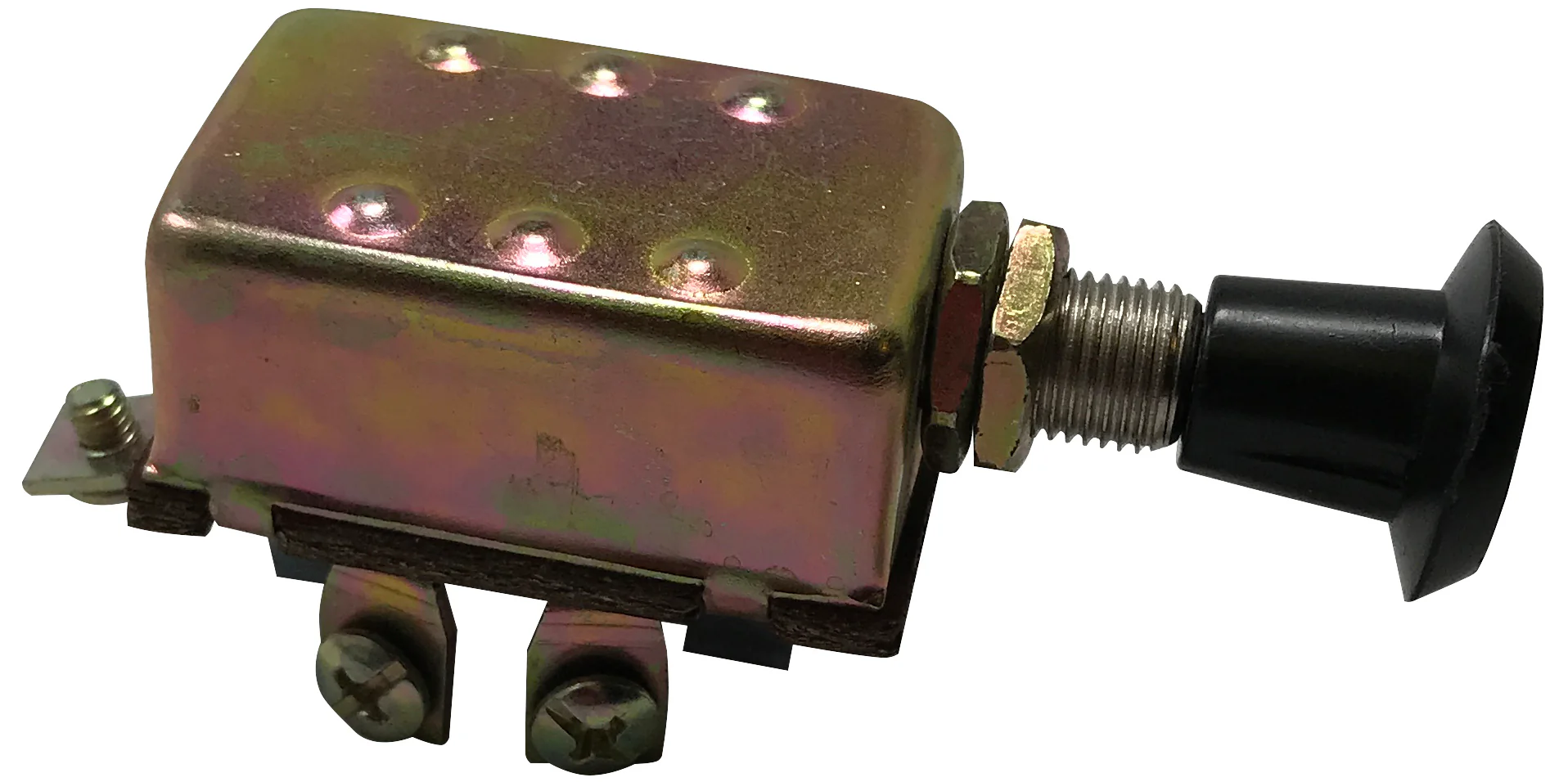

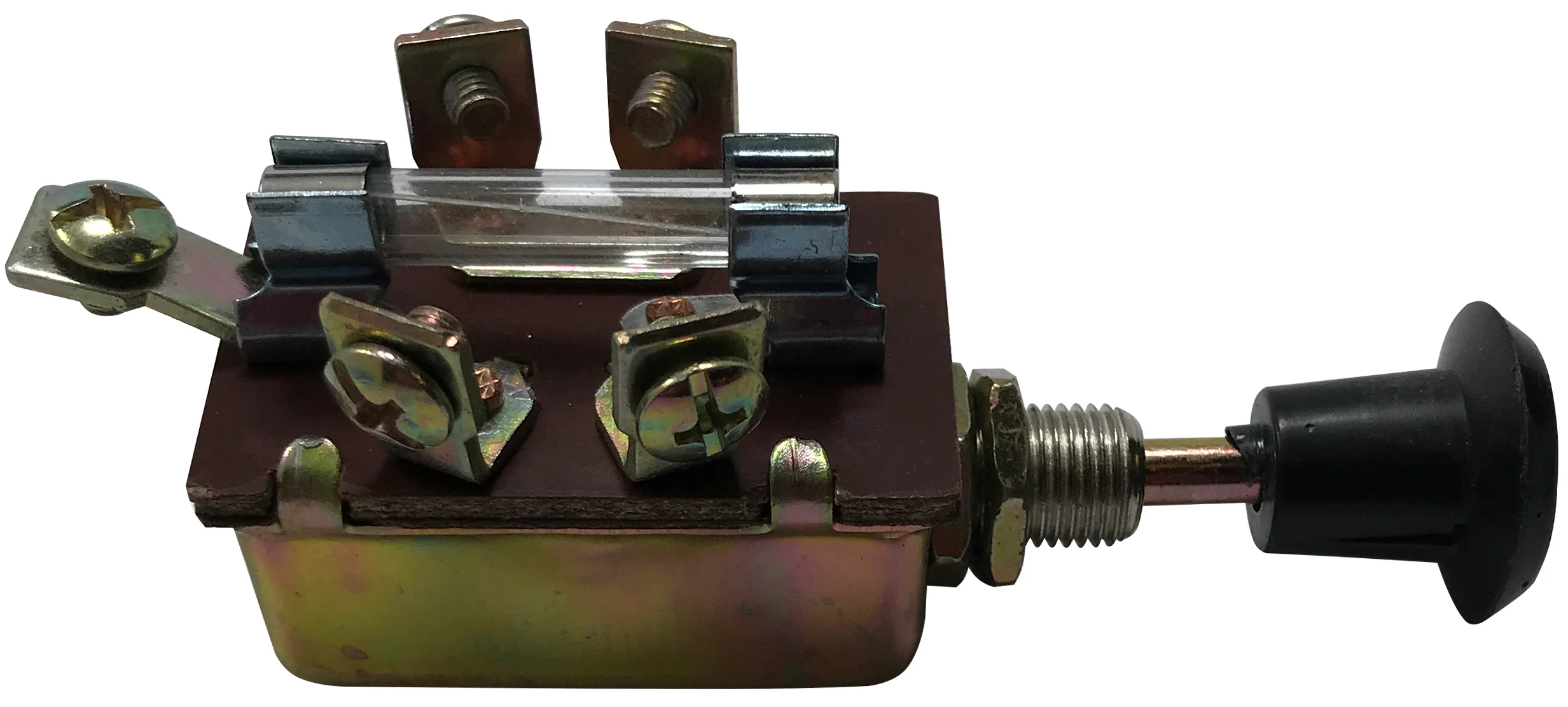

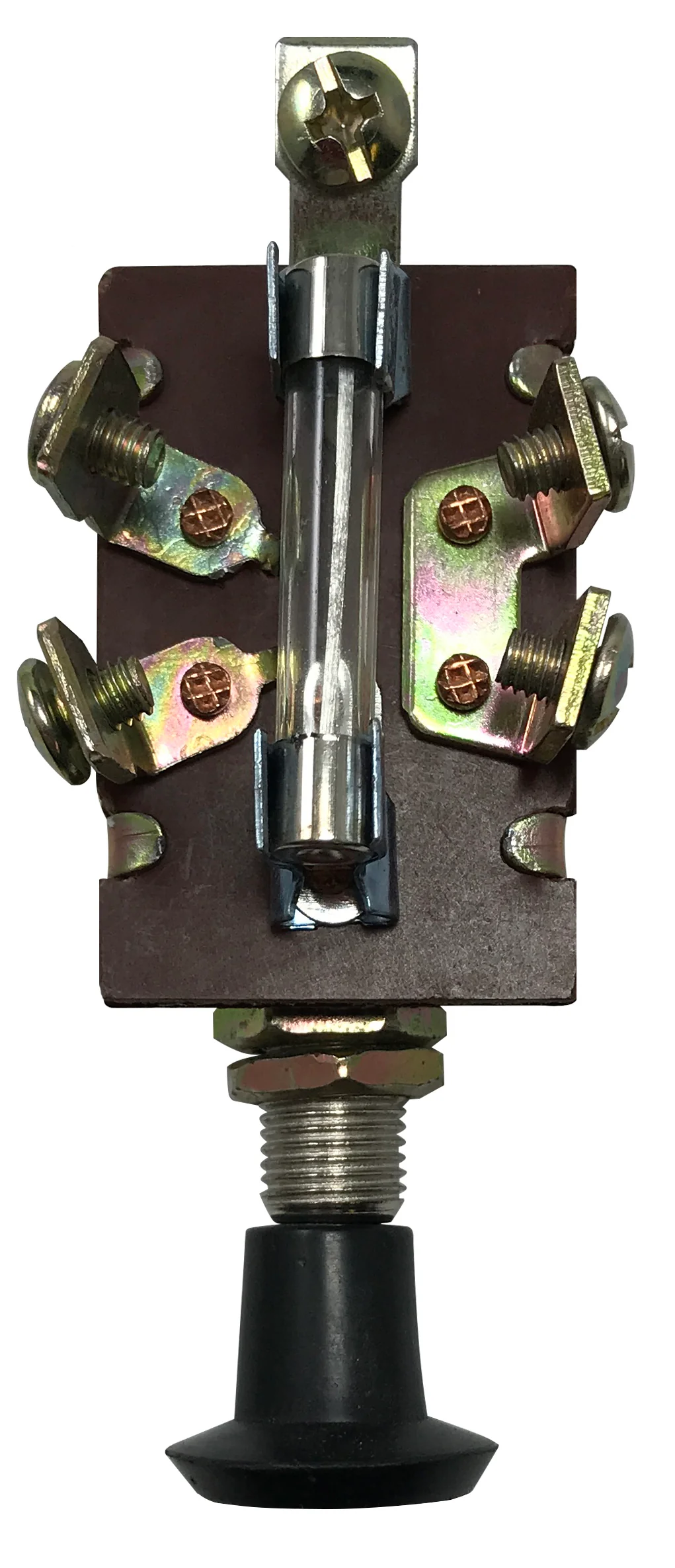

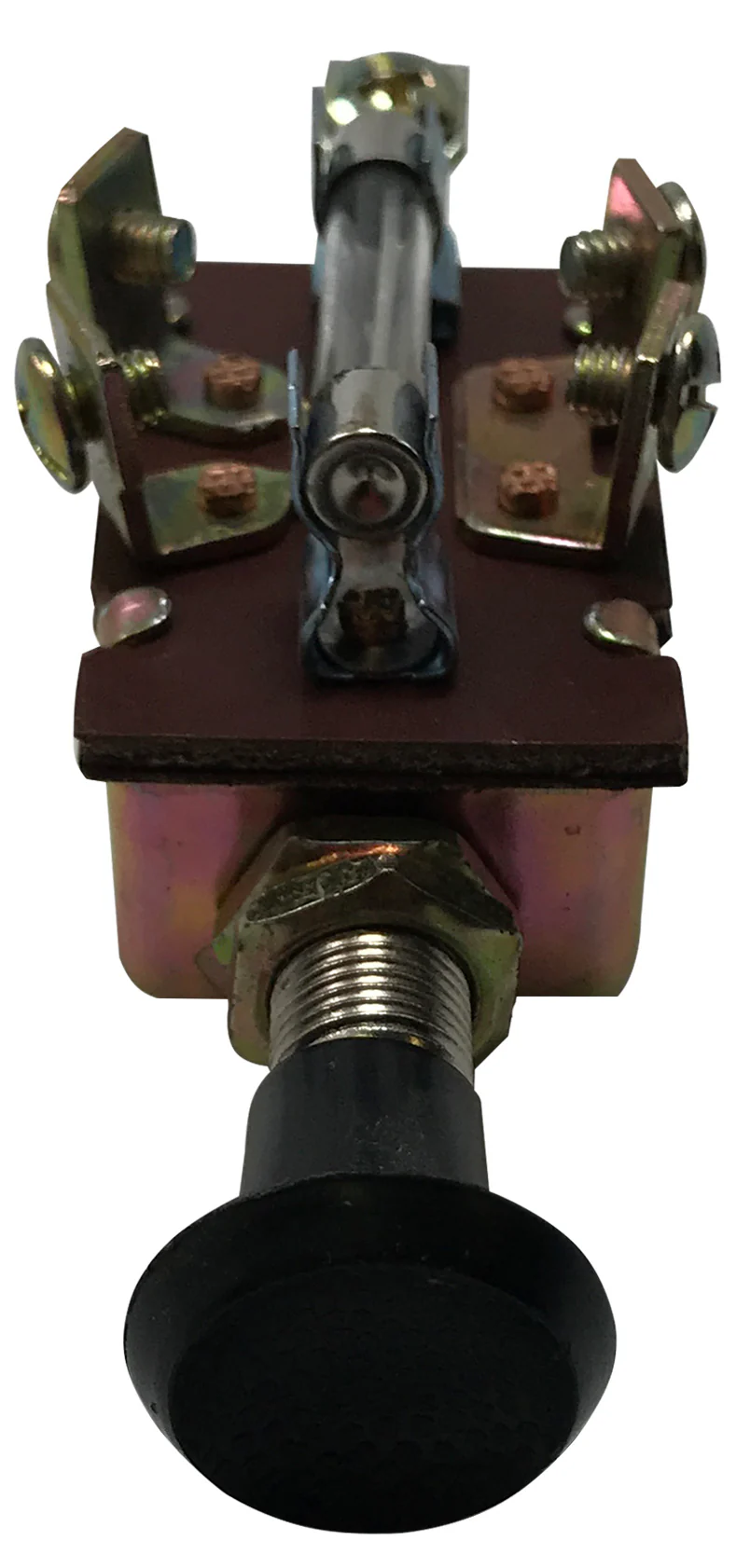

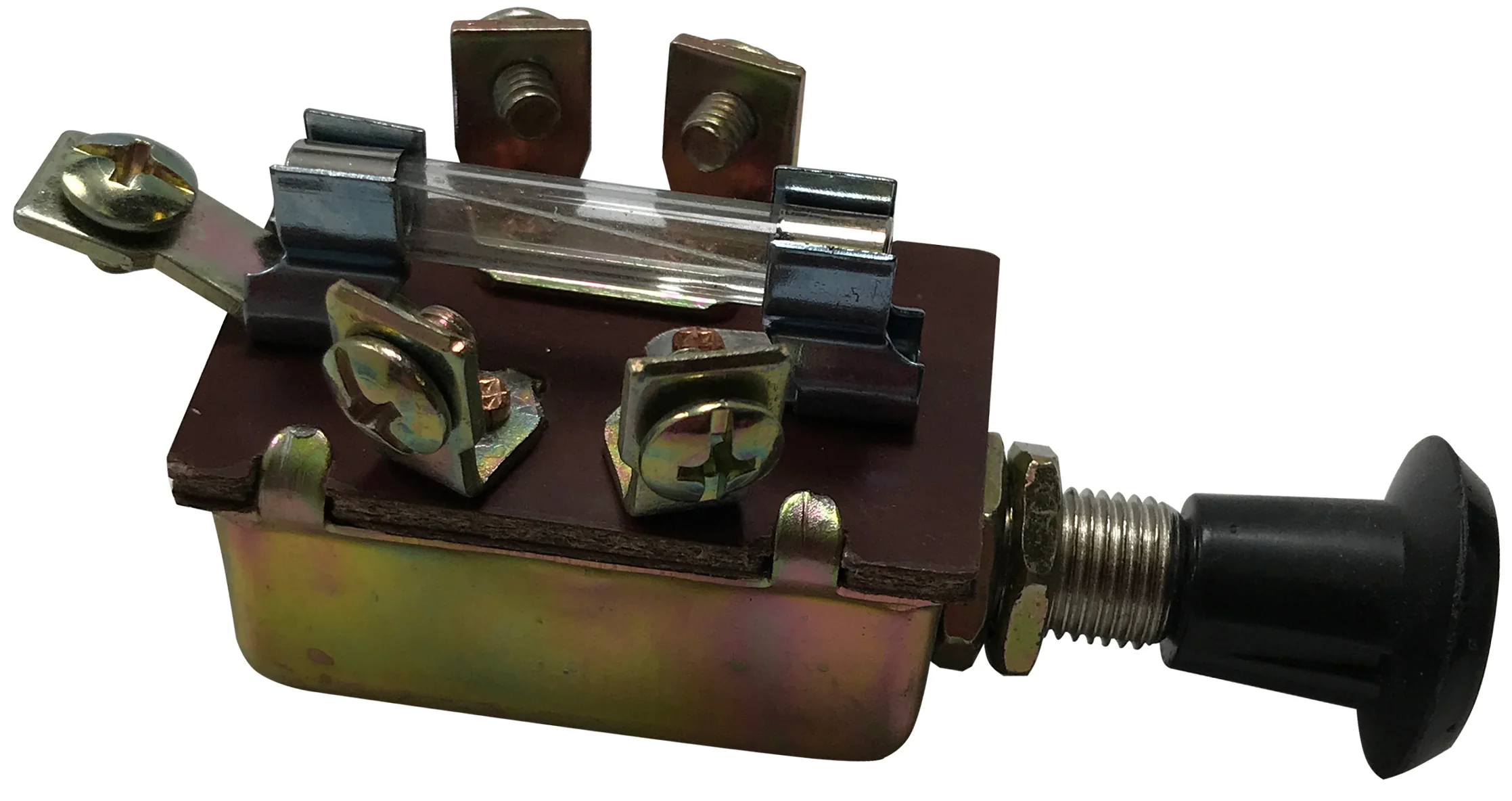

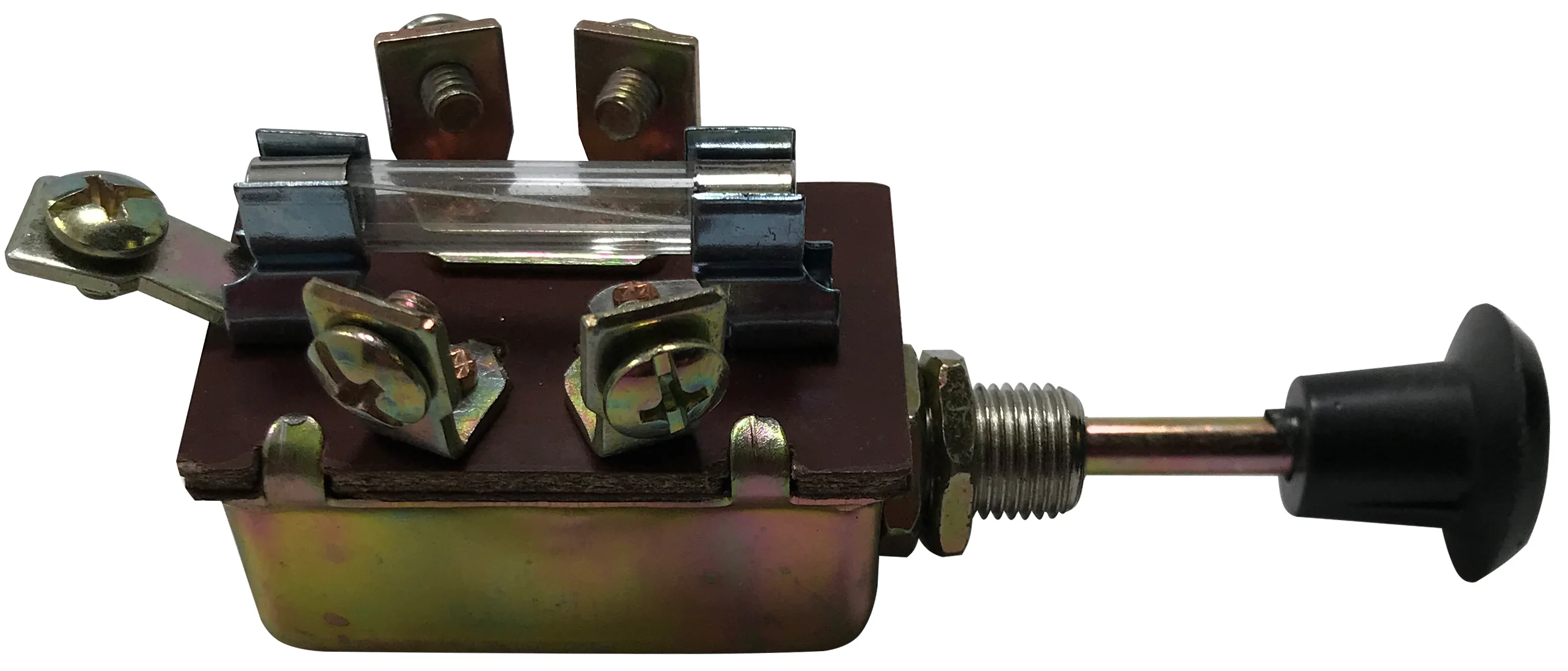

12V Universal Push-Pull Headlight Switch - 3-Position, 5-Terminal, Fused

12V Universal Push-Pull Headlight Switch - 3-Position, 5-Terminal, Fused

This 12V universal headlight switch features a fused three-position Off-On-On function, ideal for controlling dual-stage lighting or other 12V circuits. Built with durable materials and five screw-type terminals, it ensures secure connections and reliable electrical performance in automotive applications.

Features

  • Glass fuse built into circuit for overload protection
  • Copper alloy conductors for low-resistance performance
  • Direct snap-fit mounting with 1/2" stem for panel installation

Specifications

  • Voltage: 12V DC
  • Switch Type: Push-Pull
  • Positions: 3 (Off-On-On)
  • Terminal Quantity: 5
  • Terminal Type: Male screw
  • Mounting Stem Diameter: 0.50 in.
  • Attachment Method: Snap-fit
  • Materials: Aluminum, Dichromate, Plastic
  • Color: Silver and Black

Cross Reference Part Numbers

Compatible with or replaces the following part numbers:

  • STANDARD MOTOR PRODUCTS – DS135
  • AIRTEX – 1S4727 – Direct Cross Interchange – 3
  • WELLS – SW8X – Direct Cross Interchange – 2
  • Forecast – HLS12 – Direct Cross Interchange – 2
  • ECHLIN – HL6050 – Indirect Cross Interchange – 3
  • ACDelco – U1906A – Indirect Cross Interchange – 2
  • GM – 88924587 – Indirect Cross Interchange – 2
  • ECHLIN – HL6049 – Indirect Cross Interchange – 2
  • BWD – S2109 – Indirect Cross Interchange – 2
  • ACDelco – U1502 – Indirect Cross Interchange – 1
  • ACDelco – U1500 – Indirect Cross Interchange – 1
  • ACDelco – D1503 – Indirect Cross Interchange – 1
  • BORG WARNER – S141 – Indirect Cross Interchange – 1
  • GM – 1995021 – Indirect Cross Interchange – 1
  • GM – 1994017 – Indirect Cross Interchange – 1
  • GM – 1972302 – Indirect Cross Interchange – 1
  • GM – 12302012 – Indirect Cross Interchange – 1
  • GP SORENSEN – LS96 – Indirect Cross Interchange – 1
  • MOTORCRAFT – SW305 – Indirect Cross Interchange – 1

Applications

Ideal for headlight systems, dual-stage lighting, or auxiliary 12V functions in:

  • Custom automotive electrical builds
  • Older vehicle retrofits
  • Fleet maintenance and service vehicles
$2.27

Original: $6.49

-65%
12V Universal Push-Pull Headlight Switch - 3-Position, 5-Terminal, Fused—

$6.49

$2.27
