Positive & Negative Copper Core Jumper Bushing With Flush Mount Kit
Copper Core Jumper Bushing
We have has developed a new solution to jumpstart devices and for providing remote charging capabilities. Our Copper Core Jumper Bushings provide high current passing properties along with high torque strength.
- Anti Rotation Hex Shape
- Flush Mount & Bracket Mount Kit
Our Copper Core Jumper Bushings have been designed with these key components in mind:
- High Energy Transfer
- High Torque
- High Anti-Rotation
- Multiple Mounting Options
- High Energy Transfer
- The Copper Core is cold swaged into a hex shape, providing very high energy transfer performance. The conductive materials are placed exactly where needed, reducing cost and improving performance.
- High Torque
- Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120mm2) cables. Brass shaft devices just don't measure up. At the required torque, brass posts may fail. Our Copper Core Jumper Bushing uses a 3/8" (or 10mm) Nickel-plated steel shaft to provide high torque value.
- High Anti-Rotation
- First, the power bushing is molded in a unique shape, to fit into a punch hole provided by a Double-D Cutout. This ensures the bushing will not spin in its location. We then shaped the inner sleeve passage to a hex shape. When coupled with our hex shape core insert, this provides 100% stability when fastening cables.
- Multiple Mounting Options
- Copper Core Jumper Bushings are available as single assemblies.

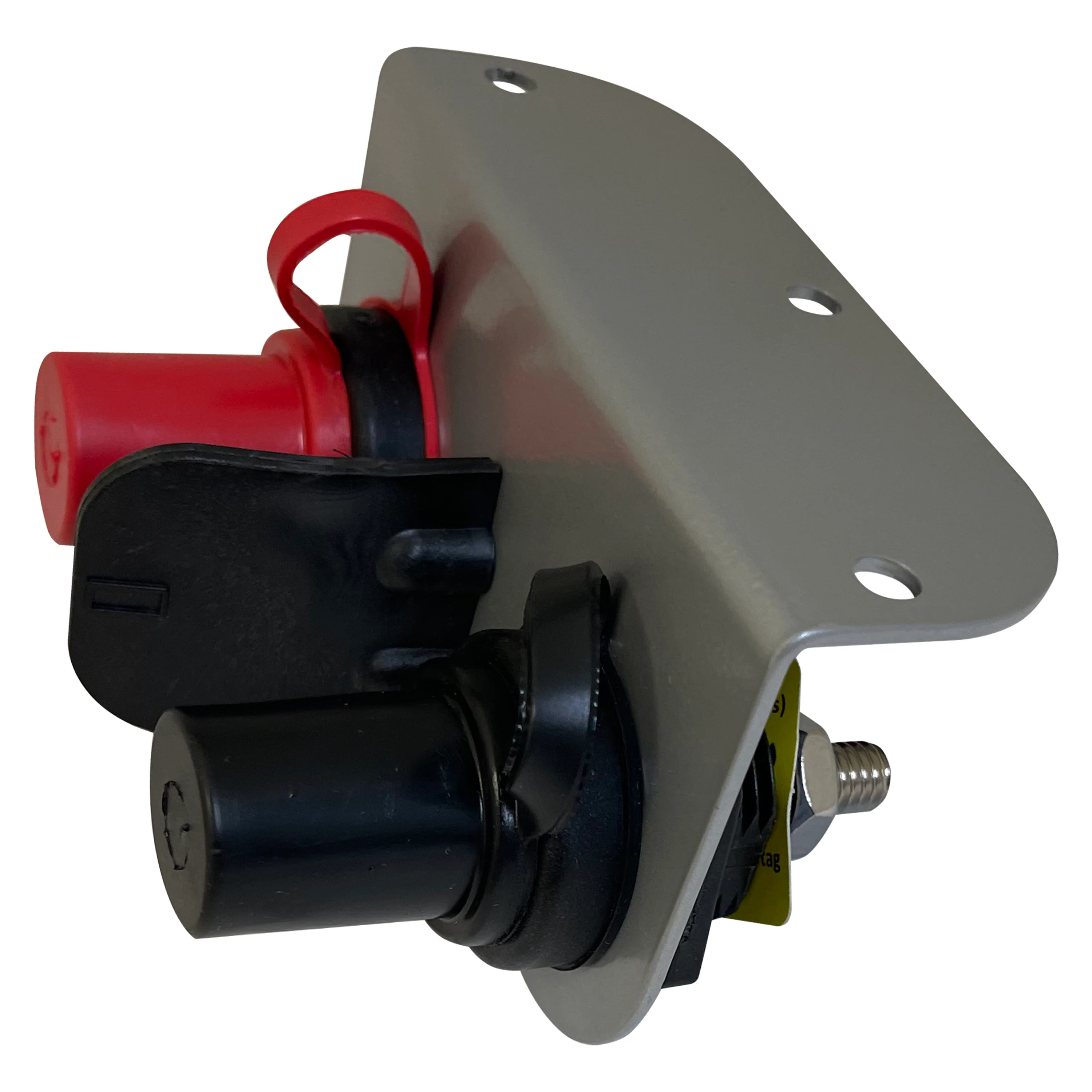

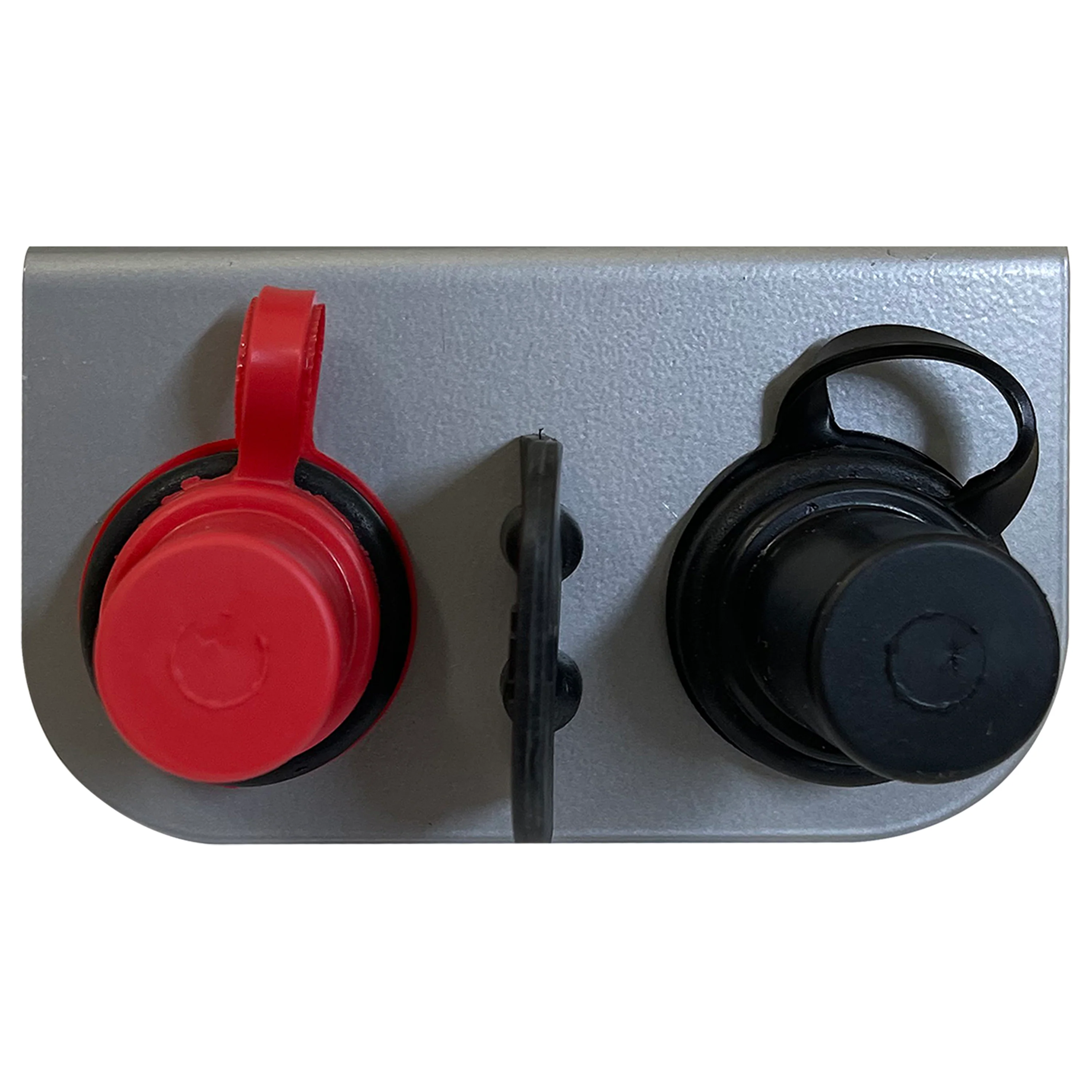

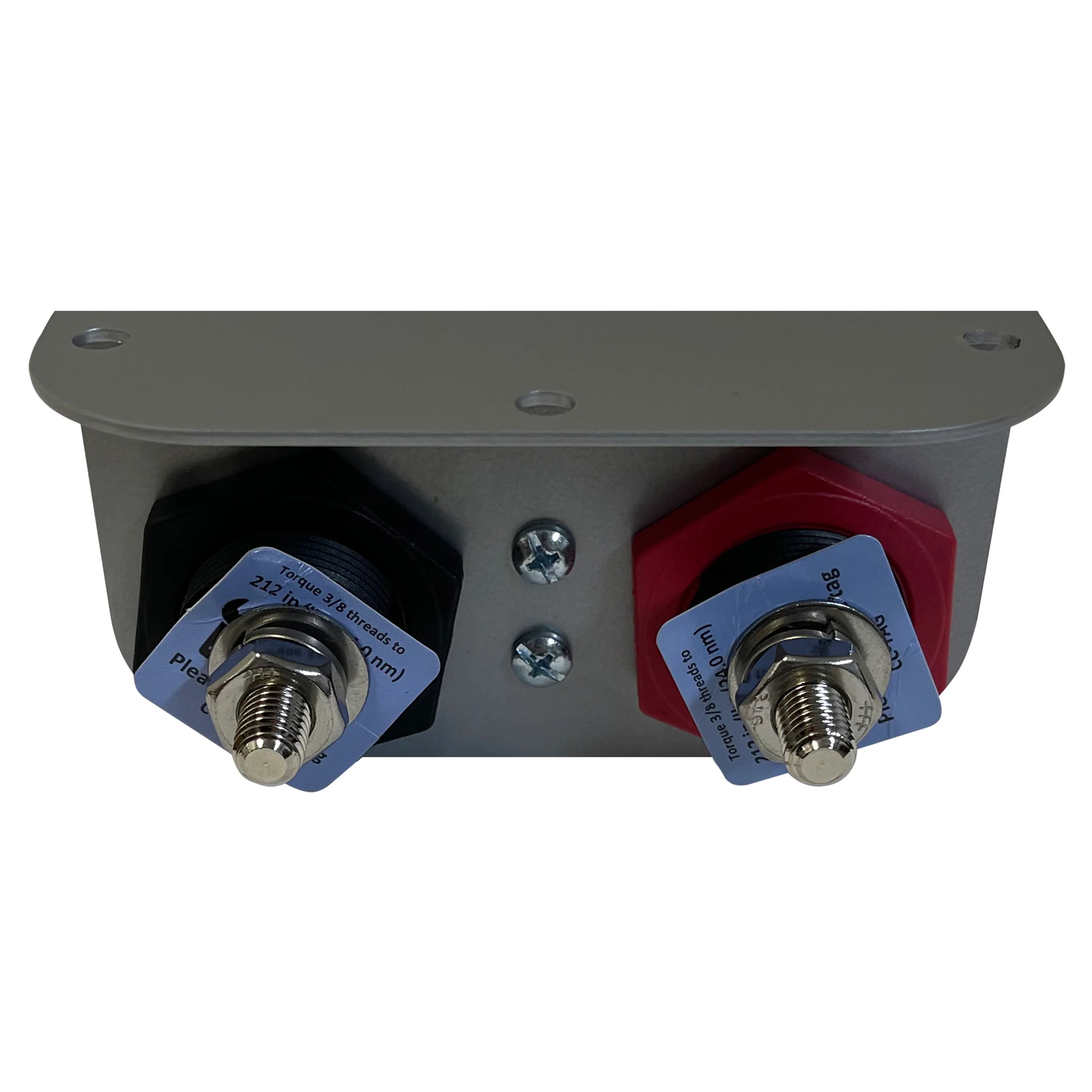

Our Jumper Bushings are available in a Bracket Mount Kit. This kit is used for mounting the bushings adjacent to existing panels. This kit includes (2) bushings (red & black), (1) pre-drilled mounting bracket and (1) protection divider w/ screws.
- For panel thickness up to 3/8"
- Easy to assemble and install
- Very low cost
- Max Amperage: 350 amp @ 12 vdc
- Max Voltage: 48 vdc
- Availabe in Red & Black
- Bushing Material : Glass-Filled Nylon
- Post Material : Nickel Plated Mild Steel
- Hex Cap Material : Brass
$18.97
