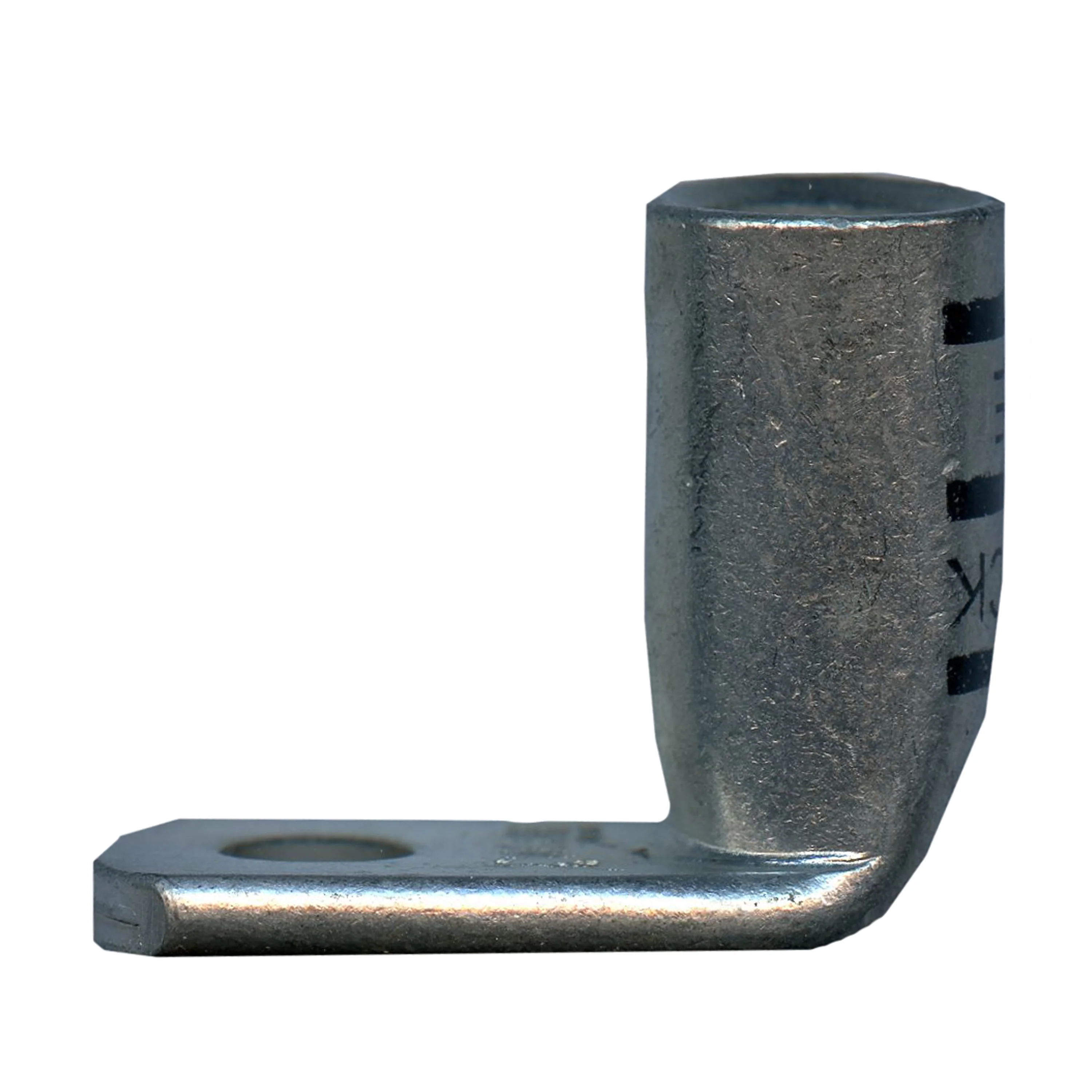

1/0 AWG Mega HD 90° Bent Copper Lug - 5/16" Stud - Black - 5 or 50 Pack - Made in USA

1/0 AWG 90° Mega Heavy Duty Copper Lugs are designed for high-current applications where space constraints require a bent connection. Manufactured from 99.9% pure seamless copper tube and electro tin-plated for superior conductivity and corrosion resistance. The heavy-duty wall thickness and wide pad ensure rugged durability in demanding environments.

Specifications & Features

• Cable Size: 1/0 AWG
• Stud Size: 5/16"
• Type: 90-degree bent copper lug
• Material: Seamless copper tube (99.9% pure)
• Plating: Electro tin-plated for corrosion resistance
• Color Code: Black (industry standard)
• Voltage Rating: 600 Volts
• Termination: Can be crimped or soldered
• Design: Chamfered barrel for easy cable insertion; tight barrel-to-pad transition maximizes crimp area
• Markings: Stamped with cable size and crimp die code for quick identification
• Use Case: Compatible with stranded copper wire
• Made in USA
