LED Latching Push Button Switch - 12V Stainless Steel - 19mm Mount

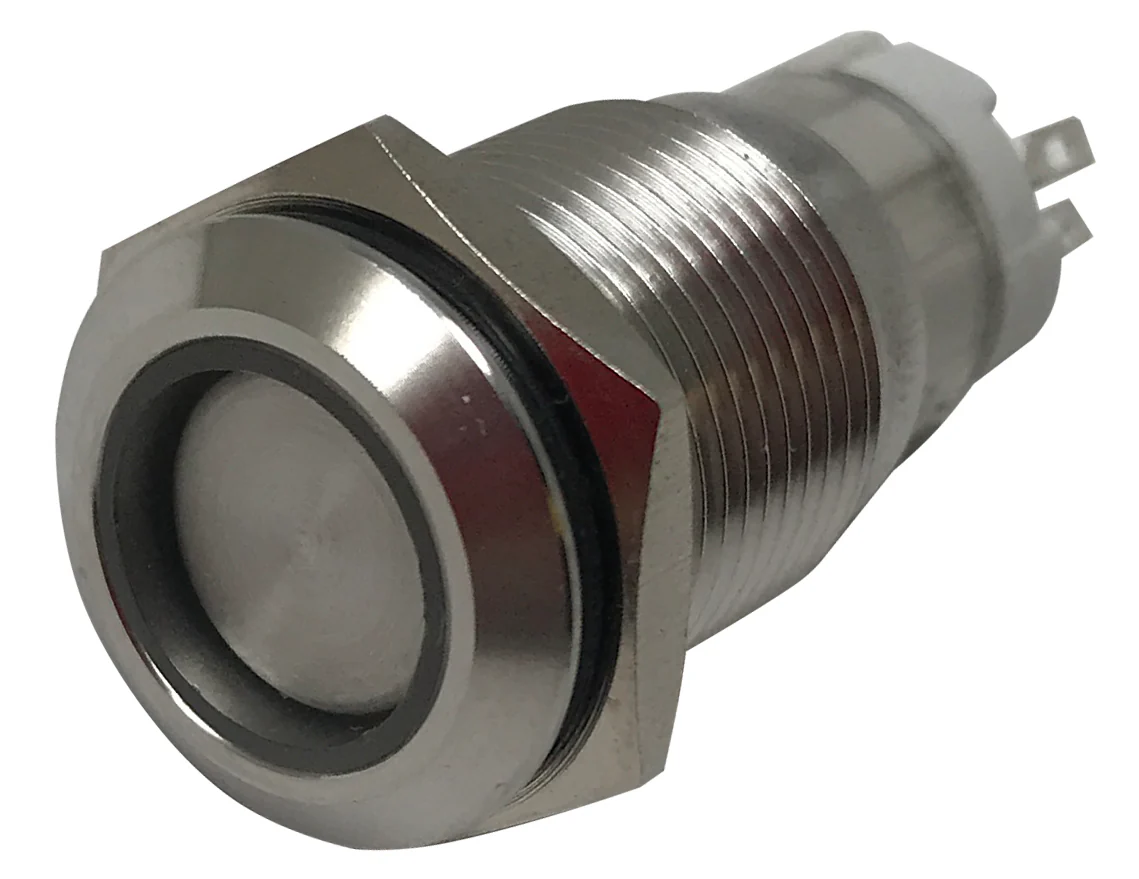

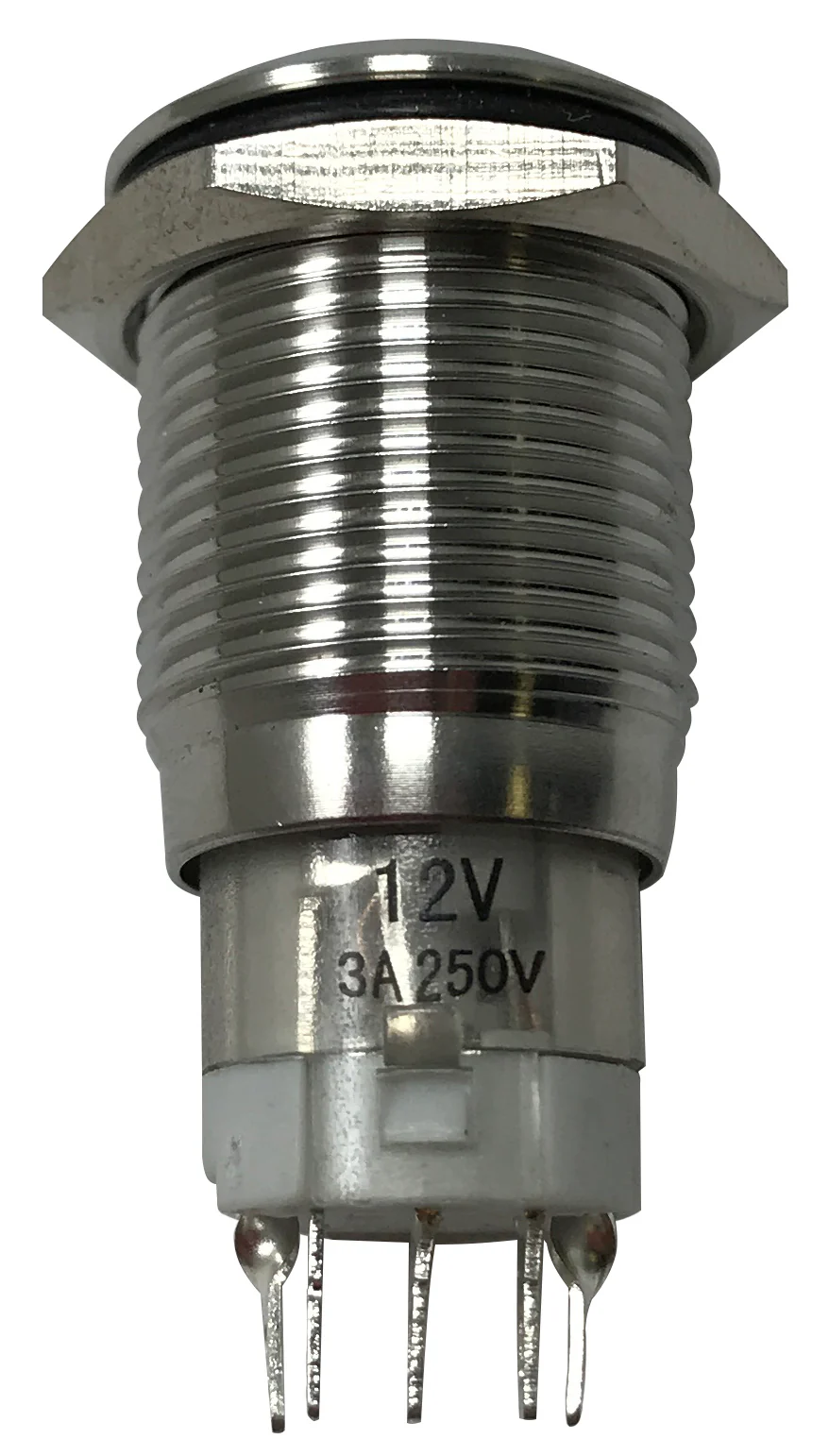

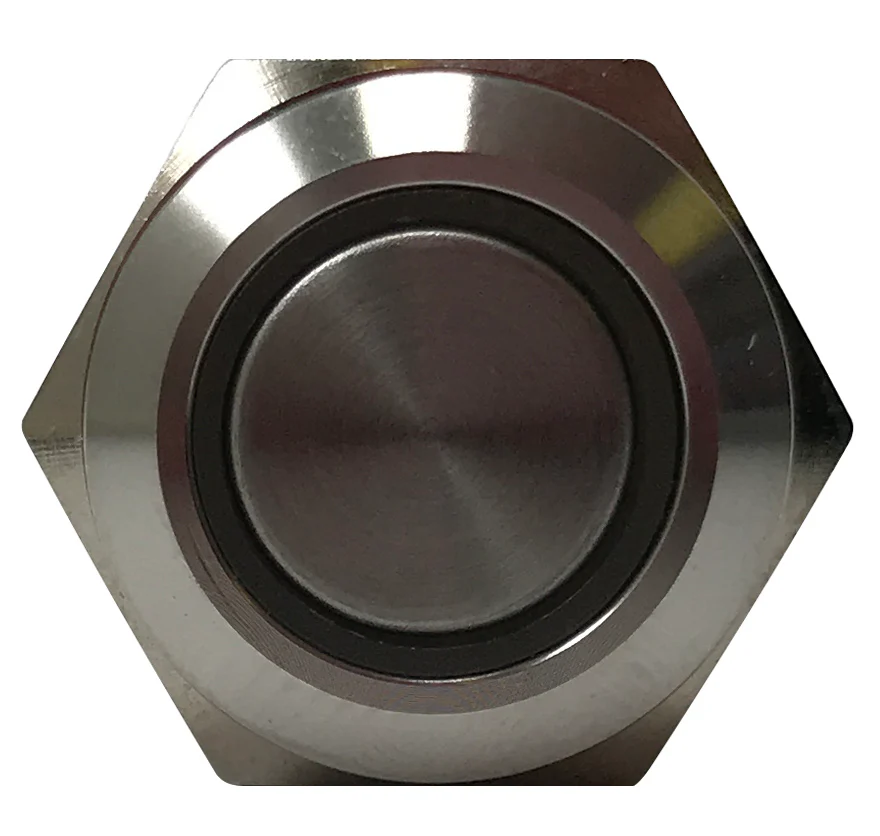

This LED latching push button switch features a stainless steel body, pre-wired harness, and IP67-rated waterproof construction for reliable operation in harsh environments. Designed for 12V DC systems, this durable panel switch fits a standard 3/4" (19mm) mounting hole and is ideal for automotive, equipment, and off-road electrical projects requiring momentary or maintained functionality.

Specifications & Features

• Mounting Hole Diameter: 3/4" (19mm)
• Switch Type: Latching (On/Off)
• Housing: Stainless steel

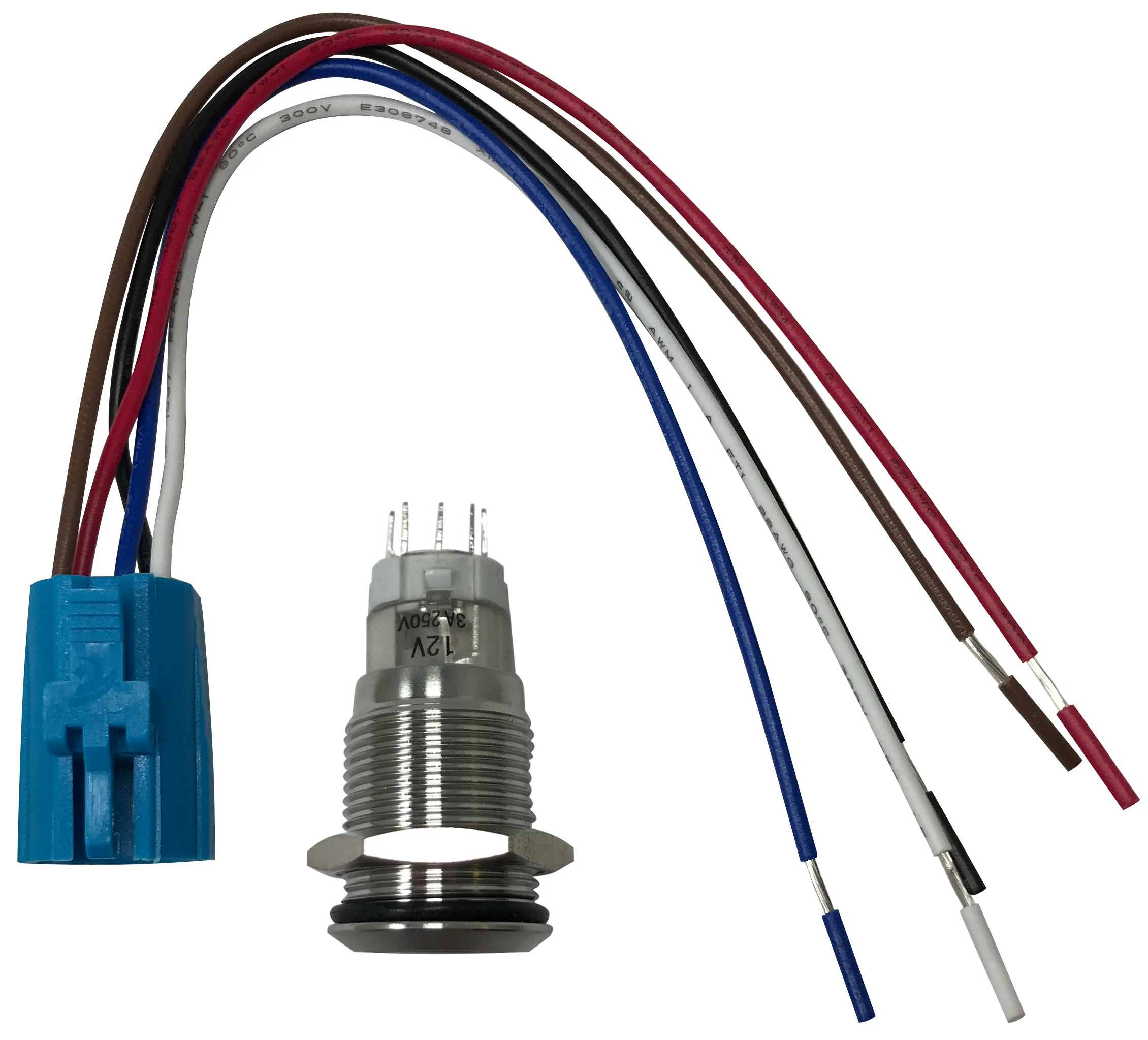

• Includes pre-wired harness for quick installation
• LED Rating: 15mA, AC/DC 12V
• Switch Rating: 5A @ 250VAC / 5A @ 30VDC
• Ingress Protection: IP67 waterproof rated

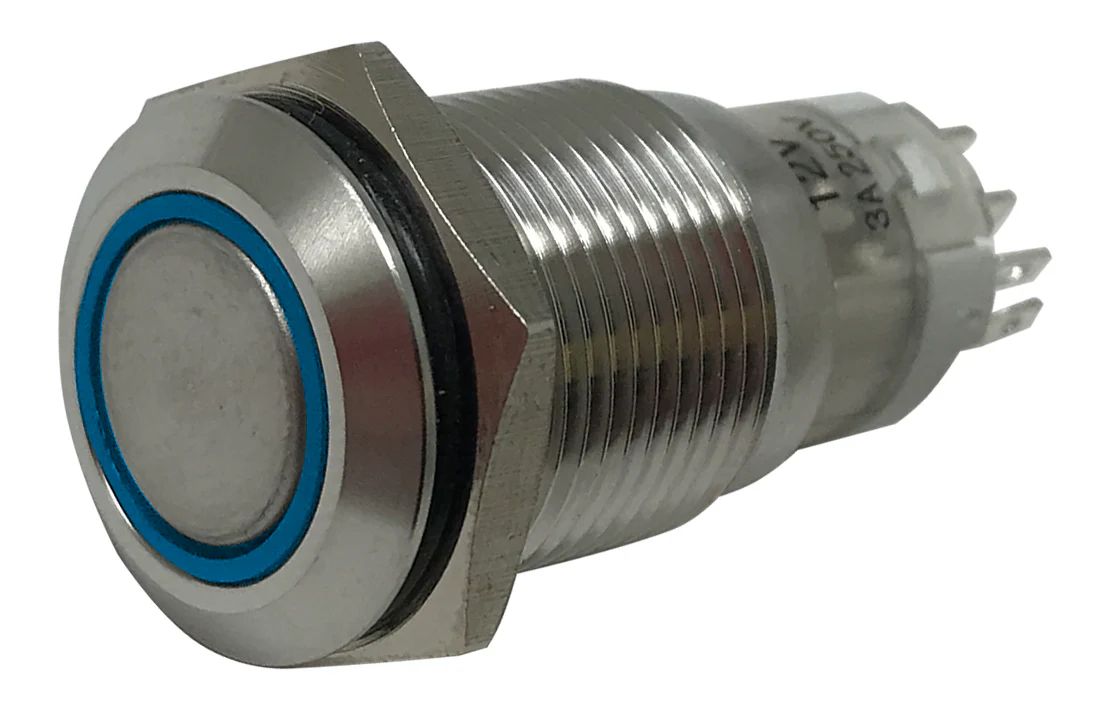

• Available LED colors: Red, Green, Blue, White, Yellow

Wiring Instructions

• Red – Connect to a 12 volt (+) switched wire. This is the (+) wire of the LED ring.
• Black – Connect to (–) ground. This is the (–) ground wire of the LED ring.
• White – Common input wire.
• Brown – Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
• Blue – Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
