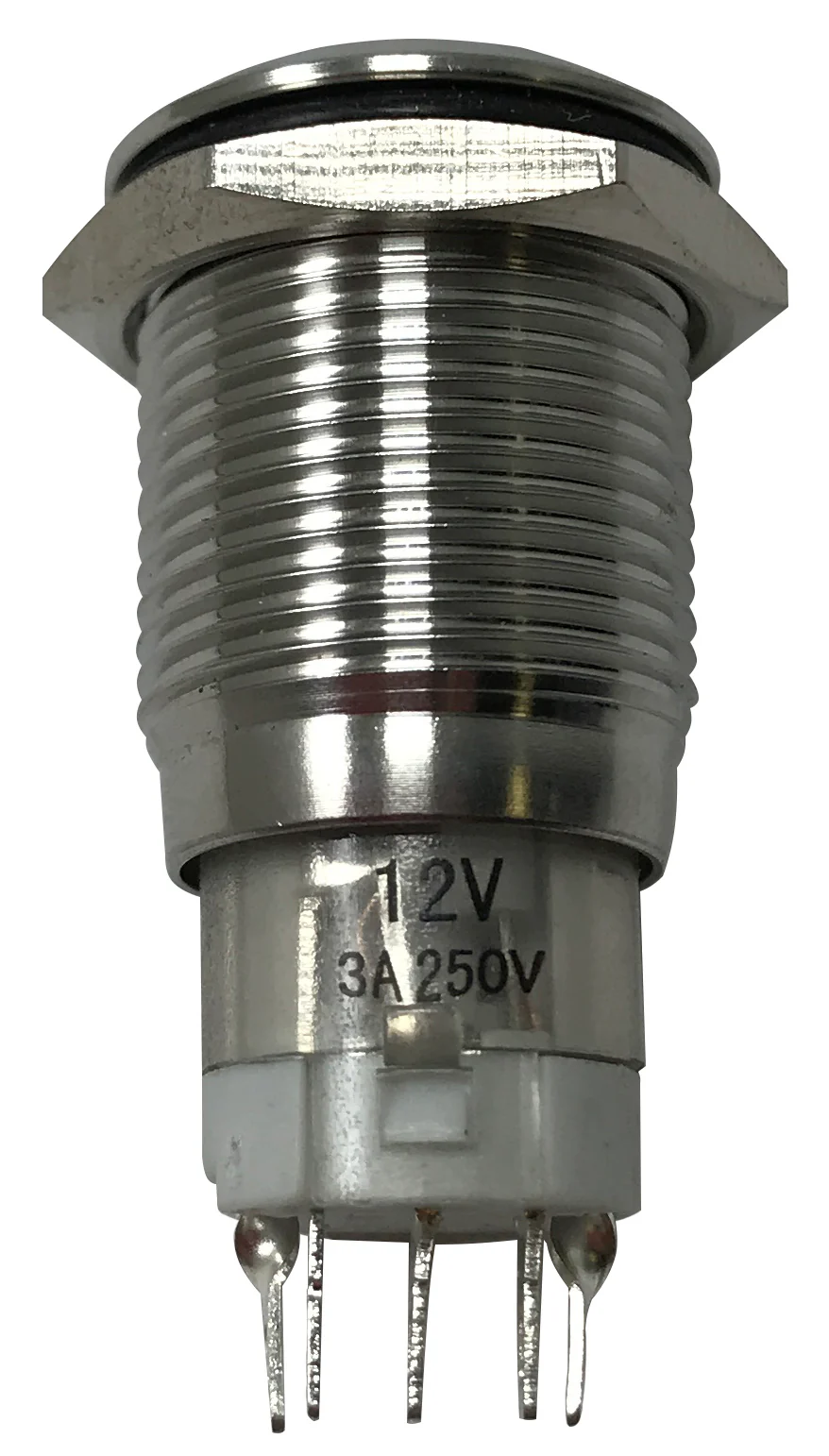

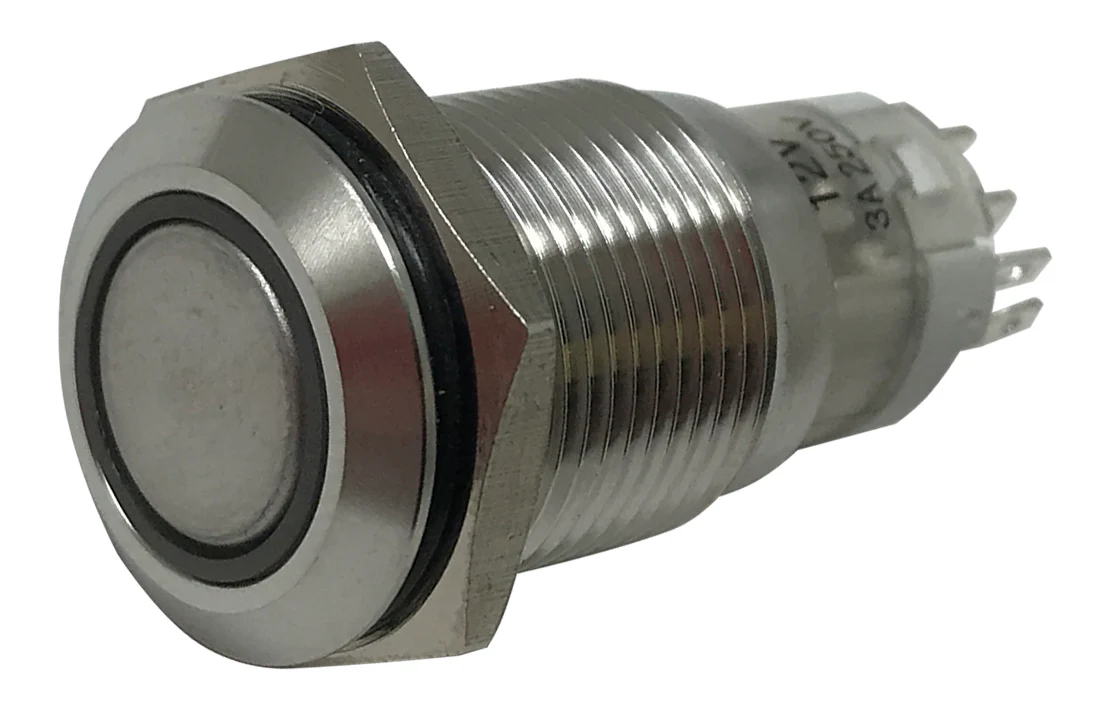

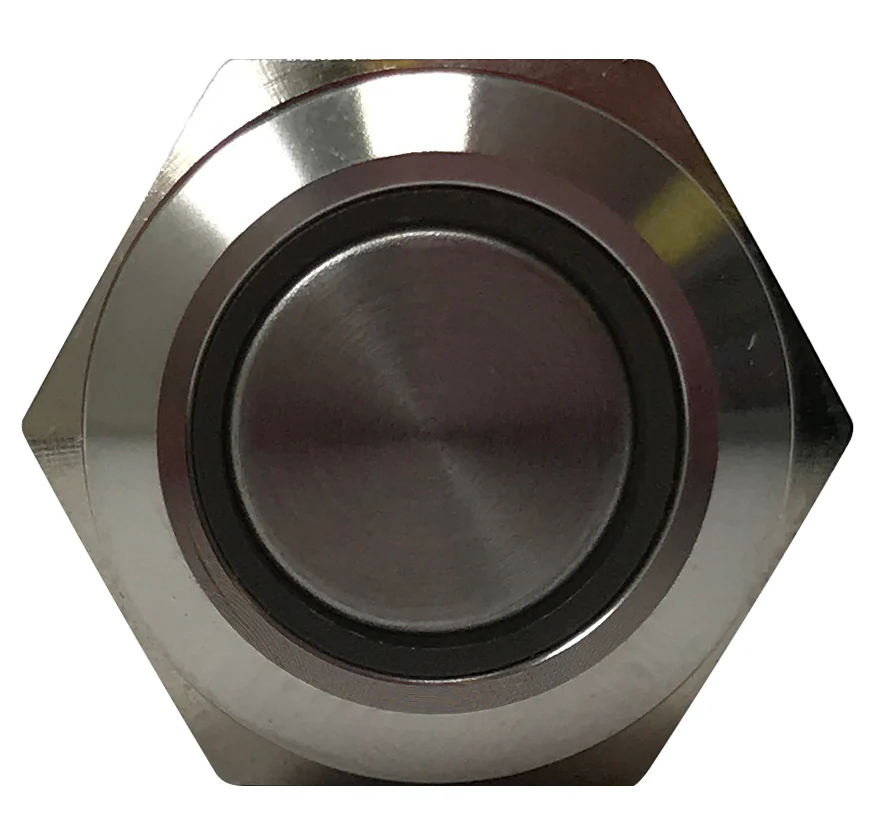

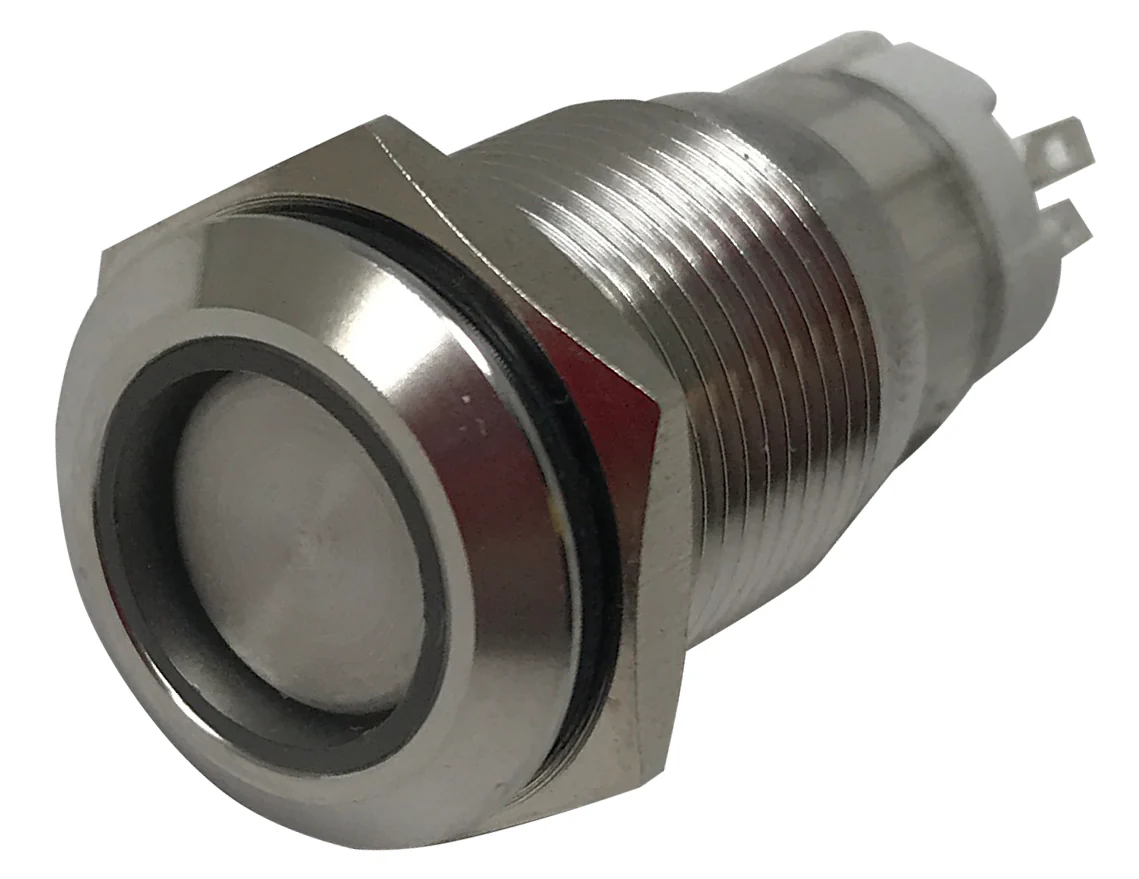

LED Latching Push Button Switch - 12V Stainless Steel - On/Off - 16mm Mount

This LED latching push button switch features a durable stainless steel housing and is designed for 12V applications in automotive, industrial, and custom equipment panels. The latching mechanism toggles between ON and OFF states with each press, while the integrated LED ring provides clear status indication. Compact and weather-resistant, it's ideal for control panels and dashboard use.

Specifications & Features

• Mounting Hole Diameter: 16mm (5/8")
• Switch Rating: 3A @ 250VAC
• LED Rating: 15mA, AC/DC 12V
• IP67 rated for water and dust resistance

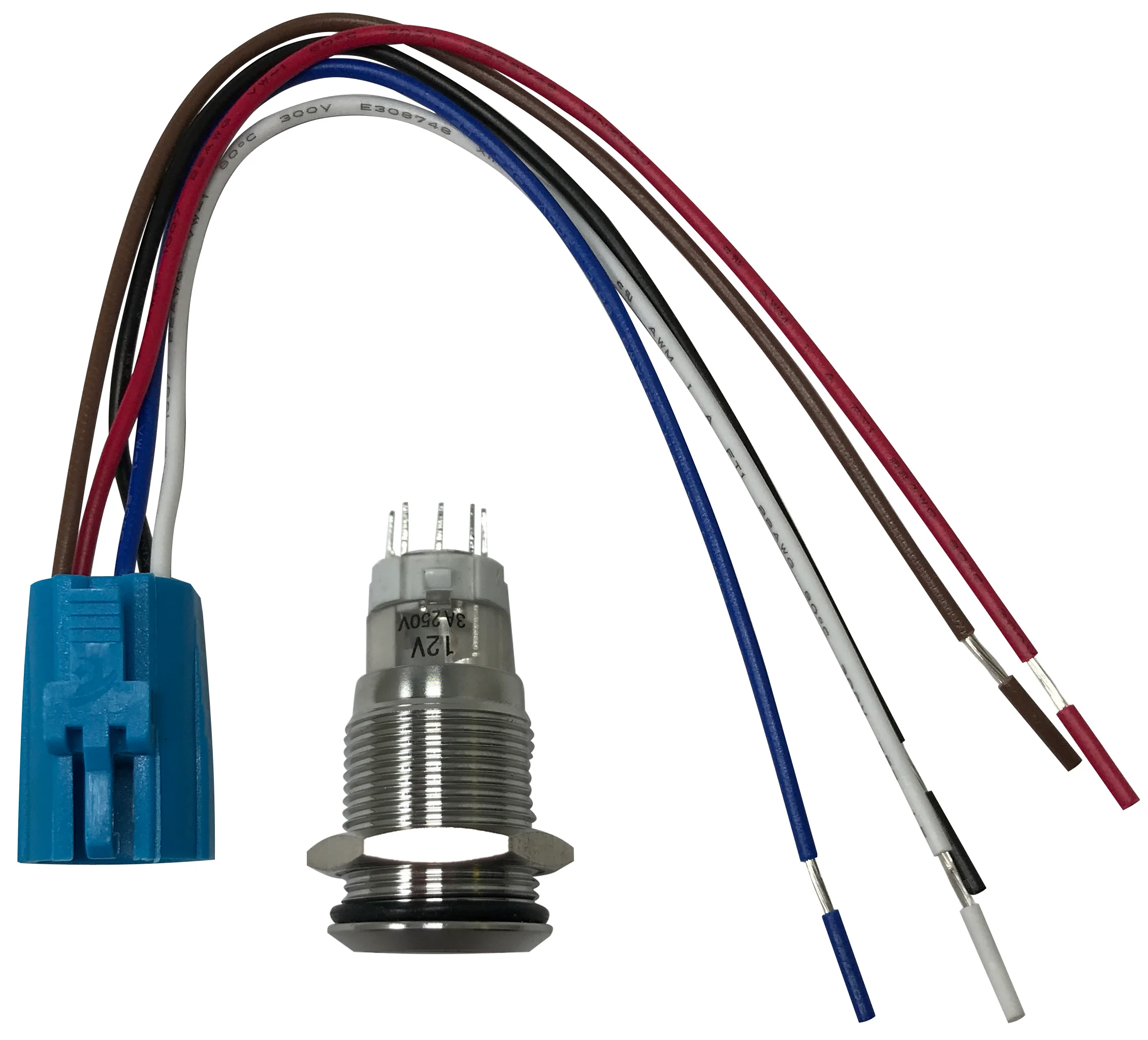

• Includes pre-wired harness for quick installation
• Stainless steel housing provides durability in harsh environments
• Ideal for automotive, marine, and industrial equipment
• Available LED colors: Blue, Green, Red, White, Yellow

Wiring Guide

• Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the LED ring.
• Black: Connect to (-) ground. This is the (-) ground wire of the LED ring.
• White: Common input wire.
• Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
• Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
