LED Latching Push Button Switch - 12V Black Metal - On/Off - 16mm Mount - 1 or 5 Pack

LED Latching Push Button Switch - 12V Black Metal - On/Off - 16mm Mount - 1 or 5 Pack

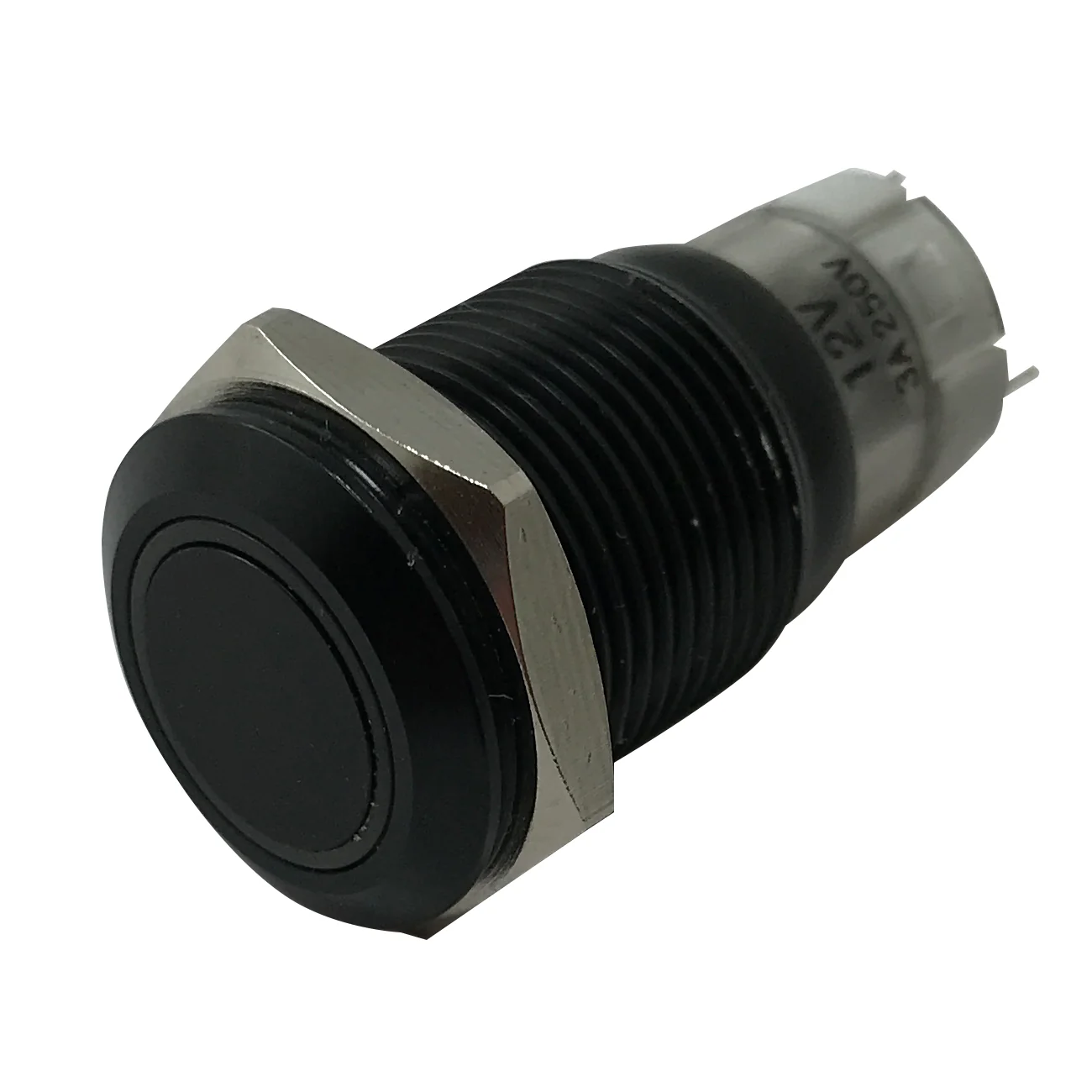

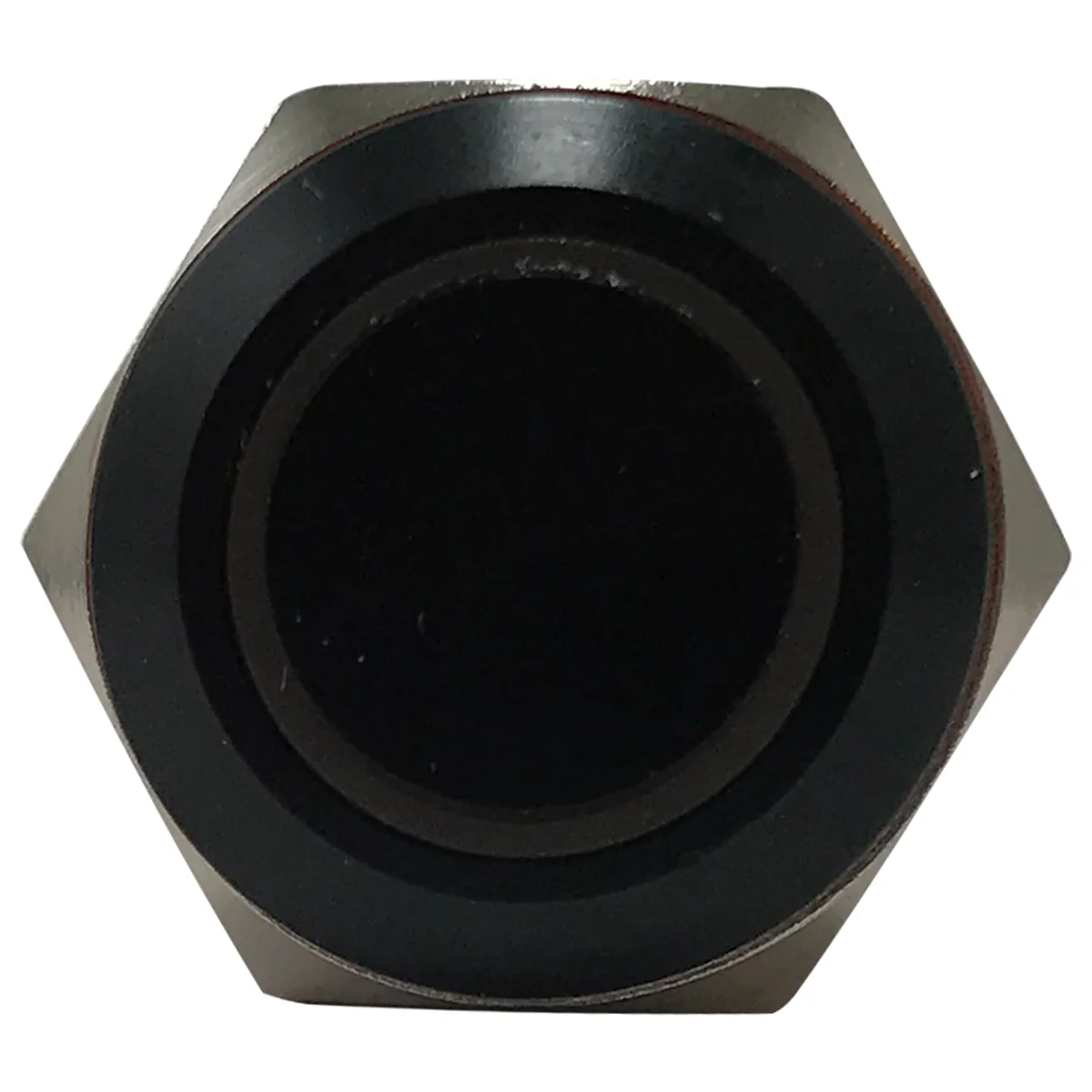

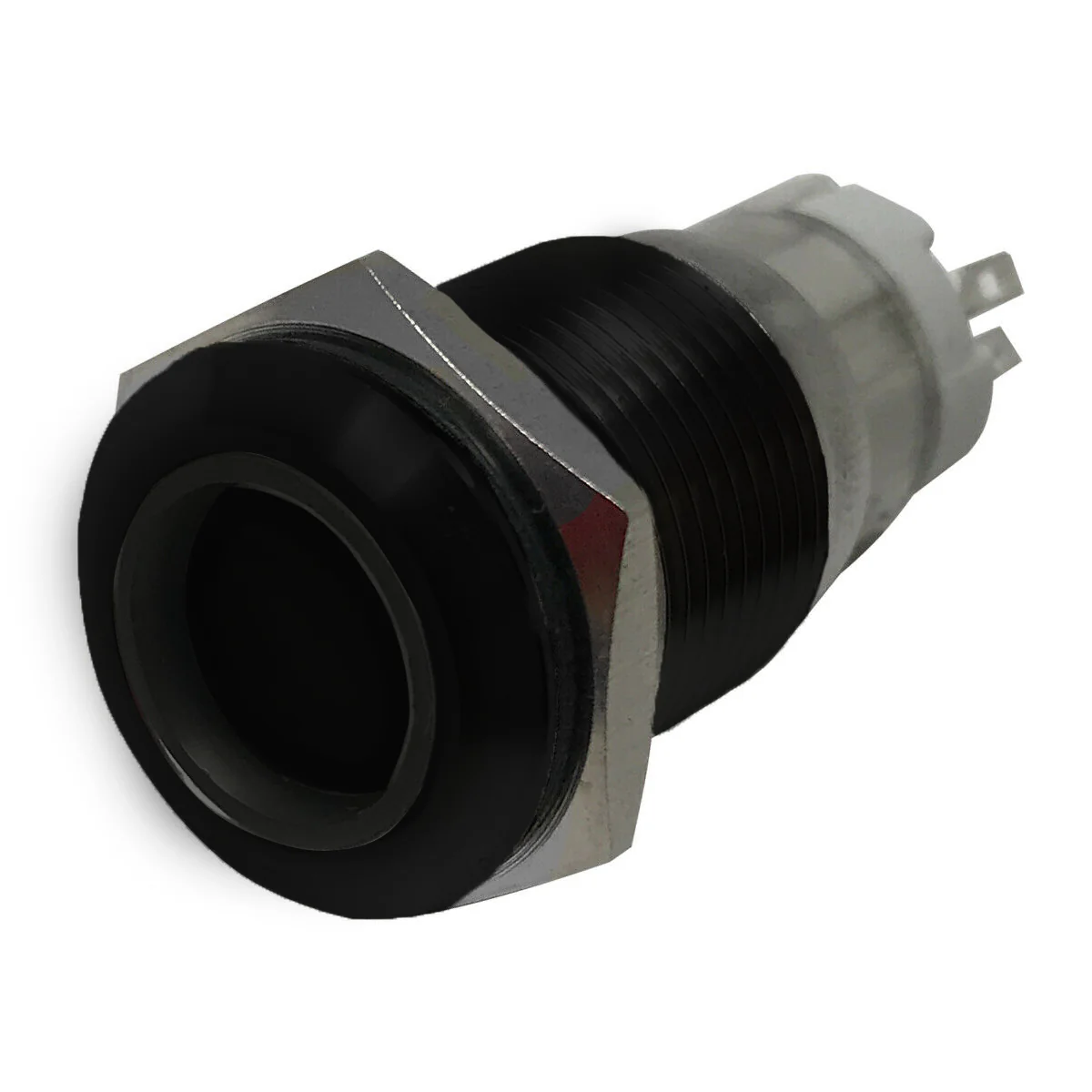

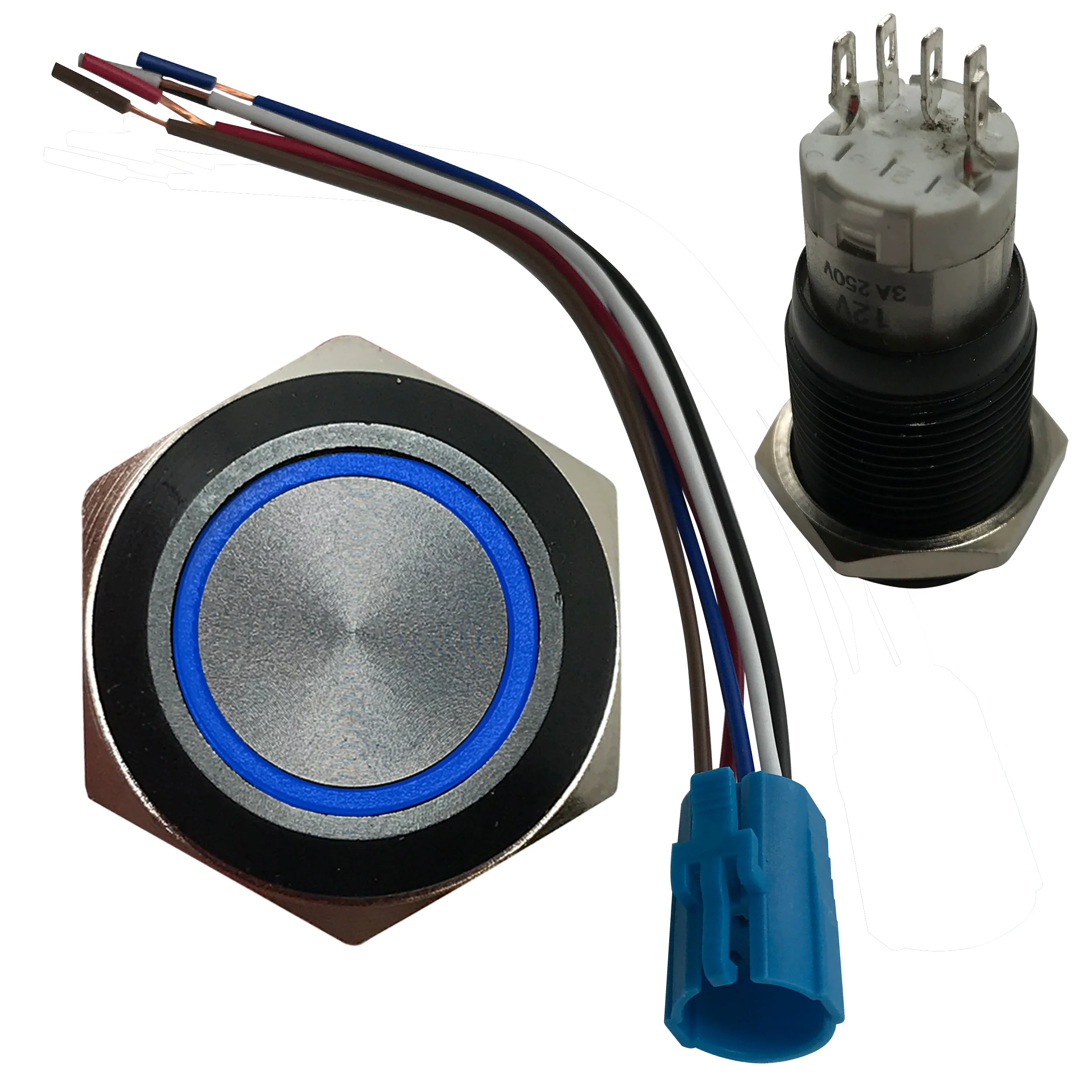

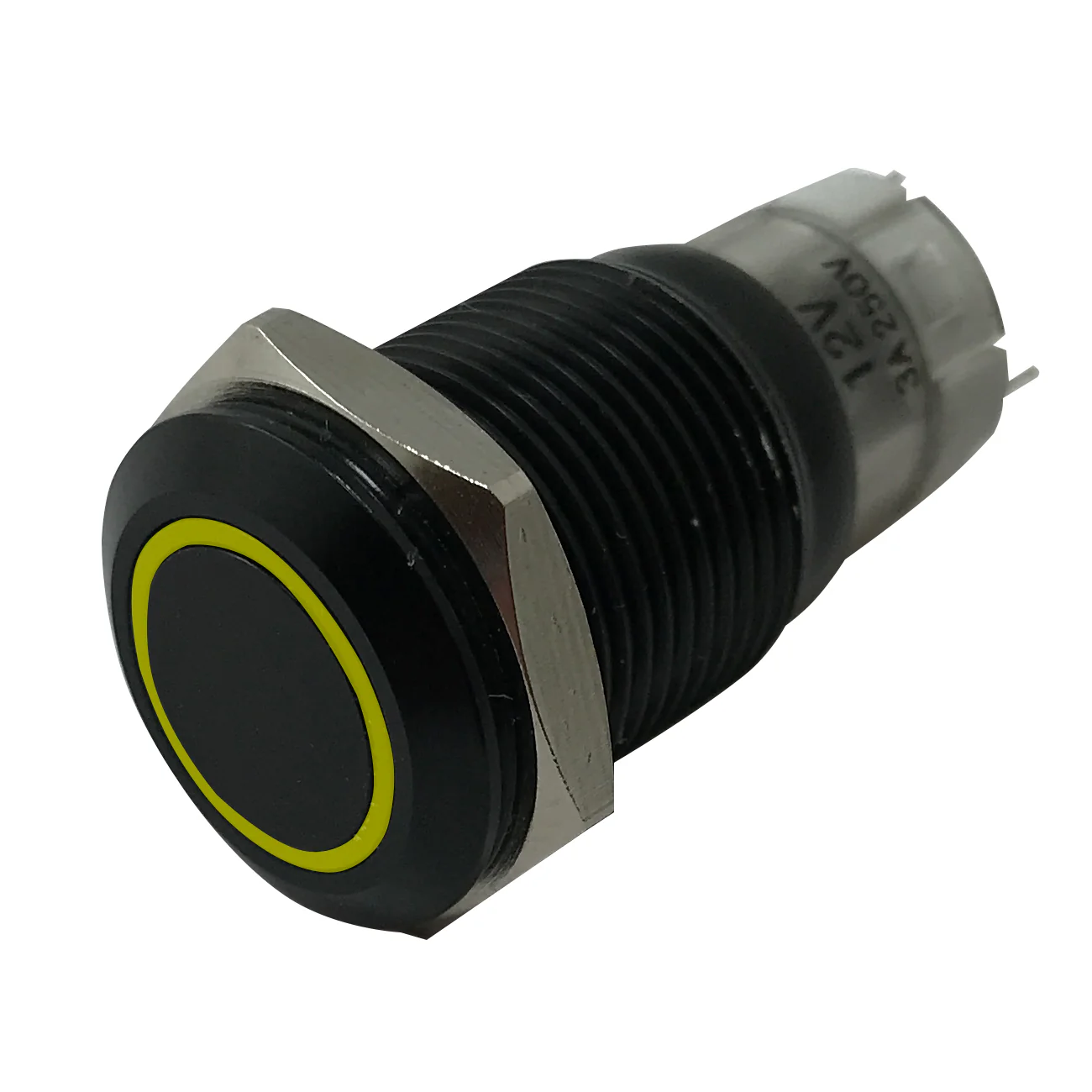

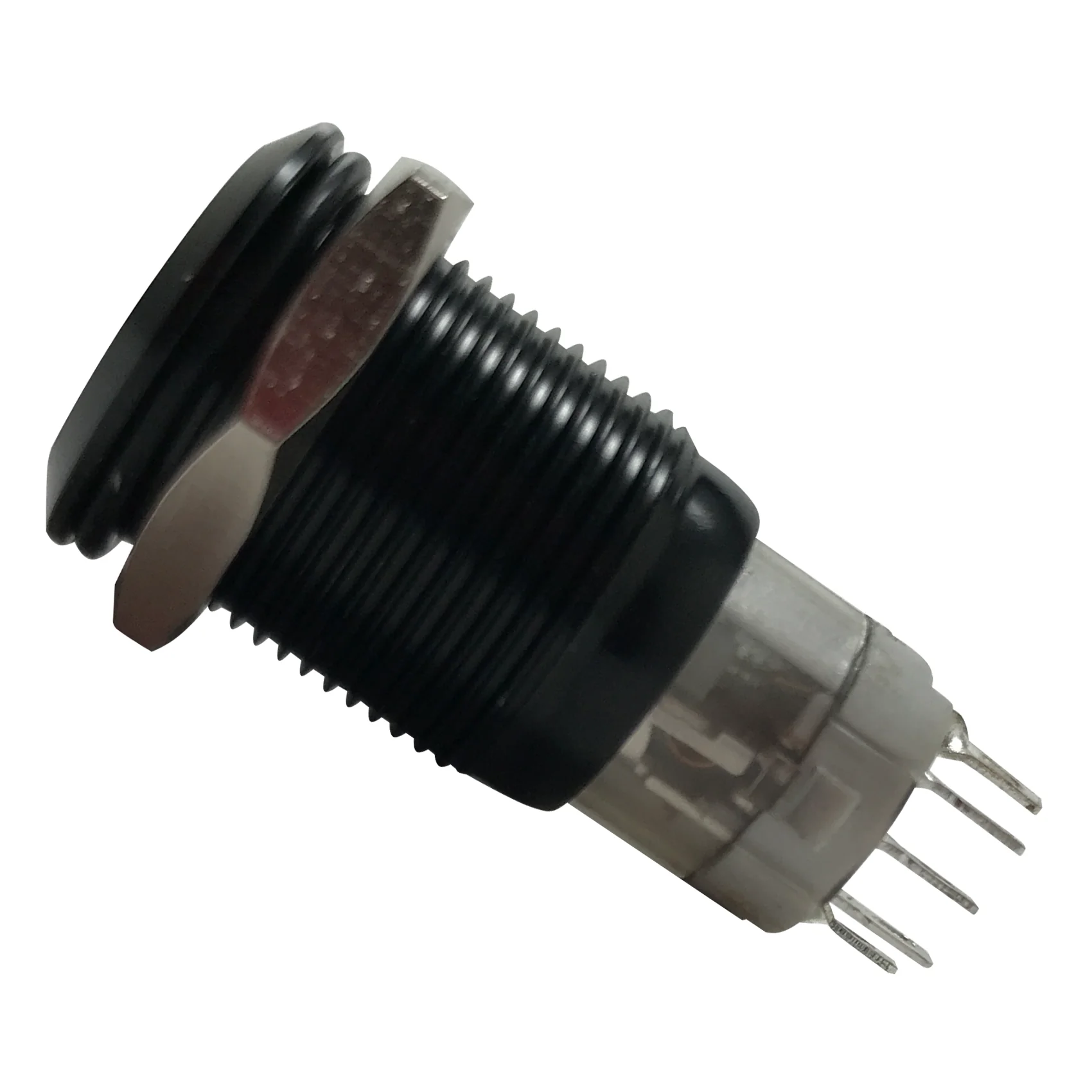

This LED latching push button switch features a durable black metal housing and is designed for use in 12V DC systems. Ideal for automotive, equipment, or dashboard applications, it offers reliable on/off control with bright LED ring illumination. The switch includes a pre-wired harness and supports both normally open and normally closed outputs for versatile use in custom circuits.

Specifications & Features

  • Mounting Hole Size: 5/8" (16mm)
  • Switch Type: Latching (Push On / Push Off)

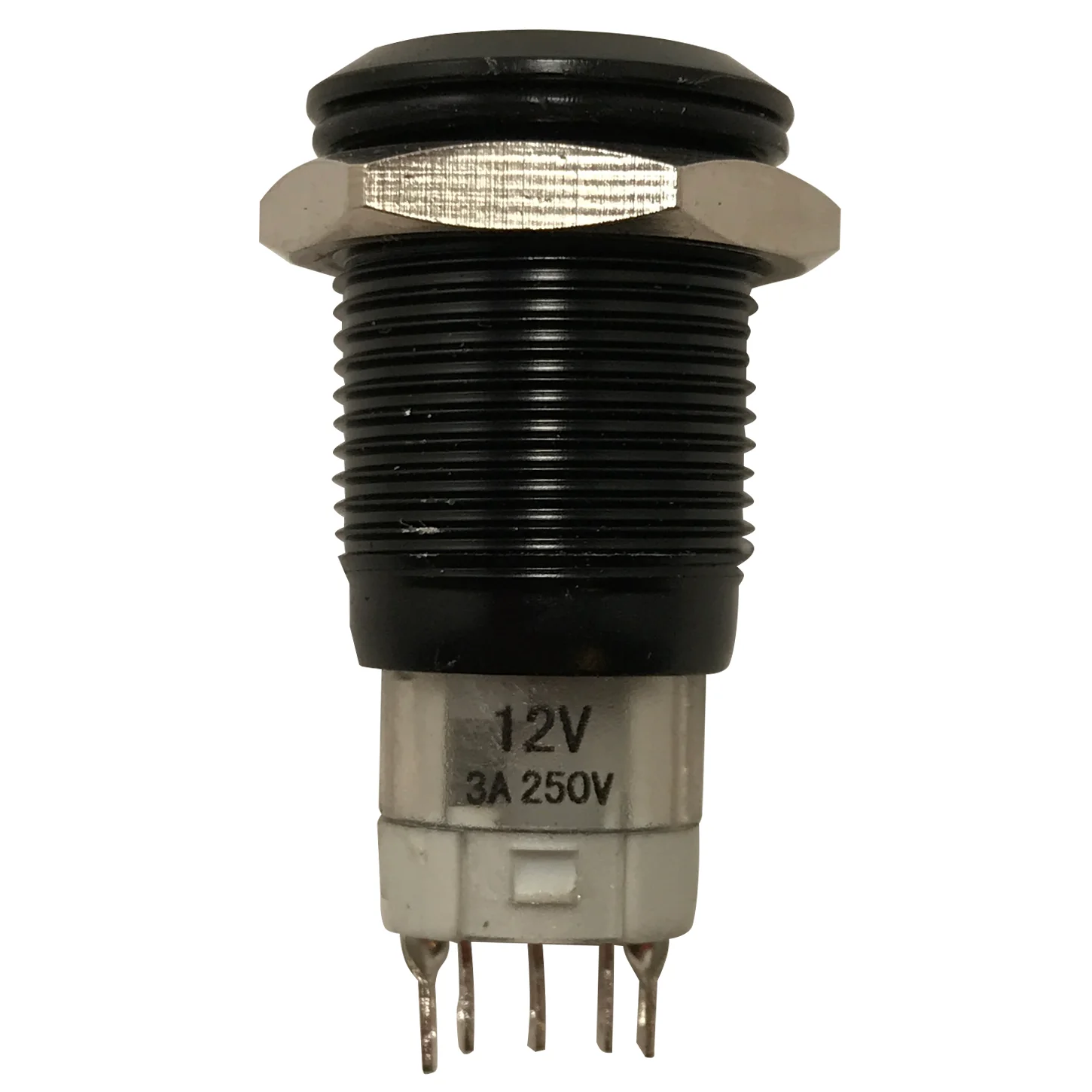

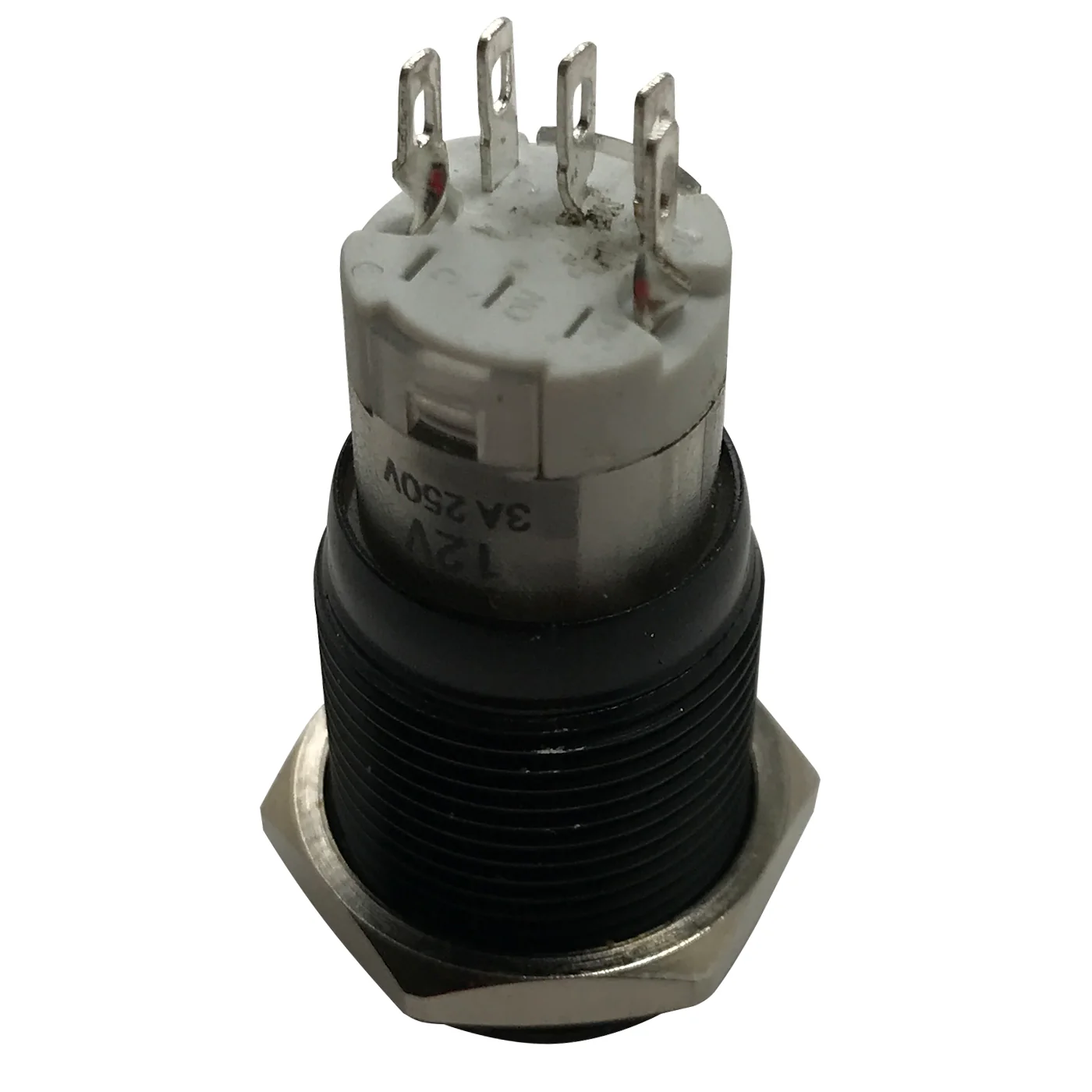

  • Switch Rating: 3A @ 250VAC
  • LED Rating: 15mA, AC/DC 12V

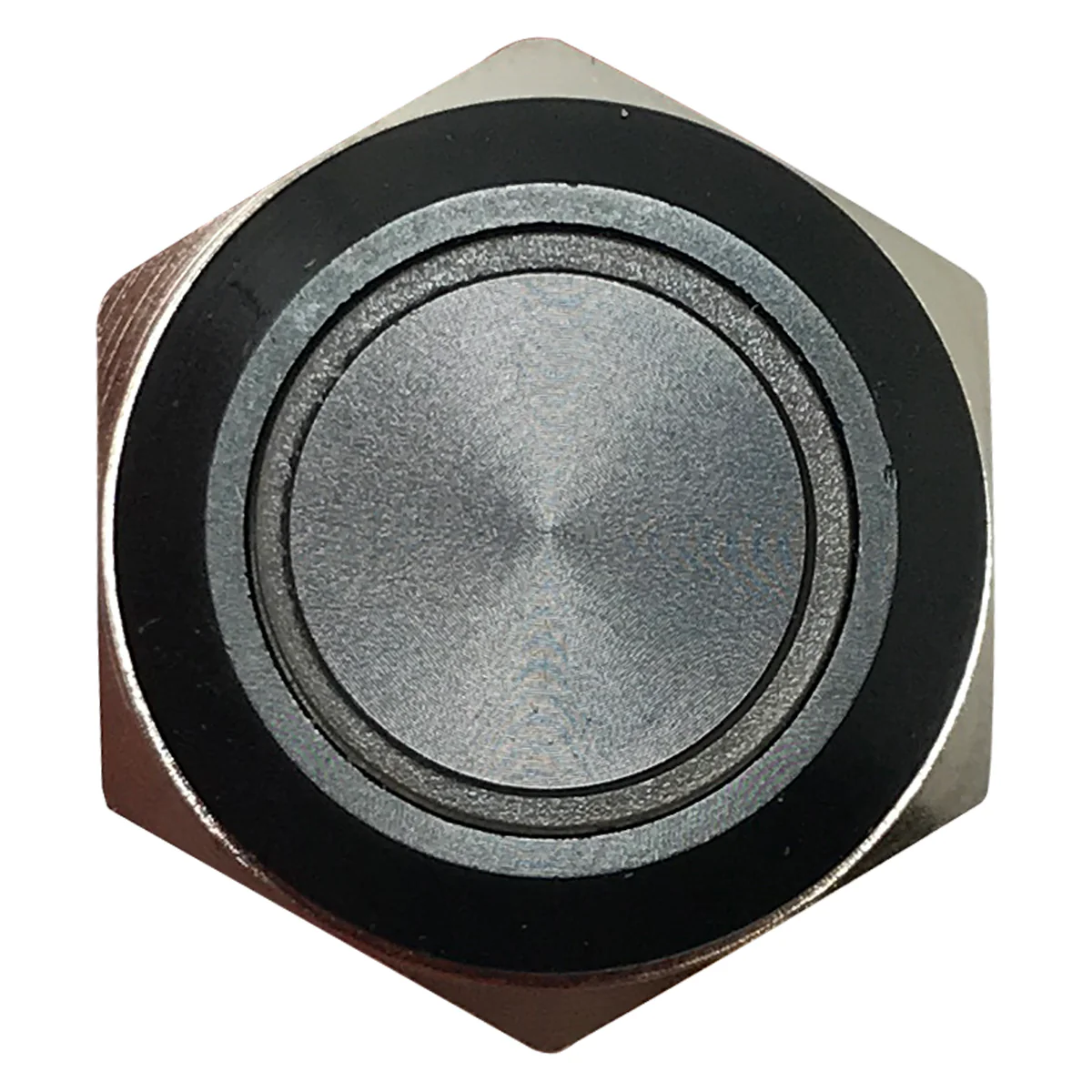

  • Housing: Black metal with chrome bezel

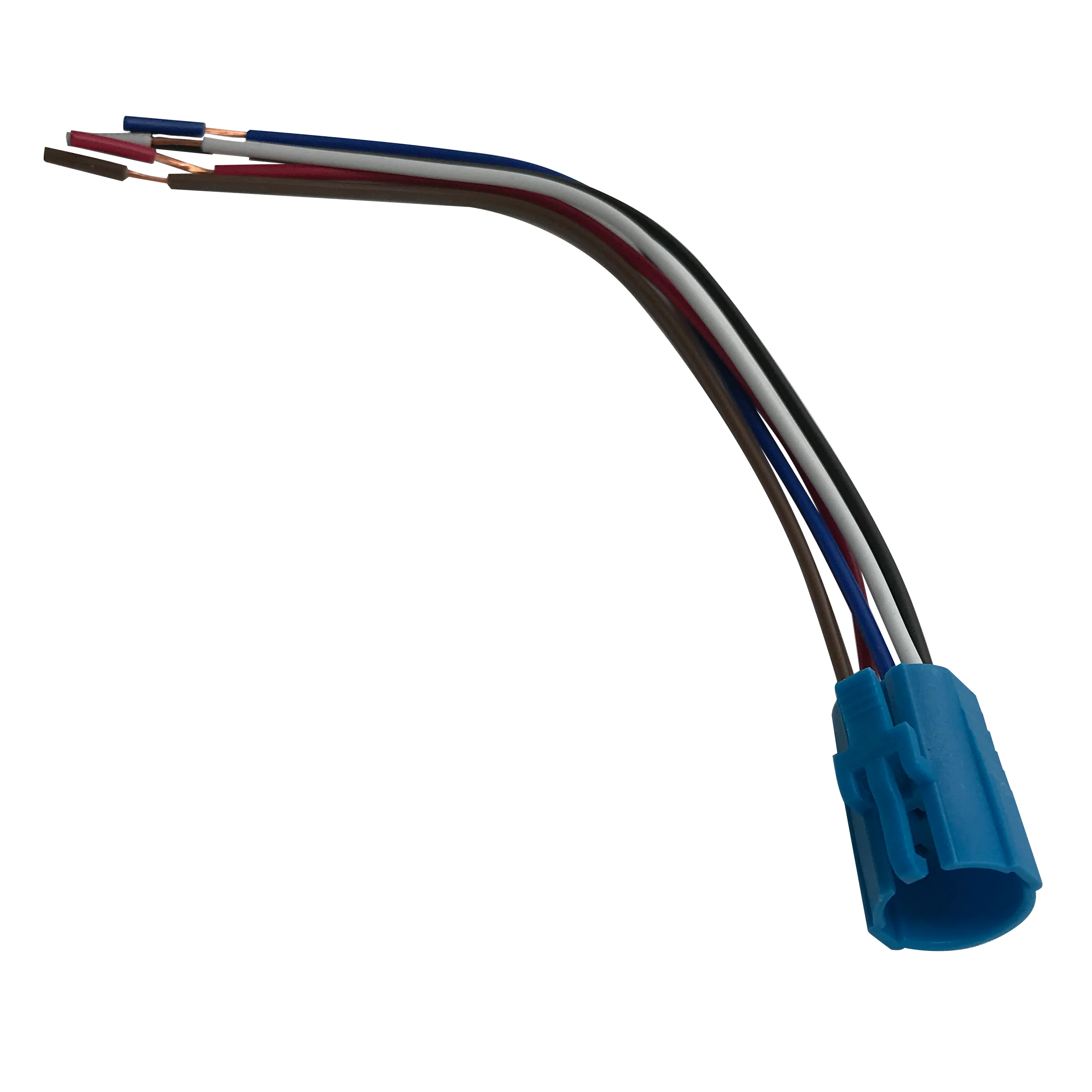

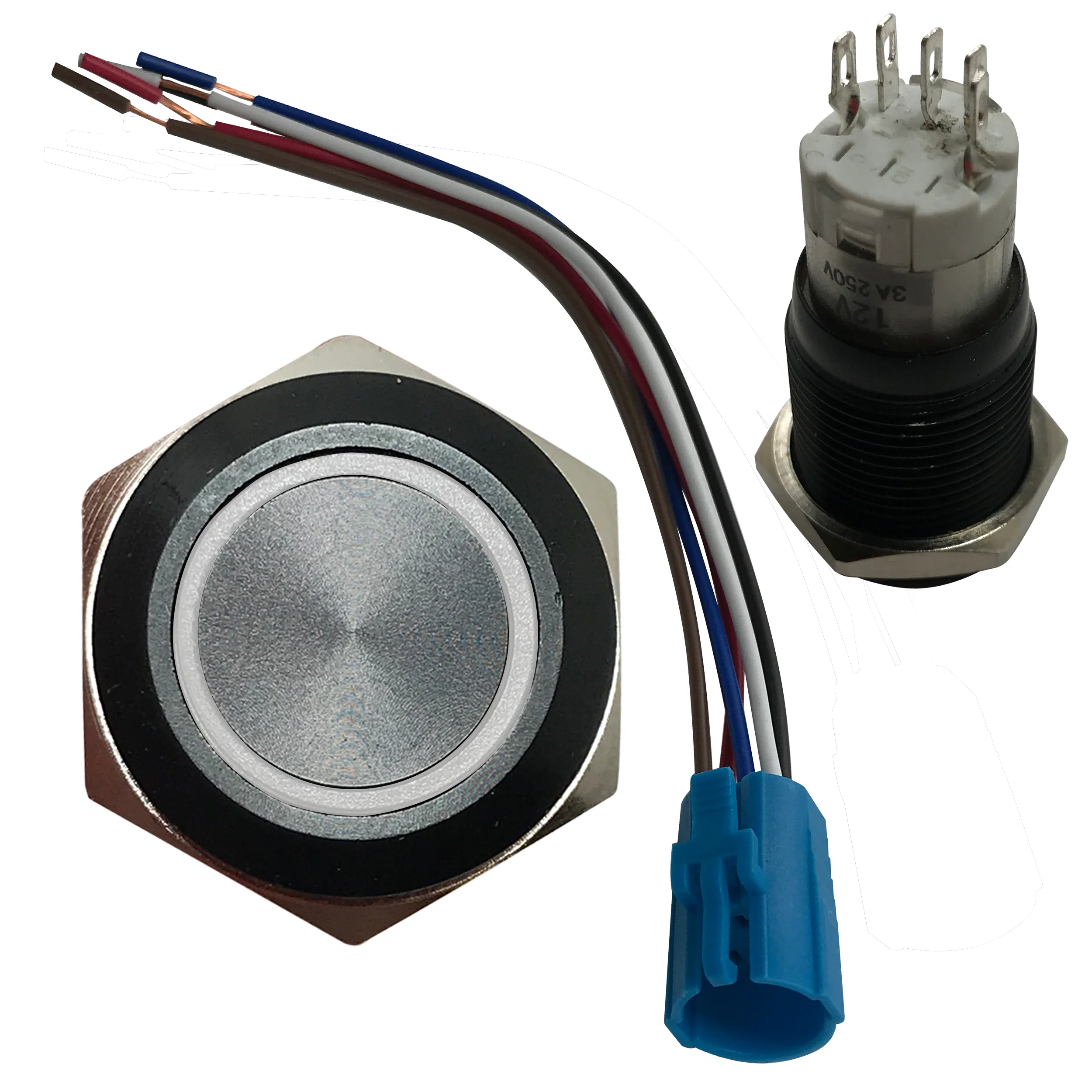

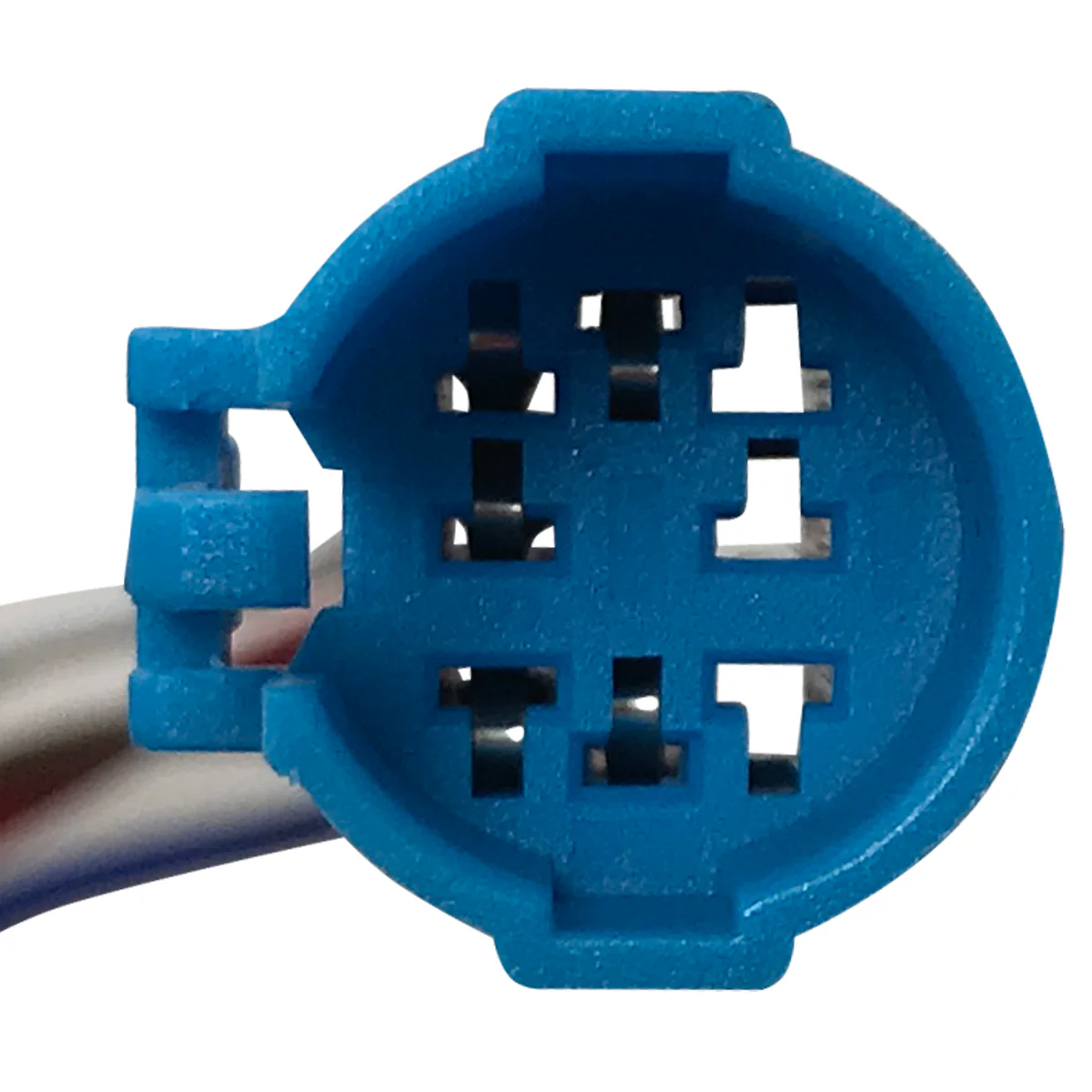

  • Includes pre-wired harness for quick installation
  • IP67 water-resistant rating for harsh environments
  • Available LED colors: Red, Green, Blue, White, Yellow

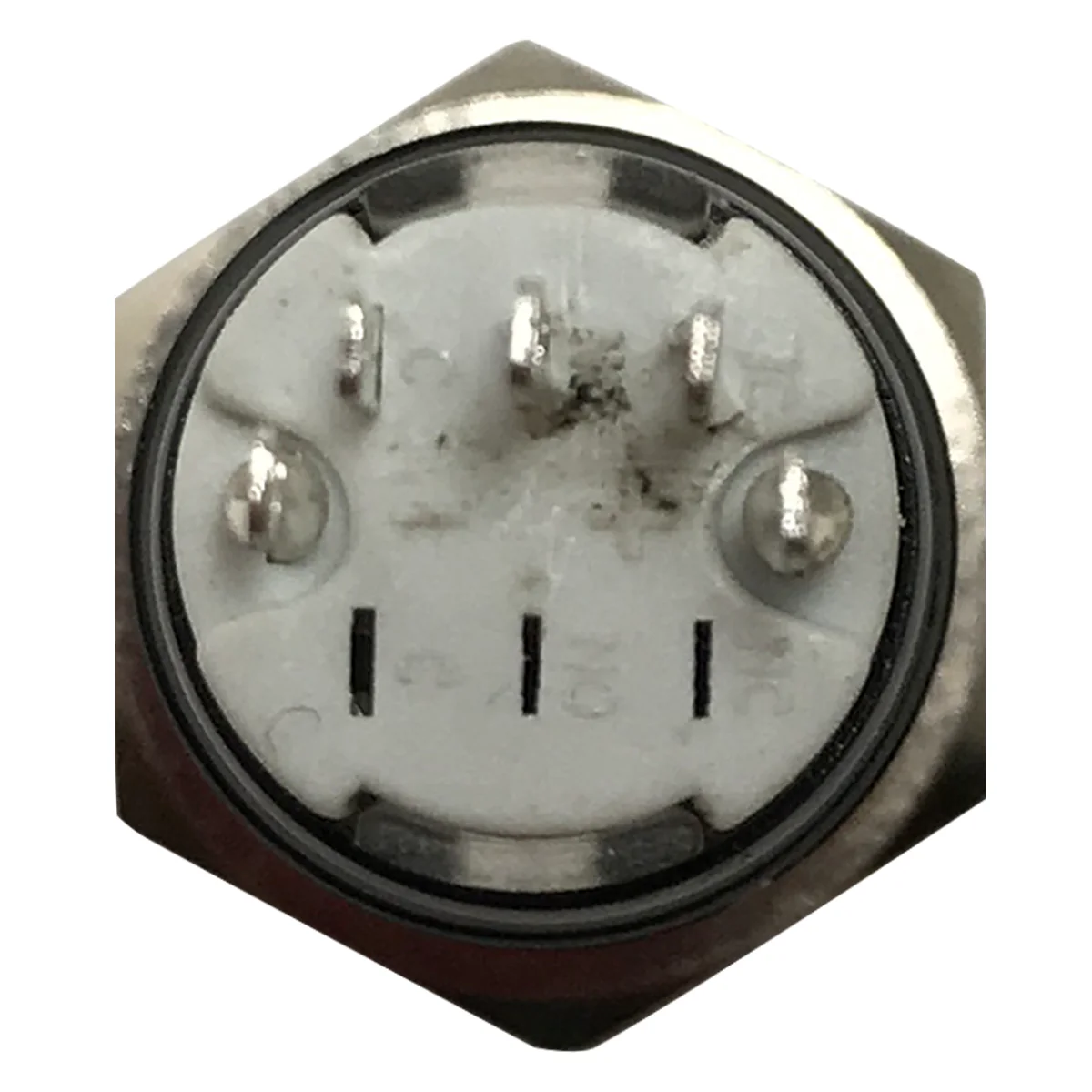

Wiring Guide

  • Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring.
  • Black: Connect to (-) ground. This is the (-) ground wire of the led ring.
  • White: Common input
  • Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
  • Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
Select Color
From $4.72

Original: $13.49

-65%
LED Latching Push Button Switch - 12V Black Metal - On/Off - 16mm Mount - 1 or 5 Pack—

$13.49

$4.72

Product Information

Shipping & Returns

Description

This LED latching push button switch features a durable black metal housing and is designed for use in 12V DC systems. Ideal for automotive, equipment, or dashboard applications, it offers reliable on/off control with bright LED ring illumination. The switch includes a pre-wired harness and supports both normally open and normally closed outputs for versatile use in custom circuits.

Specifications & Features

  • Mounting Hole Size: 5/8" (16mm)
  • Switch Type: Latching (Push On / Push Off)
  • Switch Rating: 3A @ 250VAC
  • LED Rating: 15mA, AC/DC 12V
  • Housing: Black metal with chrome bezel
  • Includes pre-wired harness for quick installation
  • IP67 water-resistant rating for harsh environments
  • Available LED colors: Red, Green, Blue, White, Yellow

Wiring Guide

  • Red: Connect to a 12 volt (+) switched wire. This is the (+) wire of the led ring.
  • Black: Connect to (-) ground. This is the (-) ground wire of the led ring.
  • White: Common input
  • Brown: Normally closed (N.C.) output. The Brown wire and the White wire are connected internally when the button is not pushed in.
  • Blue: Normally open (N.O.) output. The Blue wire and the White wire are connected internally when the button is pushed in.
