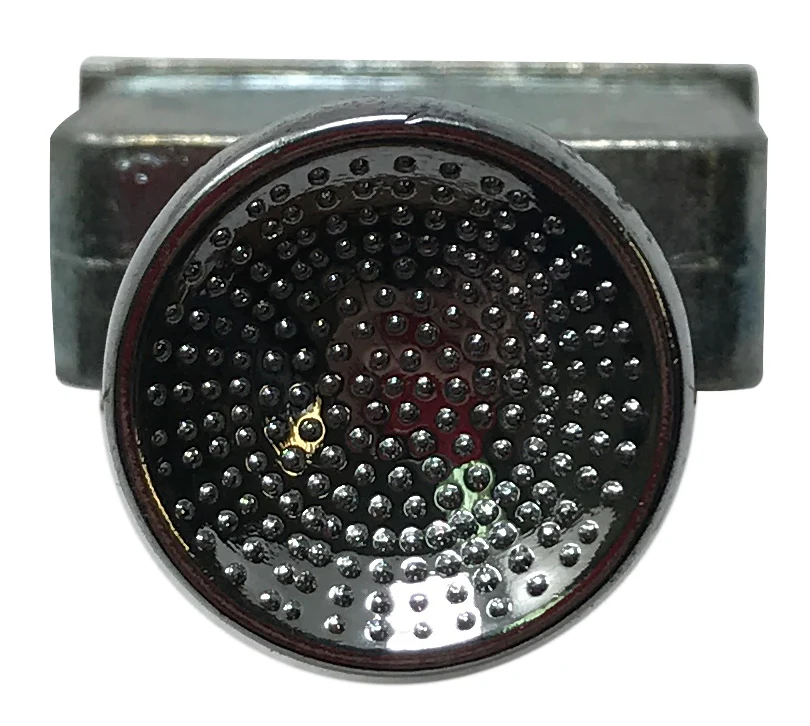

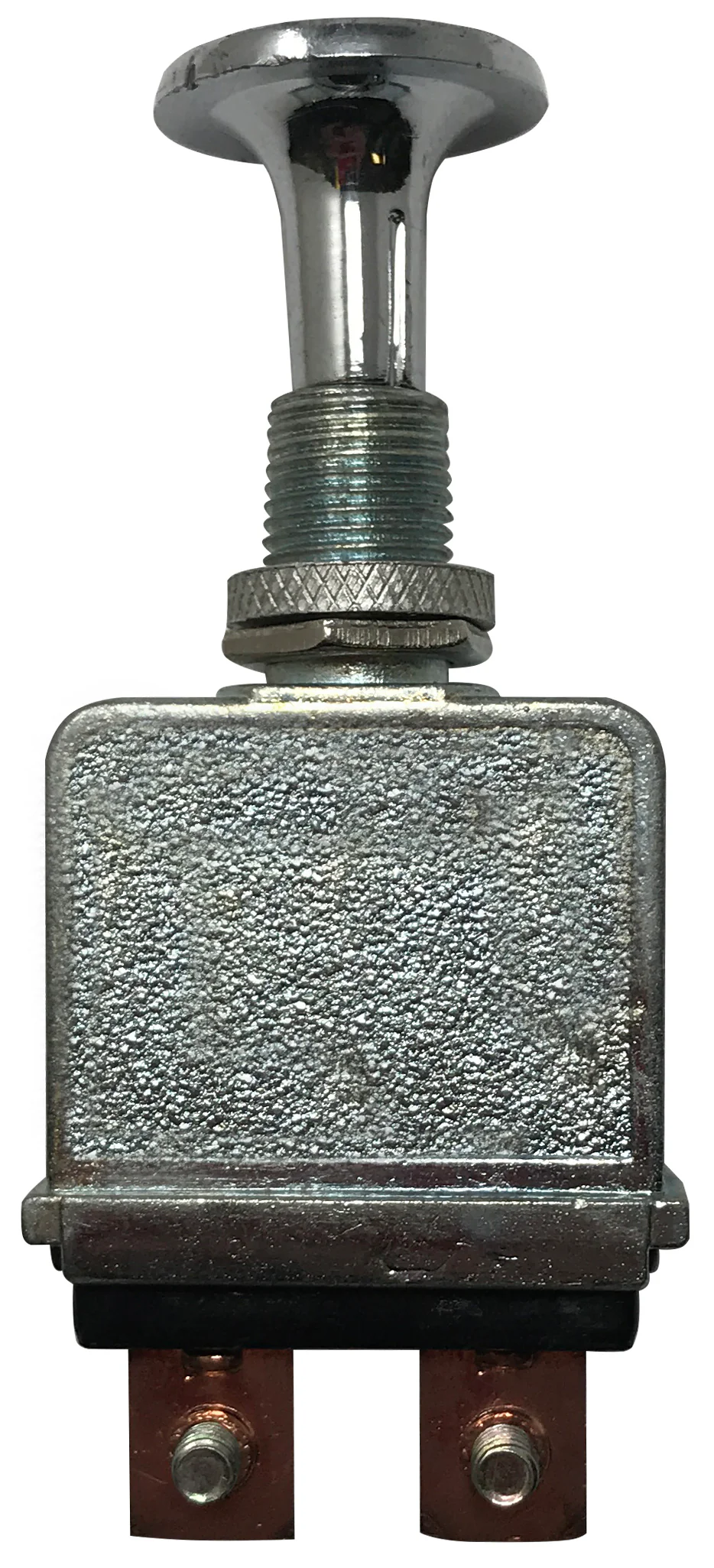

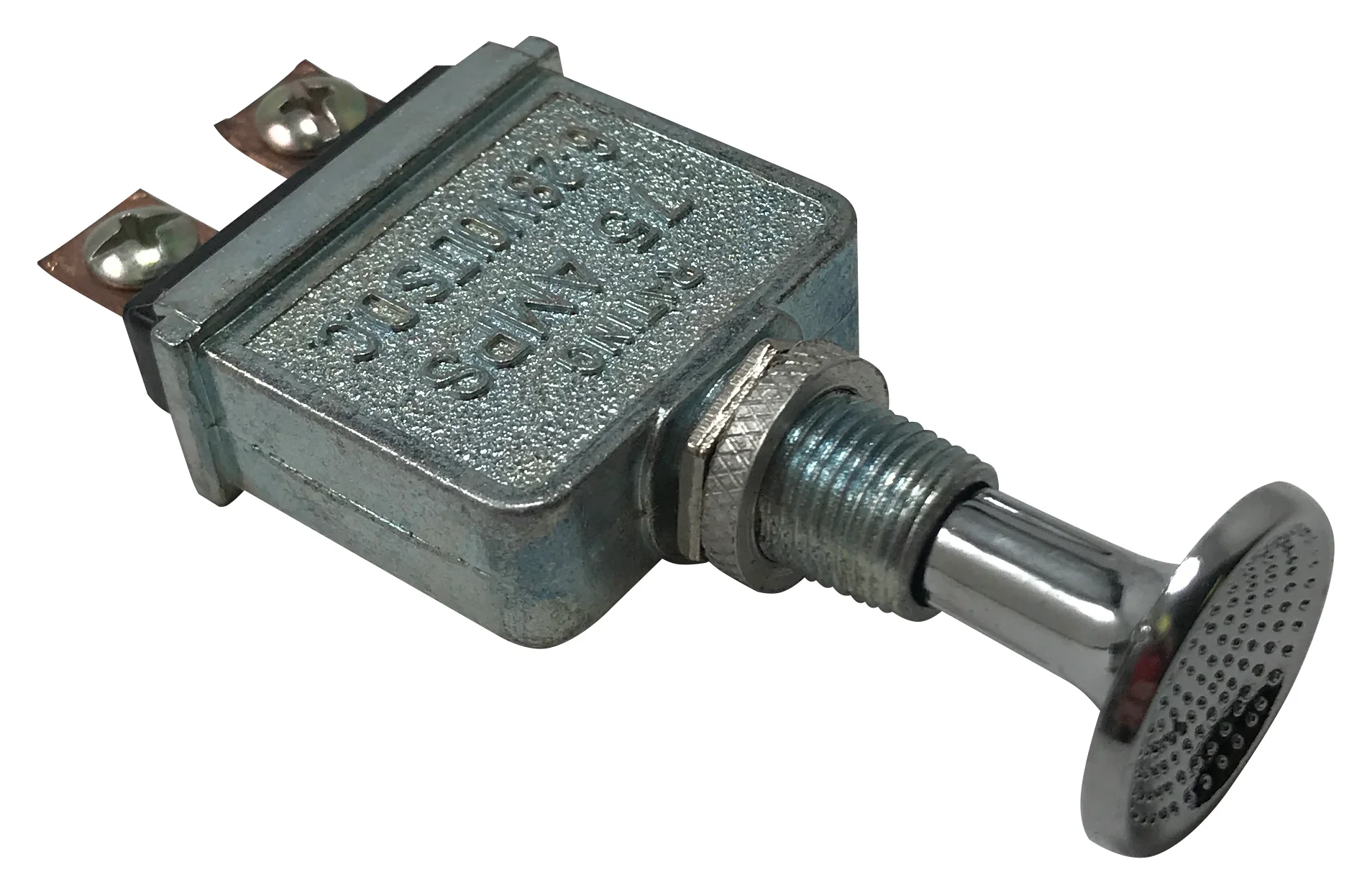

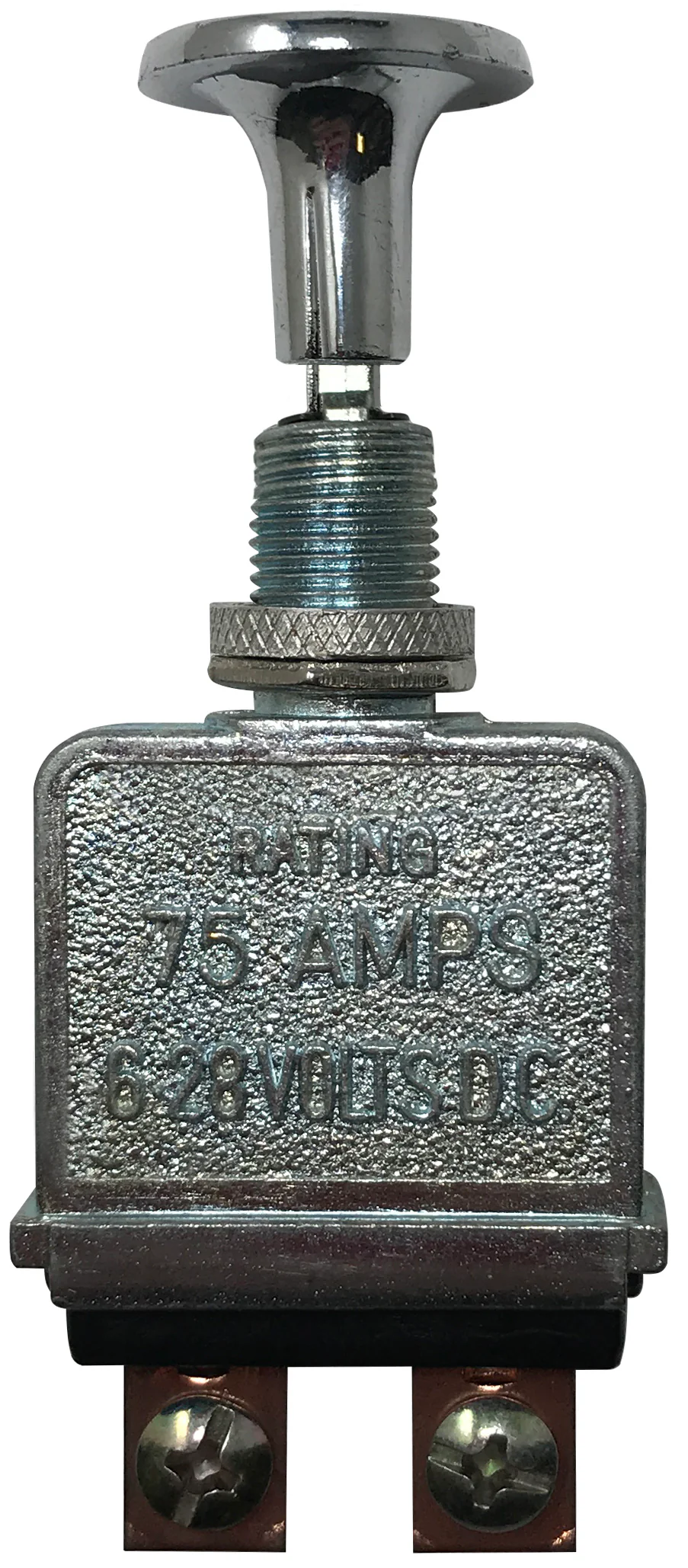

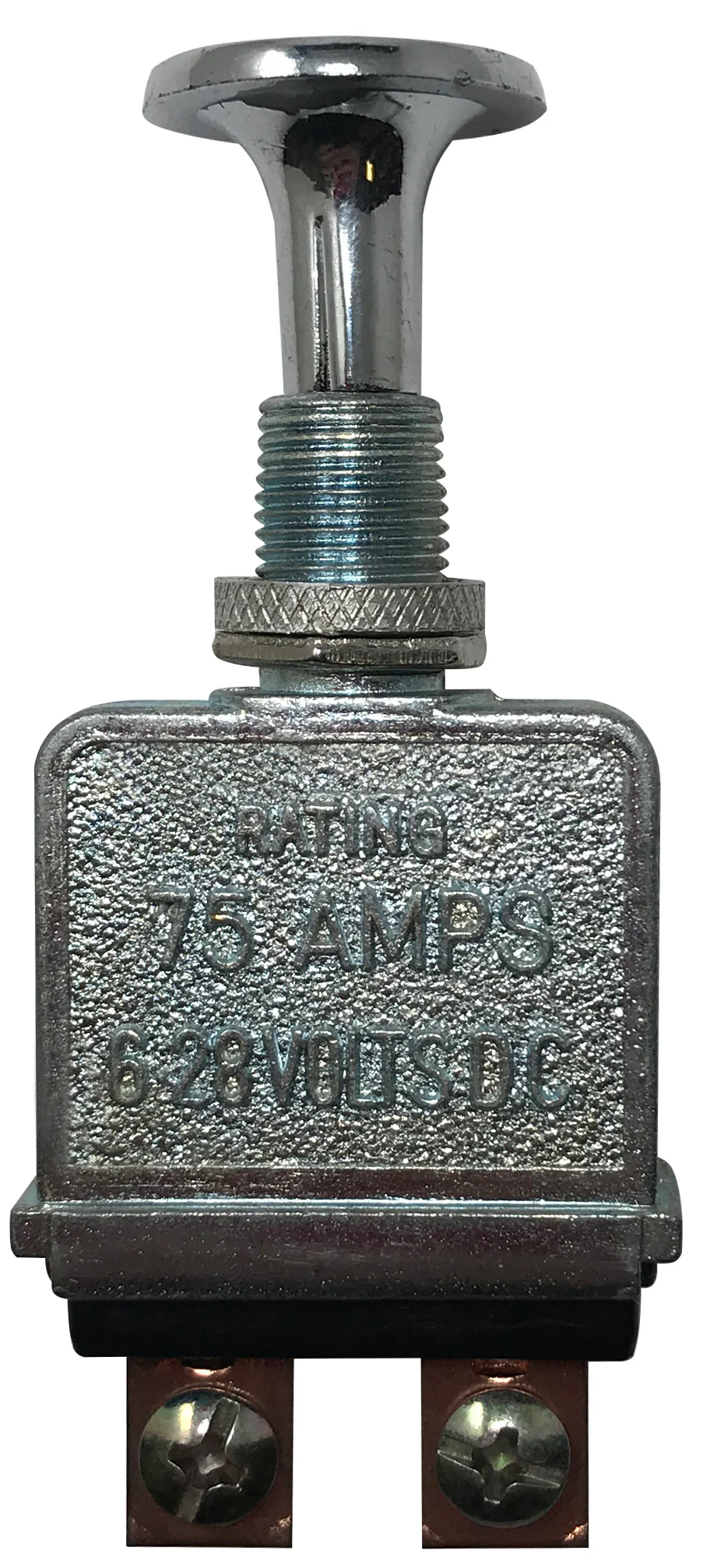

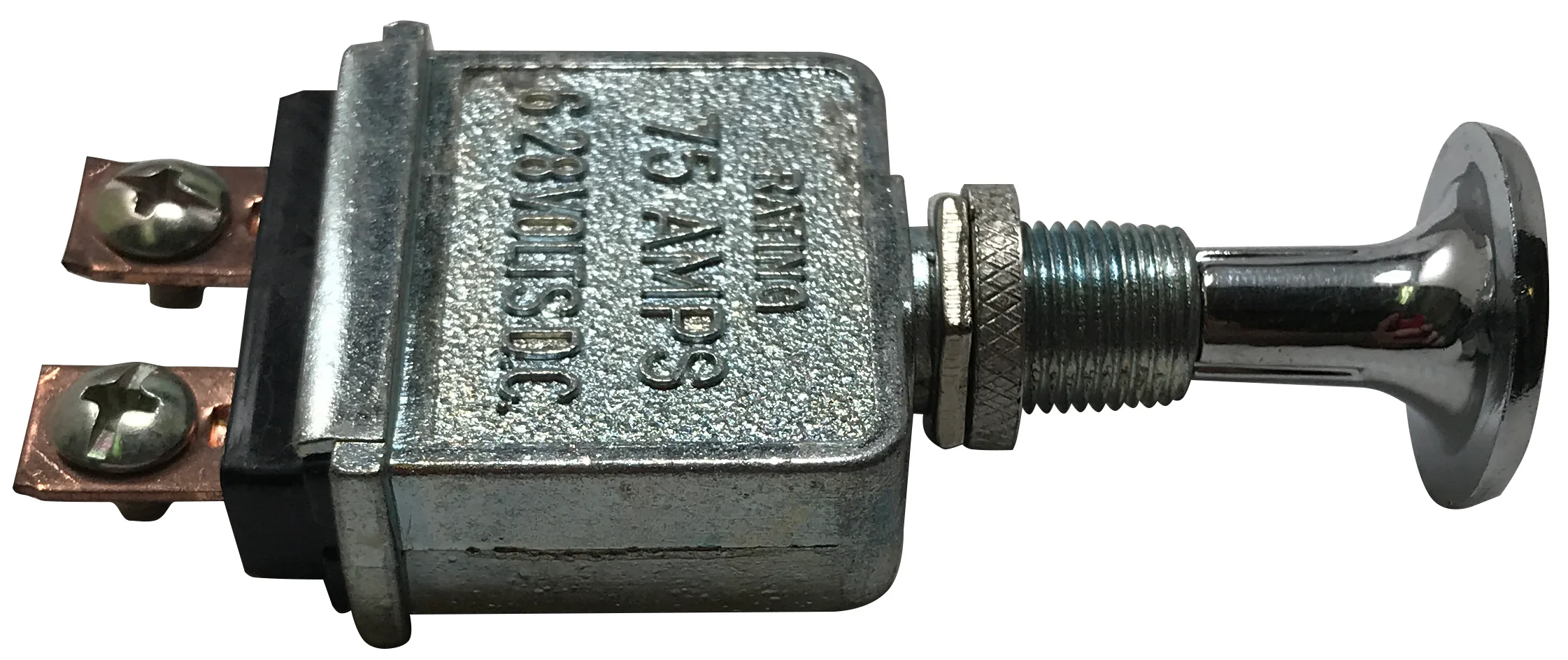

Heavy Duty Push-Pull Switch - 6-28V DC - 75A SPST - Chrome Metal Knob - 15/32" Mounting Hole
This heavy duty push-pull switch is designed for high-current DC applications in automotive, industrial, and equipment systems. Rated for 6–28V DC and up to 75 amps, it uses a single pole single throw (SPST) configuration and features a durable chrome-plated metal knob for reliable operation. Copper terminals provide excellent conductivity, and the 15/32" mounting hole ensures compatibility with standard dash panel cutouts.
Specifications & Features
- Voltage Rating: 6–28V DC
- Amperage Rating: 75A
- Switch Type: SPST (Single Pole Single Throw)
- Mounting Hole Diameter: 15/32"
- Mounting Stem Length: 5/8"
- Knob Material: Chrome-plated metal

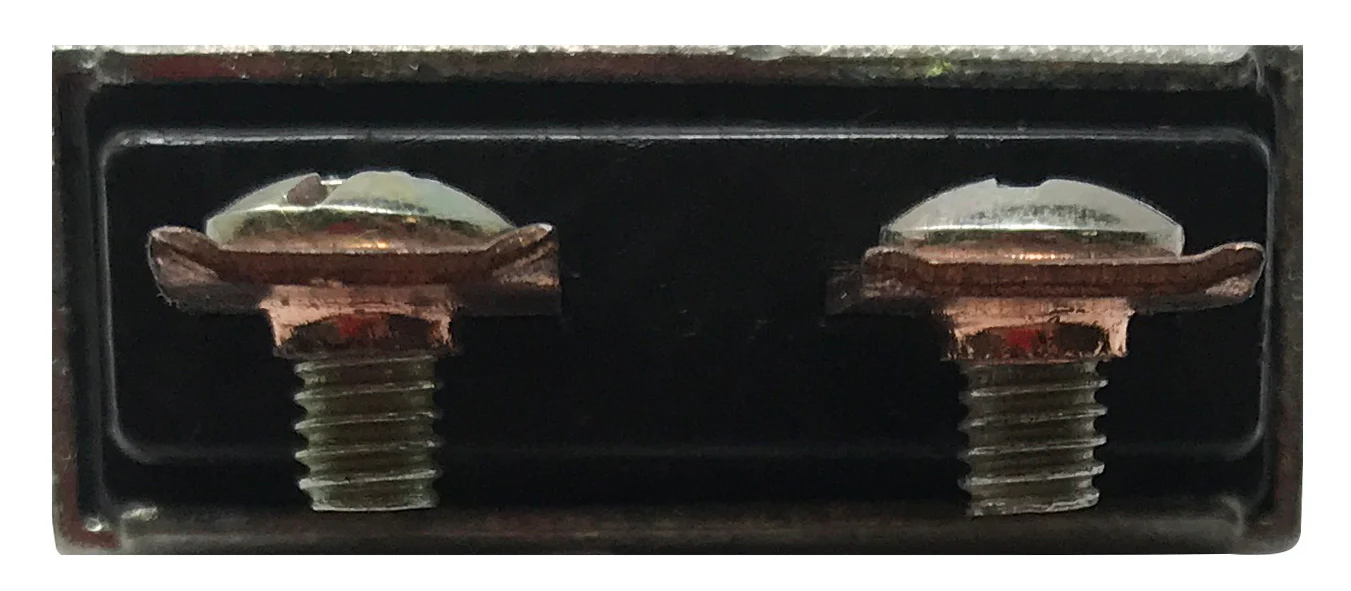

- Terminal Material: Copper
- Function: Push-pull operation
Original: $9.49
-65%$9.49
$3.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This heavy duty push-pull switch is designed for high-current DC applications in automotive, industrial, and equipment systems. Rated for 6–28V DC and up to 75 amps, it uses a single pole single throw (SPST) configuration and features a durable chrome-plated metal knob for reliable operation. Copper terminals provide excellent conductivity, and the 15/32" mounting hole ensures compatibility with standard dash panel cutouts.
Specifications & Features
- Voltage Rating: 6–28V DC
- Amperage Rating: 75A
- Switch Type: SPST (Single Pole Single Throw)
- Mounting Hole Diameter: 15/32"
- Mounting Stem Length: 5/8"
- Knob Material: Chrome-plated metal
- Terminal Material: Copper
- Function: Push-pull operation
