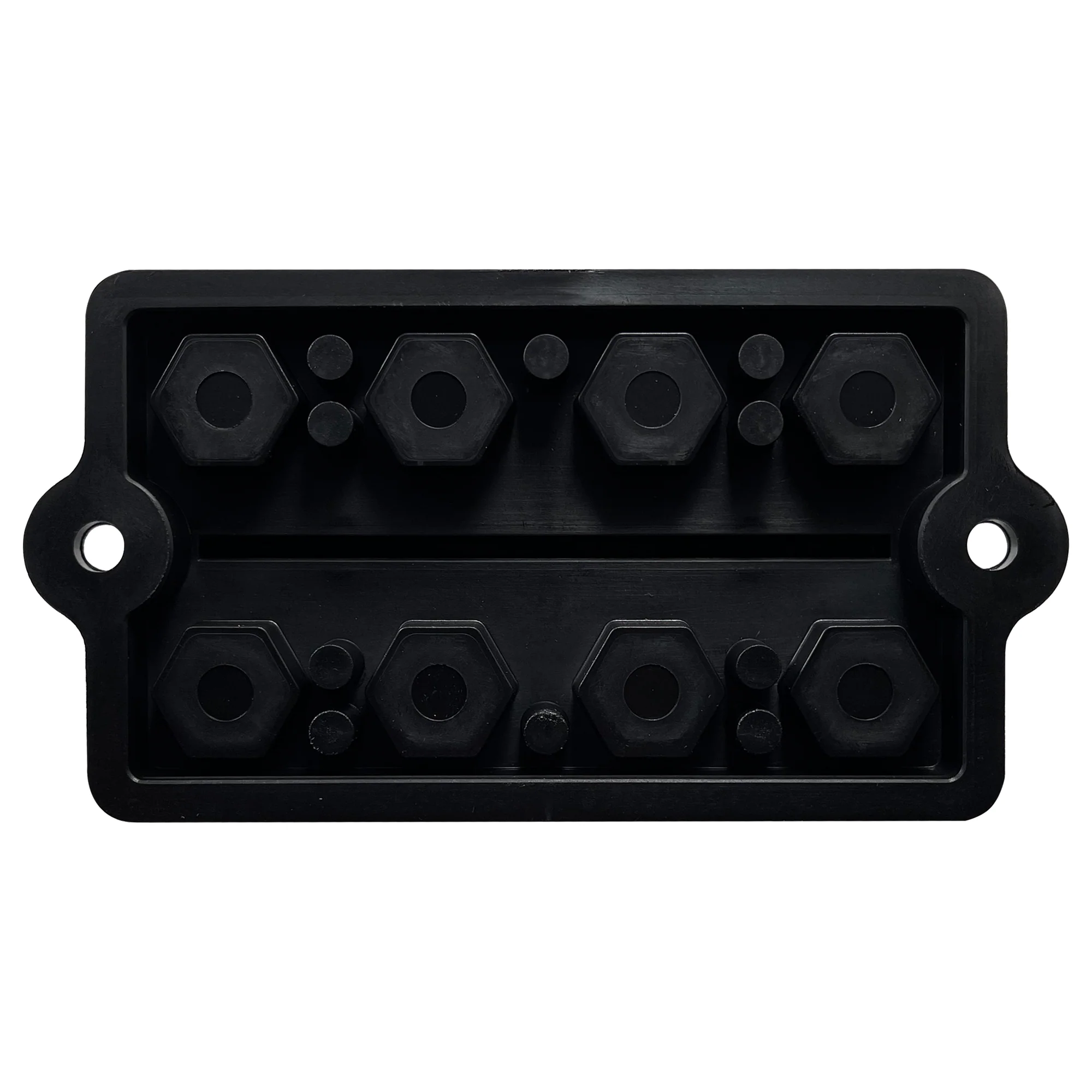

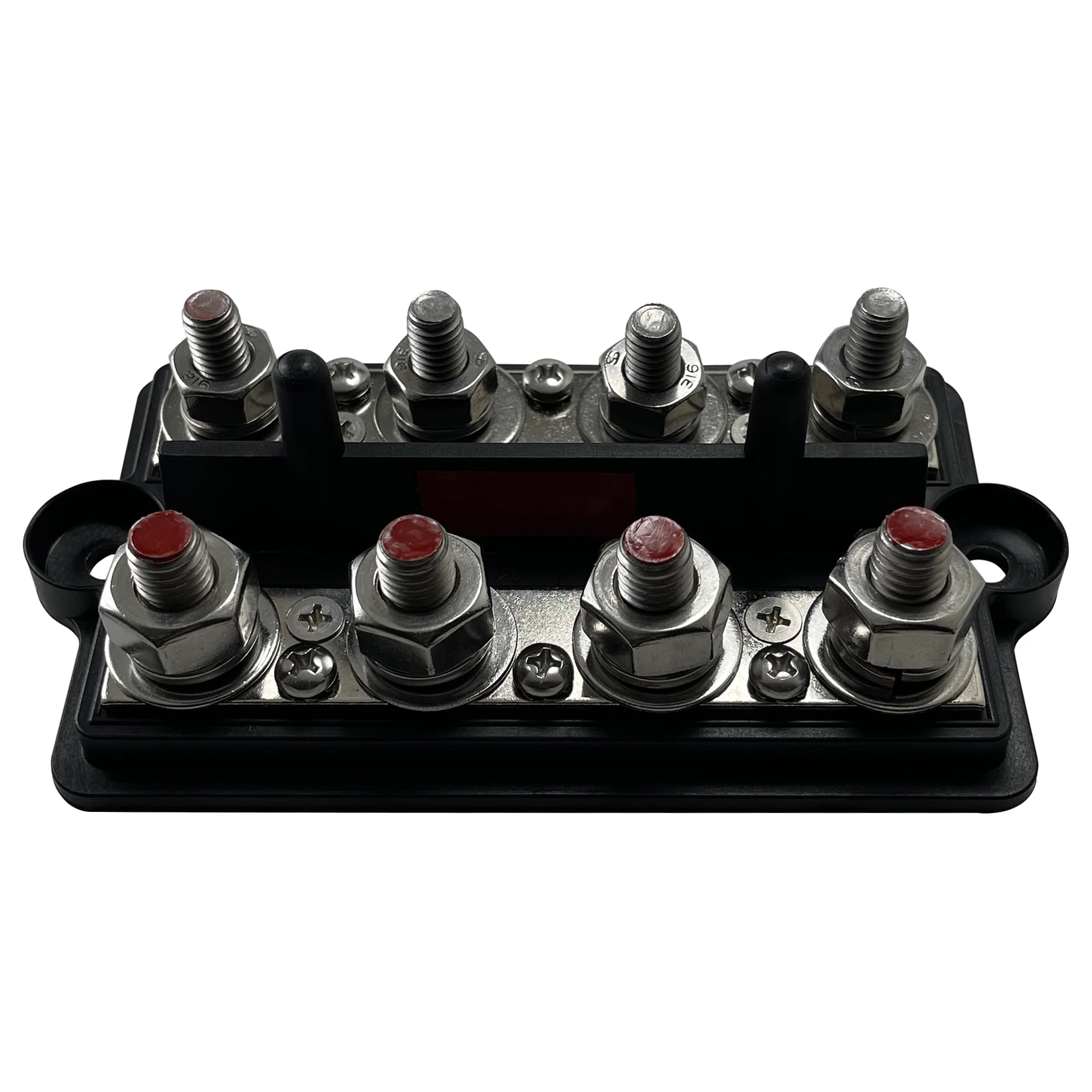

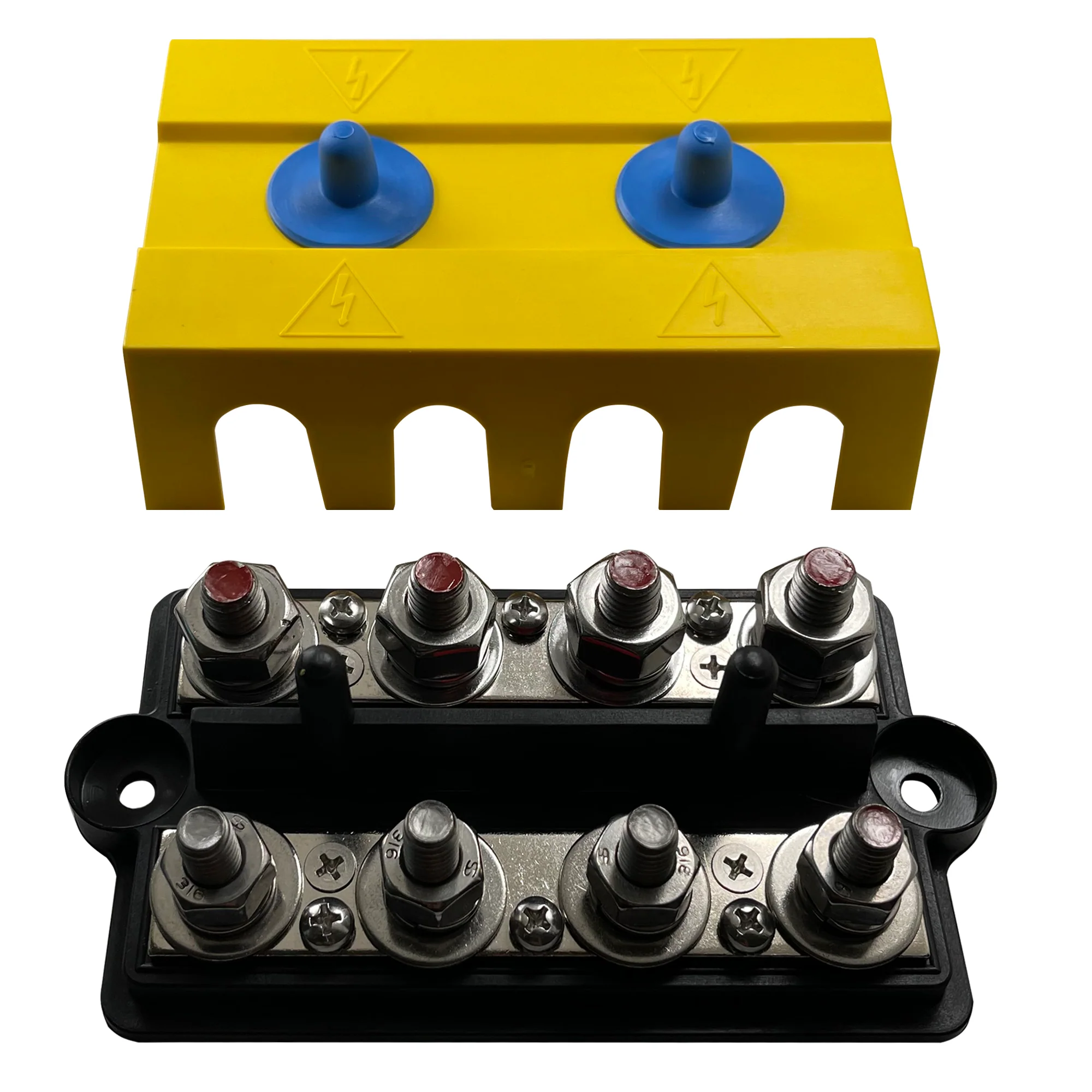

Dual 4 Point Terminal Busbar - 3/8" & 5/16" Posts
Dual Terminal Bus. This systems allow for multiple connections to positive and negative systems on one connection block. Each connection side can maintain multiple connections, of differing size.
(NOTE: THIS IS ONLY FOR PART 738834N0N14 WITHOUT COVER. Insulating Cover Sold Seperatly)
- Multiple connection points, to accomodate multiple power connections
- Nickel Plated Brass contact plate: high current & anti-corrosive
- Secure way to consolidate ground systems
- Max Amperage: 250 amps @ 12 vdc total
- Max Voltage: 48 vdc
- Positive: 3/8" stainless steel connection posts
- Negative: 5/16" stainless steel connection posts
- Both polarity sides offer 3 smaller 15amp connection points
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.9 in
- Optional cover not included
- Also available with 3/8" connection posts on both sides
- Also available with 5/16" connection posts on both sides
- To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulator against accidental shorts.
- Color: Black - Side A: 3/8" - Side B: 5/16"

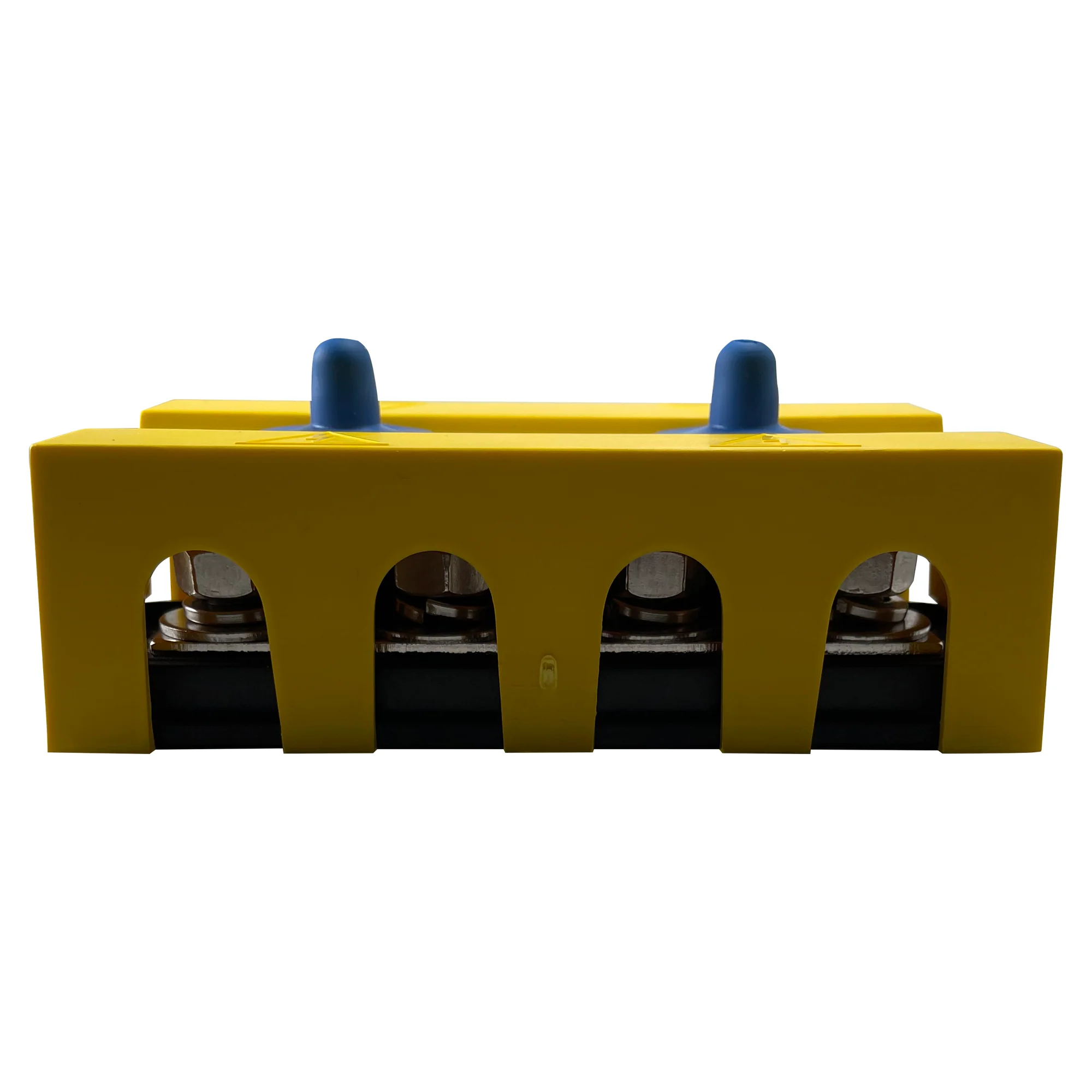

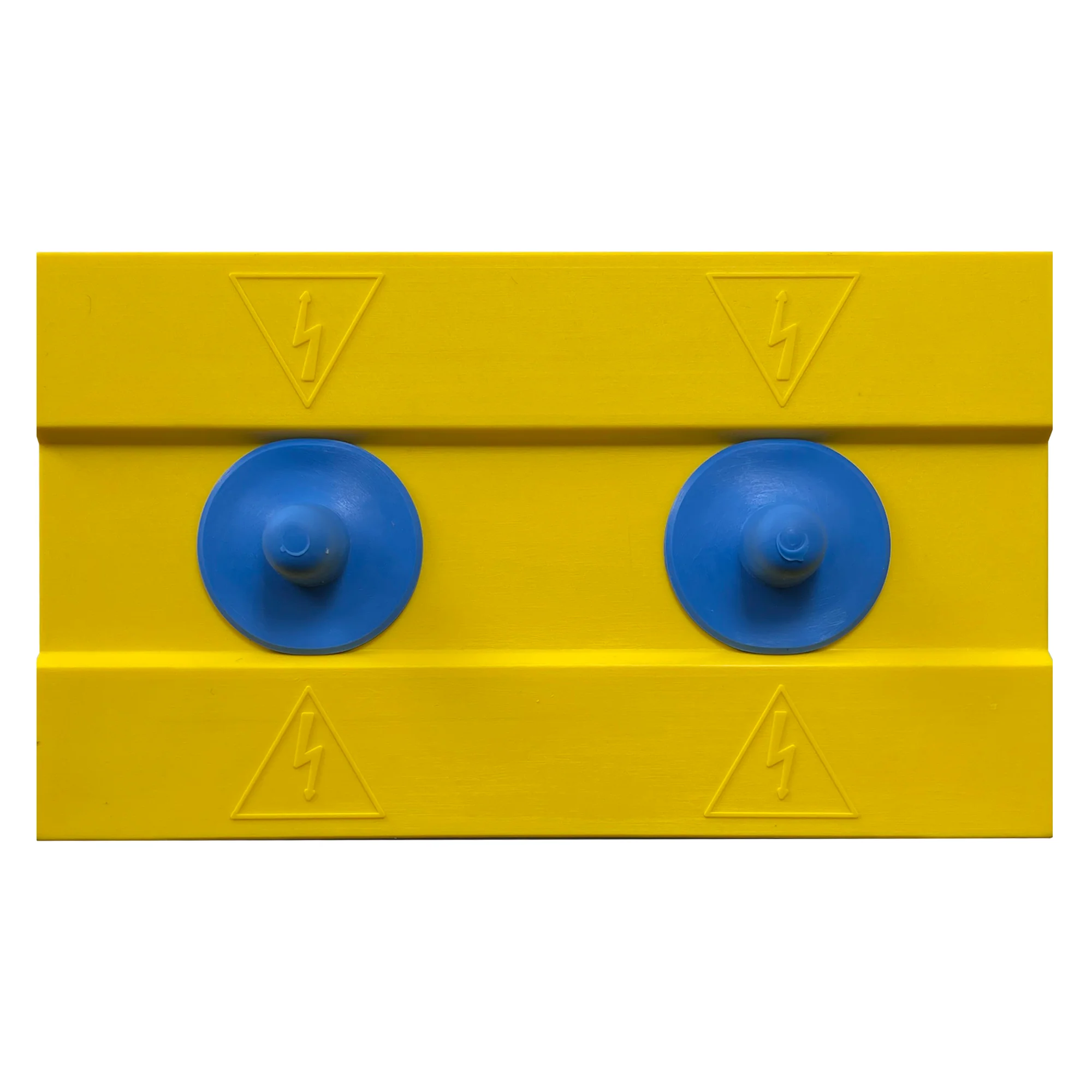

Optional: 738N3P05 Insulating Cover
$11.20
Original: $31.99
-65%Dual 4 Point Terminal Busbar - 3/8" & 5/16" Posts—
$31.99
$11.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Dual Terminal Bus. This systems allow for multiple connections to positive and negative systems on one connection block. Each connection side can maintain multiple connections, of differing size.
(NOTE: THIS IS ONLY FOR PART 738834N0N14 WITHOUT COVER. Insulating Cover Sold Seperatly)
- Multiple connection points, to accomodate multiple power connections
- Nickel Plated Brass contact plate: high current & anti-corrosive
- Secure way to consolidate ground systems
- Max Amperage: 250 amps @ 12 vdc total
- Max Voltage: 48 vdc
- Positive: 3/8" stainless steel connection posts
- Negative: 5/16" stainless steel connection posts
- Both polarity sides offer 3 smaller 15amp connection points
- Base Material: Glass-Filled Nylon (Red & Black)
- Mounting screws: #10 (not included)
- Mounting center: 4.9 in
- Optional cover not included
- Also available with 3/8" connection posts on both sides
- Also available with 5/16" connection posts on both sides
- To meet some safety guidelines, protective heat shrink tubing must be used on terminal barrel to insulator against accidental shorts.
- Color: Black - Side A: 3/8" - Side B: 5/16"
Optional: 738N3P05 Insulating Cover
