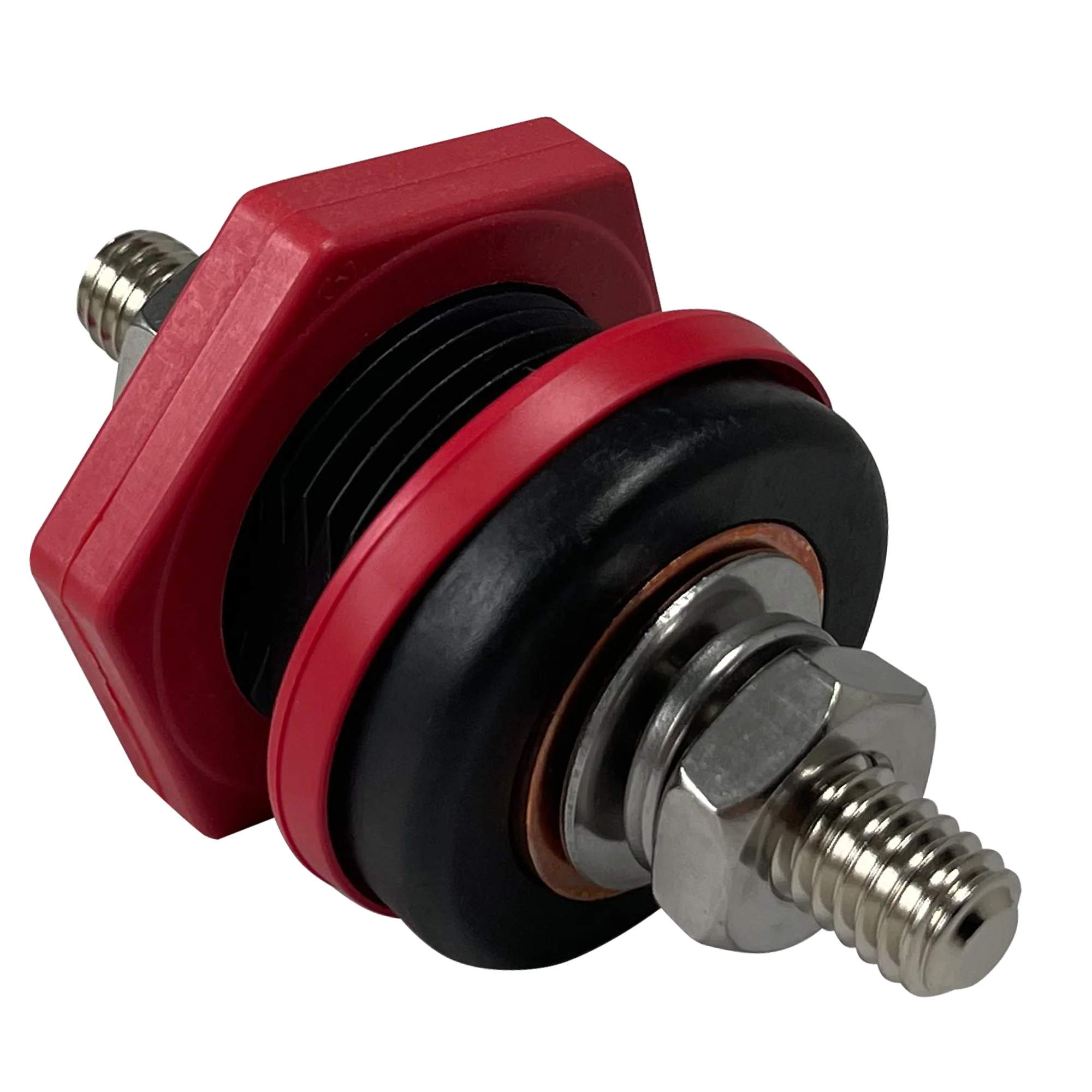

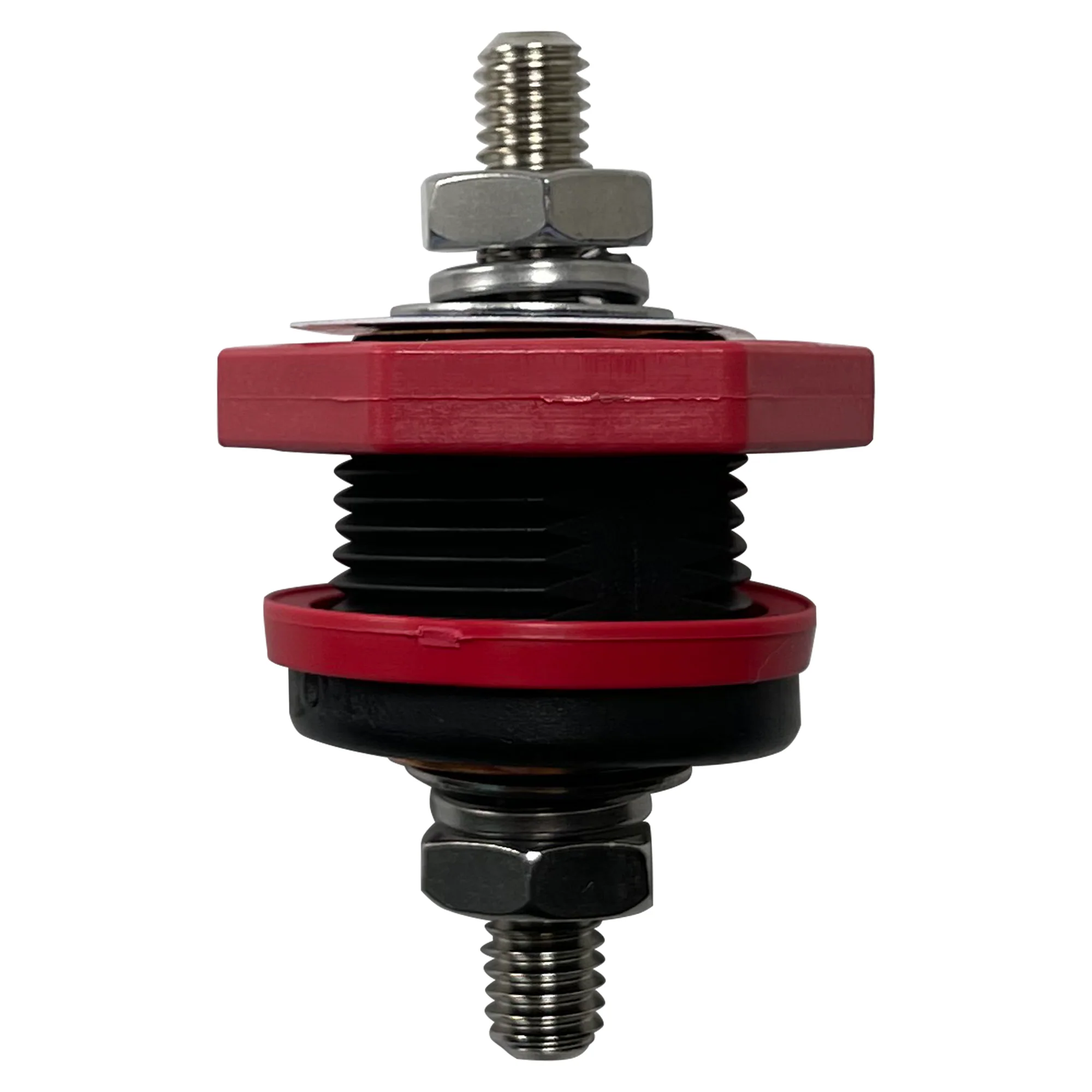

Copper Core 3/8" Power Bushing Post - 550 Amp

Innovative and unique solution for passing current through a barrier. Our Copper Core Power Bushing brings new features, low cost and ease of use to your current passing projects.

Copper Core Power Bushing Panel Seal & Insulator

Our Copper Core Power Bushings have been designed with these key components in mind:

High Energy Transfer

The Copper Core is cold swaged into a hex shape, providing un-paralleled high energy transfer performance. The conductive materials are placed exactly where needed, reducing cost and improving performance.

High Torque

Significant amounts of fastener torque is required when attaching multiple 4/0 ga (120 mm ) cables. Brass shaft devices just don't measure up. At the required torque, brass posts may fail. Our Copper Core Power Bushing uses a 3/8" (or 10mm) Nickel-plated steel shaft to provide high torque value.

High Anti-Rotation

First, the power bushing is molded in a unique shape, to fit into a punch hole provided by a Greenlee Punch (#60098). This ensures the bushing will not spin in its location. We then shaped the inner sleeve passage to a hex shape, when coupled with our hex shape core insert, provide 100% stability when fastening cables.

Low Product Cost

Specifically designed a unique mold and assembly procedure for the Copper Core Power Bushing. The entire process of molding and assembling is performed in one operation, at one station. This greatly reduces our labor cost, which greatly reduces the end cost to the consumer.

Low Assembled Cost

Our Copper Core Power Bushing incorporates a large PVC fastening nut. This nut fastens the bushing into place, allowing for quick installation. The installion hardware is minimized, further improving the efficiency of the install process.
