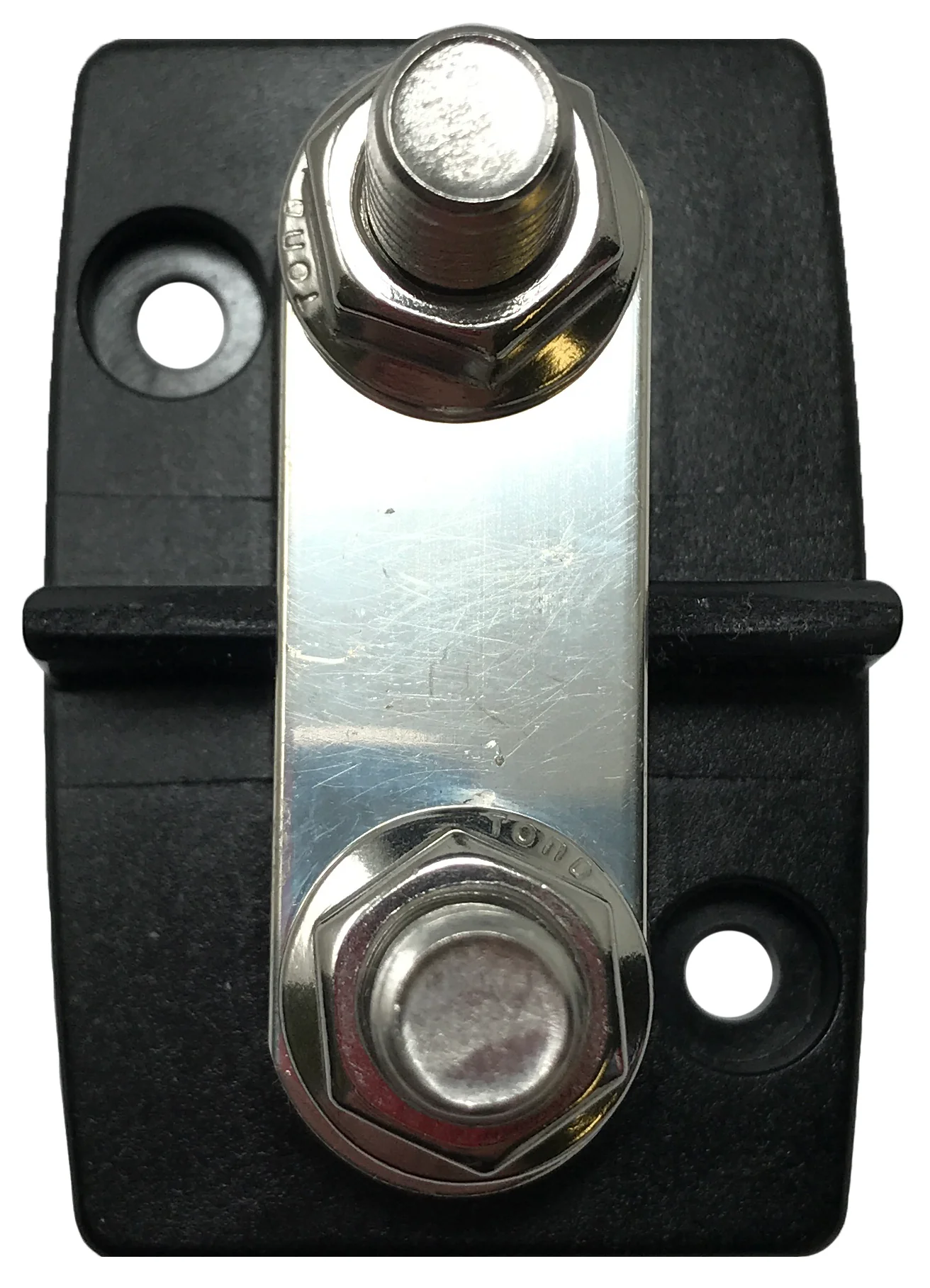

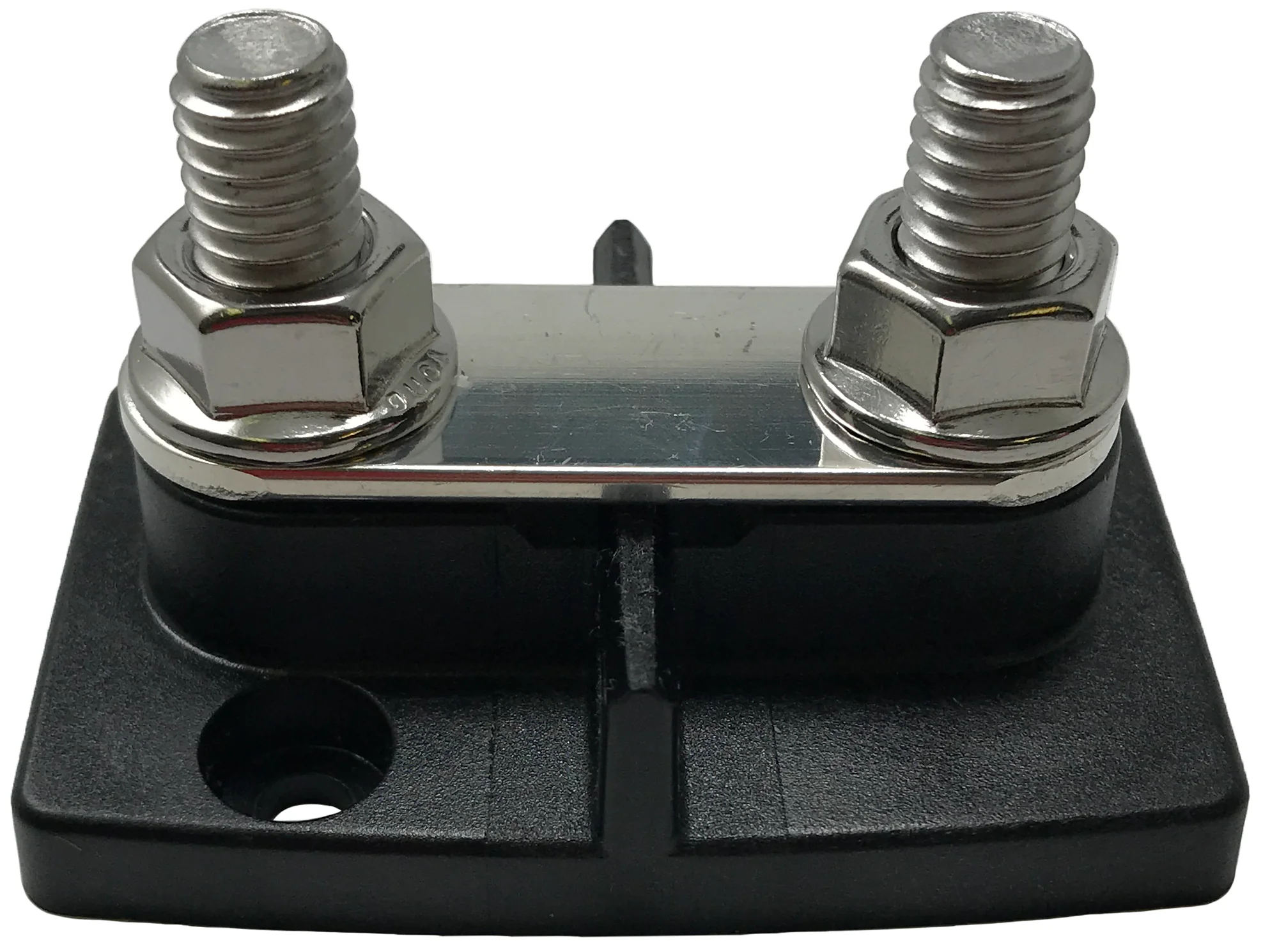

Blue Sea Systems #2019 Marine Power Bar Dual Bus Bar - Two 3/8" -16 Stud and Insulators
- Provides compact high-ampere busing with 3/8" terminal studs
Specifications
Maximum Amperage 200A
Maximum Voltage 48V DC
Number of Terminal Studs 2
Terminal Type 3/8"-16 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/UNS11000
Stud Torque 100 in-lb (11.3 Nm)
Weight 0.34lb (0.15 kg)
$10.83
Original: $30.95
-65%Blue Sea Systems #2019 Marine Power Bar Dual Bus Bar - Two 3/8" -16 Stud and Insulators—
$30.95
$10.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Provides compact high-ampere busing with 3/8" terminal studs
Specifications
Maximum Amperage 200A
Maximum Voltage 48V DC
Number of Terminal Studs 2
Terminal Type 3/8"-16 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/UNS11000
Stud Torque 100 in-lb (11.3 Nm)
Weight 0.34lb (0.15 kg)
