Stackable Fuse Panel Distribution Block - ATO/ATC & ATM/MIN Inline Blade Fuse Holder - 1 to 100 Pack

This stackable fuse panel distribution block supports both ATO/ATC and ATM/MIN fuses, making it a versatile solution for compact electrical distribution. It features a modular design that allows easy expansion, and acts as an inline fuse holder or a custom-configured power or ground distribution block.

Specifications & Features

• Includes a fuse jumper for configuring ground distribution and two 14–16 AWG spade connectors
• Comes with 24 circuit identification decals for easy labeling
• Footprint: 2" x 3/4"; add 3/4" per side for mounting
• Compact and ideal for marine and confined-space applications
• Functions as a fused distribution block or inline power/ground block
• Maximum amperage: 40 amps per circuit
• Maximum voltage: 32V DC

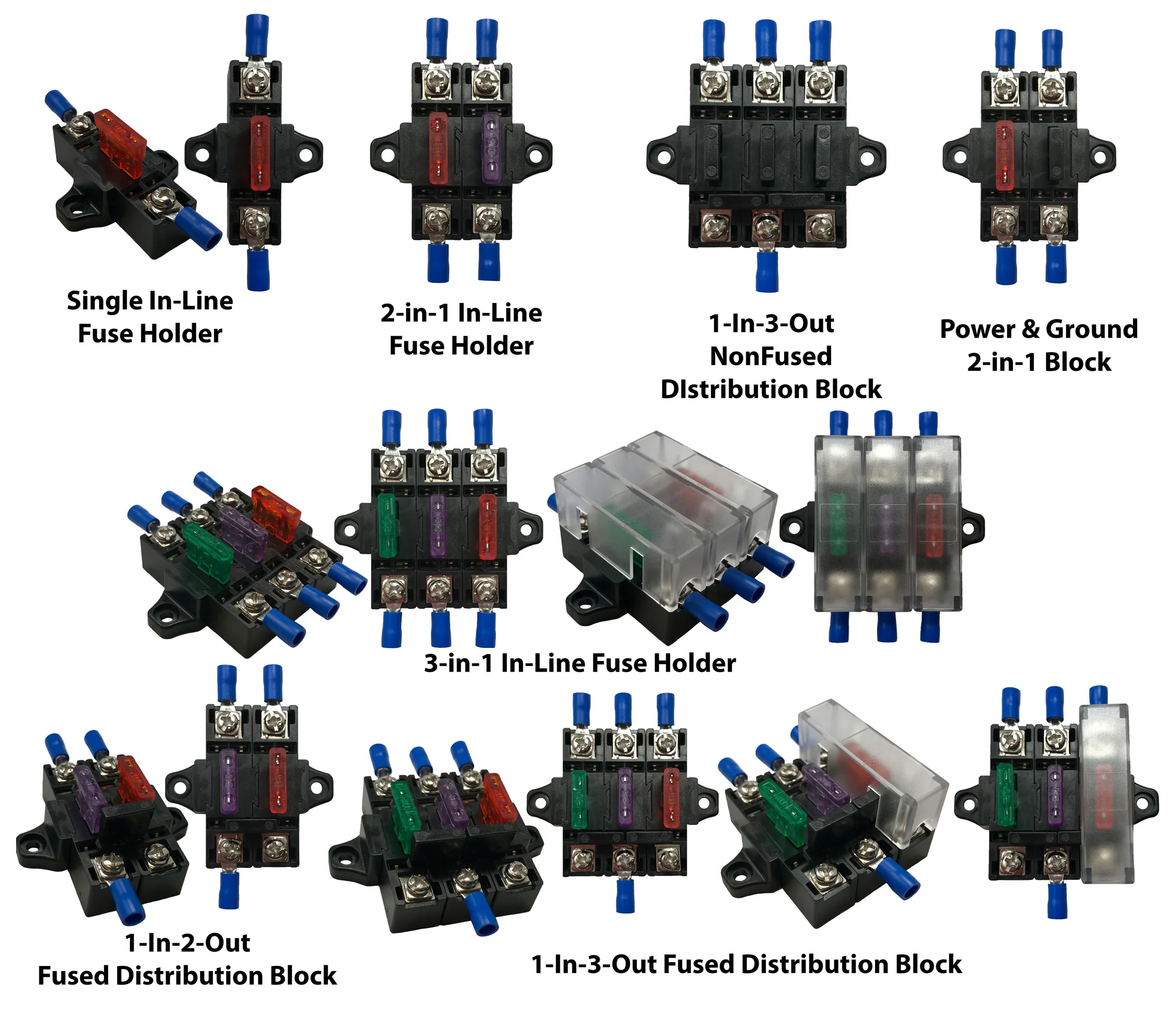

Example Installation

Click the image below to view a sample installation layout using stackable inline fuse holders:
