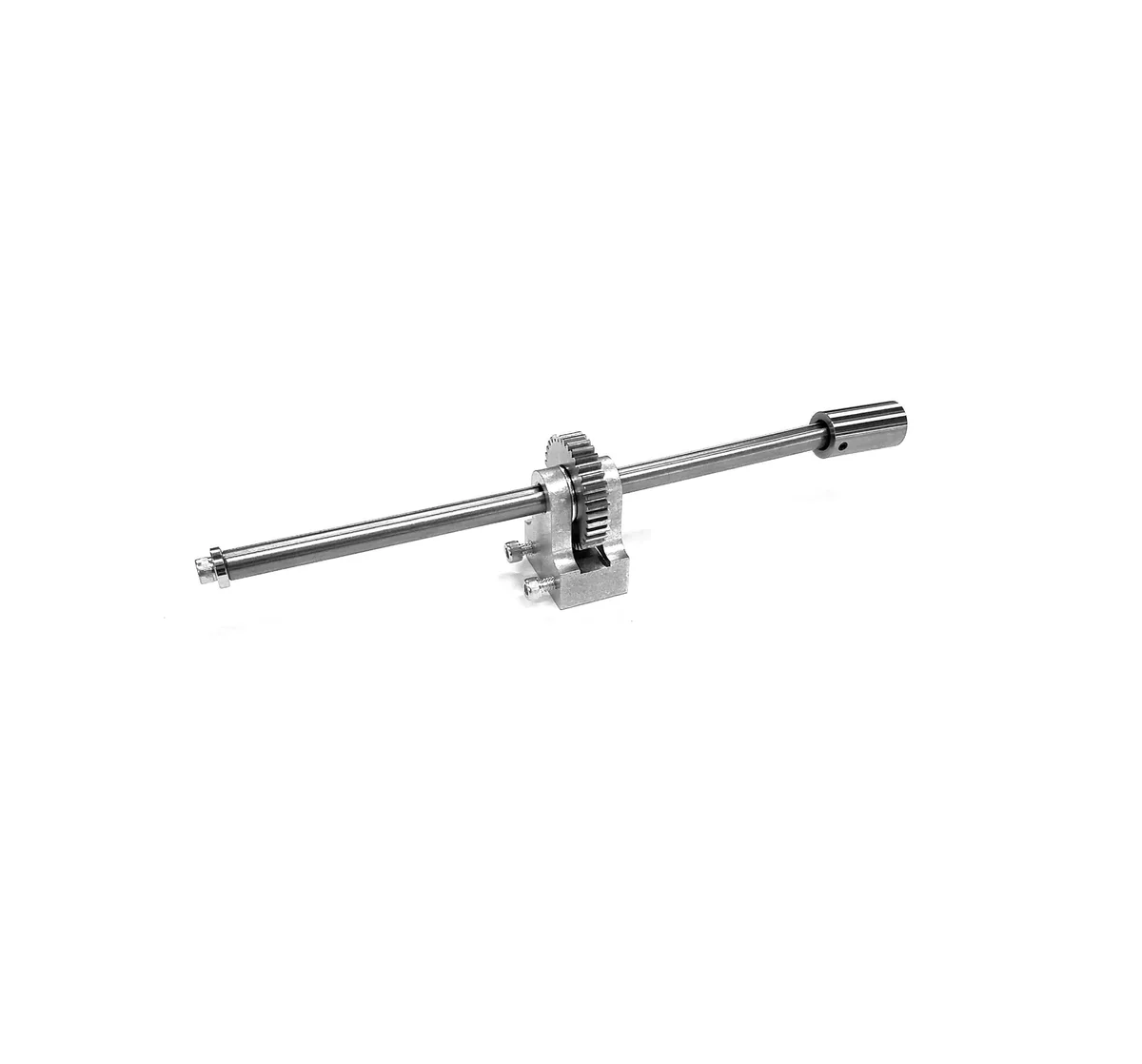

Ammco Trap Assembly

Trap Assembly

Includes:

4774 - Gear for Trap Assembly (Not Sold Individually)

77774 - Drive Rod for Ammco

7775 - Gear Support for Ammco

7757-1 - Socket Head Cap Screw 10-24 x 5/16 (Not Sold Individually) (2X)

7757-2 - Spring Pin 1/8 x 5/8 (Not Sold Individually)

7757-3 - Flat Washer 3/8 x .03/Thick (Not Sold Individually)

7757-4 - Socket Head Cap Screw 10/24 x 5/8 (Not Sold Individually)

7757-5 - Flat Washer 3/8 x .06 Thick (Not Sold Individually)

7757-6 - Dowel Pin 3mm x 6mm (Not Sold Individually) (2X)

7757-7 - Spacer OD x 1/8 Length for 10# Screw (Not Sold Individually)

Fits the following brake lathe brands:

Ammco - 2002,3000,4000,4100,7000,7500,7700

Interchangeable Part Numbers:

Ammco # 940718

Insights:

If you find that your trap assembly is worn out, this is a quality replacement. Please note that the coupling on the end is the new version and is one piece that does not swivel.

Need help of finding a part for your Ammco? Click here for the parts list!

Made in the USA
