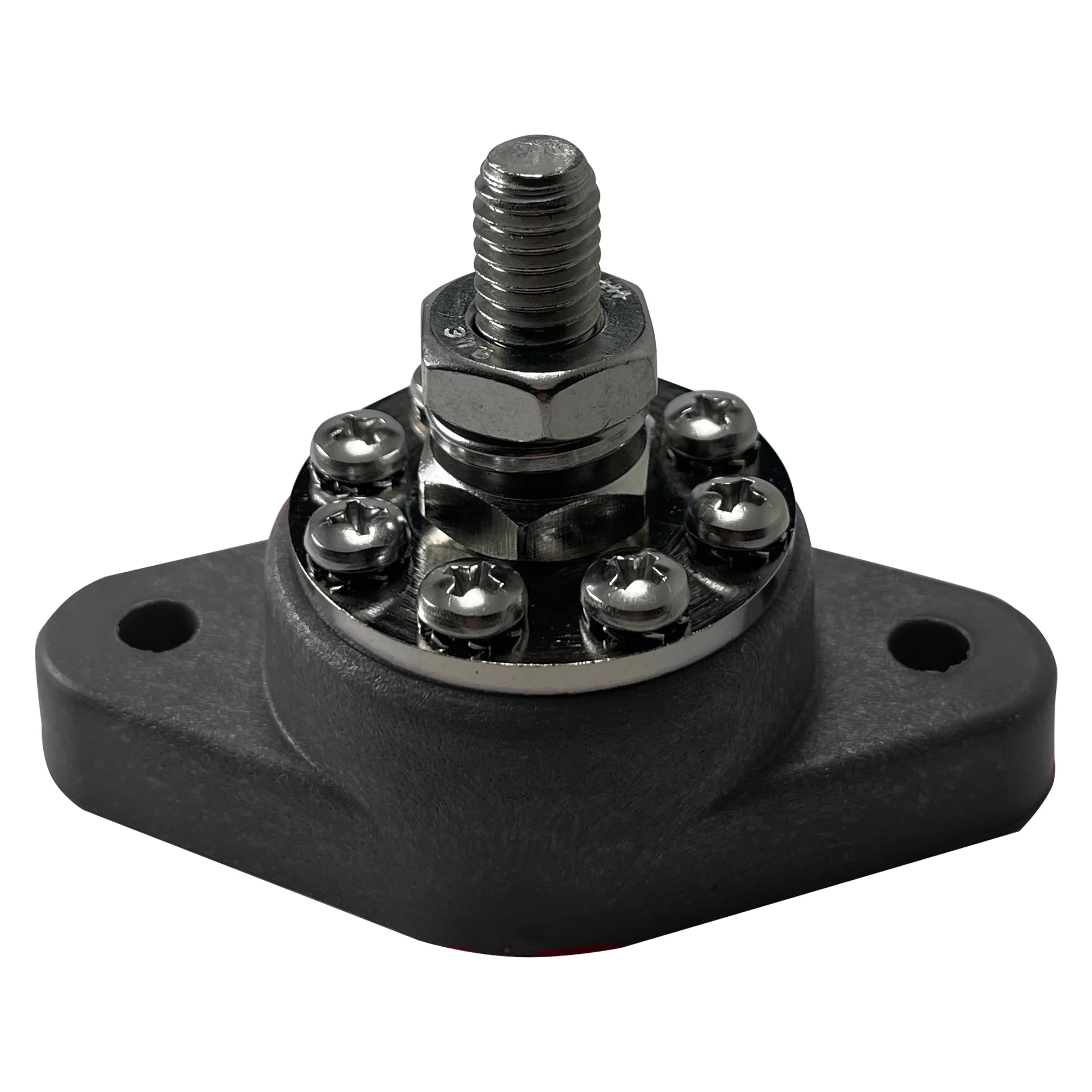

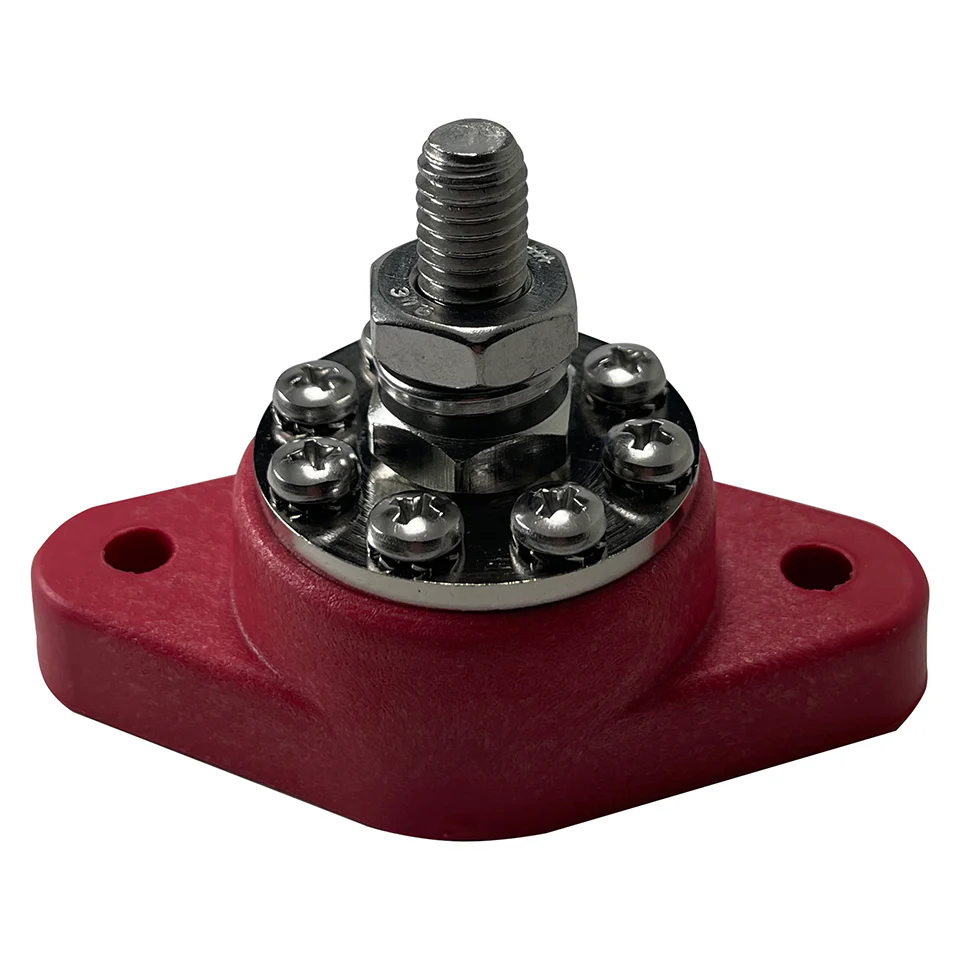

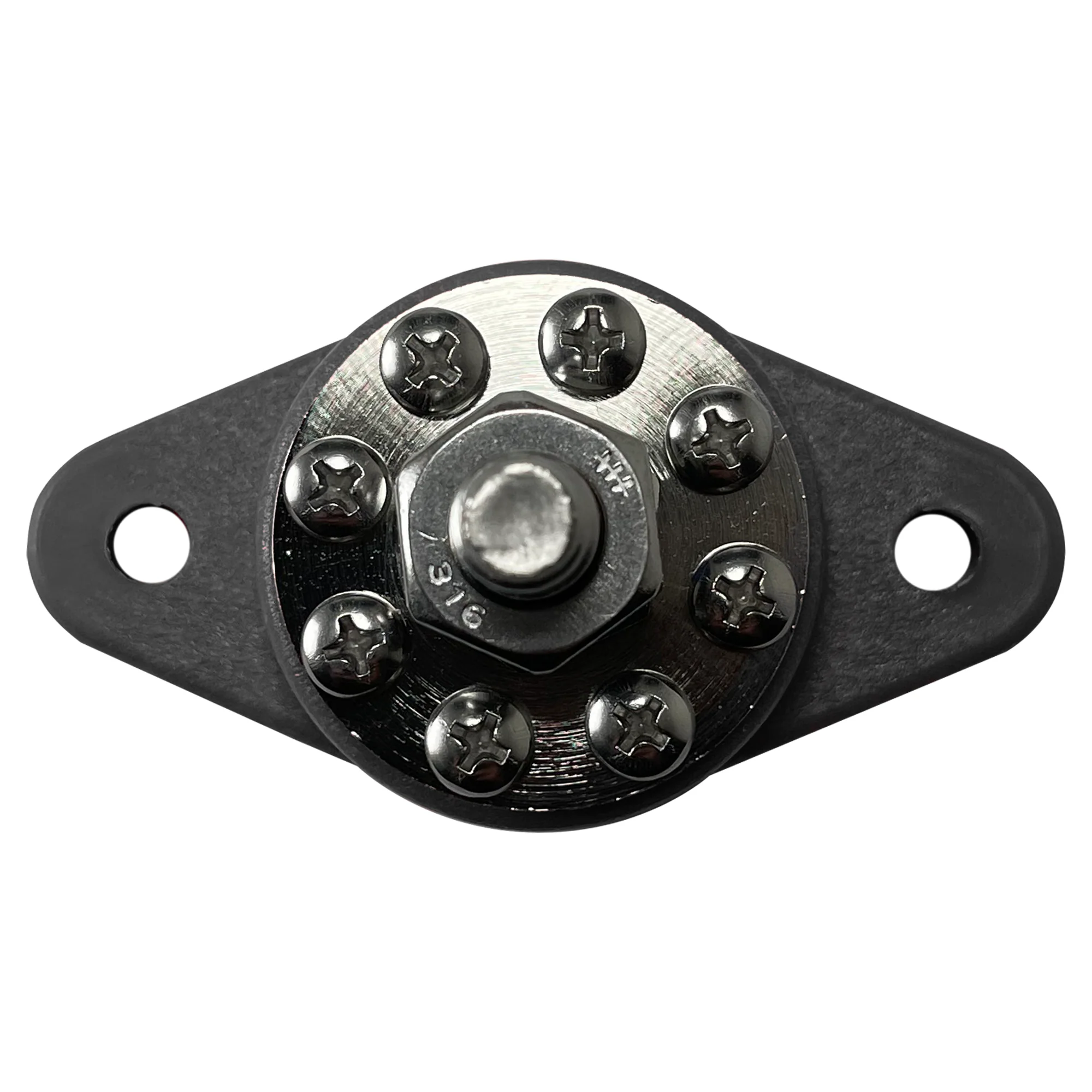

8-Point Power Distribution Post - 5/16" Stud - With Insulating Boot & Clear Disc

This 8-point power distribution post offers a compact and secure way to manage multiple circuit connections in automotive, marine, or industrial DC systems. Pre-engineered with an insulating boot and clear cover disc, it provides safe, organized distribution for ground or positive connections.

Specifications & Features

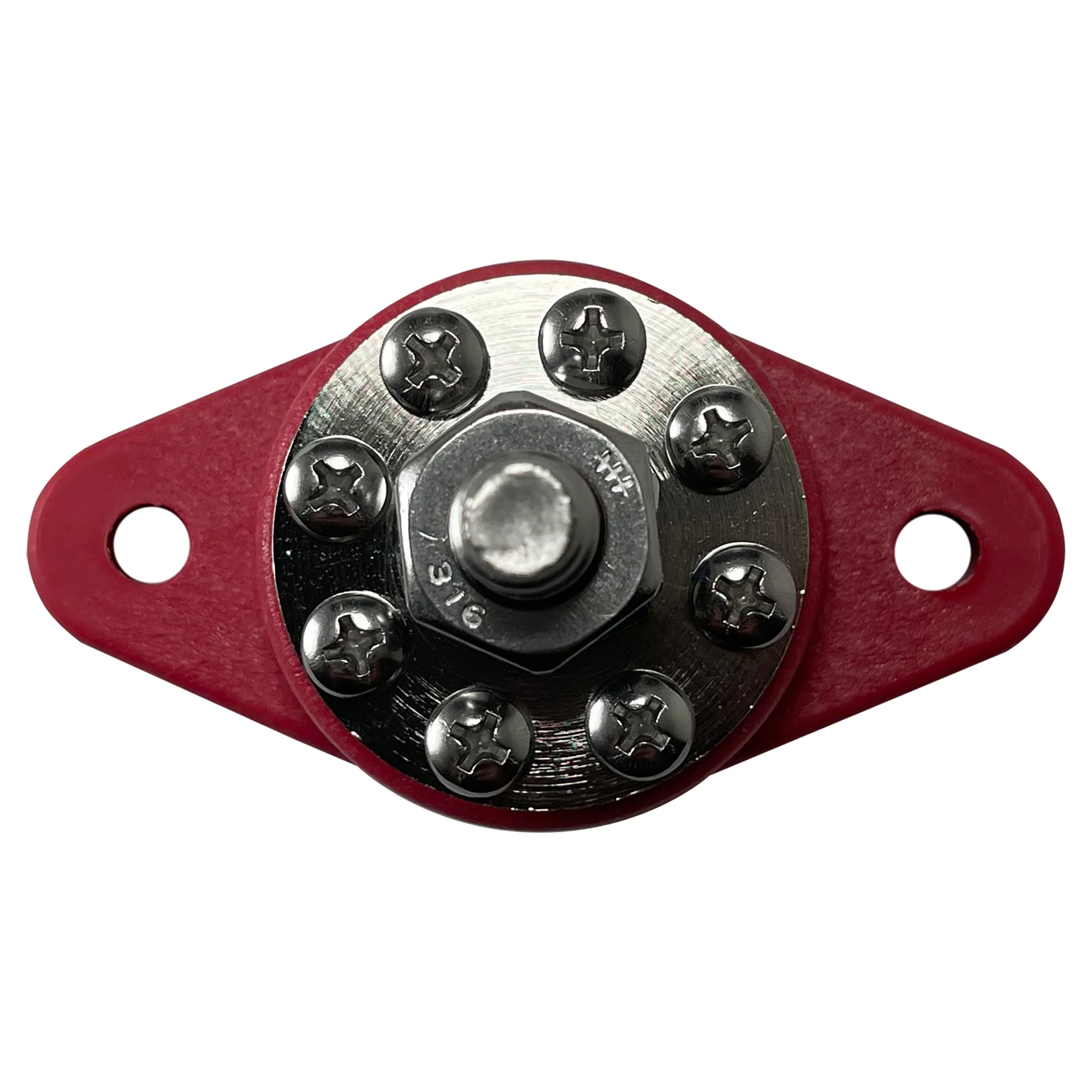

• Total connections: 8 individual terminals with 20A capacity each
• Max amperage: 160 amps @ 12 VDC
• Max voltage: 48 VDC
• Post size: 5/16"
• Center post compatibility: #10 up to 3/8"
• Connection plate material: Nickel-plated copper for improved conductivity
• Post material: Stainless steel
• Connection nuts: Zinc-plated copper
• Includes: Eight stainless steel #8-32 connection screws

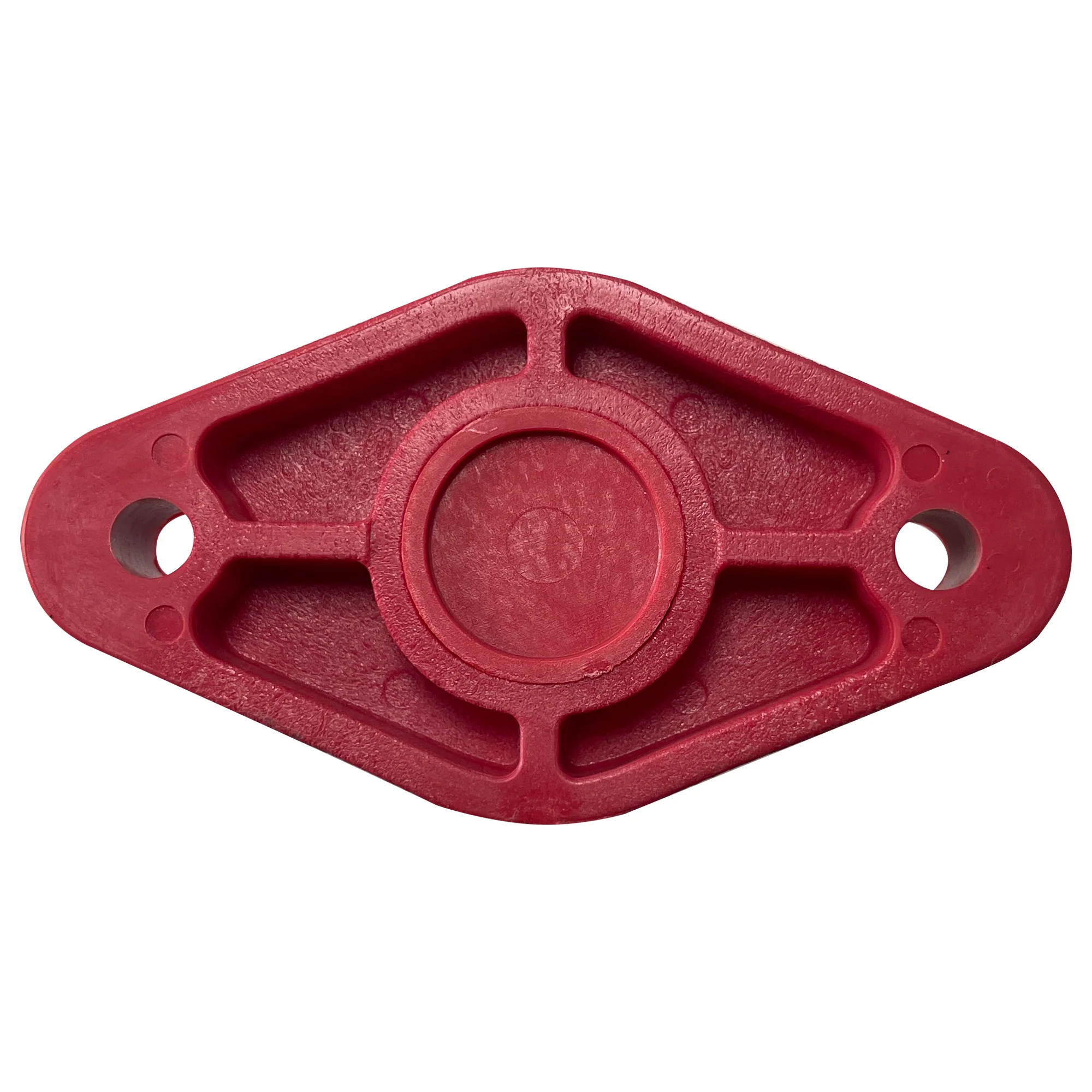

• Base material: Glass-filled nylon housing
• Available Colors: Black or Red
• Mounting center: 2.5"

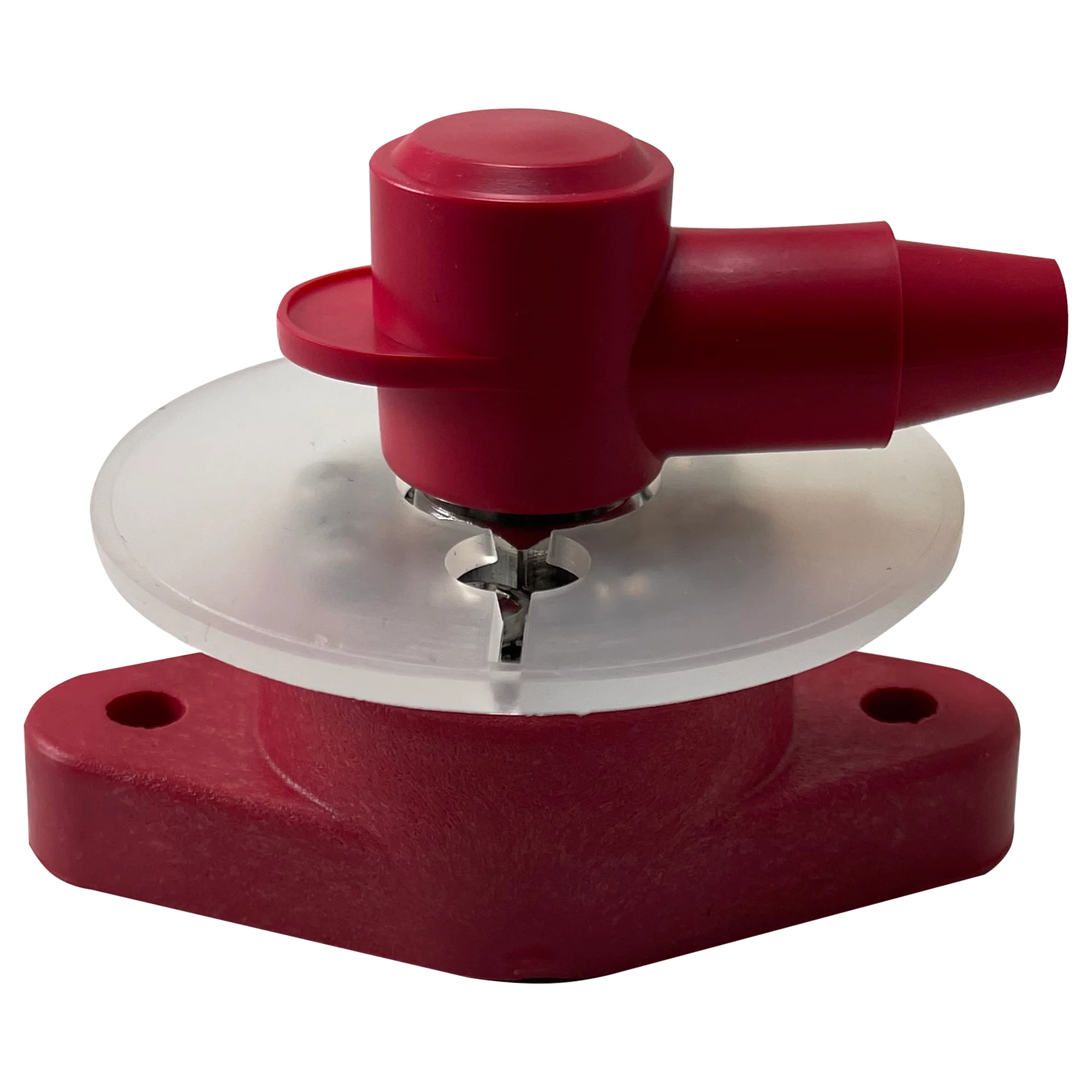

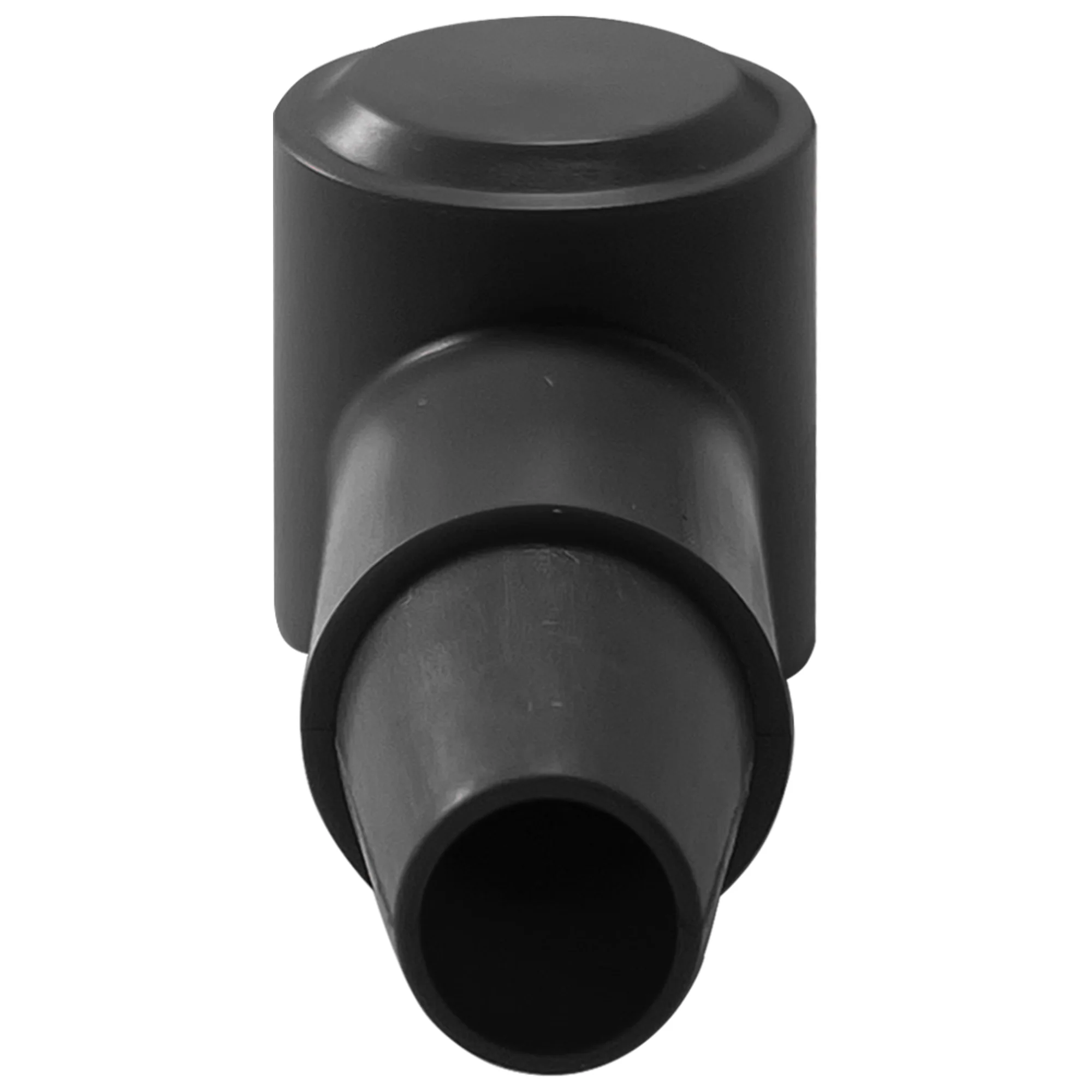

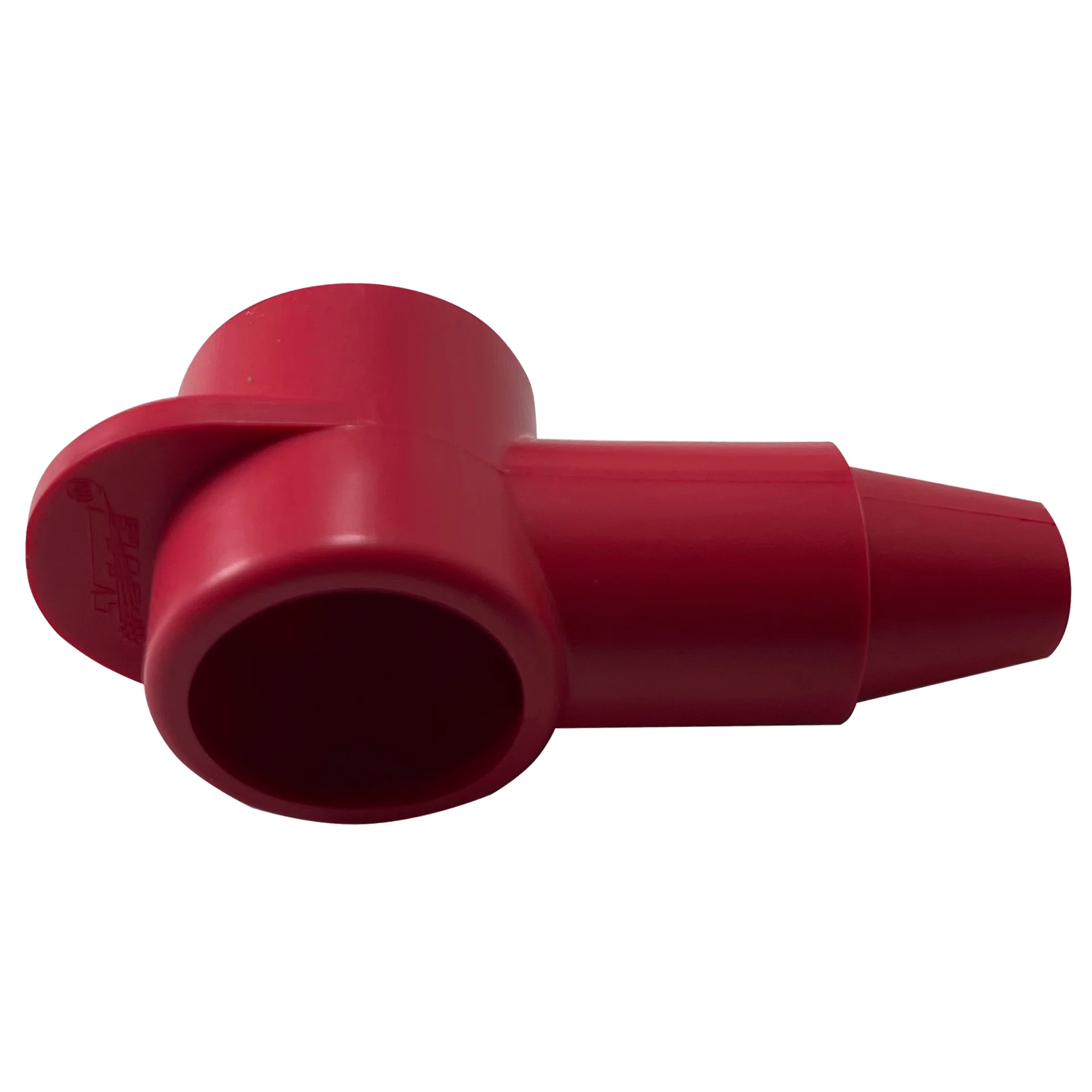

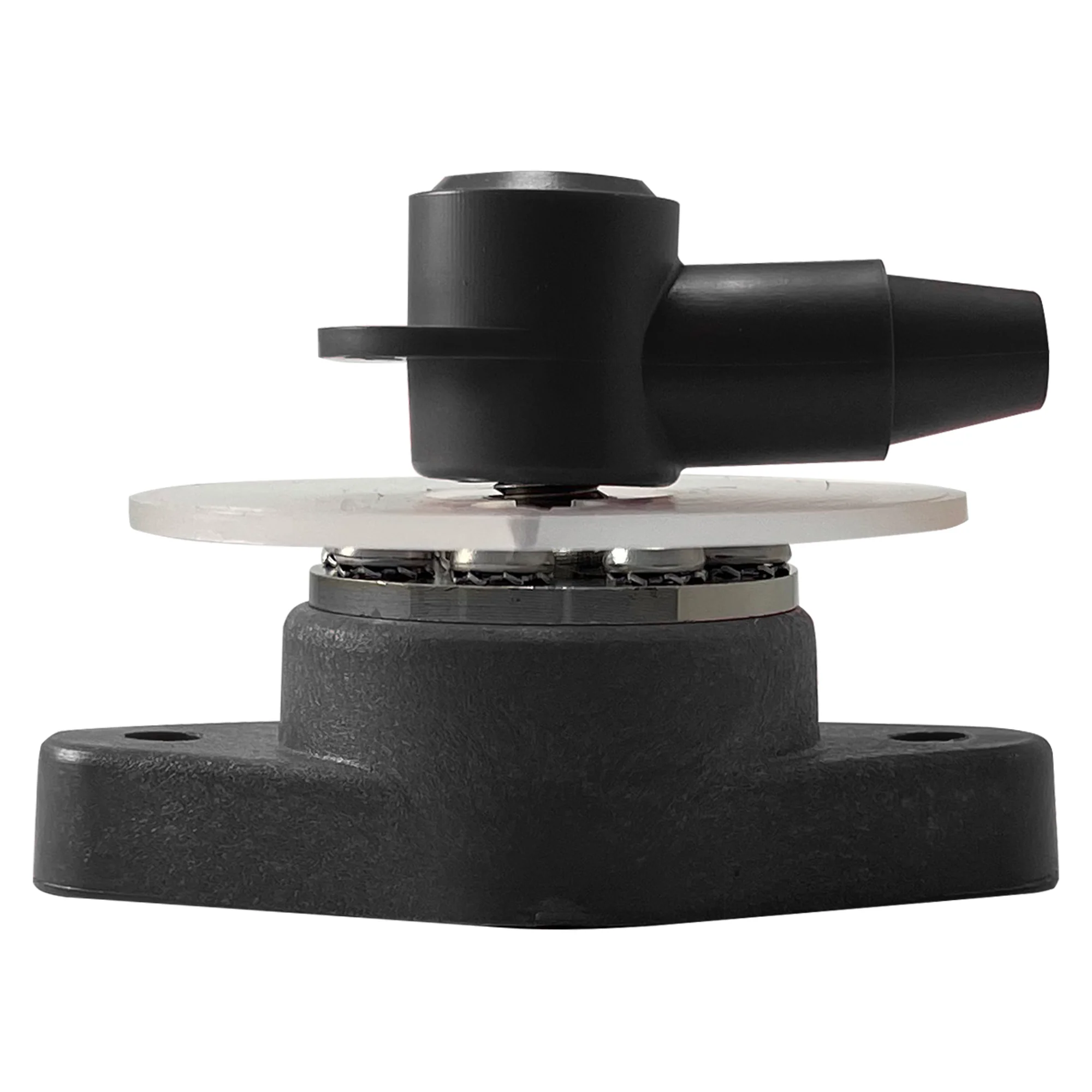

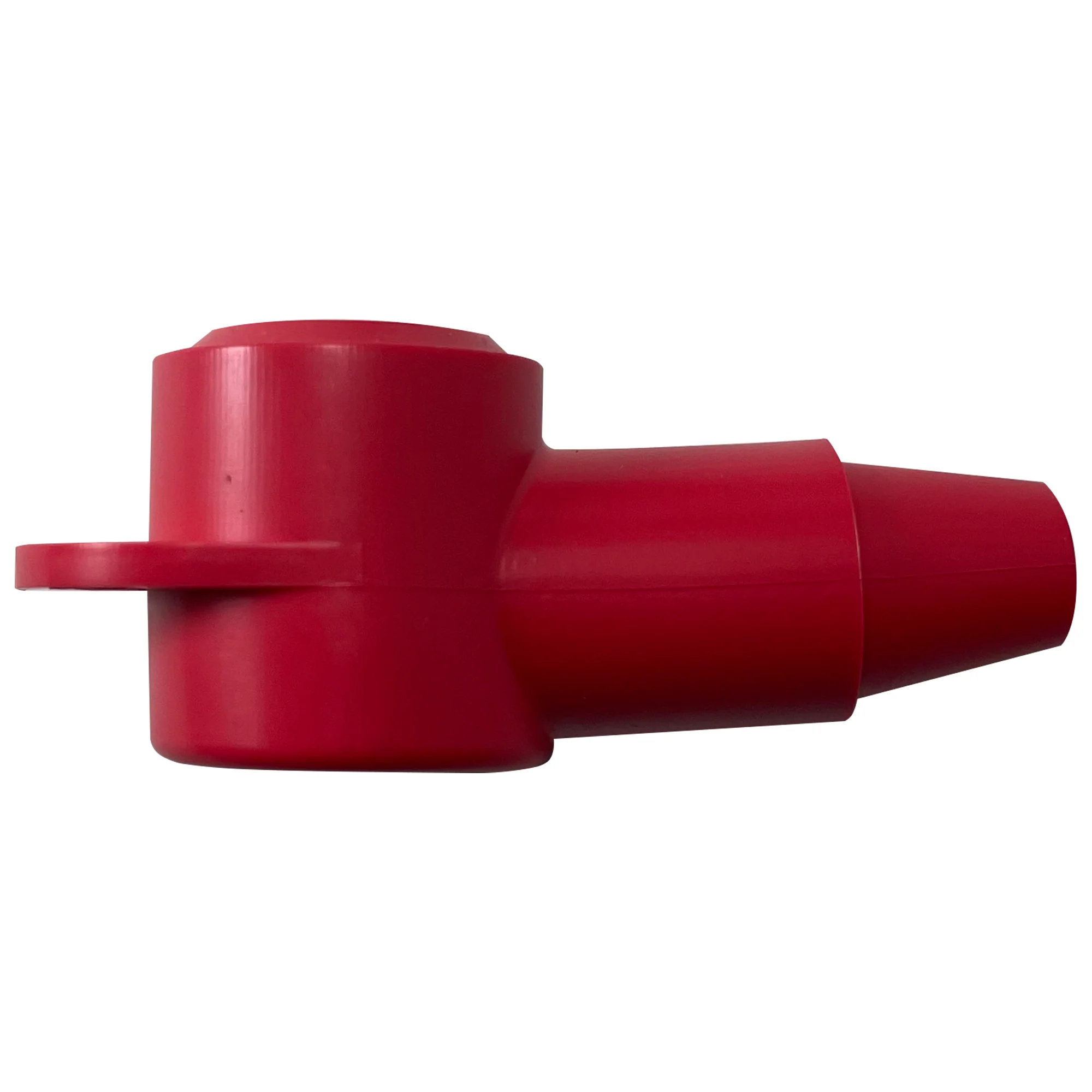

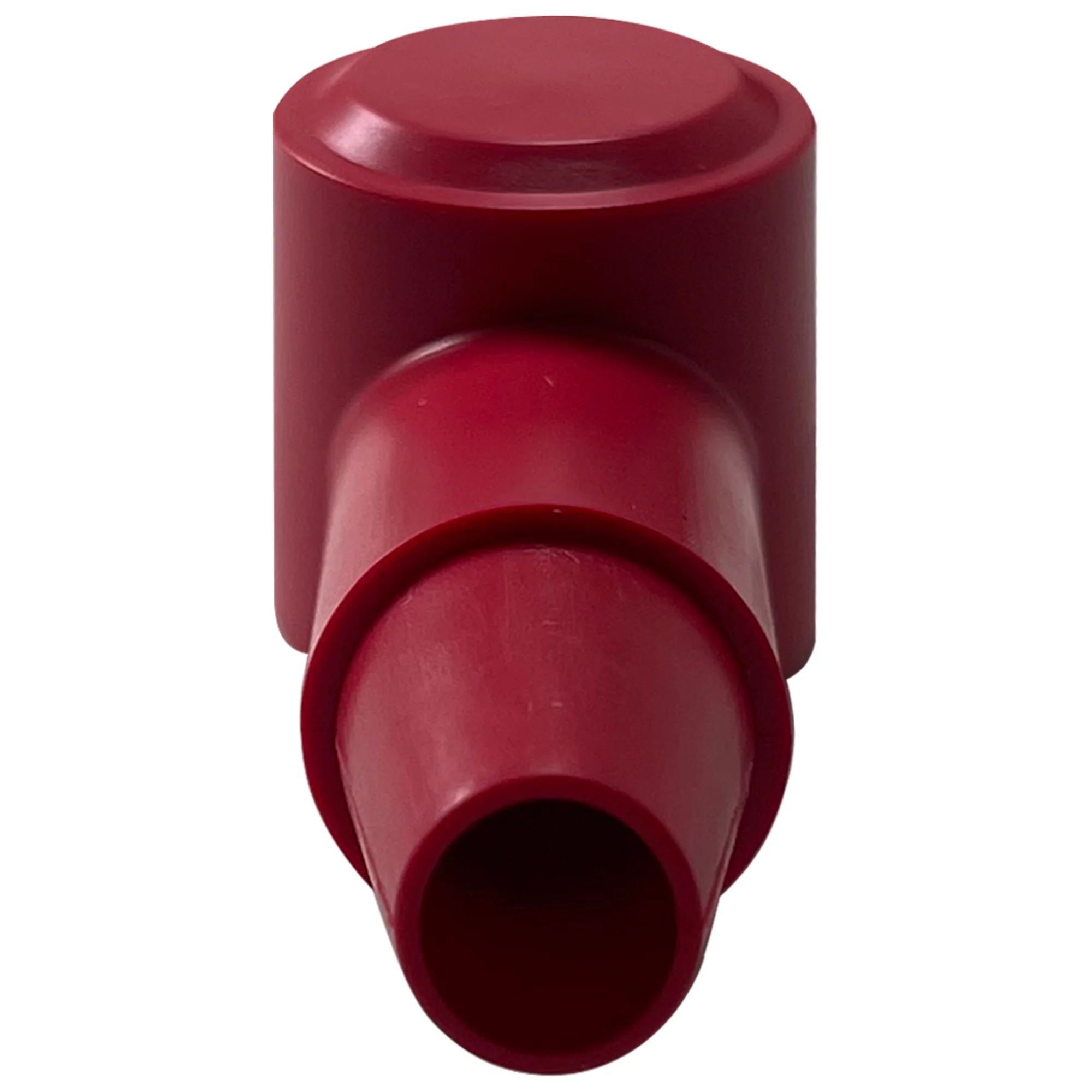

• Insulating boot and clear protective disc included for added safety
• Helps prevent shorting and accidental contact in high-density wiring environments
• Compliant with ABYC-E9, USCG 33 Subpart I, and ISO 10133 when used with terminal insulators
