8-Point Power Distribution Post - 3/8" Stud - With Insulating Boot & Clear Disc

This 8-point power distribution post provides a secure and organized solution for connecting multiple devices in automotive, marine, or industrial electrical systems. Its pre-engineered design includes an insulating boot and clear protective disc to help prevent accidental shorts and improve safety in high-density wiring environments.

Specifications & Features

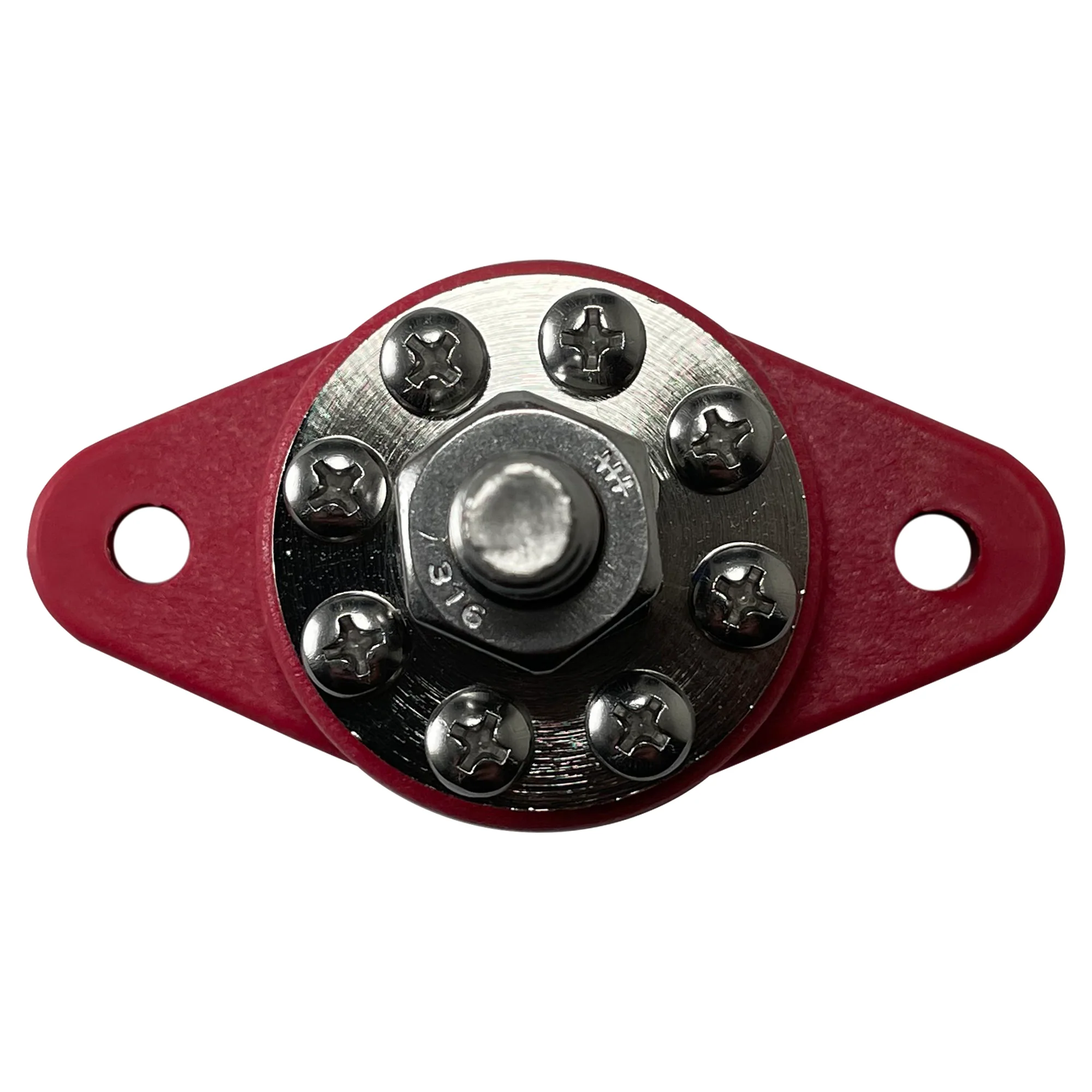

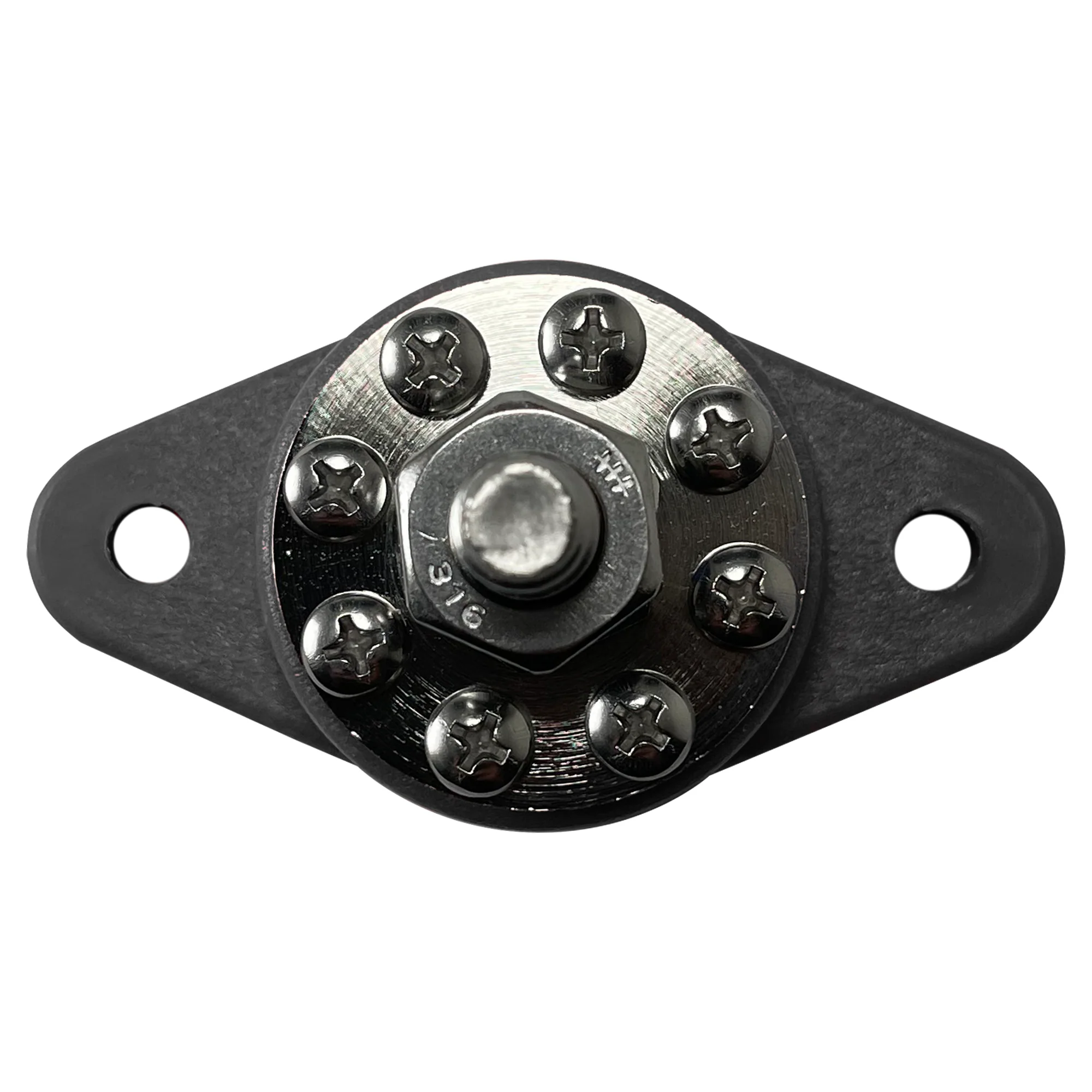

• Total connections: 8 individual terminals rated at 20 amps each
• Max amperage: 160 amps @ 12 VDC
• Max voltage: 48 VDC
• Post size: 3/8" (~10mm)
• Center post compatibility: Accepts #10 up to 3/8" ring terminals
• Connection plate material: Nickel-plated copper for superior conductivity
• Post material: Stainless steel
• Connection nuts: Zinc-plated copper
• Includes: Eight stainless steel #8-32 connection screws

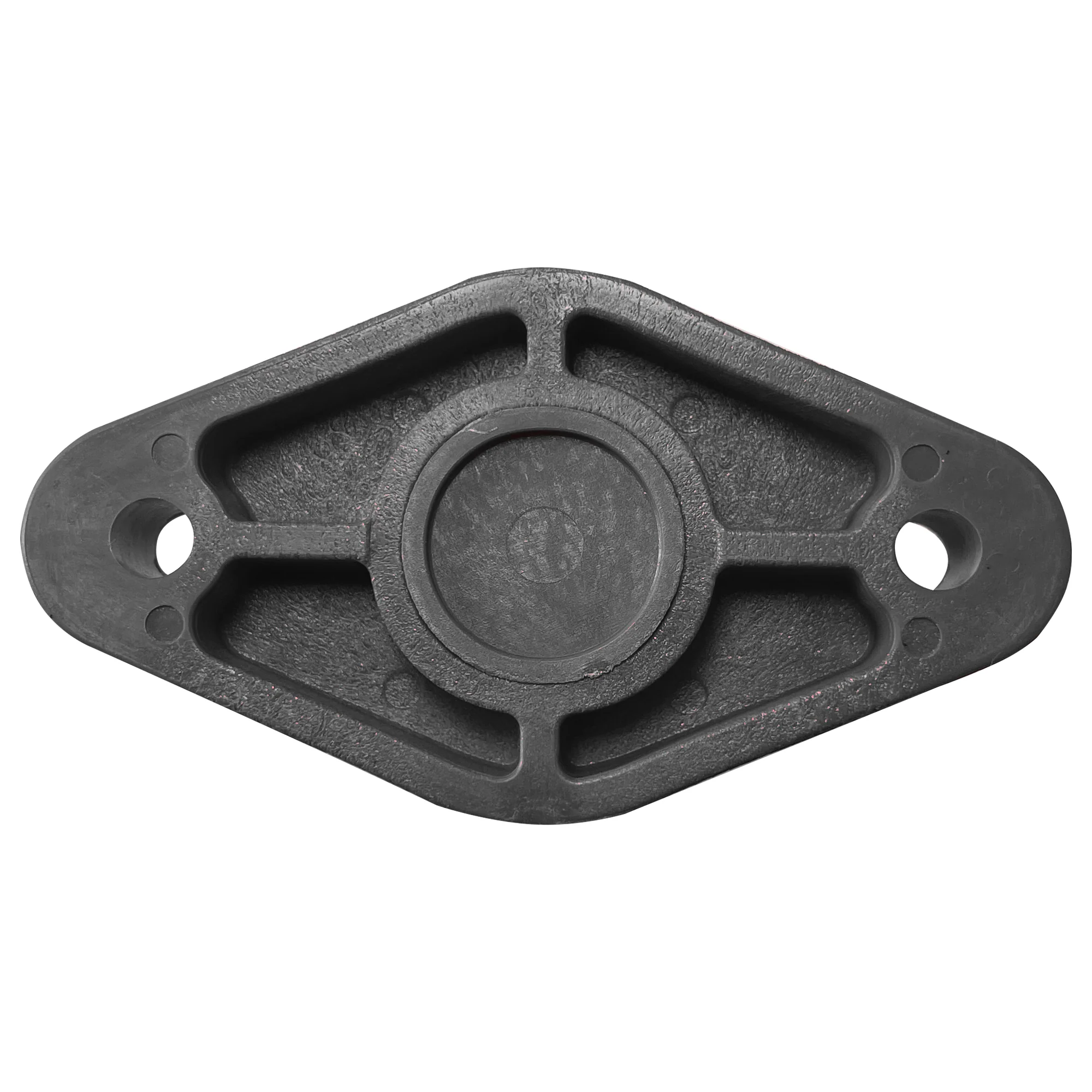

• Base material: Glass-filled nylon housing

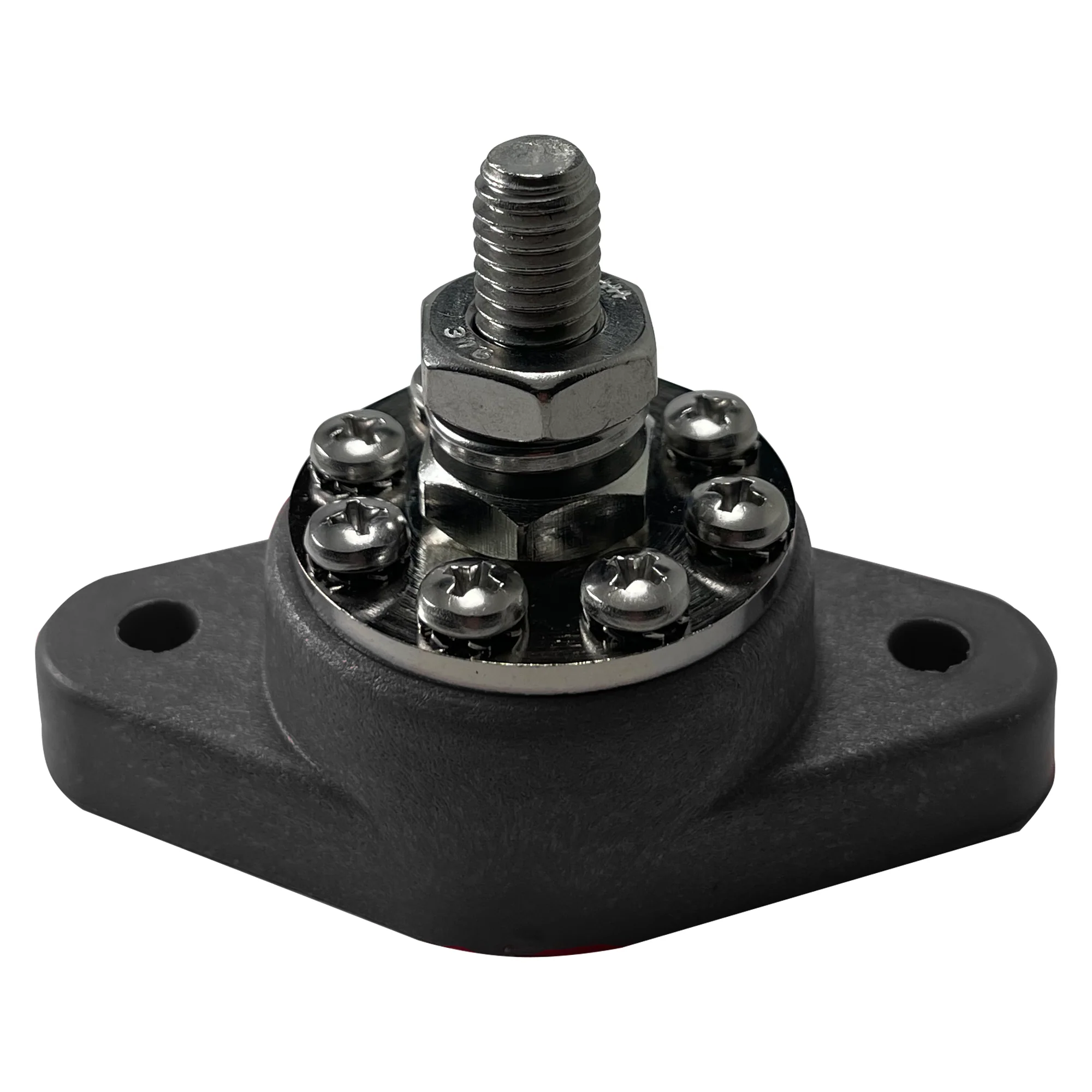

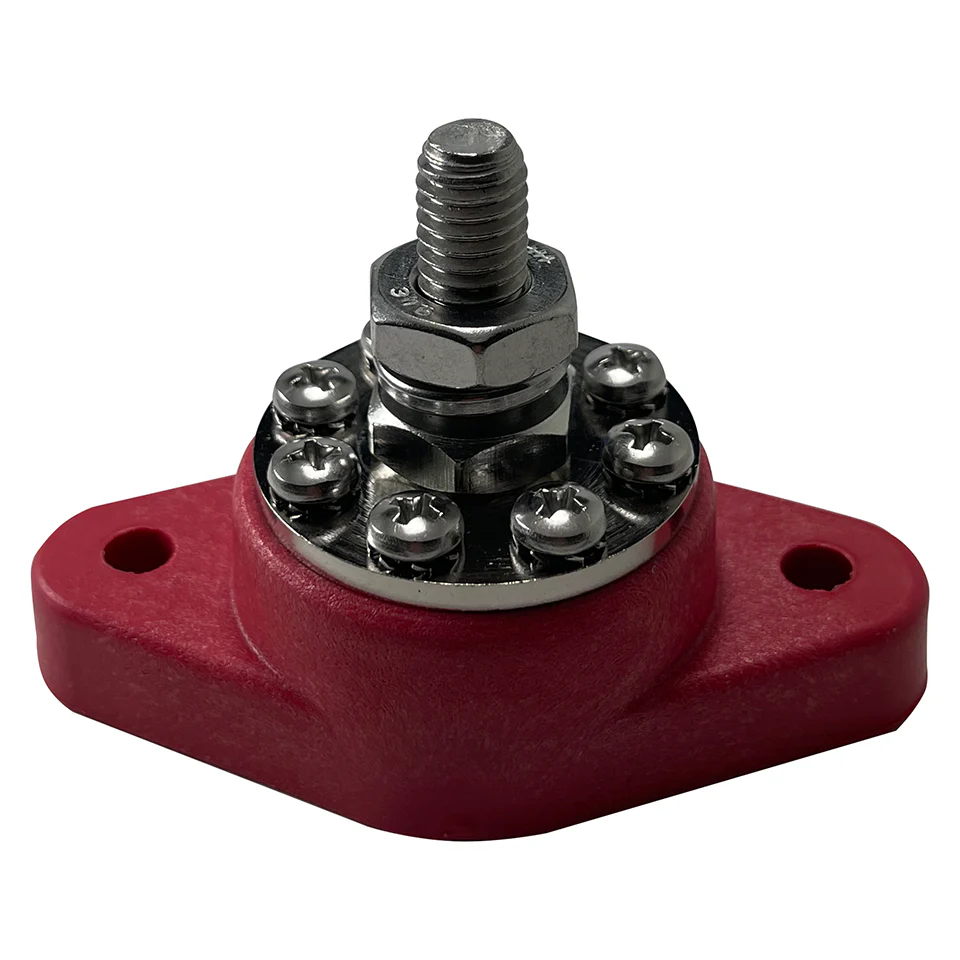

• Color options: Red or Black
• Mounting center: 2.5"

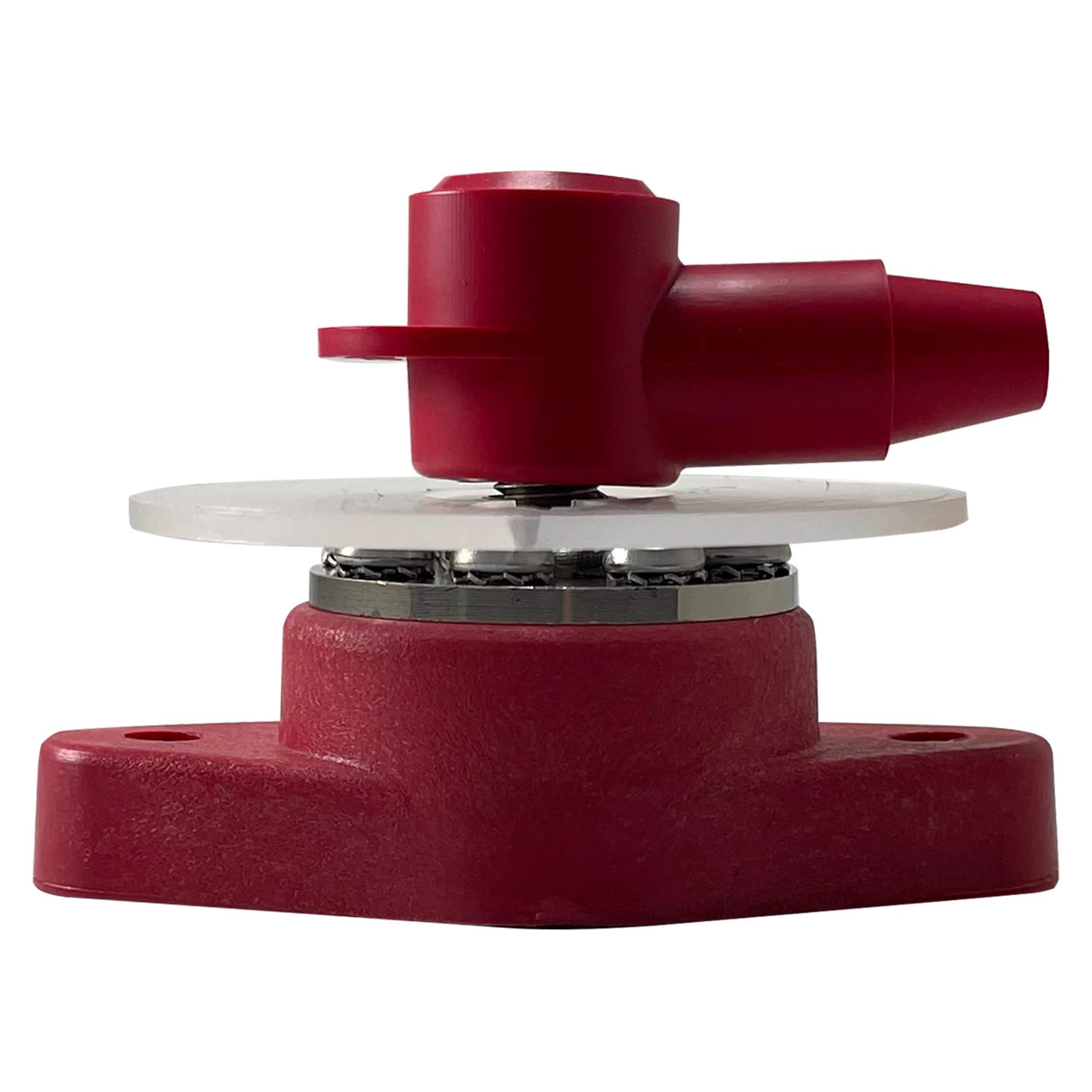

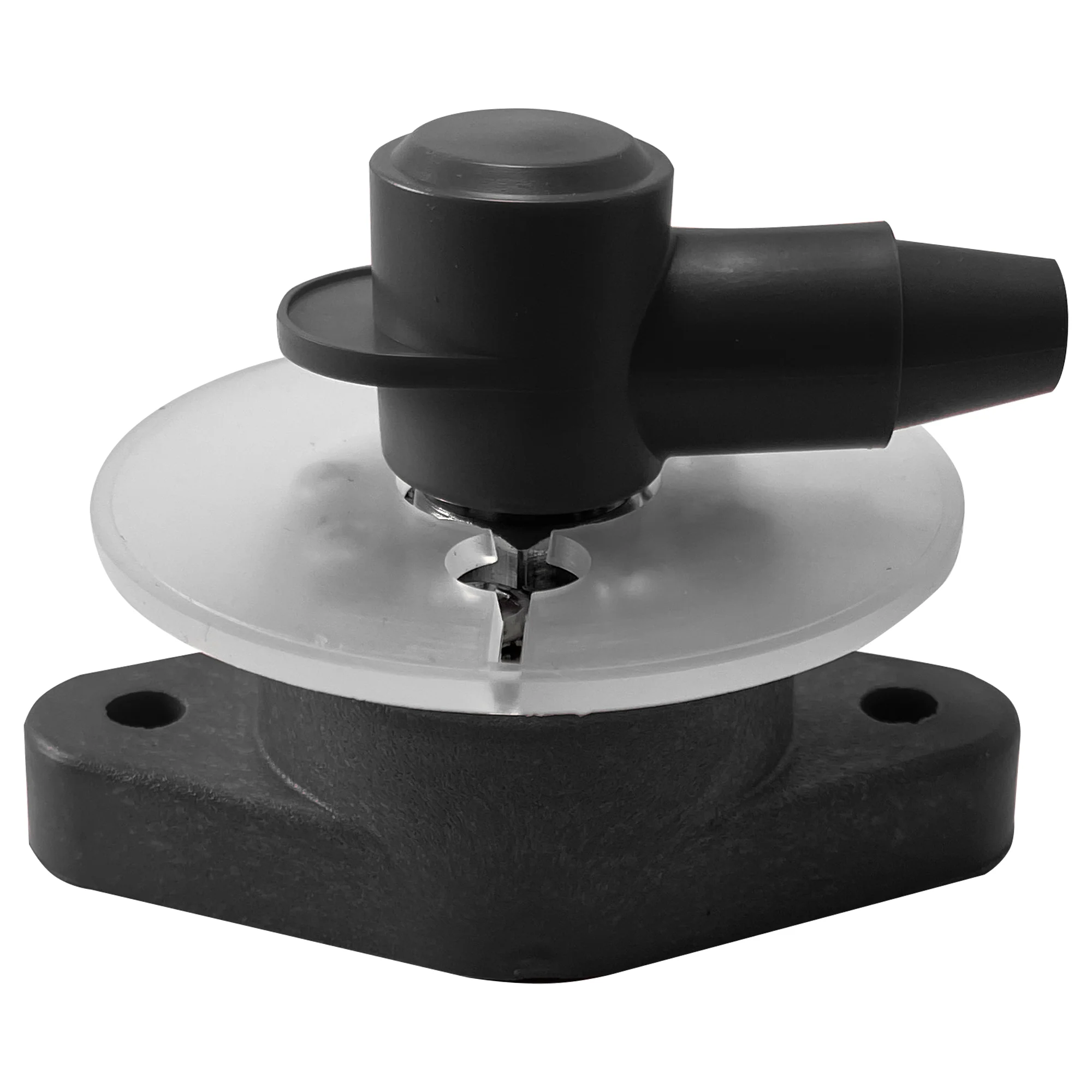

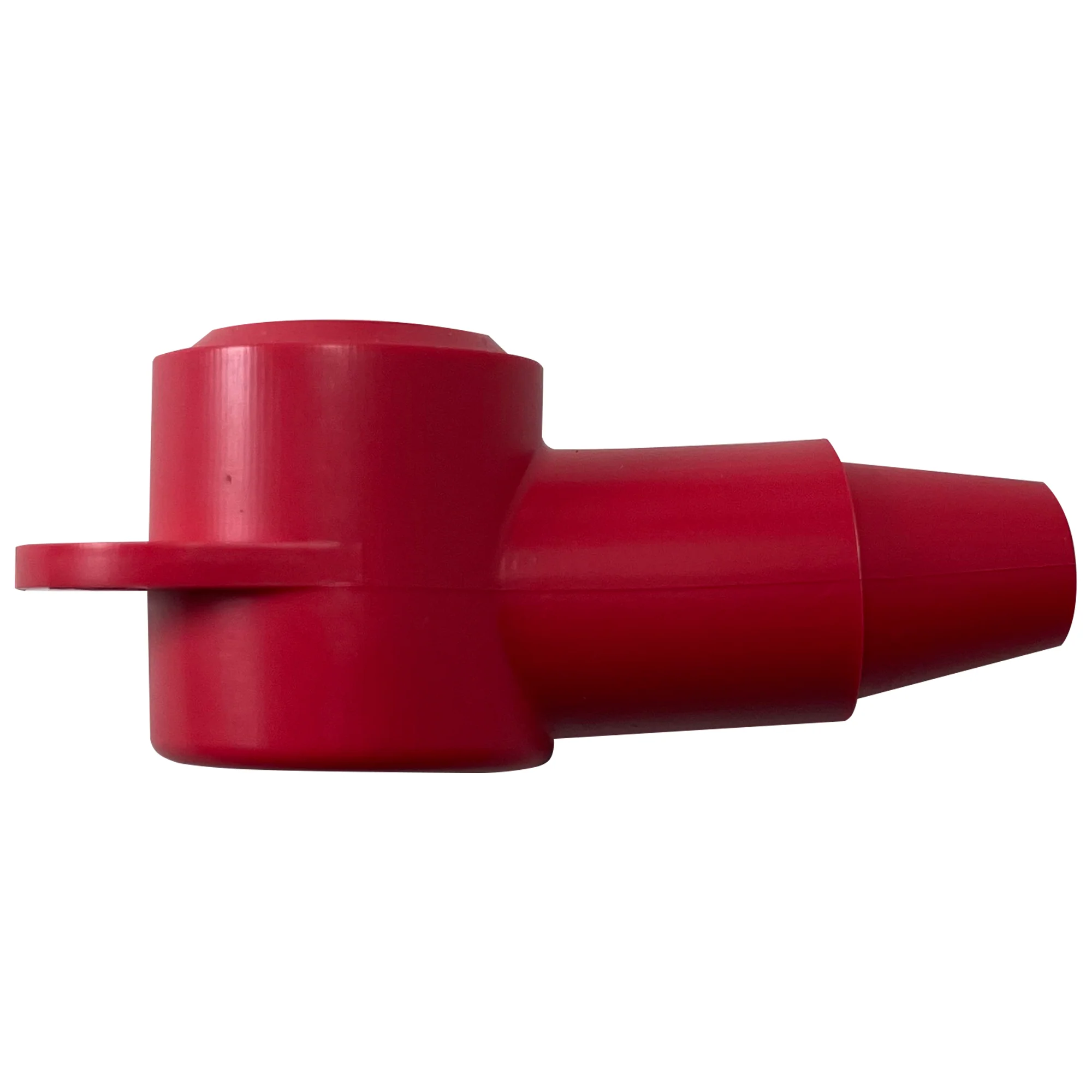

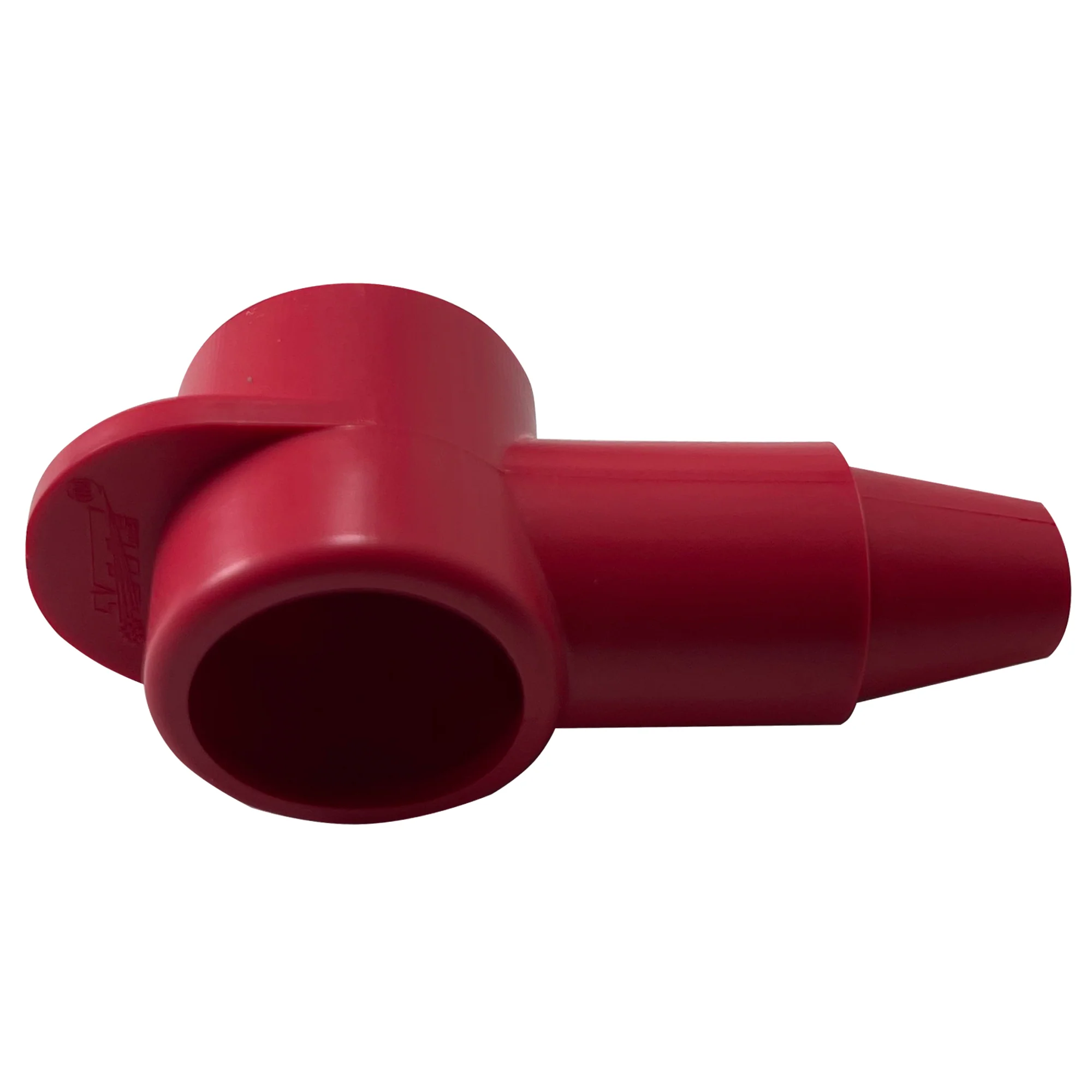

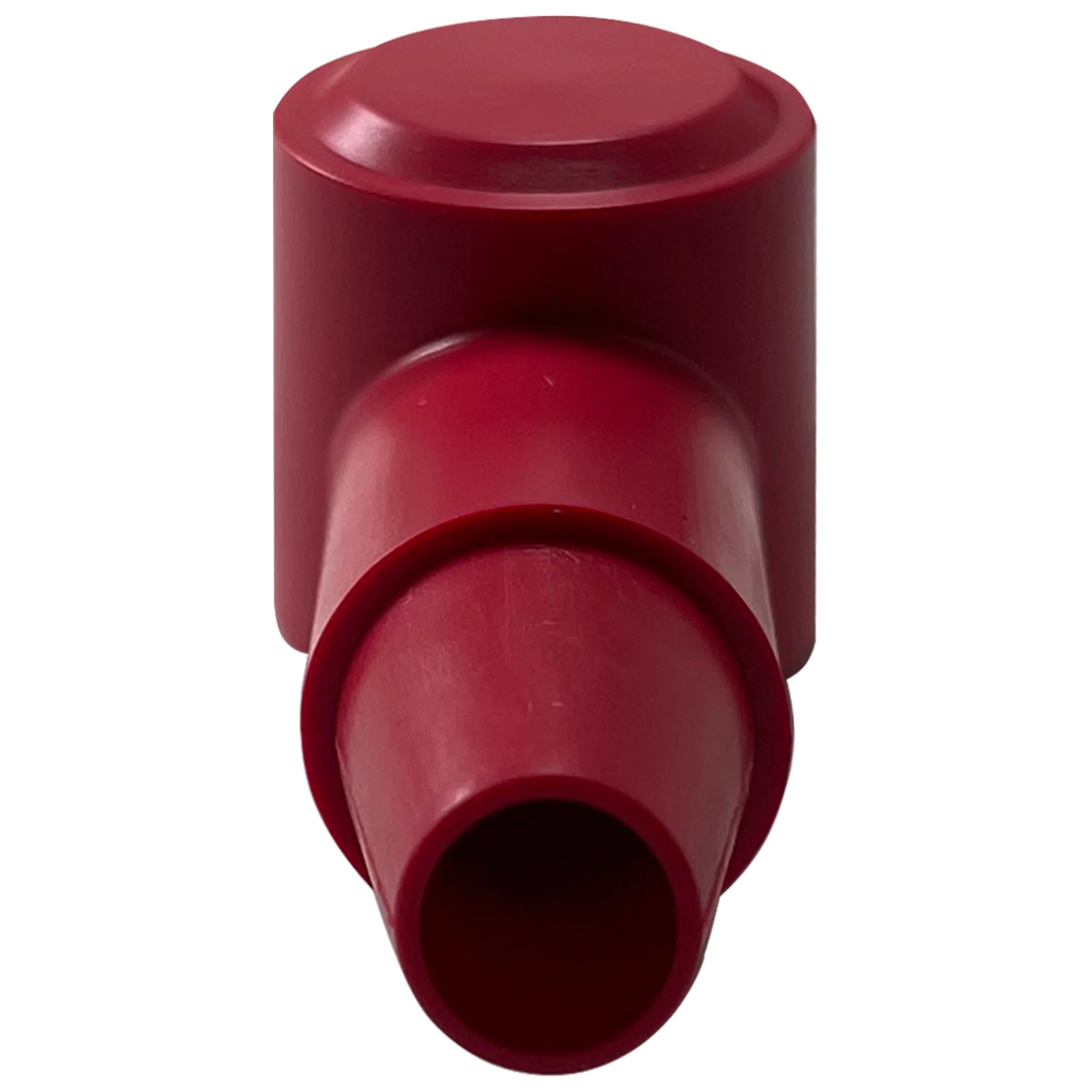

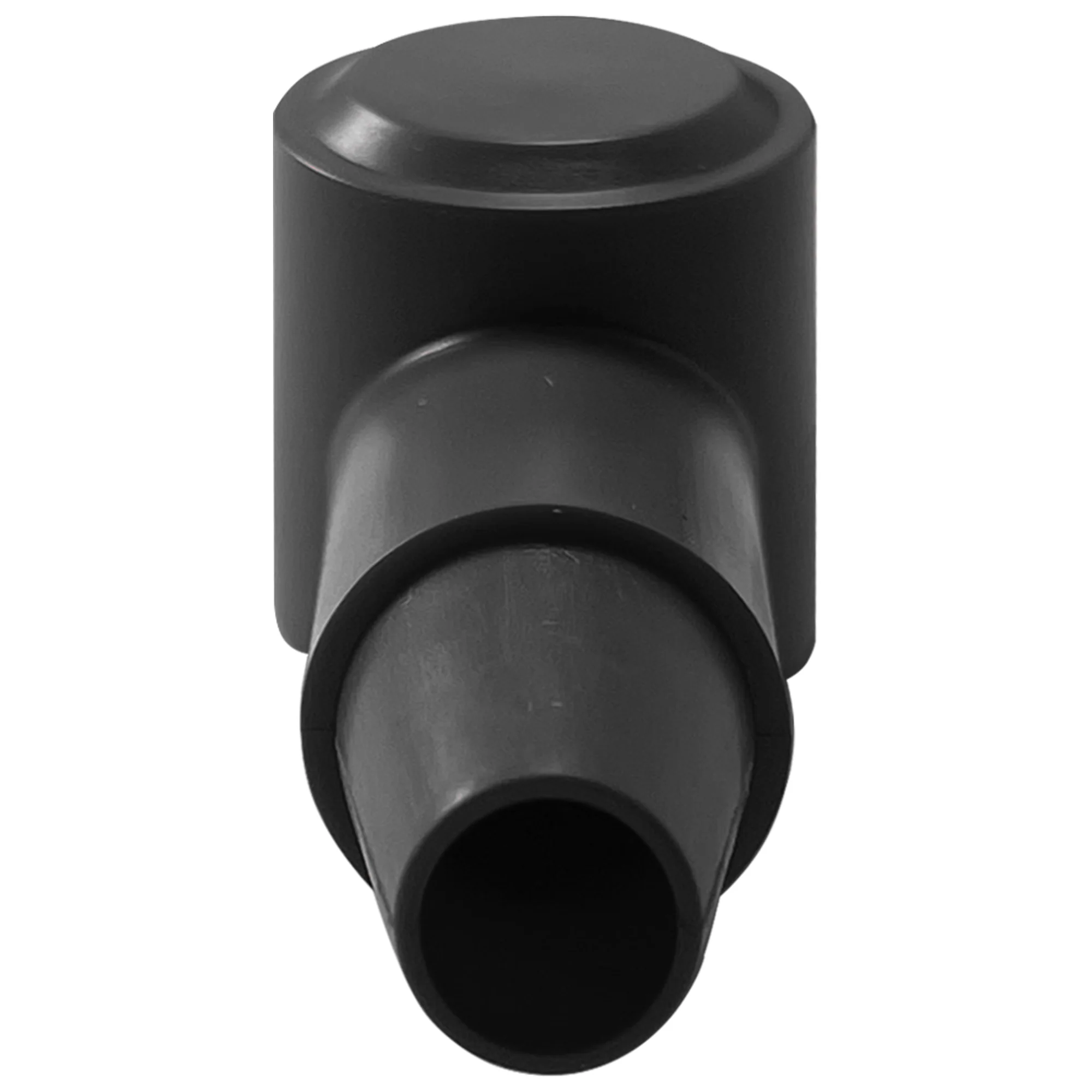

• Includes insulating boot and clear cover disc to prevent accidental shorting
• Supports negative return line hookup or multiple positive feeds
• Helps create reliable, trouble-free circuit paths in control systems
• Use with terminal insulators to meet ABYC-E9, USCG 33 Subpart I, and ISO 10133 standards
