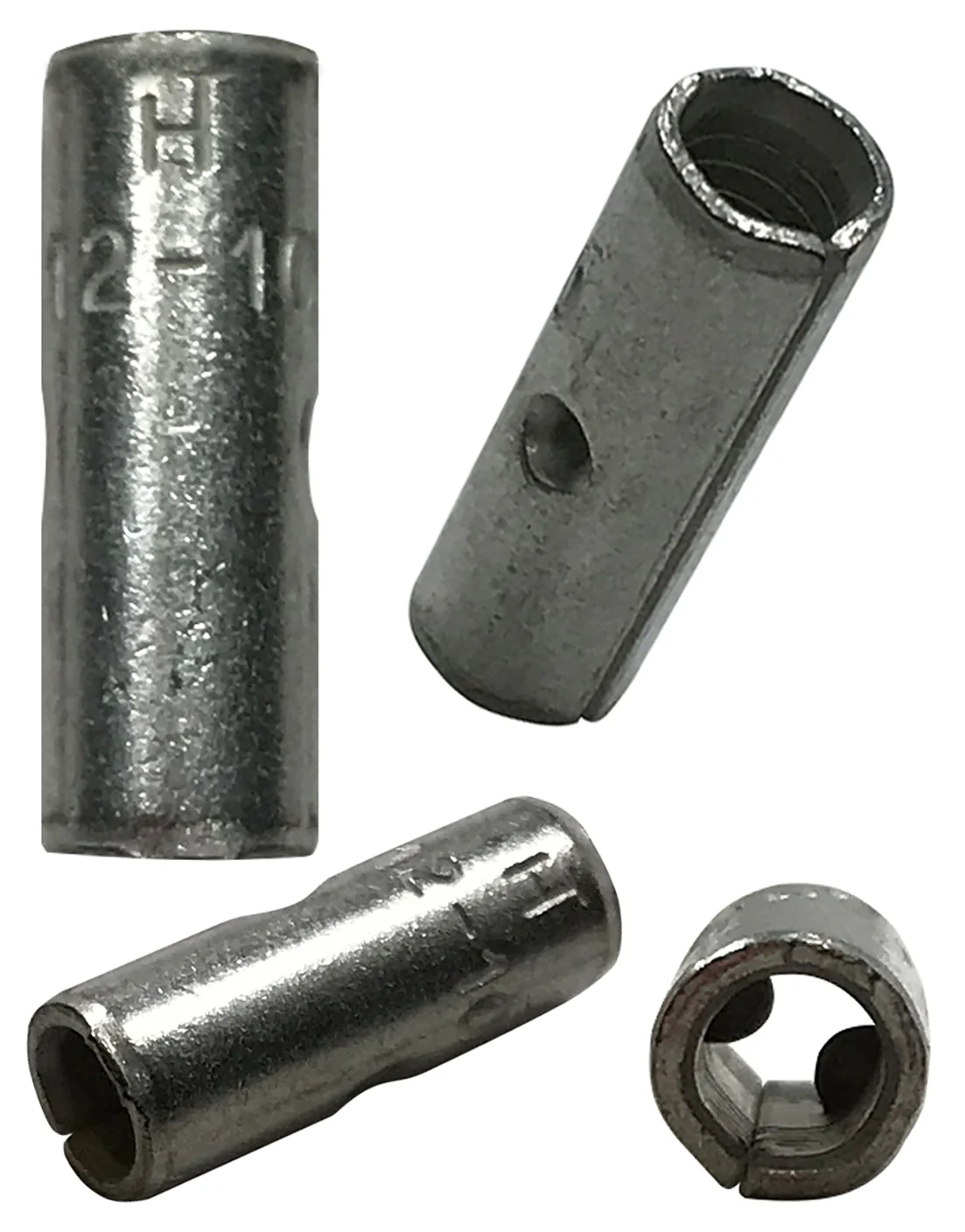

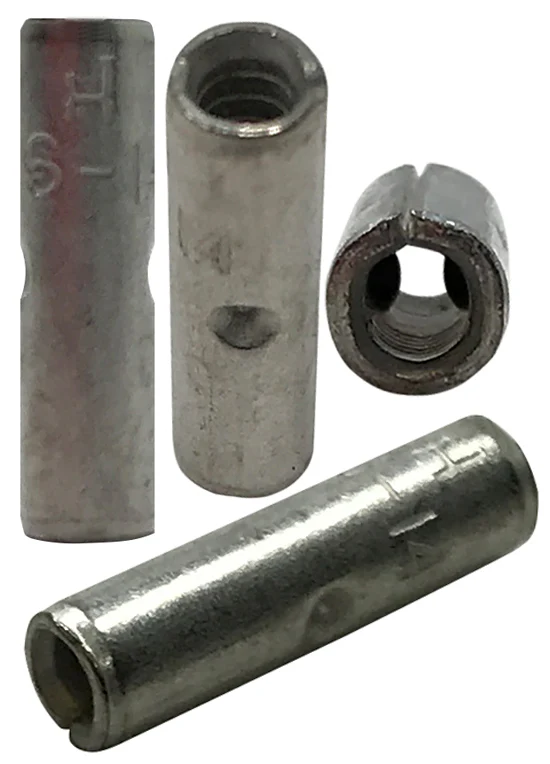

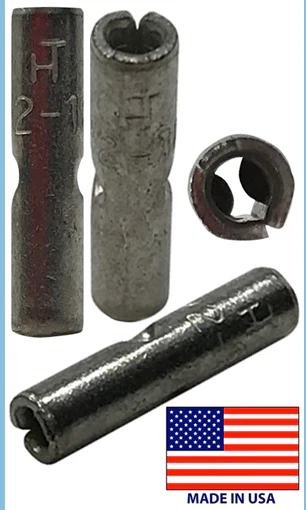

Non-Insulated Butt Connector Assortment Kit 22-10 Gauge - 300 Piece - Made in the USA

This 300-piece non-insulated butt connector assortment kit is ideal for electrical professionals, fleet maintenance teams, and automotive technicians who need durable, high-conductivity connections for 22–10 AWG wire. Manufactured from pure copper and electro tin-plated, these terminals deliver superior corrosion resistance and mechanical strength.

Specifications & Features

• Material: Pure copper (Alloy 110)
• Plating: Electro tin-plated for enhanced corrosion resistance
• Design: "V" groove serrations improve crimp contact and tensile strength
• Barrel: Brazed seams for high integrity and conductivity
• Insulation: Non-insulated design for compact and flexible applications
• Voltage Rating: 600 volts
• Temperature Range: Up to 230°F
• Termination Type: Crimp connection
• Certifications: cULus listed
• Mil-Spec: MIL-T-10727C Type 1; ASTM B545B (.0001–.00025 thick)
• Made in the USA

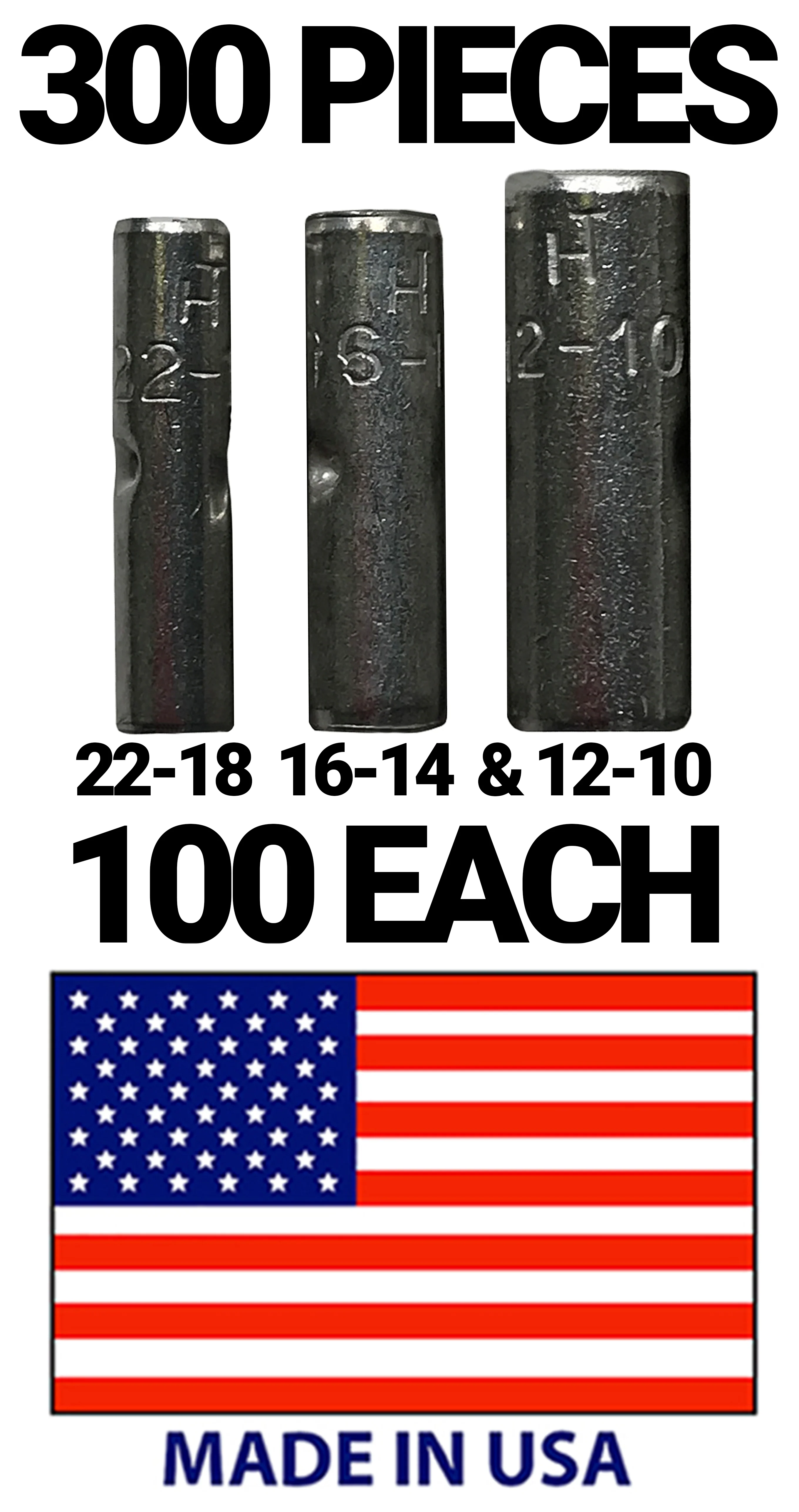

Kit Contents

• 100 – B1210: Non-Insulated Butt Connector, 12–10 Gauge
• 100 – B1614: Non-Insulated Butt Connector, 16–14 Gauge
• 100 – B2218: Non-Insulated Butt Connector, 22–18 Gauge
