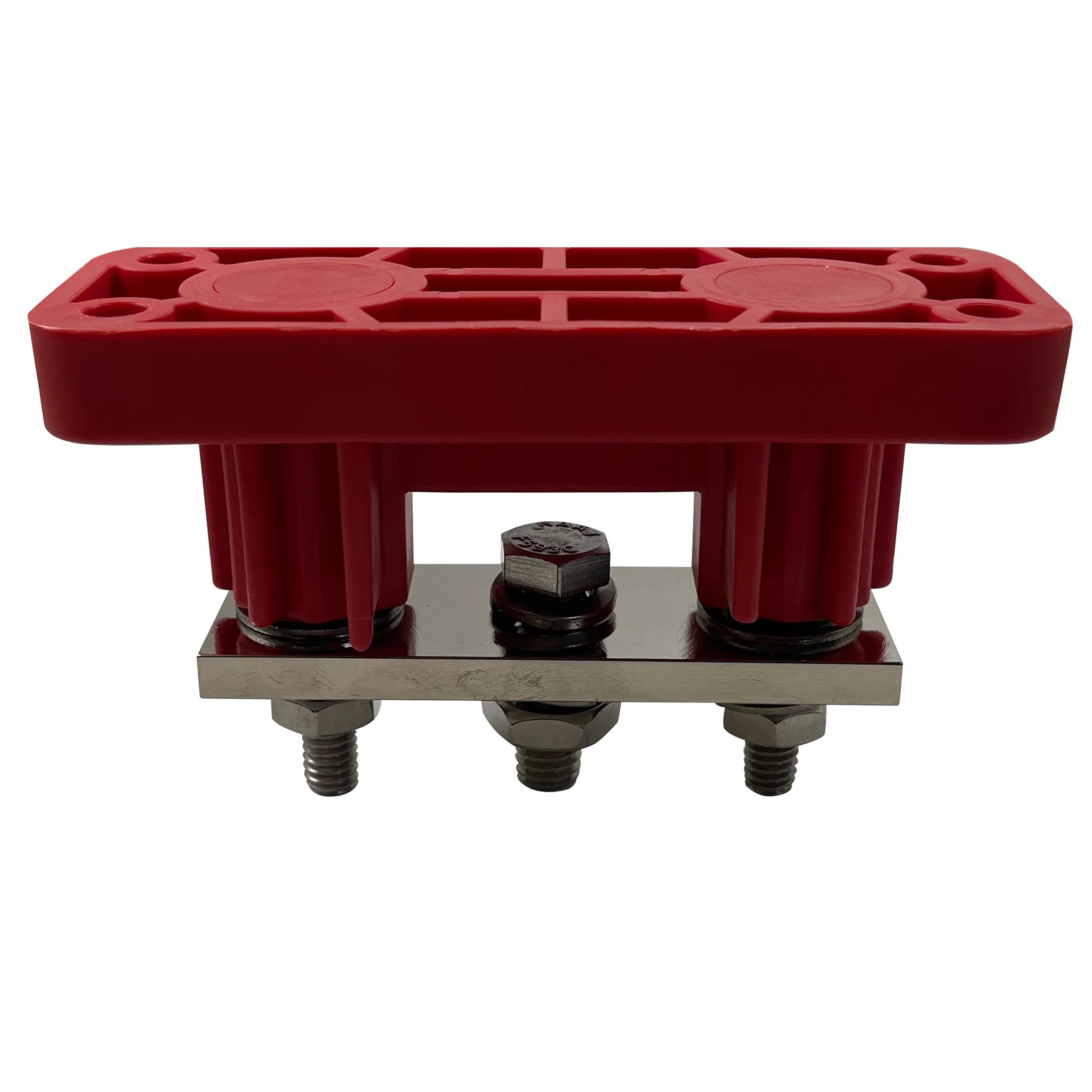

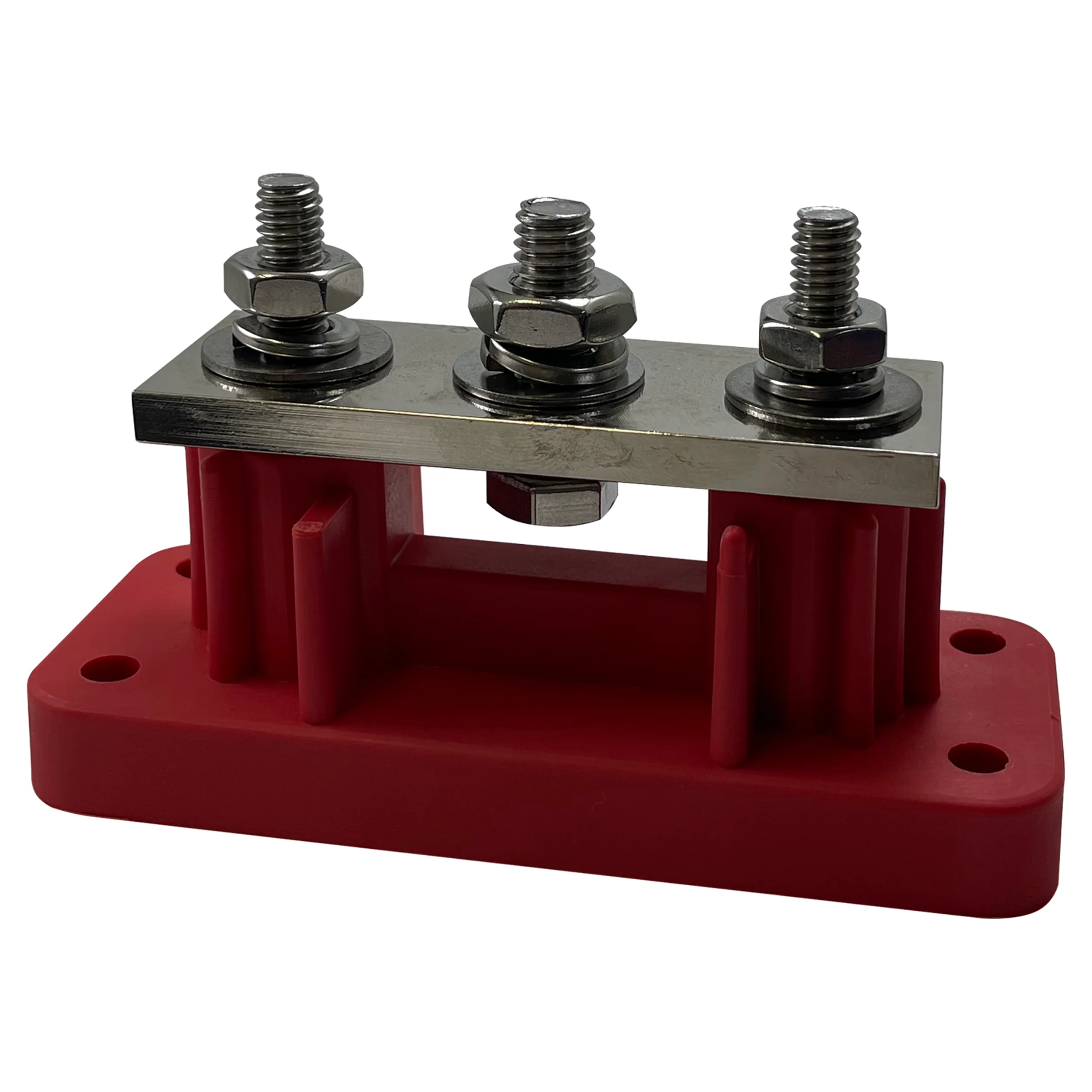

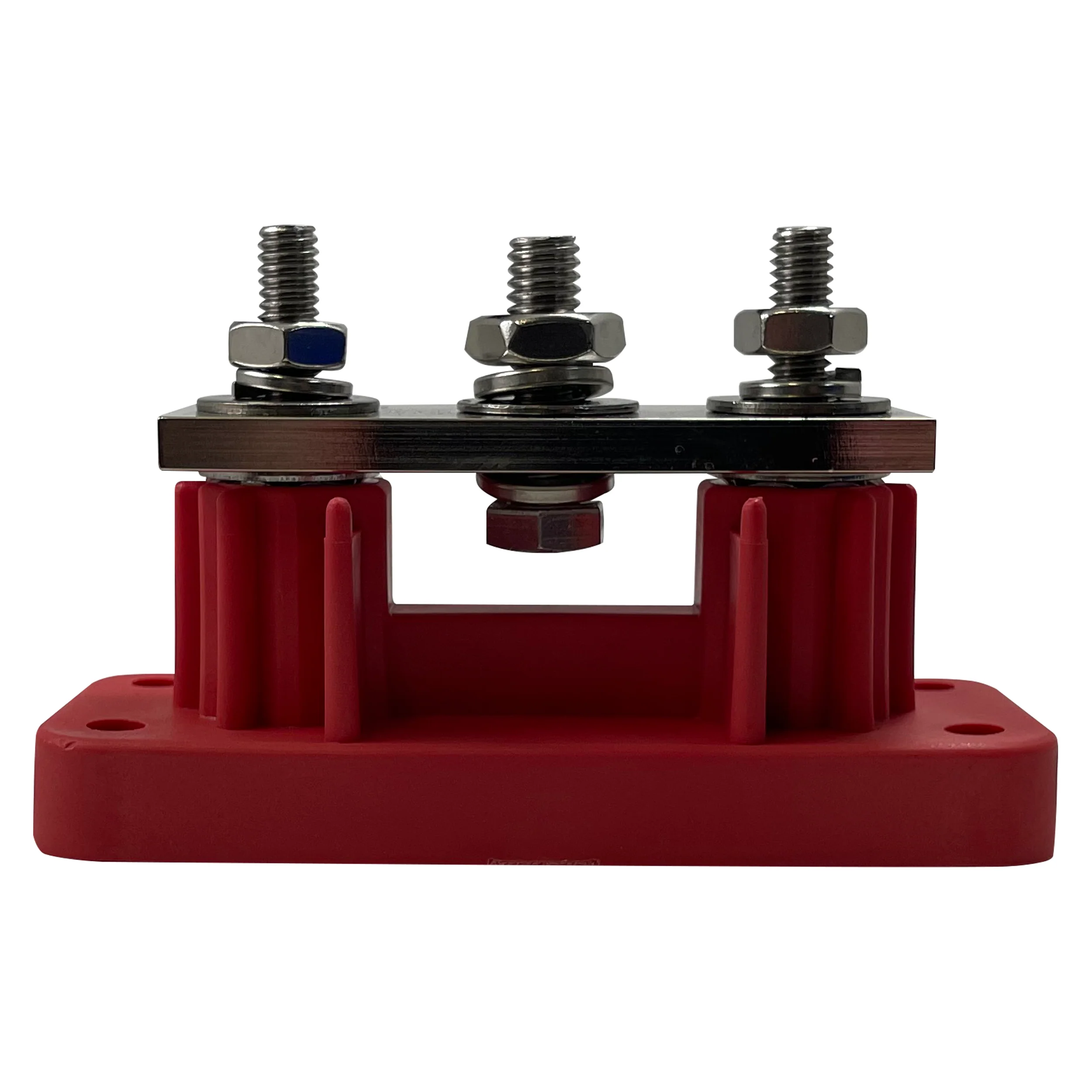

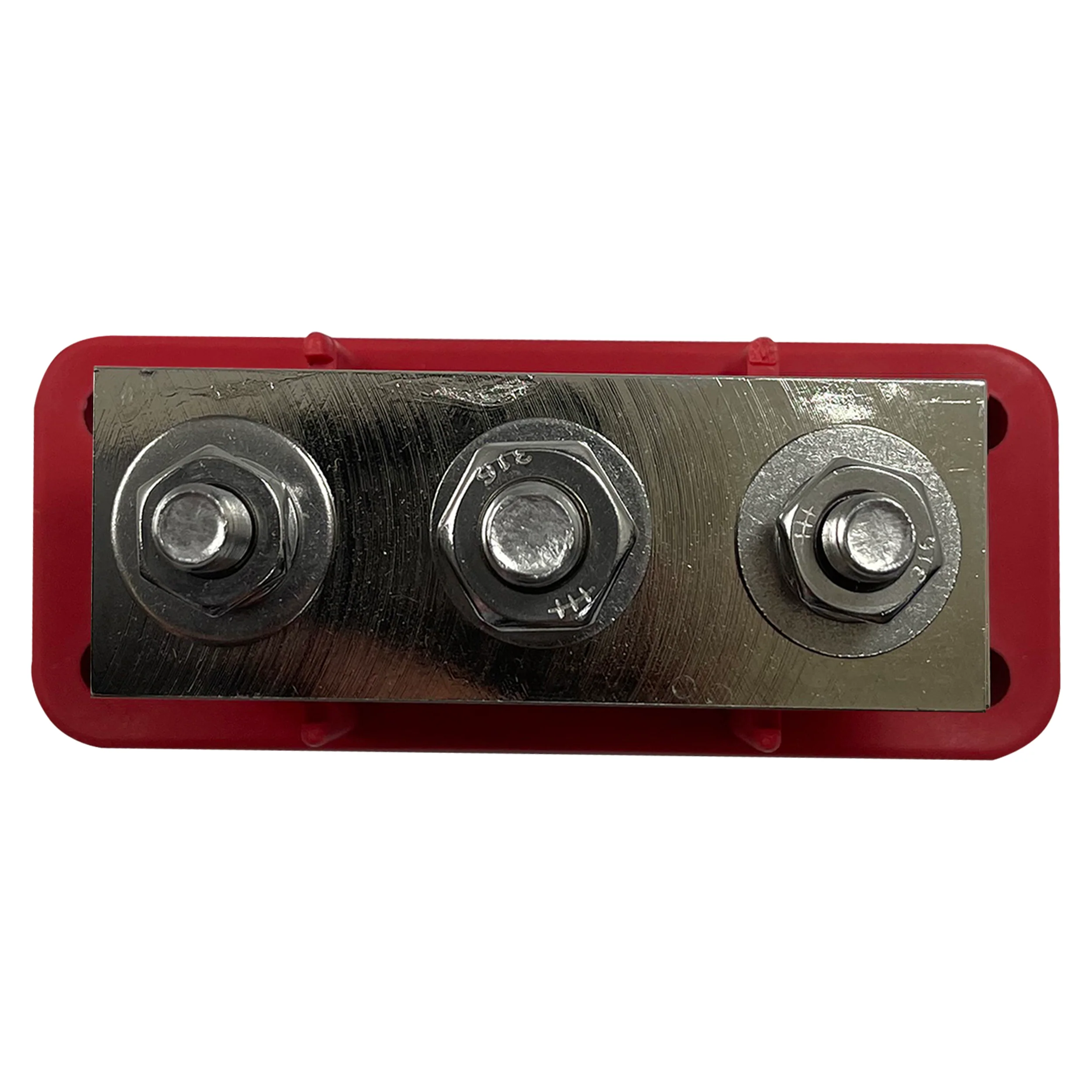

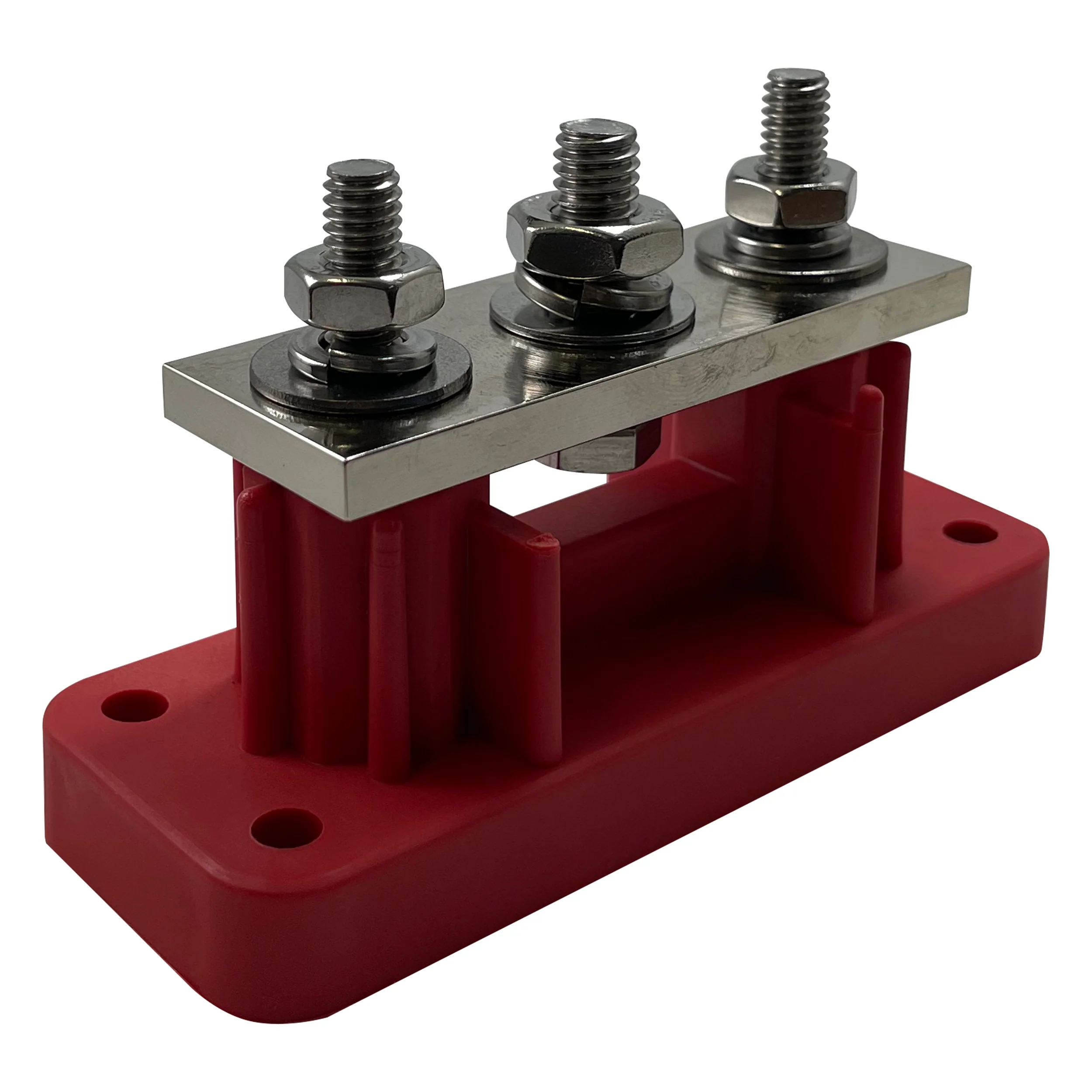

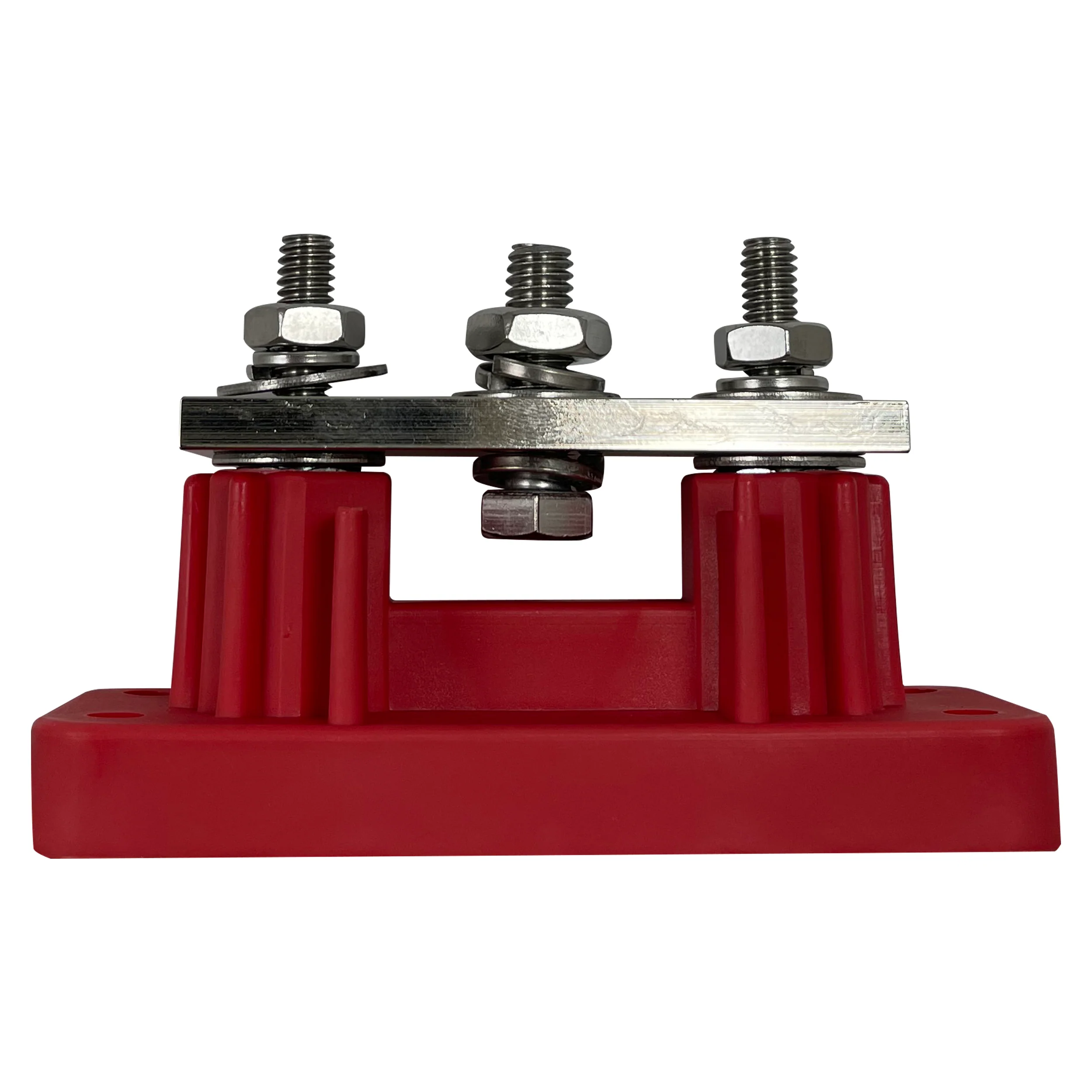

3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps
3 Point Hi-Amp Terminal Busbar
VTE Inc. is now offering a High Amperage 3 Point Busbar. This busbar can accommodate large, high amperage cables up to 4/0 ga. Well suited for distributing power leads to marine bow thrusters and similar devices.
- Highly cost effective solution for High Amperage Connections
- Conductor Plate Material : Nickel plated brass

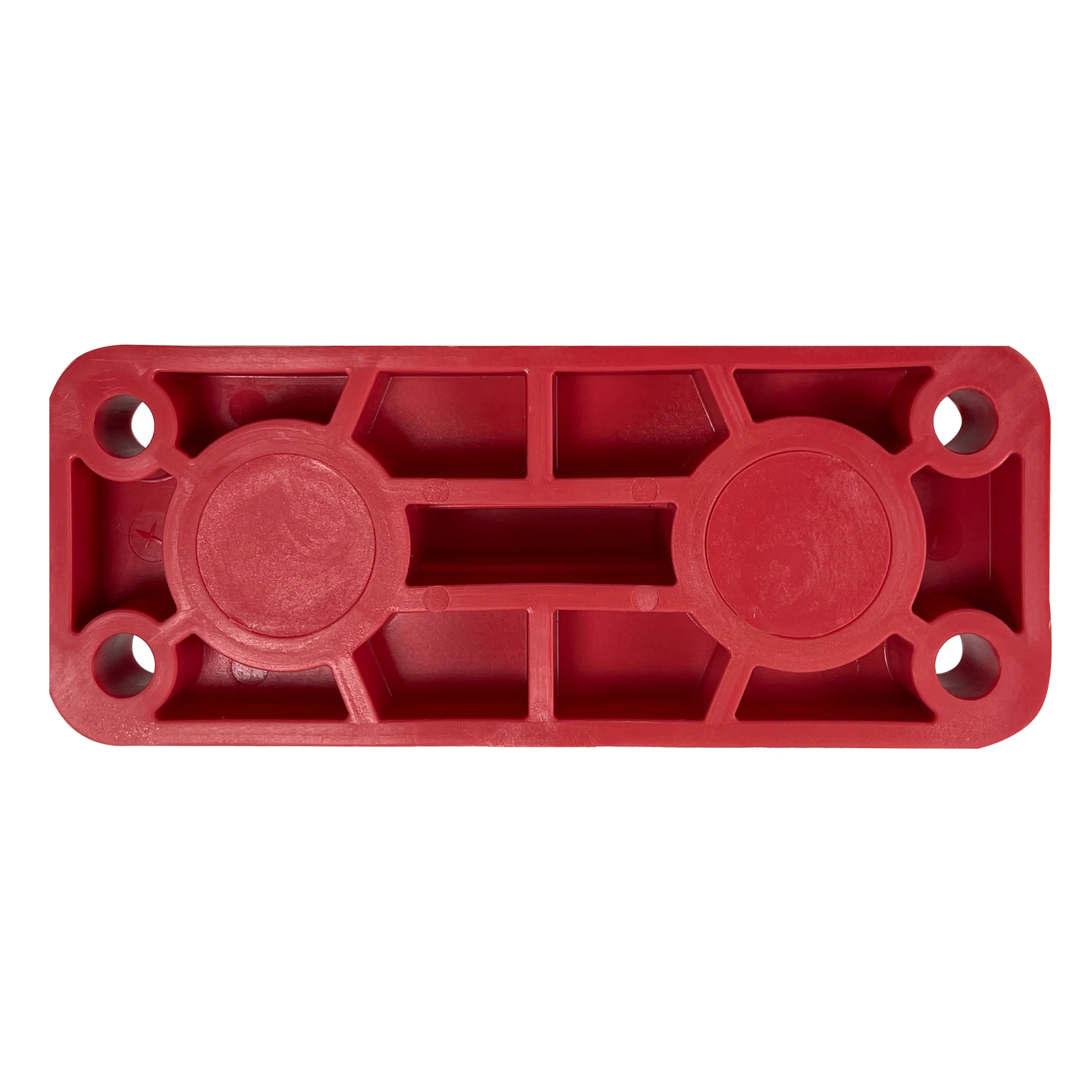

- Base Material : Glass-filled nylon
- Colors Available : Red & Black
- Max Voltage: 48 vdc
- Max Amperage: 700 amps @ 12 vdc
- Connection Post Material : Stainless Steel
- Lock Washer Material : Stainless Steel
- Flat Washer Material : Stainless Steel
- To comply with industry standards, an optional insulator protects terminal connections from accidental shorts. To ensure complete protection, terminal sleeves should be fitted with shrink-wrap
$15.57
Original: $44.49
-65%3 Point Red Hi-Amp 3/8" Terminal Busbar - 700 Amps—
$44.49
$15.57Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
3 Point Hi-Amp Terminal Busbar
VTE Inc. is now offering a High Amperage 3 Point Busbar. This busbar can accommodate large, high amperage cables up to 4/0 ga. Well suited for distributing power leads to marine bow thrusters and similar devices.
- Highly cost effective solution for High Amperage Connections
- Conductor Plate Material : Nickel plated brass
- Base Material : Glass-filled nylon
- Colors Available : Red & Black
- Max Voltage: 48 vdc
- Max Amperage: 700 amps @ 12 vdc
- Connection Post Material : Stainless Steel
- Lock Washer Material : Stainless Steel
- Flat Washer Material : Stainless Steel
- To comply with industry standards, an optional insulator protects terminal connections from accidental shorts. To ensure complete protection, terminal sleeves should be fitted with shrink-wrap
