Non-Insulated Quick Disconnect Terminal Assortment Kit - 275 Pieces

Non-Insulated Quick Disconnect Terminal Assortment Kit - 275 Pieces

Our Non-Insulated Wire terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated for Exceptional Corrosion Resistance. All terminals have "V" groove serrations To provide maximum contact and tensile strength after crimping.
  • All terminals constructed from pure copper (Alloy 110) annealed & electro tin plated for exceptional corrosion resistance.
  • Terminals have "V" groove serrations to provide maximum contact and tensile strength after crimping.
  • Terminals and connectors are clearly marked with size.
  • Brazed Barrel Seams.
  • Mil Specs: MIL-T-10727C Type 1 ASTM B 545 B. .0001-.00025 Thick
  • Made in USA.

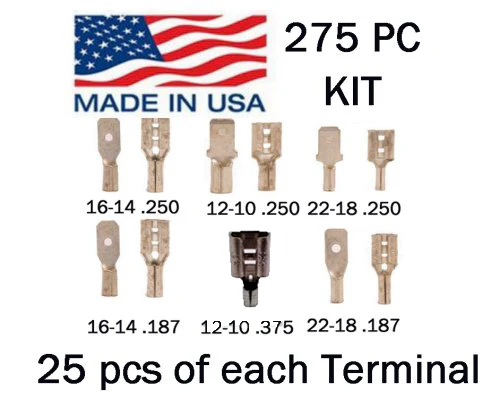

Kit Includes:
  • 25 - QDM2218-250 - Non-Insulated Male Quick Disconnect 22-18 Gauge .250 Tab
  • 25 - QDF2218-250 - Non-Insulated Female Quick Disconnect 22-18 Gauge .250 Tab
  • 25 - QDM2218-187 - Non-Insulated Male Quick Disconnect 22-18 Gauge .187 Tab
  • 25 - QDF2218-187 - Non-Insulated Female Quick Disconnect 22-18 Gauge .187 Tab
  • 25 - QDM1614-250 - Non-Insulated Male Quick Disconnect 16-14 Gauge .250 Tab
  • 25 - QDF1614-250 - Non-Insulated Female Quick Disconnect 16-14 Gauge .250 Tab
  • 25 - QDM1614-187 - Non-Insulated Male Quick Disconnect 16-14 Gauge .187 Tab
  • 25 - QDF1614-187 - Non-Insulated Female Quick Disconnect 16-14 Gauge .187 Tab
  • 25 - QDM1210-250 - Non-Insulated Male Quick Disconnect 12-10 Gauge .250 Tab
  • 25 - QDF1210-250 - Non-Insulated Female Quick Disconnect 12-10 Gauge .250 Tab
  • 25 - QDF1210-375 - Non-Insulated Female Quick Disconnect 12-10 Gauge .375 Tab

                    Additional Information:
                    • Insulation Material: Non-Insulated
                    • Terminal Group: Quick Disconnect Terminals
                    • Terminal Type: Non-Insulated Quick Disconnect Terminals
                    • Material: Copper
                    • Material Plating: Electro Tin-Plated
                    • Certifcations: cULus
                    • Temperature Range: 230 F
                    • Termination Type: Crimp
                    • Voltage Rating: 600 Volts
                    • Country of Origin: United States
                    $8.40

                    Original: $23.99

                    -65%
                    Non-Insulated Quick Disconnect Terminal Assortment Kit - 275 Pieces—

                    $23.99

                    $8.40
