Non-Insulated Spade Terminal Assortment - 22-10 AWG - 225 Piece Kit - Made in USA

This 225-piece non-insulated spade terminal assortment includes high-performance crimp terminals in a wide range of stud sizes and AWG ranges. Constructed from pure copper (Alloy 110) and electro tin-plated for excellent corrosion resistance, each terminal is built for long-lasting electrical connections in demanding automotive and industrial applications. Brazed barrel seams and “V” groove serrations enhance tensile strength and contact reliability.

Specifications

• Material: Pure copper (Alloy 110)
• Plating: Electro tin-plated
• Voltage Rating: 600V
• Temperature Rating: 230°F
• Termination Method: Crimp
• Insulation: Non-insulated
• Connector Type: Spade terminal
• Certifications: cULus listed
• Meets Specs: MIL-T-10727C Type 1, ASTM B 545 B (0.0001"–0.00025" thick)
• Made in USA

Key Features

• “V” groove serrations ensure secure wire contact and high pull strength after crimping
• Brazed barrel seams enhance durability and electrical conductivity
• Clearly marked sizing for quick identification during installation
• Excellent corrosion resistance for long-term use in harsh environments

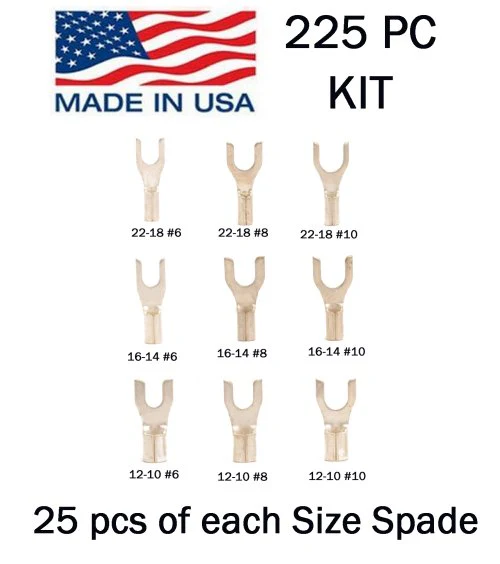

Kit Contents

• 25x 22-18 AWG Spade Terminals – #6 Stud
• 25x 22-18 AWG Spade Terminals – #8 Stud
• 25x 22-18 AWG Spade Terminals – #10 Stud
• 25x 16-14 AWG Spade Terminals – #6 Stud
• 25x 16-14 AWG Spade Terminals – #8 Stud
• 25x 16-14 AWG Spade Terminals – #10 Stud
• 25x 12-10 AWG Spade Terminals – #6 Stud
• 25x 12-10 AWG Spade Terminals – #8 Stud
• 25x 12-10 AWG Spade Terminals – #10 Stud
