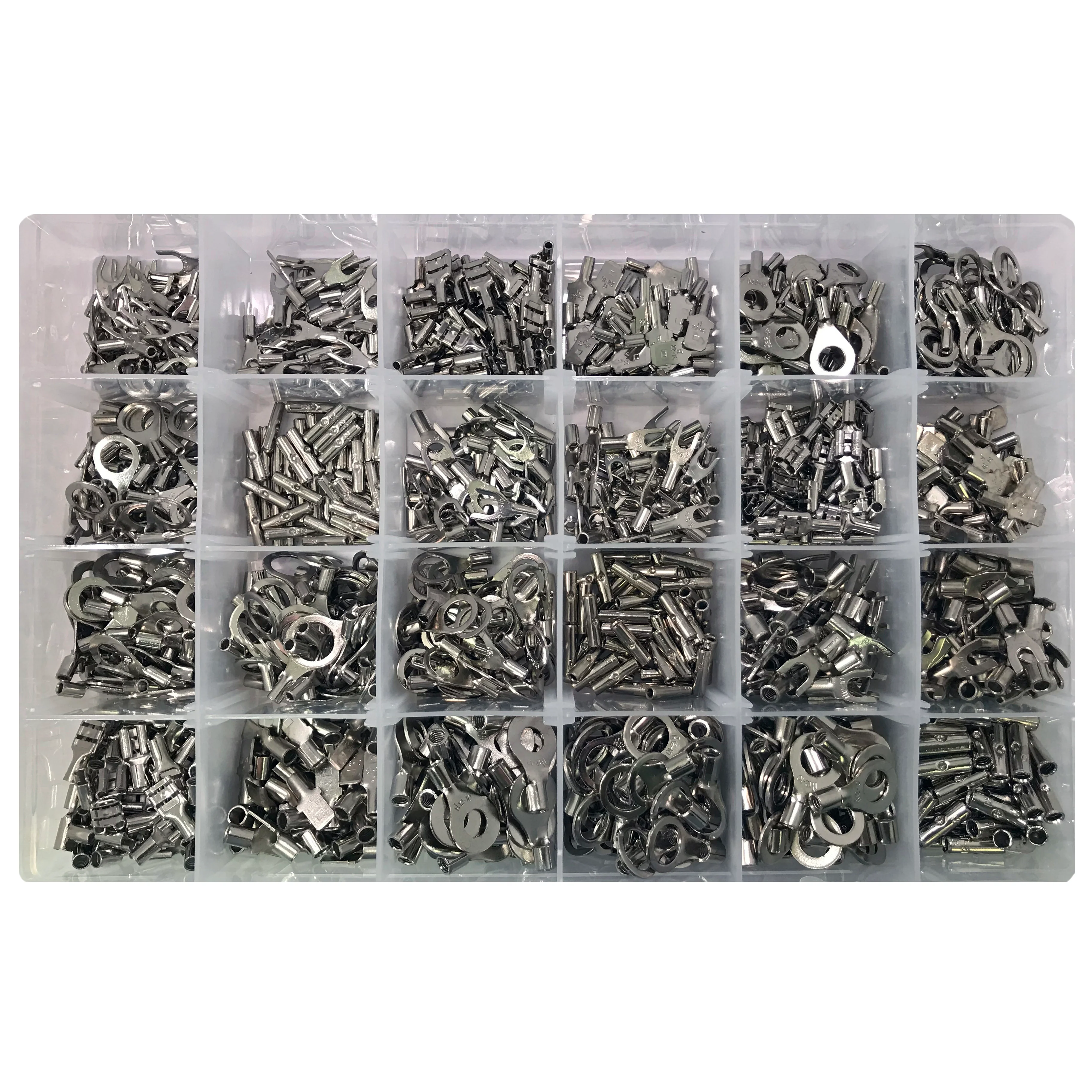

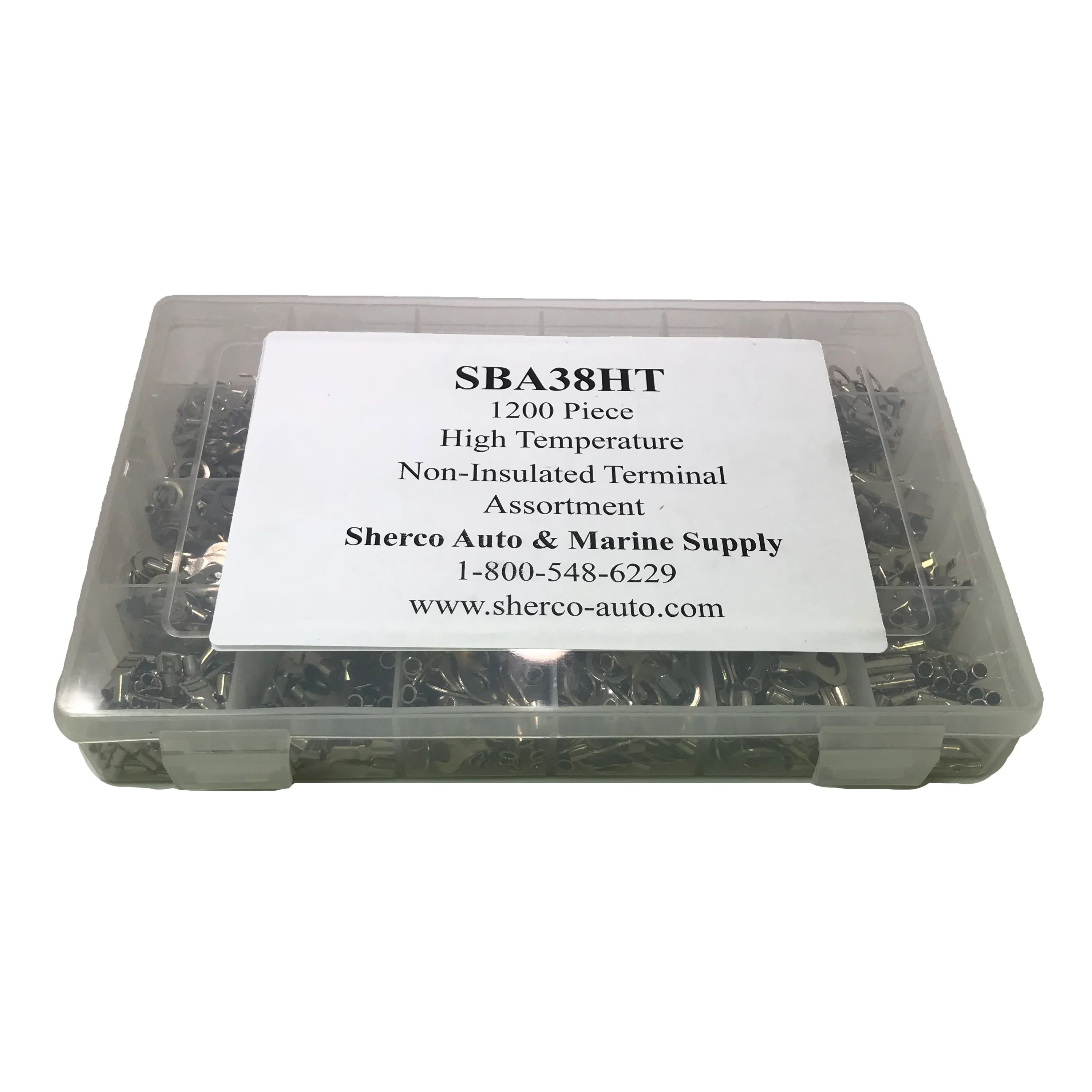

High Temperature Wire Terminal Connector Assortment Kit - 1200 Piece - Made in USA

This high-temperature wire terminal assortment kit includes 1200 non-insulated crimp terminals constructed of one-piece nickel-plated steel, rated for continuous use up to 900°F. Designed for demanding automotive and industrial electrical applications, these terminals are compatible with copper wire only and support up to 600V.

Specifications & Features

• Temperature Rating: Up to 900°F
• Voltage Rating: 600V
• Material: Nickel-plated steel
• Seam Type: Butted seam

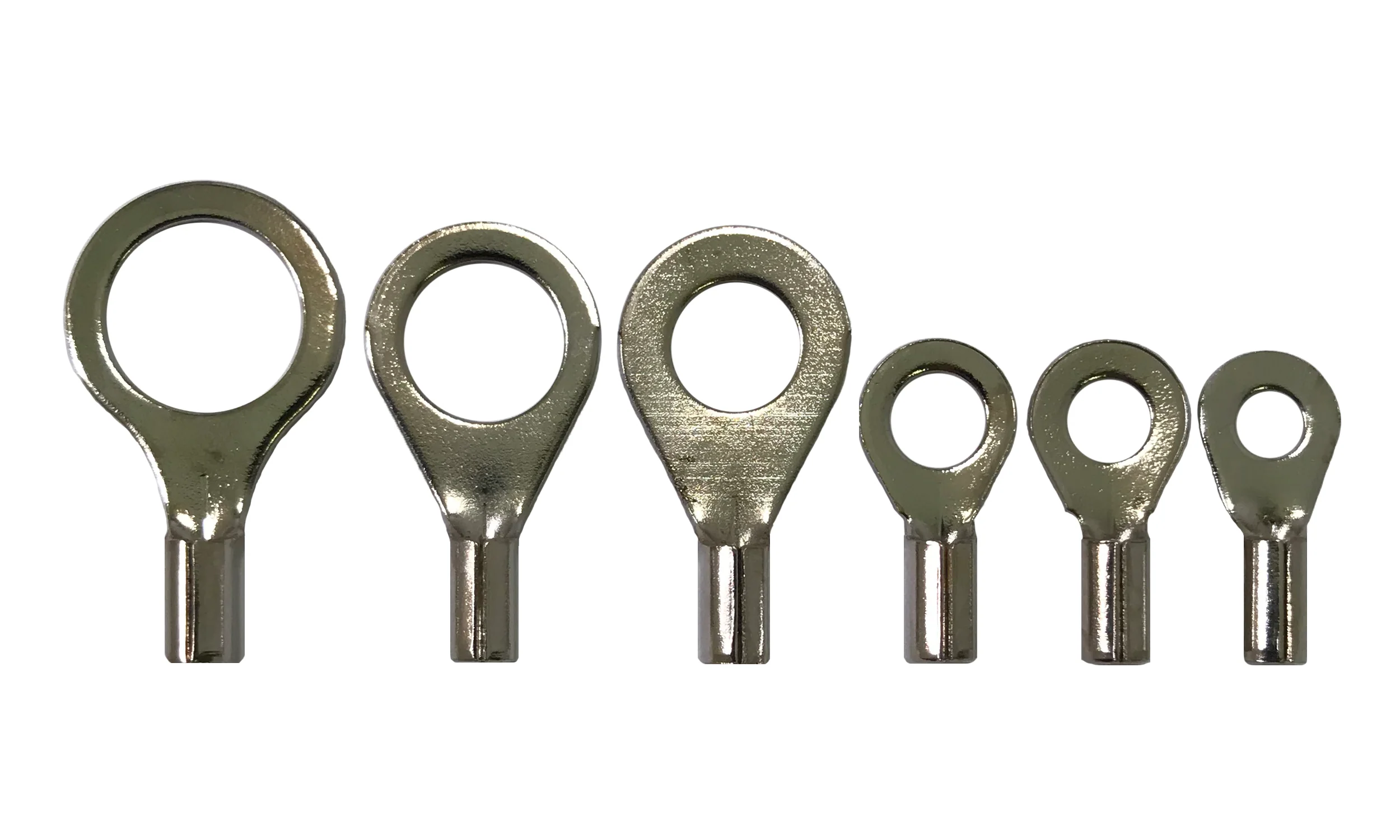

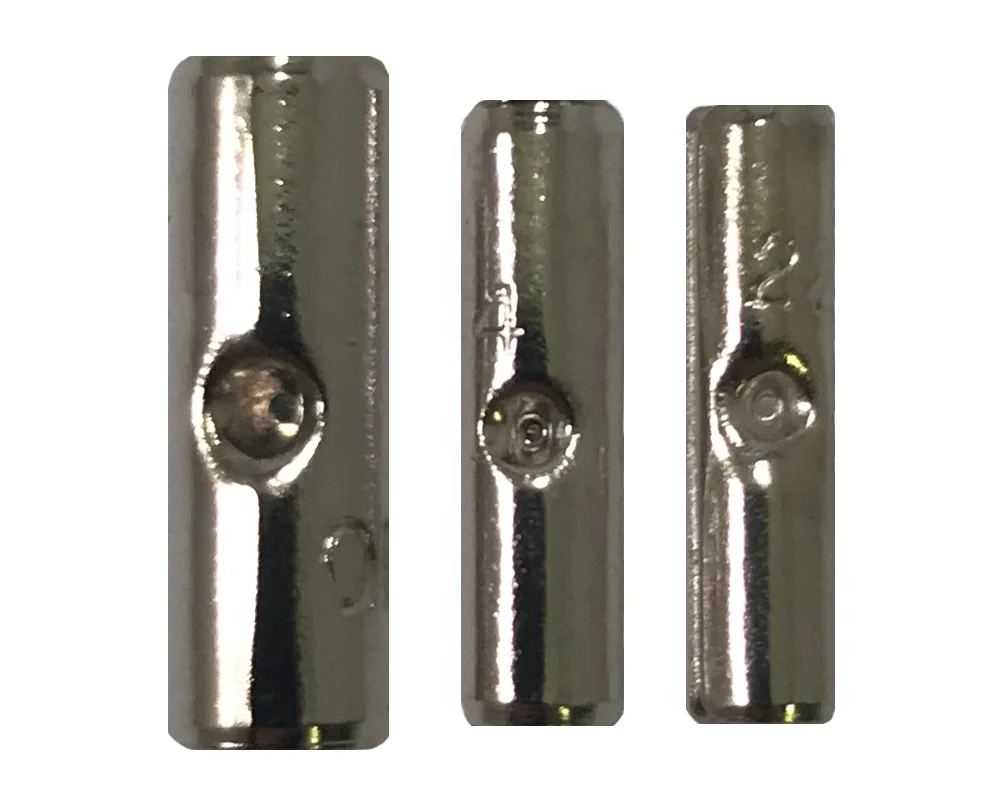

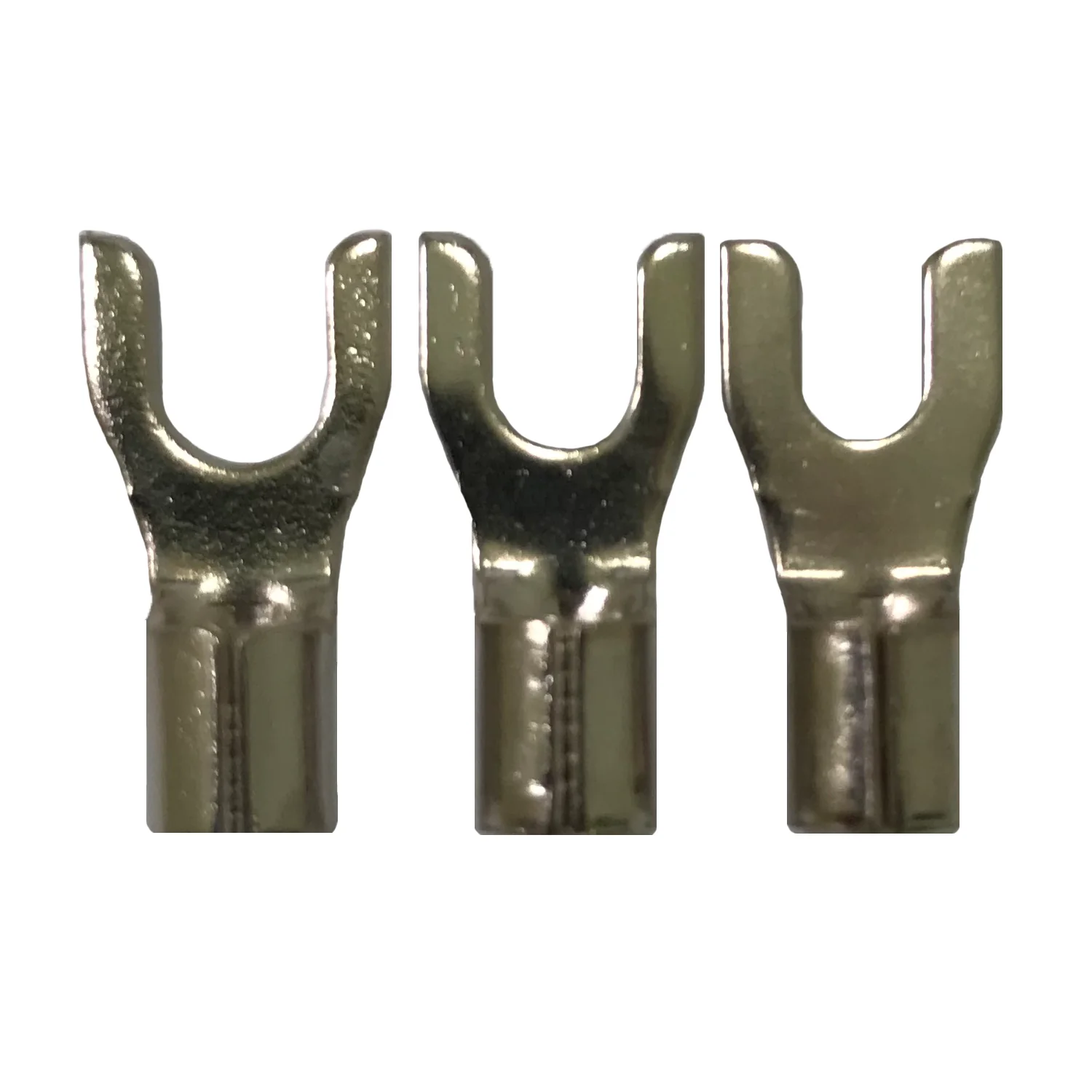

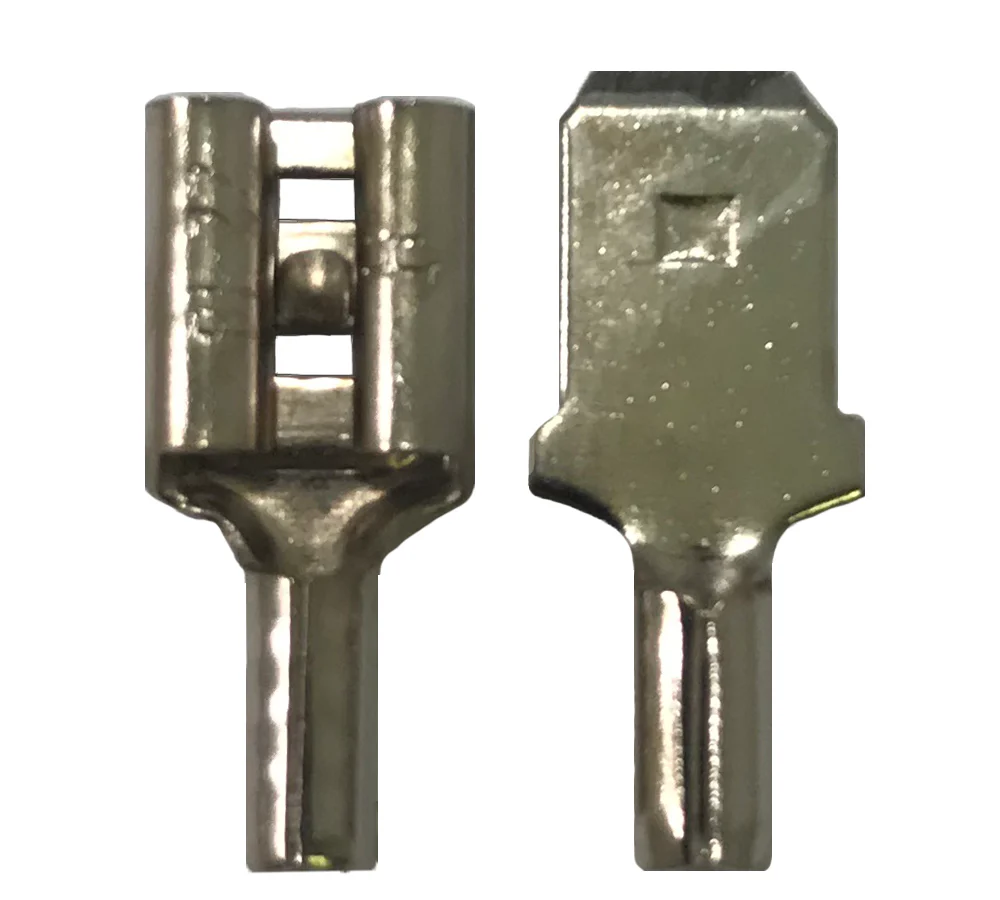

• Includes ring terminals, spade terminals, male and female disconnects, and butt connectors
• Compatible with 22–10 AWG copper wire
• Made in the USA

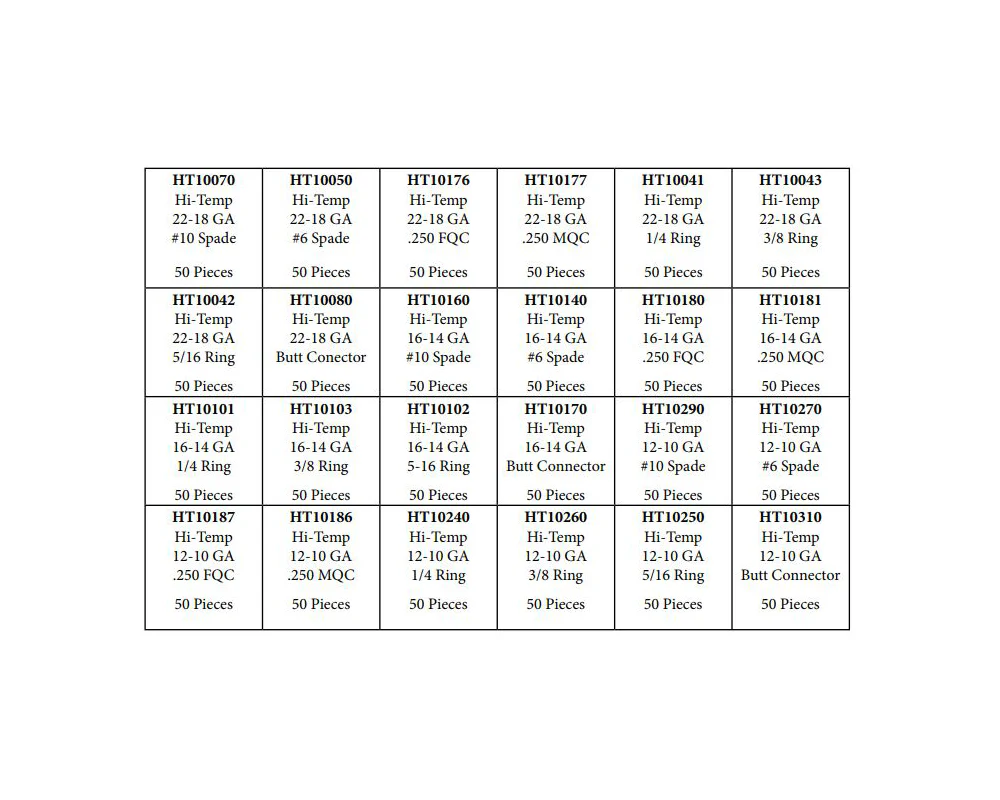

Kit Contents

• 50 – HT10290 – 12-10 AWG #10 Spade Terminal
• 50 – HT10270 – 12-10 AWG #6 Spade Terminal
• 50 – HT10187 – 12-10 AWG .250 Female Disconnect
• 50 – HT10186 – 12-10 AWG .250 Male Disconnect
• 50 – HT10240 – 12-10 AWG 1/4" Ring Terminal
• 50 – HT10260 – 12-10 AWG 3/8" Ring Terminal
• 50 – HT10250 – 12-10 AWG 5/16" Ring Terminal
• 50 – HT10310 – 12-10 AWG Butt Connector
• 50 – HT10160 – 16-14 AWG #10 Spade Terminal
• 50 – HT10140 – 16-14 AWG #6 Spade Terminal
• 50 – HT10180 – 16-14 AWG .250 Female Disconnect
• 50 – HT10181 – 16-14 AWG .250 Male Disconnect
• 50 – HT10101 – 16-14 AWG 1/4" Ring Terminal
• 50 – HT10103 – 16-14 AWG 3/8" Ring Terminal
• 50 – HT10102 – 16-14 AWG 5/16" Ring Terminal
• 50 – HT10170 – 16-14 AWG Butt Connector
• 50 – HT10070 – 22-18 AWG #10 Spade Terminal
• 50 – HT10050 – 22-18 AWG #6 Spade Terminal
• 50 – HT10176 – 22-18 AWG .250 Female Disconnect
• 50 – HT10177 – 22-18 AWG .250 Male Disconnect
• 50 – HT10041 – 22-18 AWG 1/4" Ring Terminal
• 50 – HT10043 – 22-18 AWG 3/8" Ring Terminal
• 50 – HT10042 – 22-18 AWG 5/16" Ring Terminal
• 50 – HT10080 – 22-18 AWG Butt Connector
