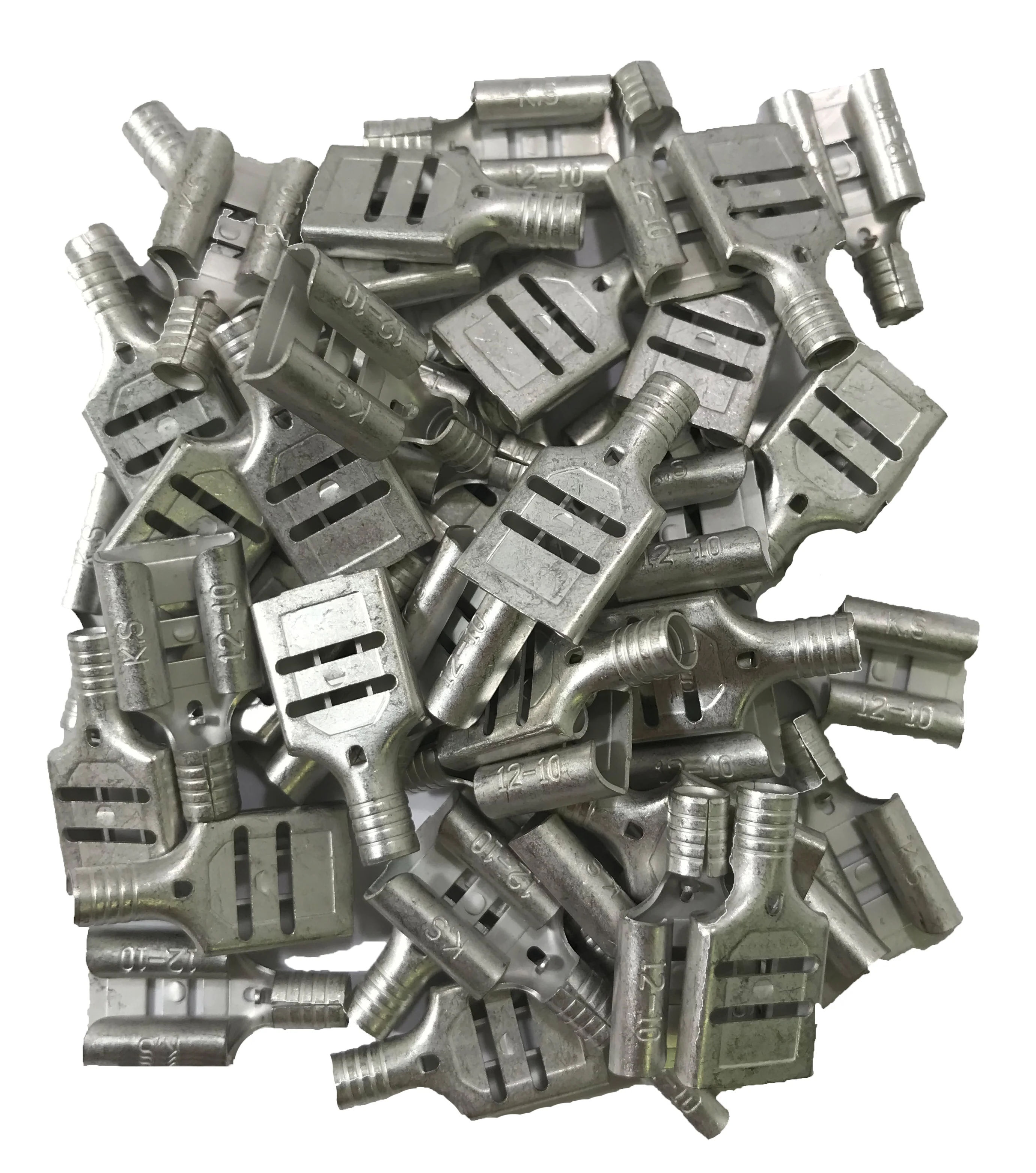

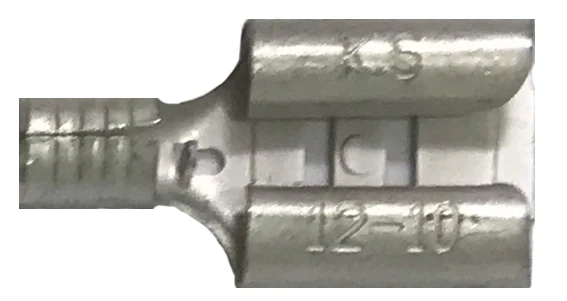

12-10 AWG Non-Insulated Female Quick Disconnect Terminals - .375 Tab Brass - 100 or 1000 Pack - Made in USA

These 12–10 AWG non-insulated female quick disconnect terminals with a .375" tab are built for high-reliability crimp connections in demanding electrical systems. Each terminal is precision-formed from pure copper (Alloy 110), annealed for ductility, and electro tin-plated for enhanced corrosion resistance. A brazed seam and V-groove serrations provide superior tensile strength and optimal electrical conductivity.

Specifications & Features

• Wire Gauge: 12–10 AWG
• Terminal Type: Non-insulated female quick disconnect
• Tab Size: .375" (3/8")
• Material: Pure copper (Alloy 110), annealed
• Plating: Electro tin-plated for corrosion resistance
• Termination Type: Crimp
• Seam Type: Brazed barrel for mechanical durability
• Serration Design: V-groove enhances conductivity and crimp retention
• Voltage Rating: 600V
• Temperature Rating: 230°F (110°C)
• Wire size stamped for easy identification
• Complies with: MIL-T-10727C Type 1 and ASTM B545 plating specs (.0001–.00025")
• Certifications: cULus listed
• Made in USA
