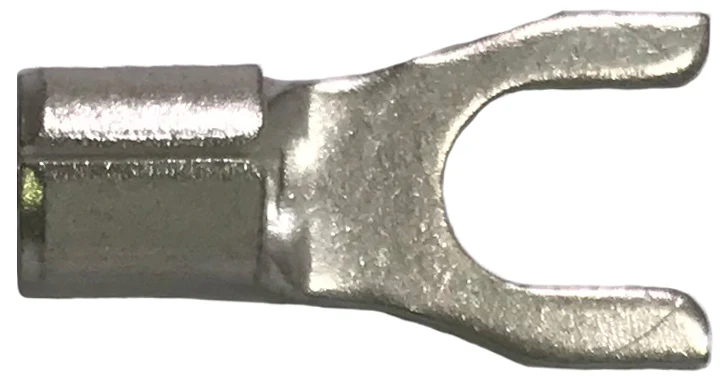

12-10 AWG Non-Insulated Spade Terminals - Tin-Plated Copper - #10 Stud - 100 or 1000 Pack - Made in USA
These 12-10 AWG non-insulated spade terminals are constructed from high-conductivity pure copper (Alloy 110) and finished with an electro tin-plated coating for superior corrosion resistance. Designed for #10 stud sizes, they feature brazed barrel seams and V-groove serrations to ensure maximum electrical contact and tensile strength after crimping.
Specifications & Features
- Wire Gauge: 12-10 AWG
- Stud Size: #10
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Insulation: Non-insulated
- Termination Method: Crimp
- Barrel Seam: Brazed
- Groove Serrations: V-groove for strong crimp retention
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Meets Mil Spec: MIL-T-10727C Type 1; ASTM B 545 B (.0001–.00025 Thick)
- Clear size markings on each terminal for easy identification
- Made in USA
Original: $12.49
-65%$12.49
$4.37Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These 12-10 AWG non-insulated spade terminals are constructed from high-conductivity pure copper (Alloy 110) and finished with an electro tin-plated coating for superior corrosion resistance. Designed for #10 stud sizes, they feature brazed barrel seams and V-groove serrations to ensure maximum electrical contact and tensile strength after crimping.
Specifications & Features
- Wire Gauge: 12-10 AWG
- Stud Size: #10
- Material: Copper (Alloy 110)
- Plating: Electro tin-plated
- Insulation: Non-insulated
- Termination Method: Crimp
- Barrel Seam: Brazed
- Groove Serrations: V-groove for strong crimp retention
- Temperature Rating: 230°F
- Voltage Rating: 600V
- Certifications: cULus
- Meets Mil Spec: MIL-T-10727C Type 1; ASTM B 545 B (.0001–.00025 Thick)
- Clear size markings on each terminal for easy identification
- Made in USA
