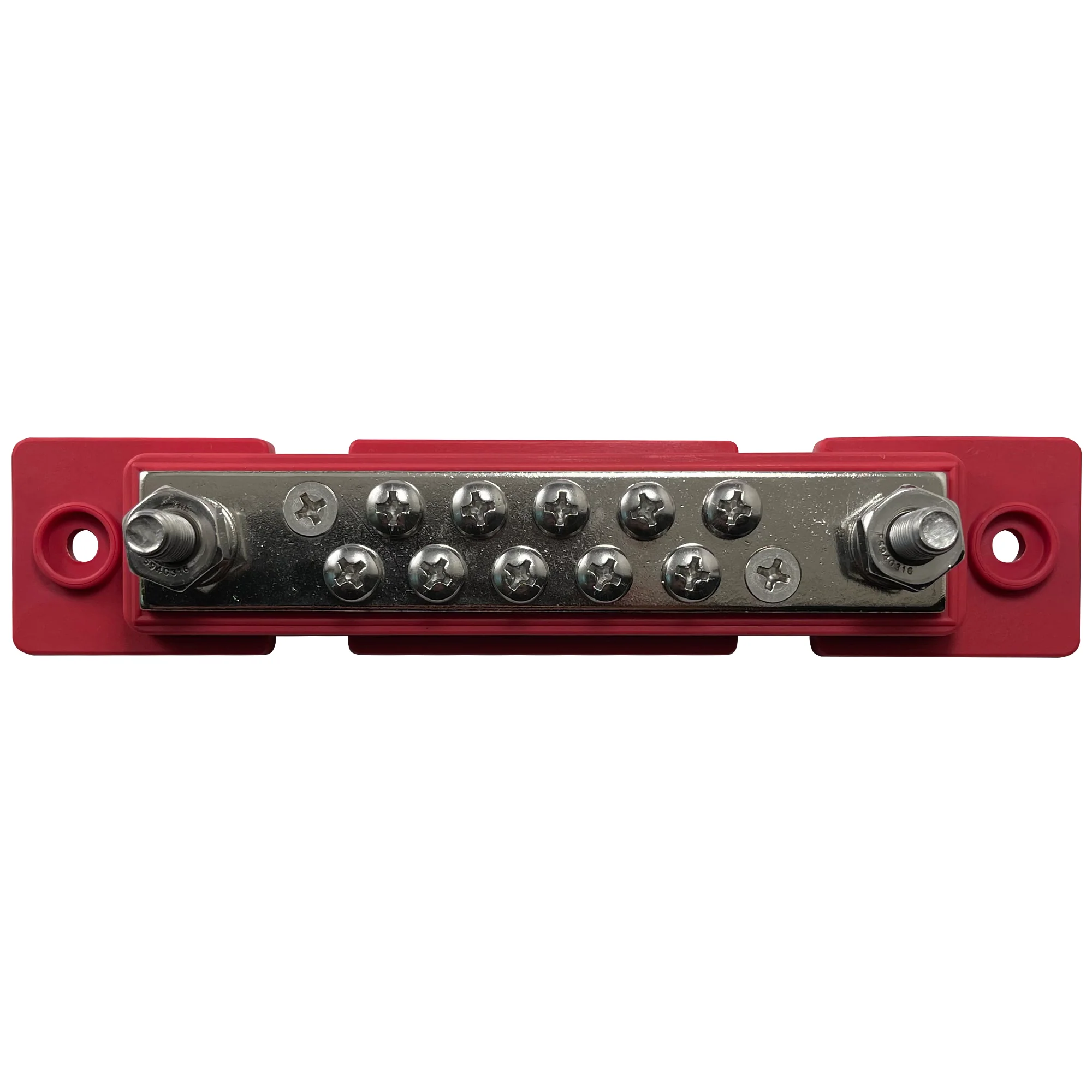

10 Point Terminal Busbar - (2) 1/4" Posts

10 Point Power Distribution Block. This system allows for up to 10 electrical connections, each running up to 15 amps continuous. With the optional terminal cover, the assembly complies with USCG, ISO and ABYC standards requirements.

• 10 connection points, #8-32 stainless steel screws
• Amperage:
• Max continuous: 150 amps @ 12 vdc - 15 amps per connection
• Max intermittent: 20 amps per connection (less than 1 minute)
• Max Voltage: 48 vdc
• (2) 1/4" stainless steel terminal posts
• Stainless steel hex nuts and lock washer

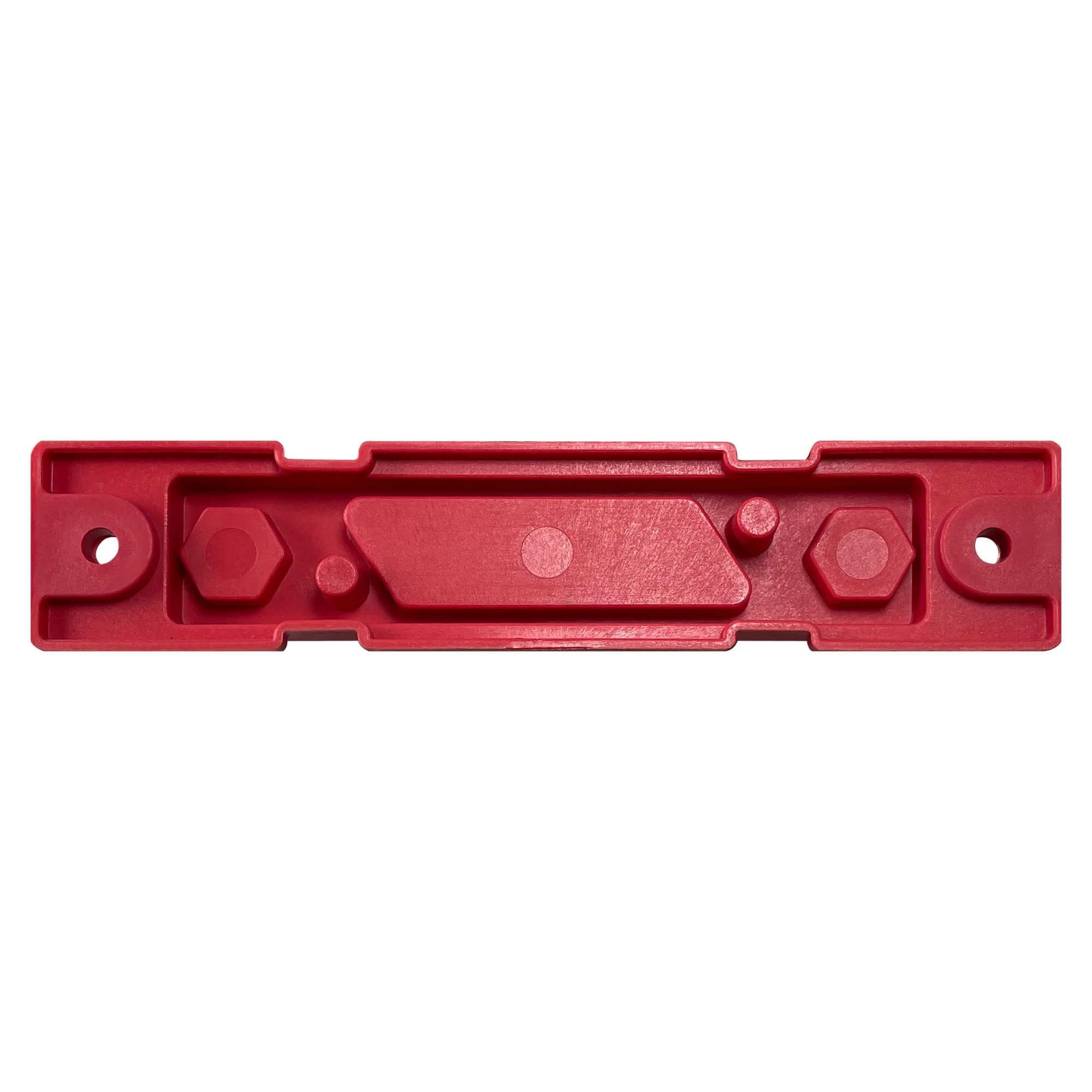

• Base Material: Glass-Filled Nylon (Red & Black)
• Mounting screws: #10 (not included)
• Mounting center: 4.66 in
• When used with insulators, meets USCG 33 CFR Subpart I, SAE J2120 8.5 & ABYC E-9.4 H
• Color - Red
