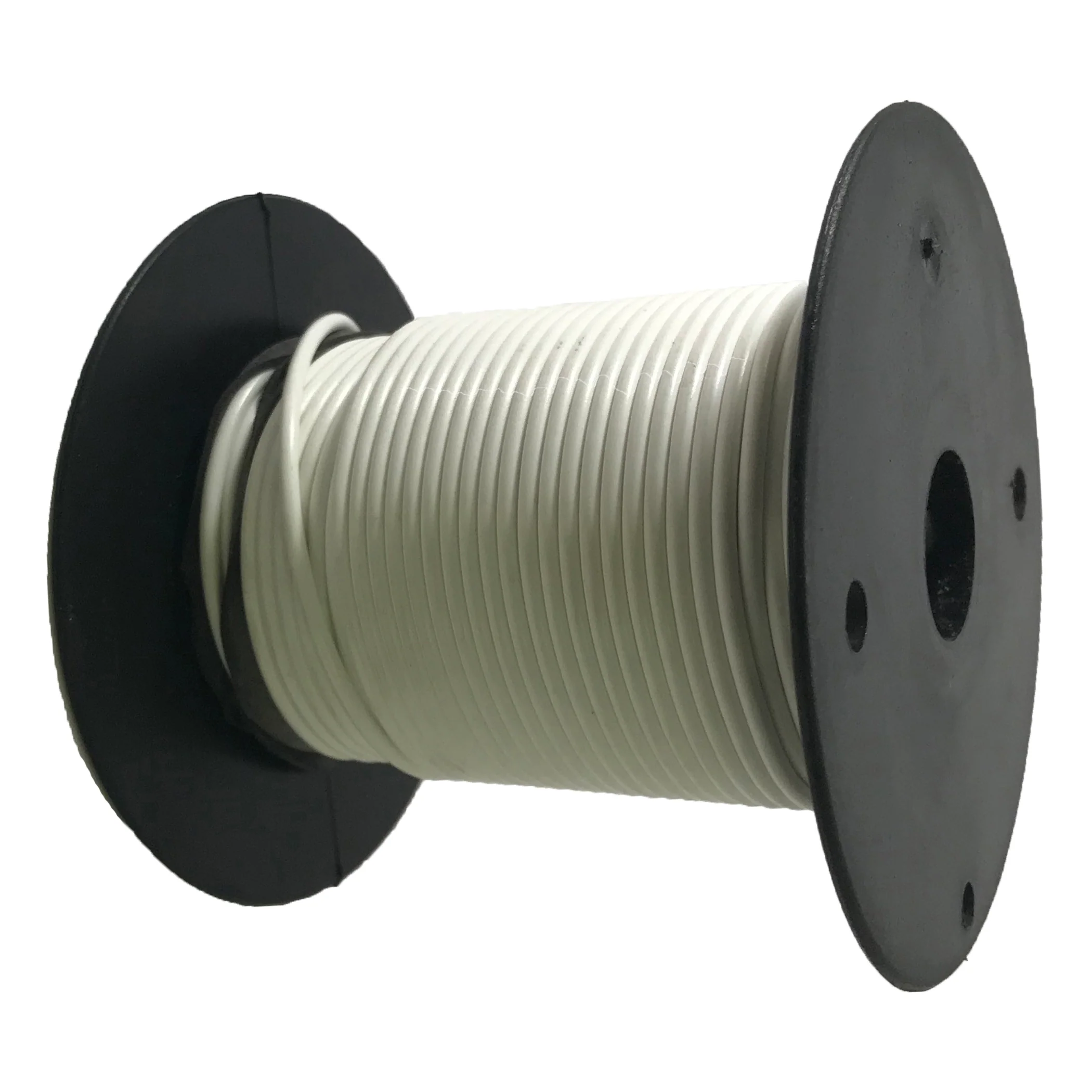

This 22 AWG primary wire is designed for low-voltage automotive and general-purpose electrical applications. Constructed from stranded bare copper and insulated with durable GPT-grade PVC, it offers flexible routing, consistent conductivity, and resistance to heat and abrasion. Supplied here in white, this wire is ideal for circuit identification and compact harness layouts.

Specifications & Features

Gauge: 22 AWG
Conductor Material: Stranded bare copper
Insulation Type: GPT-grade PVC
Voltage Rating: 60V DC / 25V AC RMS
Temperature Rating: Up to 80°C (176°F)

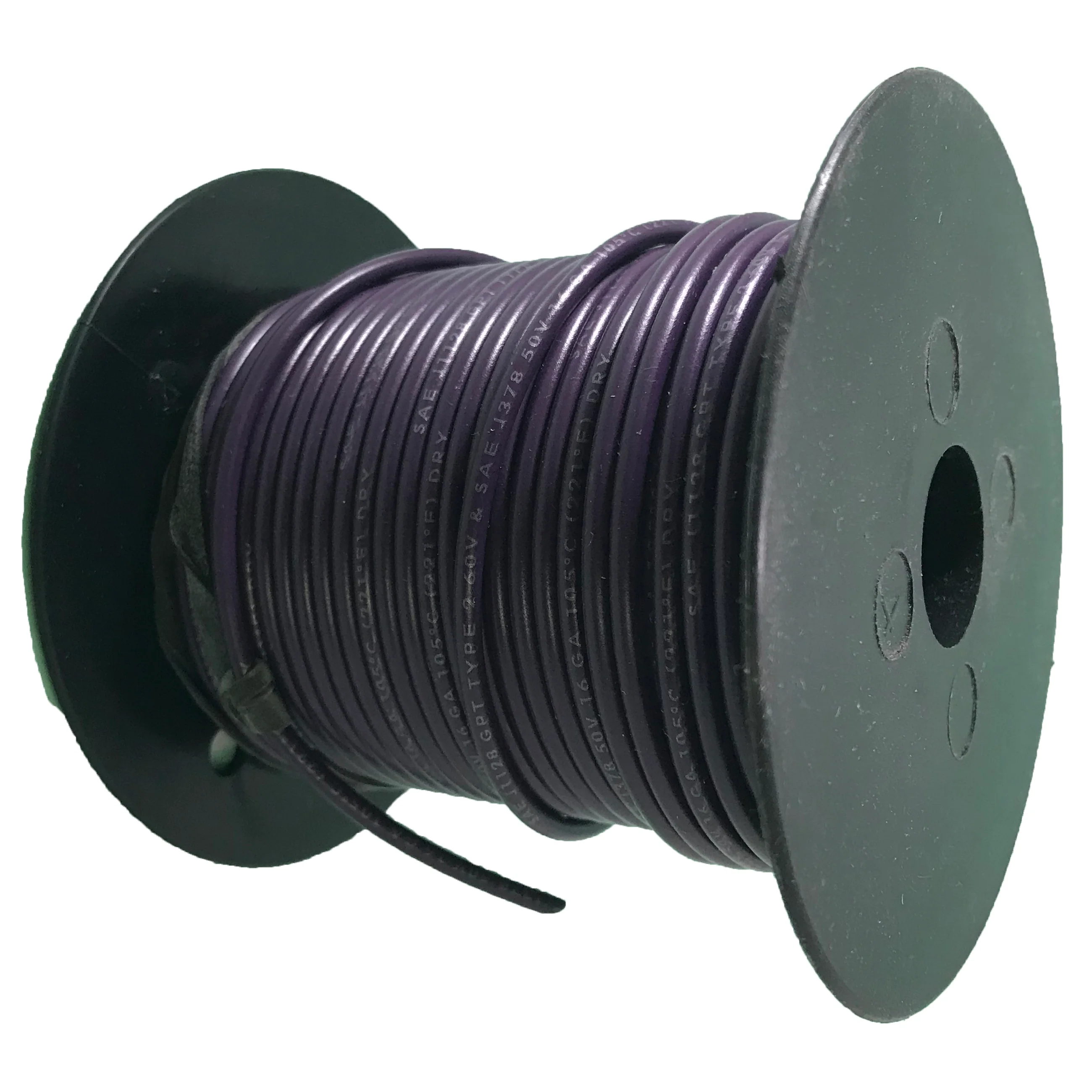

Available Colors: Purple and White
Meets SAE J1128 standards for primary automotive wire
Flexible insulation allows easy routing in tight spaces
Resistant to oil, chemicals, abrasion, and moisture

Application Notes

This 22 gauge GPT wire is ideal for low-

PRY INV - SITE ONLY

22 AWG Primary Wire - GPT Stranded Copper Automotive Wire - 25 ft to 500 ft - Made in USA
